ASUS TUF GAMING B850M-PLUS II AM5 DDR5 PCIe 5.0 Micro-ATX Motherboard

ASUS TUF GAMING B850M-PLUS II, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 2.5G, USB 3.2 Gen2x2, AMD EXPO, mATX
MORE INFO
MORE INFO

Scan code: LN162718 Manufacturer code: 90MB1MT0-M0EAY0
£169.99
£5.48 Next day delivery
Order now and receive it by Wednesday, 8th July
Add To Basket
Get it Wednesday, 08 JulIn stock
Pay in 3 interest-free payments of £56.67

Email me when the availability or price changes

  • By DPD On 8th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £15.40 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

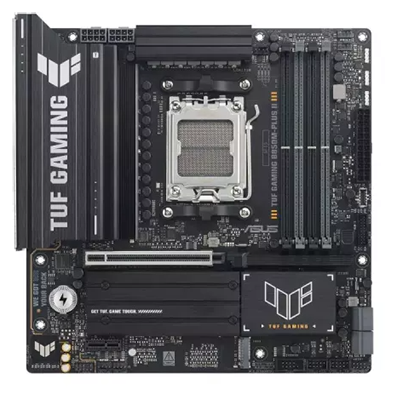

TUF GAMING B850M-PLUS II AM5 Micro-ATX Motherboard from ASUS

TUF GAMING B850M-PLUS II AM5 Micro-ATX Motherboard from ASUS

Get TUF. Game Tough. ASUS TUF GAMING B850M-PLUS II blends the core strengths of the latest AMD Ryzen™ processors with battle-ready features and unmatched reliability. Built with military-grade components, enhanced power delivery, and advanced cooling, it ensures unwavering stability for extended gaming sessions. Every TUF GAMING motherboard undergoes intensive endurance testing to withstand extreme conditions. Designed for the future, this platform provides the performance and connectivity needed for demanding AI-driven PC applications.

AMD B850Chipset

AM5CPU Socket

Ryzen™ 9000/8000/7000Series Processors

mATXForm Factor

Intelligent Control

ASUS AI Advisor interface to highlight its intuitive design

AI Advisor ASUS AI Advisor is your always-on technical specialist from ASUS, ready to help you get the most out of your system. Users with supported ASUS motherboards can chat with this AI-driven assistant in natural language to explore their hardware’s capabilities. New builders can receive simple explanations of intuitive tools like AI Overclocking and fan control, while experienced enthusiasts can access detailed insights and step-by-step guidance on the newest ASUS innovations.

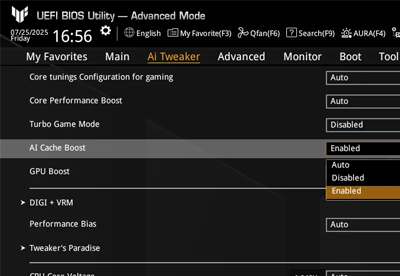

ASUS UEFI BIOS Utility interface with AI Cache Boost selected

AI Cache Boost Accelerate LLM workflows with AI Cache Boost - ASUS-exclusive BIOS tuning for up to 29% faster Ryzen™ 9000 performance.

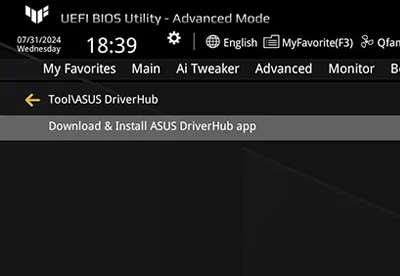

ASUS UEFI BIOS Utility interface with ASUS DriverHub selected

ASUS DriverHub Streamline driver control with automatic detection, instant setup, and updates for faster, more reliable system performance.

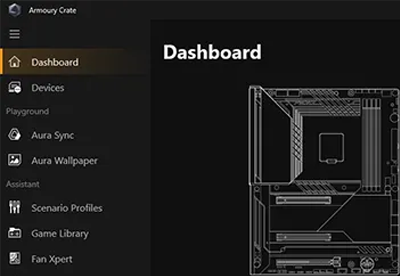

ASUS Armoury Crate software interface, showcasing its menu

Armoury Crate Personalise Aura Sync RGB and manage your ASUS devices with ease. Includes product registration and updates.

Premium Power Design

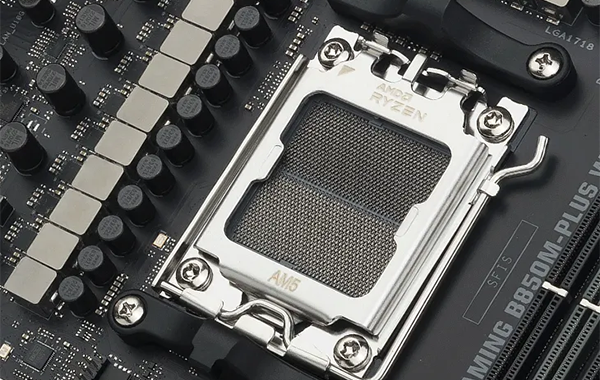

TUF GAMING B850M-PLUS II's AM5 CPU socket to highlight premium performance

Premium Performance Reliable power is essential for getting the best performance from AMD processors. This motherboard is built for high-core-count CPUs, featuring 14(80A) + 2(80A) + 1(80A) power stages that combine MOSFETs and drivers in 80A packages. The design delivers efficient, stable power for outstanding performance on current and future AMD chips.

14 Vcore Power (80A, DrMOS)

2 SOC Power (80A, DrMOS)

1 Misc Power (80A, DrMOS)

Illustration of eight stacked PCBs to highlight the TUF GAMING B850M-PLUS II motherboard’s 8‑layered PCB design

Eight Layered PCB design Enhanced stability and overclocking.

Illustration of a 8+8 pin connector to highlight the TUF GAMING B850M-PLUS II motherboard’s ProCool Power Connectors

ProCool Power Connectors Proprietary 8+8 pin connectors improve PSU connection.

Illustration of chokes and capacitors to highlight the TUF GAMING B850M-PLUS II motherboard’s premium components

TUF Components TUF chokes and capacitors offer rock-solid durability and stability.

Illustration of Digi+ VRM chip to highlight the TUF GAMING B850M-PLUS II motherboard’s real-time voltage control

Digi+VRM Control Real-time voltage control.

Memory & Storage

DRAM Overclocking Performance Extensive memory tuning lies at the heart of TUF GAMING motherboards. They let you unlock the full potential of your DDR5 modules, whether you’re using high-speed kits or entry-level memory that typically remains restricted.

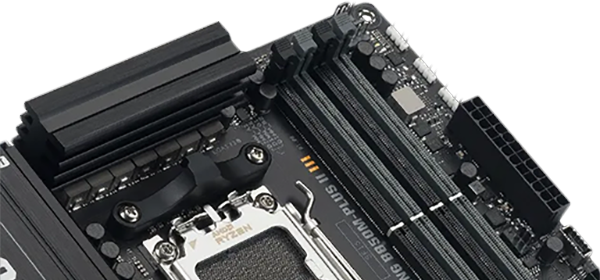

Top right of the TUF GAMING B850M-PLUS II motherboard, highlighting DDR5 memory slots

DDR5 DOMINANCE For users eager to push DDR5 beyond stock speeds, this motherboard is built for high-performance kits with broad AMD EXPO™ support. Experienced builders can fine-tune memory performance through a wide range of UEFI settings.

ASUS AEMP ASUS Enhanced Memory Profile (AEMP) is a unique firmware feature for PMIC-restricted memory modules. It automatically identifies your memory chips and offers optimised frequency, timing, and voltage profiles for easy one-click application.

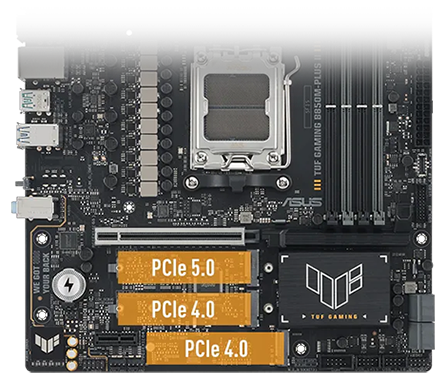

Top-down view of motherboard showing PCIe 5.0 and 4.0 zones.

M.2 PCIe 5.0 Support This motherboard includes a PCIe 5.0 M.2 slot for ultra-fast data transfers up to 128 Gbps, and all M.2 slots support NVMe RAID setups for maximum storage performance.

Bandwidth (Gbps) PCIe 5.0 x4 128 PCIe 4.0 x4 64

Cooler By Design

Enlarged VRM Heatsinks

Enlarged M.2 Heatsink

4-Pin PWM/DC Fan

AIO Pump Header

Temperature Sources

Smart Fan Protect

PCH Heatsink

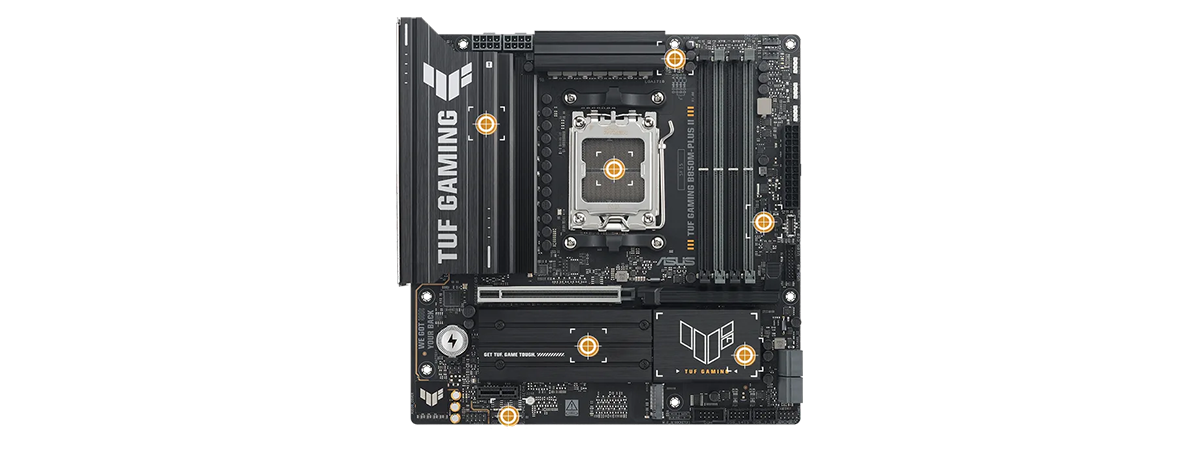

Top-down view of the motherboard with orange markers overlaying various cooling zones of the motherboard

Empowering Connectivity

This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® port and front USB 10Gbps Type-C® connector.

Bandwidth (Gbps) PCIe 5.0 x16 512 PCIe 4.0 x16 256

PCIe 5.0 for Graphics Card​ PCIe 5.0 delivers double the data transfer speed of PCIe 4.0, easily handling modern, data-intensive workloads. It also improves signal integrity through electrical upgrades and provides backward-compatible CEM connectors and support for earlier PCIe generations.

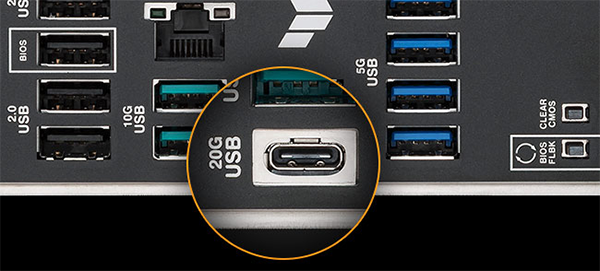

20Gbps rear USB-C connectivity on the rear I/O panel of the motherboard

Rear USB 20Gbps Type-C® Robust USB support provides seamless connectivity for a variety of devices. A rear USB 20Gbps Type-C® port enables ultra-fast data transfers up to 20Gbps.

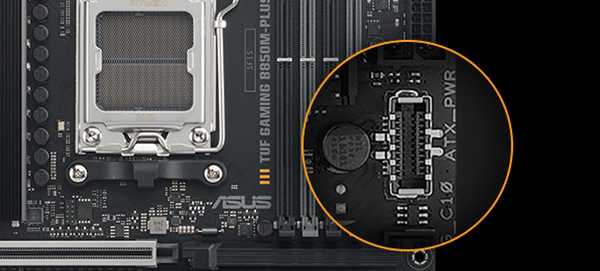

10Gbps front USB-C header on the motherboard

Front USB 10Gbps Type-C® This motherboard includes a front USB 10Gbps Type-C® connector for fast data transfers up to 10Gbps.

Specifications
Core Specifications
Edition TUF GAMING B850M-PLUS II
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 256GB (4x64GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Serial (COM) Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

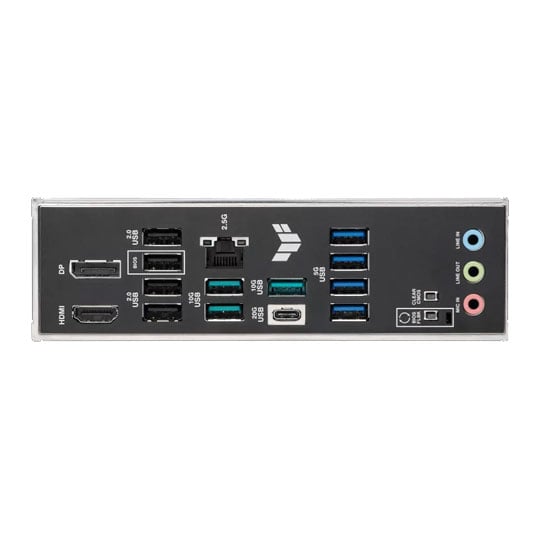

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN162718
Model Number 90MB1MT0-M0EAY0
GTIN 4711636181853
