ASUS TUF GAMING B650E-PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
Offer
ASUS TUF GAMING B650E-PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN158661 Manufacturer code: 90MB1M20-M0EAY0
Was: £174.98£159.98
Get it Tomorrow, 19 JulIn stock
  • Thumbnail 1 : ASUS TUF GAMING B650E-PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : ASUS TUF GAMING B650E-PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : ASUS TUF GAMING B650E-PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : ASUS TUF GAMING B650E-PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
Offer

ASUS TUF GAMING B650E-PLUS WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard

ASUS TUF GAMING B650E-PLUS WIFI, AMD B650, AM5, DDR5, PCIe 5.0, 3x M.2, 2.5G/WiFi 6E, USB 20Gbps, AMD EXPO, ATX

Scan code: LN158661 Manufacturer code: 90MB1M20-M0EAY0
Was: £174.98£159.98
£5.48 Next day delivery
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 19 JulIn stock
Pay in 3 interest-free payments of £53.33

Email me when the availability or price changes

  • By DPD On 20th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £14.50 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

TUF GAMING B650E-PLUS WIFI DDR5 AMD ATX Motherboard From ASUS

TUF GAMING B650E-PLUS WIFI

Get TUF. Game TUF.The ASUS TUF GAMING B650E-PLUS WIFI harnesses the full potential of the latest AM5 Socket for AMD Ryzen™ Desktop Processors, blending essential features with reliable, game-focused performance. Built with military-grade components, enhanced power delivery, and robust cooling, this motherboard is designed for unwavering stability during extended gaming sessions. TUF GAMING boards are subjected to stringent endurance tests, ensuring they perform where others might falter. Visually, the board features a tough off-black finish with geometric accents, embodying the strength and reliability of the TUF GAMING lineup. This platform provides the power and connectivity required for demanding AI PC tasks.

AMD B650Chipset

AM5Socket

9000 & 8000 & 7000 SeriesAMD Ryzen™ Processors

ATXForm Factor

Intelligent Control

For Maximum EfficiencyBuilt on comprehensive controls, the ASUS TUF GAMING B650 motherboard offers a suite of flexible tools that let you fine-tune every part of your system. This enables you to optimise performance settings to align perfectly with your workflow, helping you achieve maximum productivity.

CPU Performance Boost

CPU Performance BoostAMD Precision Boost Overdrive (PBO) is an advanced feature that extends the CPU's power and voltage limits, allowing it to automatically boost performance beyond standard specifications. By fine-tuning PBO settings, AMD's algorithm can take advantage of the motherboard's strong power delivery to push the processor even further, unlocking higher speeds and greater performance for demanding workloads.

UEFI BIOS

UEFI BIOSThe acclaimed ASUS UEFI BIOS delivers all the essential tools for system setup, adjustment, and optimisation. It features an intuitive, user-friendly interface ideal for newcomers, alongside advanced options designed to meet the needs of experienced users.

UEFI BIOS

Armoury CrateASUS-exclusive Armoury Crate streamlines management of supported gaming gear with a unified, user-friendly interface. You can easily customise RGB lighting across all compatible devices and sync them with Aura Sync for coordinated effects. The software also provides access to device settings, Fan Xpert 4, and Two-Way AI Noise Cancelation, while supporting an expanding range of hardware. Armoury Crate includes product registration and a news section to keep you connected with the gaming community.

Rock-Solid Performance

Power Design Featuring enhanced power delivery and extensive cooling solutions to support AMD's newest CPUs, along with compatibility for high-speed memory and storage, TUF GAMING B650 motherboards provide an ideal platform for building your next high-core-count AMD gaming system.

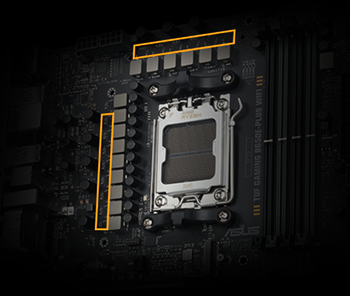

Teamed Power Stages

Teamed Power Stages12(80A)+2(80A)+1(80A) power stages are rated to handle up to 80 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

8+4 PIN ProCool Power Connectors

8+8 PIN ProCool Power ConnectorsASUS ProCool connectors use precise specifications for better contact with PSU cables, reducing impedance to minimise hotspots and lower the risk of connector failure compared to standard inputs.

TUF Components

TUF ComponentsMilitary-grade TUF chokes ensure stable CPU power delivery, boosting system reliability, while TUF 5K black metallic capacitors offer 52% greater temperature tolerance and 2.5 times the lifespan of standard capacitors.

Digi+ VRM

Digi+ VRMThe integrated Digi+ VRM stands out for its industry-leading design, providing consistently smooth and clean power to the CPU for optimal performance at all times.

DDR5 DOMINANCE

DDR5 DOMINANCETUF GAMING B650 motherboards are built for enthusiasts eager to surpass standard DDR5 speeds, thanks to broad AMD EXPO™ support. Experienced users can also fine-tune memory performance using the extensive settings available in the UEFI BIOS.

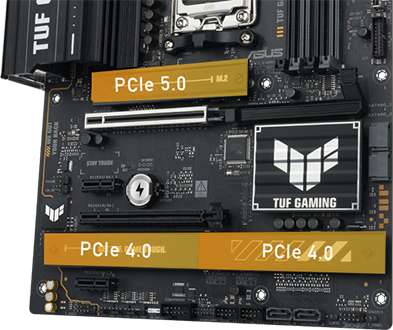

PCIe 5.0 Support

PCIe 5.0 SupportTUF GAMING B650E motherboards also feature one PCIe 5.0 M.2 slot so you can enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.

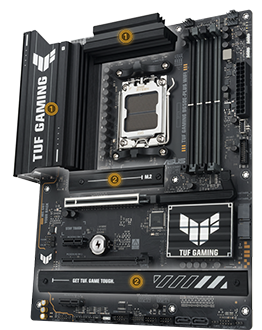

Heatsink

1. Enlarged VRM HeatsinkThis large heatsink spans the VRMs and chokes, enhancing heat dissipation for improved thermal performance.

2. Flexible M.2 Heatsink DesignThe primary M.2 slot features a heatsink that can also cool the second M.2 slot, maintaining optimal SSD temperatures for reliable, consistent performance.

Connectivity

ConnectivityTUF GAMING B650 motherboards unlock greater performance with the latest PCI Express technology, while numerous USB ports, including two Type-C® - enhance compatibility and increase data transfer bandwidth.

Experience Immersive Gaming

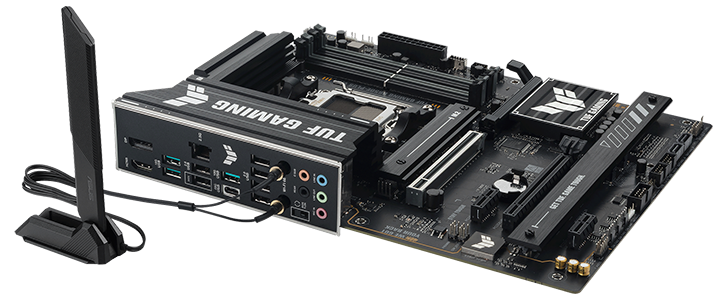

WiFi 6E

WiFi 6EBuilt-in WiFi 6E utilises the new 6 GHz band, offering ultra-fast wireless speeds, increased network capacity, and enhanced performance in crowded wireless environments.

2.5 Gb EthernetThe onboard 2.5 Gb Ethernet boosts your LAN speed by up to 2.5 times, enabling smoother gaming, instant high-res streaming, and faster file transfers—all using your existing network cable.

Two-Way AI Noise CancelationThis exclusive ASUS tool uses advanced deep-learning technology to filter out background noise from both your microphone and incoming audio, ensuring voices stay clear. It eliminates distractions like keyboard clicks and ambient sounds, so communication remains crisp during gaming or calls.

AI Audio

500mDeep-Learning Database

AudioInput/Output

HighFidelity

MinimalPerformance Impact

Specifications
Core Specifications
Edition TUF GAMING B650E-PLUS WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Front Panel USB Type-C Header
  • 1 x Front USB 3.2 Gen1 Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek (2.5GbE LAN)

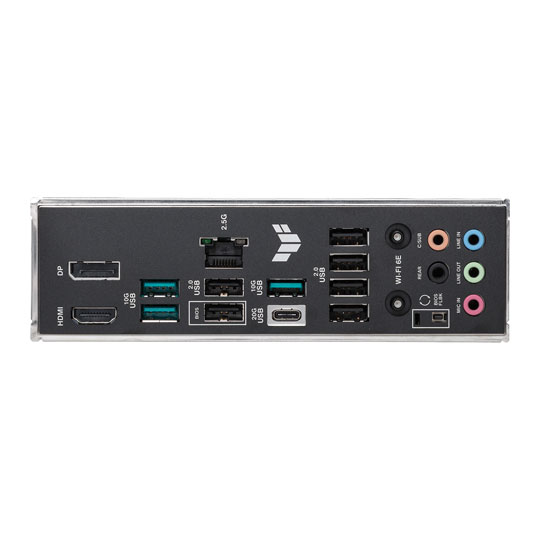

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 6 x USB 2.0
  • 3 x USB 3.1
  • 1 x USB Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN158661
Model Number 90MB1M20-M0EAY0
GTIN 4711387995488
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
1 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
Loading Please Wait

Please wait . . .

Buying Guide
Need help choosing the right board? Read our AMD Motherboard Buying Guide
