Scan code: LN111880 Manufacturer code: TUF GAMING B450M-PRO II

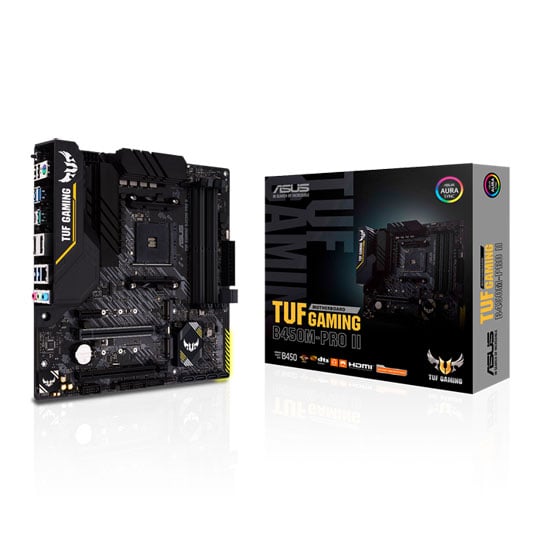

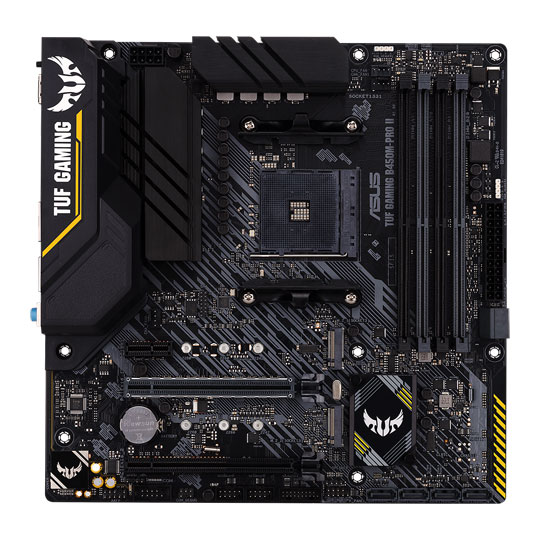

ASUS AMD Ryzen TUF GAMING B450M-PRO II AM4 PCIe 3.0 mATX Motherboard

ASUS TUF GAMING B450M-PRO II, AMD B450, AM4, DDR4, PCIe 3.0, Dual M.2, 2-Way CrossFire, GbE, USB 3.2 Gen2, MicroATX

Thumbnail 1 : ASUS AMD Ryzen TUF GAMING B450M-PRO II AM4 PCIe 3.0 mATX Motherboard Thumbnail 2 : ASUS AMD Ryzen TUF GAMING B450M-PRO II AM4 PCIe 3.0 mATX Motherboard Thumbnail 3 : ASUS AMD Ryzen TUF GAMING B450M-PRO II AM4 PCIe 3.0 mATX Motherboard Thumbnail 4 : ASUS AMD Ryzen TUF GAMING B450M-PRO II AM4 PCIe 3.0 mATX Motherboard
Scan code: LN111880 Manufacturer code: TUF GAMING B450M-PRO II
£99.98
Order now and receive it by Wednesday, 27th January
From £8.98 / month (APR 14.9%)
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 27th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

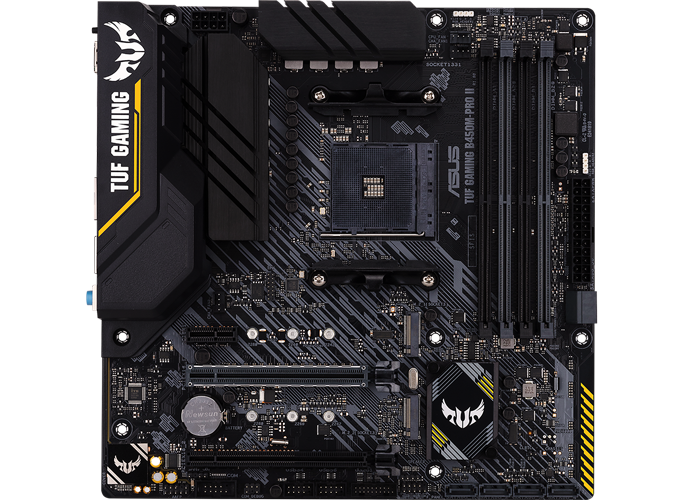

ASUS TUF GAMING B450M-PRO II AM4 mATX Motherboard

Pro

Durable. Stable. Reliable. The TUF Gaming B450M-Pro II is designed, engineered and tested to thrive in conditions other motherboards would struggle, built from military grade components, an amped-up power and comprehensive cooling solutions like, VRM heatsinks, PCH heatsinks and Fan XPERT 2+ support. Combined with dual M.2 slots, USB 3.2 Gen2 Type-A and Type-C connectivity, solid gaming audio a Realtek LAN connection and AURA SYNC RGB support the B450M-PRO II has what it takes to deliver the rock solid performance with unwavering gaming stability that is required by Ryzen 3rd Generation CPUS.

AMD B450Chipset

AM4Socket

3rd/2nd/1st GEN AMD RYZENCPU Compatibility

Mini-ATXForm Factor

Built to Take the Strain

POWER DELIVERY ENHANCEMENTS With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster storage and connectivity, TUF GAMING B450M-PRO II is the perfect foundation for your next high-core-count battle rig.

Power Delivery Enhancements

Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds..

Power Delivery Enhancements

DIGI+VRM The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Power Delivery Enhancements

TUF ChokesCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.

Cooler by Design

fwf

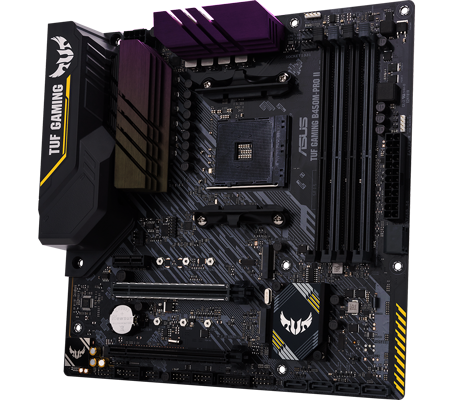

VRM HeatsinkA large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

Thermal PadHigh-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

Thermometer sensors

Multiple temperature sources Each header can be set to monitor and react to two user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.​​

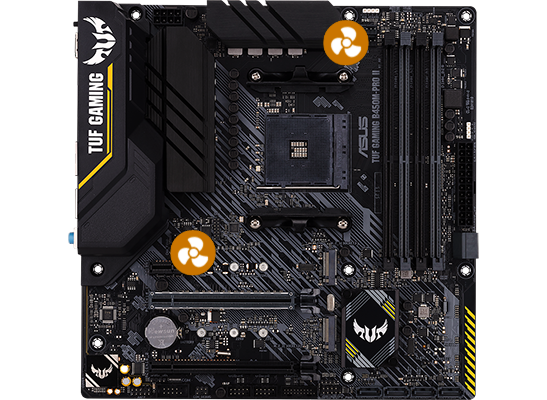

Fan detectors and headers

4-pin PWM/DC Fan All onboard chassis fan headers support PWM/DC fans.

 bundled extension card

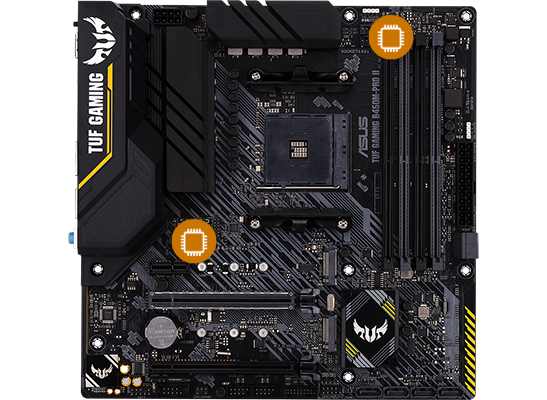

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

The Software that gives you Complete Control

ASUS Armory CrateArmoury Crate is a new software utility designed to give you centralised control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for unified system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

Get the Transfer Speeds you Deserve

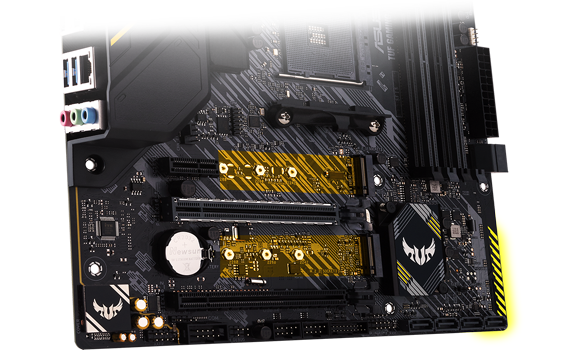

Dual M.2

Dual PCIe 3.0 M.2TUF GAMING B450M-PRO II supports PCIe 3.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 3.0 storage device to enjoy the fastest data-transfer speeds on the 3rd/2nd/1st Generation AMD Ryzen platform.

Please Note

The M.2_1 supports PCIe 3.0 x4 and the M.2_2 supports PCIe 3.0 x2.

Protection for Your PCIe Slots

ASUS Safeslot

ASUS SafeSlotSafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Connections at your Fingertips

RearI/O

Little Things Make a Big Difference

Trustworthy Stability and Compatibility TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

OVervoltage Protection

Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Stainless-Steel Back I/O

LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Specifications
Core Specifications
Edition TUF GAMING B450M-PRO II
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3533(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x2/SATA
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x RGB Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)

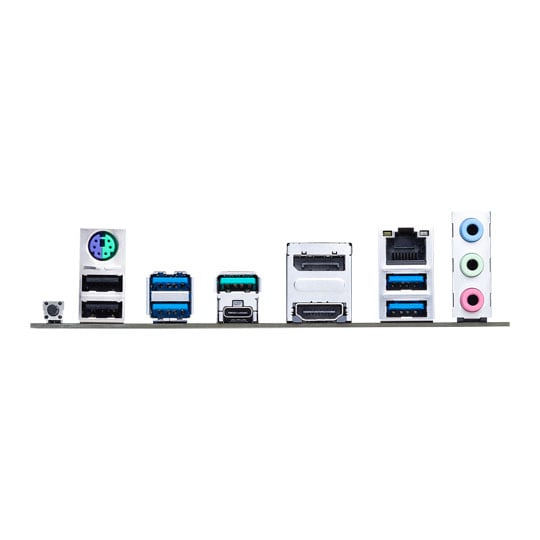

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN111880
Model Number TUF GAMING B450M-PRO II
GTIN 4718017924665
