Scan code: LN68454 Manufacturer code: 90YB00J0-M1UA00

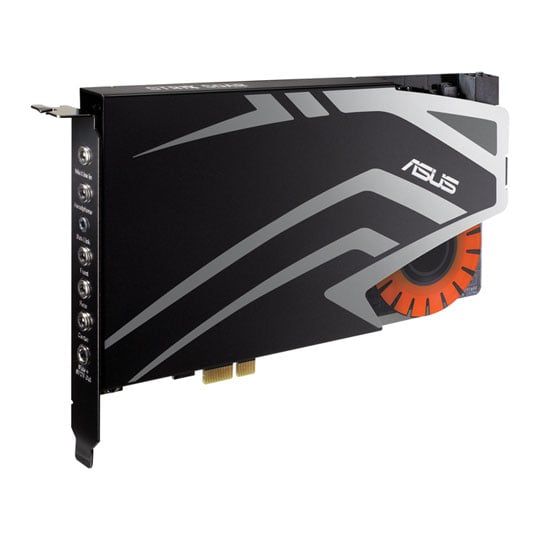

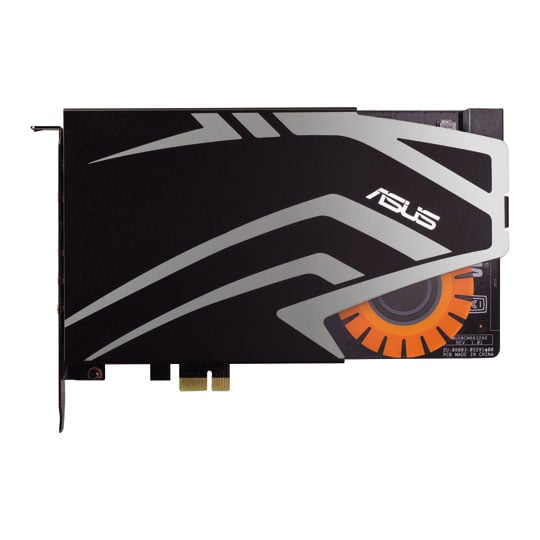

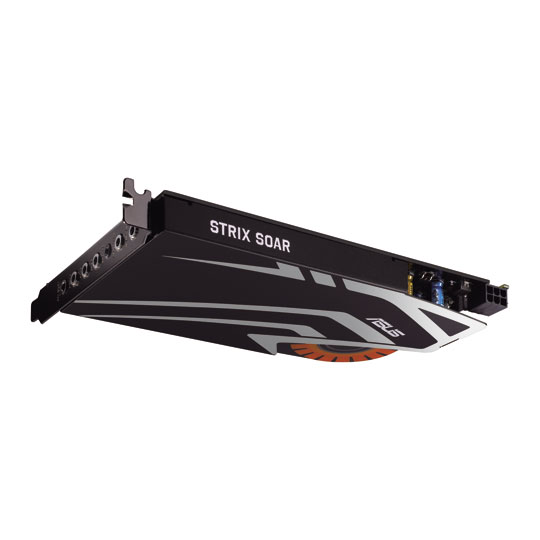

ASUS STRIX SOAR PCIe 7.1 Surround Gaming Soundcard with DAC

ASUS STRIX SOAR 7.1 Surround Sound PCIe x1 Gaming Sound Card with audiophile-grade DAC, 116dB SNR, 600ohm Headphone Amp

MORE INFO
MORE INFO
Thumbnail 1 : ASUS STRIX SOAR PCIe 7.1 Surround Gaming Soundcard with DAC Thumbnail 2 : ASUS STRIX SOAR PCIe 7.1 Surround Gaming Soundcard with DAC Thumbnail 3 : ASUS STRIX SOAR PCIe 7.1 Surround Gaming Soundcard with DAC Thumbnail 4 : ASUS STRIX SOAR PCIe 7.1 Surround Gaming Soundcard with DAC
Scan code: LN68454 Manufacturer code: 90YB00J0-M1UA00
3xs Approved
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£69.98
Add To Basket
Get it Tomorrow, 29 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

ASUS 7.1 STRIX SOAR PCIe Gaming Sound Card

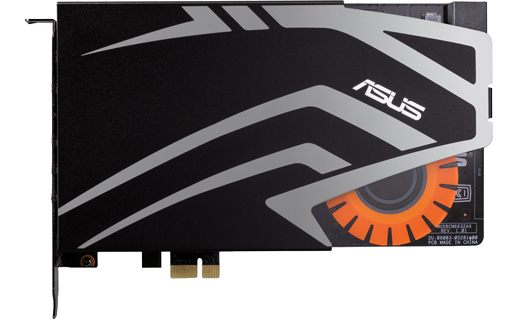

Strix SOAR

Fine Tune Your Audio The Strix Soar is a gaming sound card built with high-performance components to satisfy gamers who demand pure, full-sounding audio. Strix Soar features rich, immersive, and clear sound with an incredible 116dB signal-to-noise ratio (SNR), and a 600ohm headphone amplifier for deep, tight bass. The simple yet powerful Sonic Studio sound utility provides complete sound card control and allows easy in-game audio adjustments.

Total Audio Control with SonicStudio

4K Recording

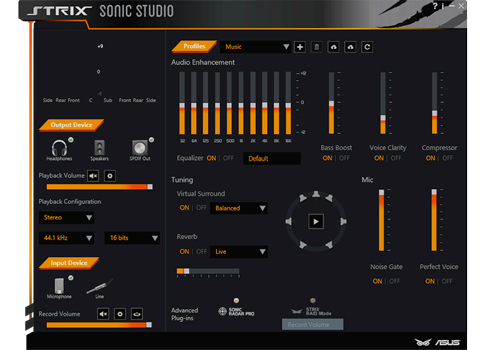

Easy Use Intuitive Audio SoftwareStrix Soar features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.

Give Yourself the Upper Hand

4K Recording

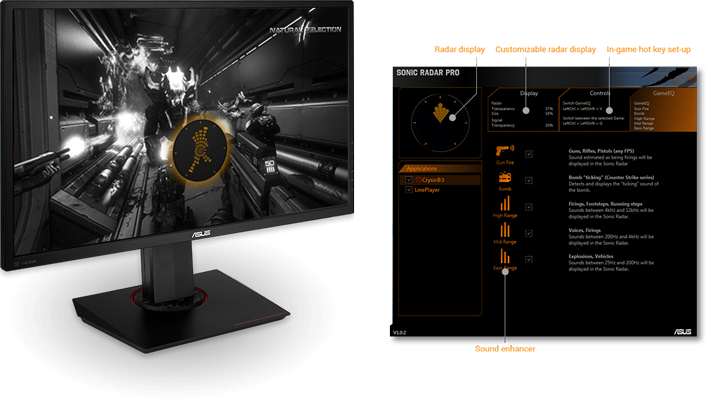

Sonic Radar ProThese days games are much more than graphics, precise and positional audio cues gives the gaming enthusiast the advantage over their enemies. Strix Soar includes Sonic Radar Pro, an ASUS exclusive technology that visualizes and enhances in-game sounds, giving you a vital edge in first-person shooters. Multiple radar-enhancers can be enabled in order to visualise and boost specific sounds such as footsteps, gunshots, and call-outs. Sounds are plotted on the 360-degree HUD, even when there's no clear line of sight, so invisibility is no barrier to pinpointing opponents, giving you a distinct advantage over other players! What's more, Sonic Radar's on-screen appearance and position is completely customisable, so you can make it work just the way you want, with whatever game you want!

Specifications
Edition STRIX SOAR
Max. Speaker Channel Configuration 7.1 Surround Sound
Interface PCIe 2.0 (x1)
Audio Processor C-Media USB2.0 6632AX HD Sound Processor
Digital-to-Analog Converter (DAC) ESS SABRE9006A Premier 8 Ch. Audio
Dynamic Range
Signal-to-Noise Ratio 110 ~ 116 dB
Frequency Response 10 Hz to 48 KHz (-3dB, 24bit/96KHz input)

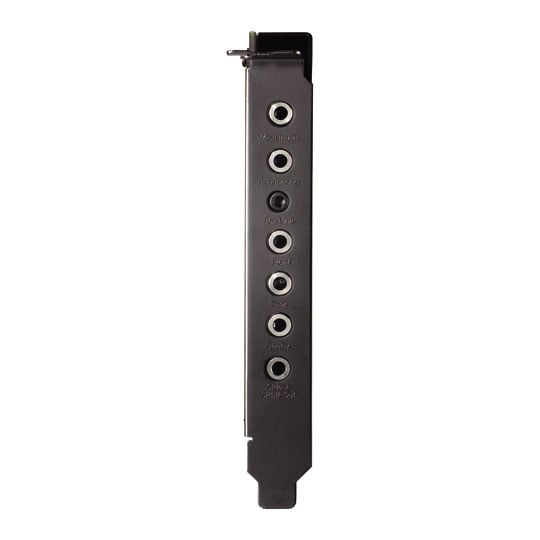

Inputs/Outputs
  • 1 x 3.5mm (1/8") Jack In
  • 5 x 3.5mm (1/8") Jack Out
  • 1 x S/PDIF 3.5mm/Optical Combo Out
Analog Sample Rate
  • 176.4 KHz
  • 192 KHz
  • 44.1 KHz
  • 48 KHz
  • 88.2 KHz
  • 96 KHz
Analog Resolution
  • 16-bit
  • 24-bit
Digital Sample Rate
  • 192 KHz
  • 44.1 KHz
  • 48 KHz
  • 96 KHz
Digital Resolution
  • 16-bit
  • 24-bit
Headphone Amp Yes
Headphone Amp Rating 600 Ohm
Supported Headphone Impedance
Remote Control No
Control Unit No
Breakout Box No
Included Accessories
  • 1 x Driver CD
  • 1 x Quick Start Guide
  • 1 x S/PDIF Optical Adaptor
Compatible OS
  • Windows 10 (32 bit)
  • Windows 10 (64 bit)
  • Windows 7 SP1 (32 bit)
  • Windows 7 SP1 (64 bit)
  • Windows 8 (32-bit)
  • Windows 8 (64-bit)
  • Windows 8.1 (32 bit)
Dimensions 130 x 22 x 190 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN68454
Model Number 90YB00J0-M1UA00
GTIN 4712900005974
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
RTB Period:
24 months
Manufacturer Contact Details
ASUS STRIX SOAR 7.1 Surround Sound PCIe x1 Gaming Sound Card with audiophile-grade DAC, 116dB SNR, 600ohm Headphone Amp is rated 3.0 out of 5 by 2.
Rated 5 out of 5 by from Great value for money Had some audio issues and was considering to go for a dedicated solution. Was looking between the ASUS Soar and the Raid version, and eventually settled for the SOAR. I'm more than happy with my choice. The sound reproduction is very good, even though I'm only using a 2.1 system. The microphone clarity is very good. The software ASUS provides is of a good quality which gives ample choices even to the initiate in the sound domain. If I had to choose again, I'd still get the Soar.
Date published: 2016-01-14
Rated 1 out of 5 by from Decent hardware let down by terrible drivers I got this to replace the on-board MSI audio (which was too quiet). However, I have 3 problems with this product. 1. It requires a separate 6-pin connector. I don't know why I needs this, other sound cards do not require this. 2. The driver software (under Win10) is terrible and simply does not work as required. 3. This sound card makes a switching/clicking noises all the time when the PC is turned on/off. Not a problem, but annoying. I got rid of this and purchased a SoundBlaster ZX instead, which is excellent.
Date published: 2015-12-28
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_68454, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Does this card have rca inputs

Asked by: Claggy
According to the manufacturer site, this comes with: Analog Output 5 x 3.5 mm jack (1/8") (Headphone out /Front out/Side out/Center-Subwoofer out/Rear out) Analog Input 1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo) Digital 1 x S/PDIF out ((combo with side out))
Answered by: DavidScan
Date published: 2020-07-30
