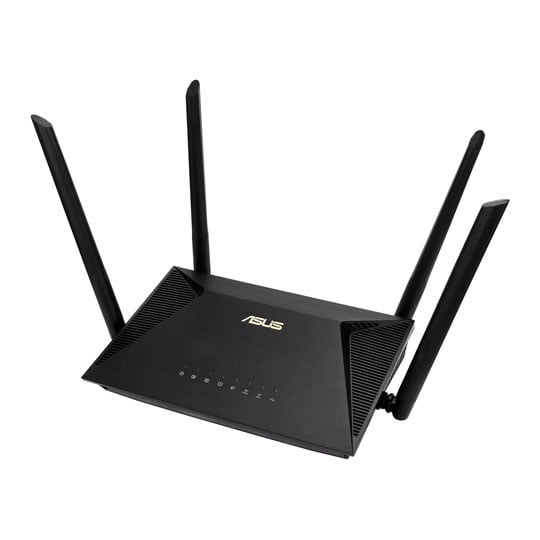

ASUS RT-AX53U WiFi 6 AX1800 Dual-Band Router

ASUS RT-AX53U WiFi 6 Router, AX1800, 4x Antennas, MU-MIMO, OFDMA, Dual-Band 2.4+5GHz (574+1201Mbps), 802.11ax

Thumbnail 1 : ASUS RT-AX53U WiFi 6 AX1800 Dual-Band Router Thumbnail 2 : ASUS RT-AX53U WiFi 6 AX1800 Dual-Band Router Thumbnail 3 : ASUS RT-AX53U WiFi 6 AX1800 Dual-Band Router Thumbnail 4 : ASUS RT-AX53U WiFi 6 AX1800 Dual-Band Router
Scan code: LN121903 Manufacturer code: 90IG06P0-MO3500
£75.98Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS RT-AX53U AX1800 Dual Band WiFi 6 Router

ASUS RT-AX53U Router

Superspeed Your Network Meet the ASUS RT-AX53U, this dual-band router represents the change in the way we surf. The number of connected personal and IoT devices has grown leading an increase in network density that is pushing the limits of the current Wi-Fi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Next Generation Wi-Fi Speeds

1.5x faster than previous generationsRT-AX53U is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — RT-AX53U is 1.5X faster than 802.11ac 2x2 dual-band routers.

Multi devices

Built for Multi-device HouseholdsWith a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac Wi-Fi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax Wi-Fi standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.

Battery Saver

Better Battery LifeTarget Wake Time (TWT) allows RT-AX53U to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life.

Range

WiFi that Goes FartherWith the latest 802.11ax WiFi standard featuring OFDMA technology, RT-AX56U provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better WiFi connection throughout your home.

More Privacy, anywhere

AiProtection

AIprotection Pro

Parental Controls

Advanced Parental Controls

Essential Network protectionRT-AX53U incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend Micro™ Smart Home Network. With AiProtection, all connected devices are protected, even if they have no antivirus capability of their own — such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers.

Specifications
Networking, Connectivity & Ports
Model AX53U
Form-Factor Desktop
Device Type Router
Compatible Internet Connections Existing WiFi Network
Network Connectivity 10/100/1000

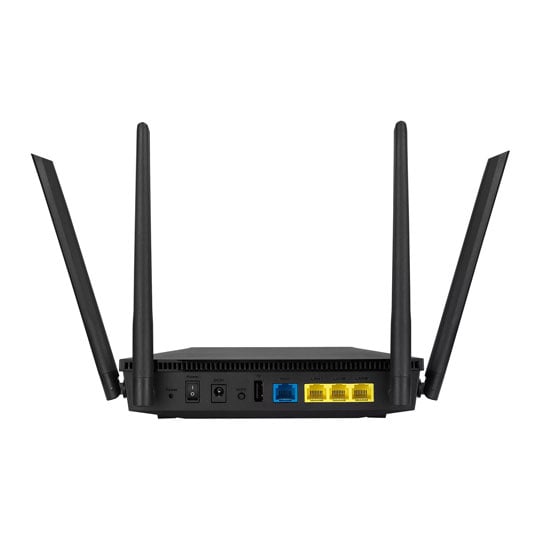

Network Ports
  • 3 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors
  • 1 x USB 2.0
  • 1 x USB 3.1
USB Applications 3G/4G Sharing
Wired Protocols
  • IPv4
  • IPv6
Total LAN Connections 3
Total WAN Connections 1
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 1800 (600+1200) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IPv4
  • IPv6
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 2 External
Core Features
Features
  • Adaptive QoS
  • AiCloud
  • AiProtection Pro
  • Beamforming
  • DHCP Server
  • Download Master
  • DynDNS
  • Guest Network
  • IPv6 Support
  • MU-MIMO
  • Power Save
  • Static Routing
  • Traffic Analyser
  • Traffic Monitor/Quality of Service (QoS)
  • WiFi Bandwidth Limiter
  • Wireless Schedule
Router/Modem Processor
Internal RAM Memory 256GB
Internal RAM Memory Type
Internal Flash Memory 128GB
LED Indicators
  • 1 x 2.4 GHz Wi-Fi LED
  • 1 x 5 GHz Wi-Fi LED
  • 3 x LAN LED
  • 1 x Power LED
  • 1 x USB LED
  • 1 x WAN Activity LED
Buttons
  • 1 x Power Button
  • 1 x Reset Button
  • 1 x WPS Button
OS Support
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols
  • Guest Network
  • Open System
  • WPA
  • WPA-Enterprise
  • WPA2
  • WPA2-Enterprise
  • WPA3
Firewall/NAT Yes
Management
  • DDNS
  • DHCP
  • DMZ
  • Parental Control
  • Port Forwarding
  • Port Trigger
  • SSH
  • System Event Log
VPN Support
  • IPSec Pass-Through
  • L2TP Client
  • OpenVPN Client
  • OpenVPN Server
  • PPTP Client
  • PPTP Server
Physical Specifications
Dimensions
Weight 346 g
Additional Specifications
Note N/A
Additional Information
Scan Code LN121903
Model Number 90IG06P0-MO3500
GTIN 4711081059868
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
