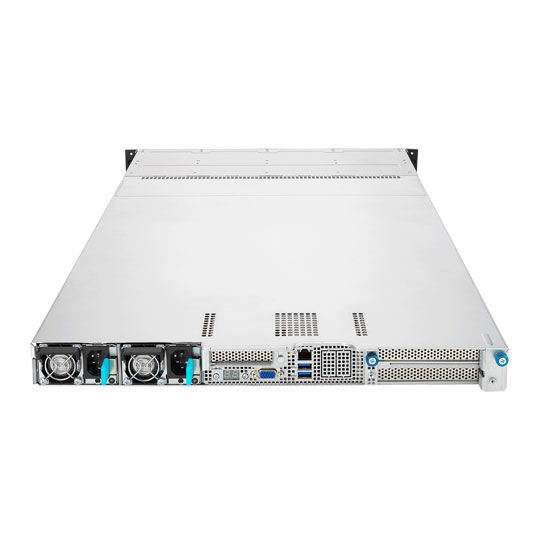

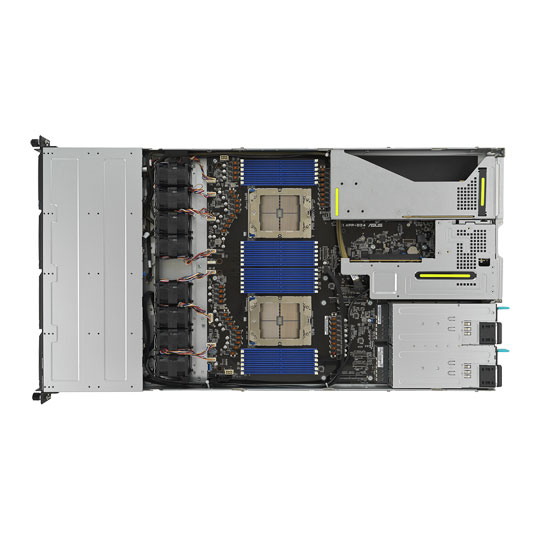

ASUS RS700A-E12 AMD EPYC 9004 Series SP5 1U 4 Bay GPU Barebone Server (2600W PSU)

Faster Storage, Graphics and Networking Capabilities

PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

AMD EPYC™ 9004 Series Processors

The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.

CPU-Balanced Architecture
The new AMD EPYC 9004 processors excel at providing full features and functionality for both dual-socket and single-socket platforms. ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.

This architecture extends the full bandwidth to either dual- or single-CPU configurations, enabling more computing capability and much-improved overall power efficiency for compute-intensive workloads. This architecture allows customers to take full advantage of bandwidth capabilities of the dual-CPU architecture with a single CPU, while offering the flexibility to upgrade later with the addition of a second CPU.

Computing Performance

ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.

Core Optimiser
Maximises the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.

Engine Boost
Automatic power acceleration with an innovative voltage design to increase server overall performance.

Workload Presets
Preconfigured BIOS server profiles based on workloads and benchmarks for improved performance and efficiency.

Power Efficiency

ASUS select servers achieved most power efficiency positions on the SPEC Power benchmark for energy efficiency and demonstrate to customers how they can achieve faster deployments and higher energy efficiency for their IT infrastructure.

ASUS Power Balancer
Adjust overall loading automatically based on real-time monitoring to decrease overall power consumption for Improved efficiency and cost/performance optimization.

Thermal Radar 2.0
Features intelligent fan-curve adjustments to fit the real-time server usage patterns and lower fan power consumption.

Scalable Storage Solution

This server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.

Accelerating Performance for AI Workloads

This server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting up to four dual-slot active or passive GPUs, and Xilinx Alveo accelerators. The scalable configurations in one 2U system provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

NVIDIA Omniverse

ASUS solutions for Omniverse give your organization a comprehensive package for Omniverse Enterprise. The diverse portfolio allows us to tailor a package to be fully compatible with your design environment and needs. As ASUS's long-term partnership with NVIDIA and ISV certifications, we’re fully invested in the Omniverse ecosystem and ready to help partners develop new segments on this exciting platform.

Front Bezel Protection

ASUS servers are designed with optional front bezel with a lock that has been tested and supported by ASUS's technical team to avoid accidental usage or removal and ensure your data center is fully safe.

Server-Management Solution

Remote Server Management
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

IT Infrastructure Management Software
ASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.

Enhanced Security

ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

• Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket.
• Scale-up storage and expansion design: A total of 4 bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and three PCIe 5.0 slots for higher bandwidth and system upgrade.
• Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity.
• Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with up to a maximum 400W TDP.
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution.
• Read for AI and HPC workloads: Up to one dual-slot GPU, including NVIDIA A100 and A40, AMD Instinct and Xilinx.
