Scan code: LN105314 Manufacturer code: ROG ZENITH II EXTREME ALPHA

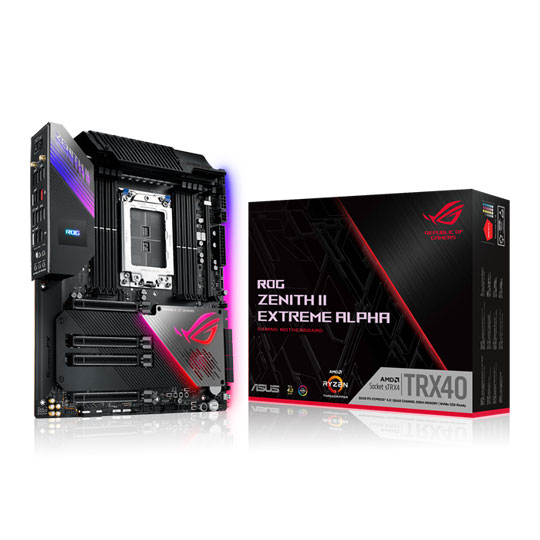

ASUS AMD Threadripper ROG Zenith II Extreme Alpha TRX40 PCIe 4.0 E-ATX Motherboard

ASUS ROG Zenith II Extreme Alpha, AMD TRX40, sTRX4, DDR4, PCIe 4.0, 4x M.2, 10GbE, ax WiFi, USB 3.2 Gen2, E-ATX

Thumbnail 1 : ASUS AMD Threadripper ROG Zenith II Extreme Alpha TRX40 PCIe 4.0 E-ATX Motherboard Thumbnail 2 : ASUS AMD Threadripper ROG Zenith II Extreme Alpha TRX40 PCIe 4.0 E-ATX Motherboard Thumbnail 3 : ASUS AMD Threadripper ROG Zenith II Extreme Alpha TRX40 PCIe 4.0 E-ATX Motherboard Thumbnail 4 : ASUS AMD Threadripper ROG Zenith II Extreme Alpha TRX40 PCIe 4.0 E-ATX Motherboard
Scan code: LN105314 Manufacturer code: ROG ZENITH II EXTREME ALPHA
£919.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £25.56 / month (APR 0%)
Monthly Payment: £76.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £919.99
Total inc. interest: £919.99
Monthly Payment: £38.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £919.99
Total inc. interest: £919.99
Monthly Payment: £25.56
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £919.99
Total inc. interest: £919.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 28th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG Zenith II Extreme Alpha Motherboard for the 3rd Gen Threadripper CPU

ROG Zenith II Extreme Alpha

RAISING THE PERFORMANCE BAR FOR CREATORS, DEVELOPERS AND PC ENTHUSIASTSROG Zenith II Extreme Alpha has many amazing high tech features to unleash the savage computing power of the ground-breaking 64-core AMD Ryzen Threadripper CPUs. The Zenith II Extreme Alpha has with 16 high-current 90A power stages that delivers supreme efficiency and enhanced headroom for overclocking, empowering you to push performance as never before. ASUS have taken advantage of the lane bandwidth which lets you connect up to 33 devices simultaneously, while every single PCIe x16 and M.2 slot is wired with PCIe® 4.0 – so you're free to equip the latest generation graphics cards or NVMe drives without fear of bottlenecks. Massive power, massive bandwidth.

ROG Zenith II Extreme Alpha motherboard supports the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors that boast up to 32 cores. It features quad-channel DDR4 memory, 64 lanes of PCI Express® 4.0, 16 GT/s transfer speed for Gen 4 M.2 SSDs, and built-in native USB 3.2 Gen 2 (10 Gbps) for superior performance.

AMD TRX40Chipset

TRX4CPU Socket

AMD 3rd Gen Ryzen ThreadripperCompatible CPUs

ATXForm Factor

Extreme Power Design for the TRX40 Platform

Teamed Power ArchitectureModern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilising teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

ROG Zenith II Extreme Alpha Networking

Dual 8-pin & one 6-pin ProCool II power connectorsInput and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Infineon TDA21490 power stage16 Infineon TDA21490 power stages comprise the Zenith II Extreme Alpha VRM, each rated to handle 90 amps.

MicroFine alloy chokes Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

10K Japanese-made black metallic capacitors Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Innovative Features Allow you to Excel

ROG Zenith II Extreme Alpha Networking

Zenith II Extreme Alpha Gaming has the muscle to control the latest Threadripper CPUsModern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilising teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

VRM HEATSINK A VRM heatsink is placed on the MOSFETs and chokes, and the embedded heatpipe connects to the aluminium I/O cover.

DUAL M.2 HEATSINKThe ROG DIMM.2 module now passively cools M.2 drives with metal heatsinks that also keep your build looking clean.

Aluminium heatsink coverThe heatsink cover is crafted from pure aluminium to efficiently cool the two onboard M.2 drives.

BACKPLATEA steel, cold-rolled coil construction backplate strengthens the motherboard to prevent bending, and adds additional mass to siphon heat from the VRM.

Chipset heatsinkA chipset heatsink blends seamlessly with the aluminium heatsink cover and prominently features the ROG logo.

Aluminium I/O coverAn aluminium I/O cover is connected to the primary heatsink, increasing mass and surface area.

OPTIMEM III DDR4 4733MHz+ (O.C.)

ROG TRX40 memory

Overclocked memory speeds go through the roofInfused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies and reduced voltages while operating at higher frequencies. Stack the Zenith II Extreme Alpha with your favourite modules and maximise latest Threadripper CPU throughput for applications that demand massive bandwidth, or balance Infinity Fabric and memory performance for a diverse range of workloads.

Plenty of Comprehensive Cooling Options

Active-cooling chipset & VRM heatsink Great power requires great cooling, so ROG Zenith II Extreme Alpha employs large VRM heatsinks that strike the right balance between surface area and mass. The chipset heatsink integrates an active-cooling solution, helping to keep the underlying silicon stay cool under pressure, and also employs the same airflow to chill the SoC VRM. The extra-large heatsinks also cover multiple M.2 slots, meaning Zenith II Extreme Alpha is fully armed to provide the best foundation for extreme PC systems – enabling higher performance at lower temperatures.

CPU Fan Header

CUSTOM DELTA SUPERFLO FANS The custom low-noise fans features high-durability bearings with a 60,000-hour L10* lifespan.
* L10 bearing lifespan specifies the minimum number of hours that 90% of the bearings are expected to last.

M.2 Drive

FINNED HEATSINK The heatsink fin density is optimised to maximise surface area while maintaining a low-resistance exhaust path.

4-pin PWM/DC Fan Header

AIR DUCT A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

Triple M.2 Drives Utilising PCIe 4.0

ROG Zenith II Extreme Alpha m.2

ready for the new generation Having the bandwidth to fuel multiple PCIe SSDs and graphics cards is part of the allure of high-end desktop platforms. ROG Zenith II Extreme Alpha fully exploits Threadripper's 64-lane capability, empowering you to connect up to 20 PCIe devices simultaneously. Every single PCIe x16 and M.2 is wired with PCIe 4.0, and the board also accelerates both wired and wireless networking – with both Aquantia 10 Gbps Ethernet and the latest Wi-Fi 6 (802.11ax) onboard.

Explore your Limits with Multiple Networking Technologies

ROG Zenith II Extreme Alpha Networking

beefed-up bandwidth so you can push throughput to the limitsThe beefed-up bandwidth doesn't stop with the TRX40 platform. We also equipped Zenith II Extreme Alpha with multiple networking technologies, so you can push throughput to the limits.
GameFirst V is an ROG-exclusive tool that lets you use a ROG router to build a ROG-networking ecosystem. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps — all from an intuitive interface that enables easy, on-the-fly adjustments. ROG First searches for ROG routers on the network and lets you automatically optimize their adaptive QoS settings for the best gaming performance, so you don't have to log in and configure the router manually.

Wi-Fi 6 (AX200)Onboard Wi-Fi 6 (802.11ax) supports ultrafast network speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.

10 Gbps onboard EthernetDesigned to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, and backups and file transfers that are faster than ever before.

Intel EthernetROG Zenith II Extreme Alpha features the latest Intel® Ethernet (I211-AT) for faster, smoother gaming. This Intel controller has a natural synergy with Intel processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput – so there's more power for games and other tasks.

Livedash OLED Display

Z390 Aura RGB

Display your own custom logo The ROG Zenith II Extreme Alpha is equipped with LiveDash, a built-in colour OLED panel that displays useful information and customisable graphics. During the power-on, self-test (POST) phase, OLED shows key progress stats in simple language, using traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water-Cooling Zone. You're also able to customise the default OLED GIF, so it'll display your own image or animation.

Grow your Gaming World with AURA Sync

ROG Zenith II Extreme Alpha Aura

customise your glow Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands. The Addressable Gen 2 headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Fine Tweak your Audio with Sonic Studio III

ROG Sonic Studio 3 Audio

DTS : SOUND UNBOUND WITH SPATIAL TECHNOLOGY Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.​

Boost your Game with Ramcache III

asus RAMCACHE 3

LAUNCH YOUR APPS AT NECK BREAKING SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

ASUS Armoury Crate and More

asus armoury

centralized control from a single intuitive interface Armoury Crate is a software utility designed to provide centralised control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG Zenith II Extreme
Form Factor E-ATX
CPU Socket TRX4
Chipset AMD TRX40
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3400(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4733+(OC)
Max. Memory Capacity 256GB (8x32GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 3-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x DIMM.2 for 2x M.2, 22-42/60/80/110, PCIe/SATA
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 4 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin EZ PLUG Power
  • 1 x 6-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x BIOS Flashback connector
  • 2 x Chassis Water Pump/Fan Connector
  • 1 x Clear CMOS Button
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x DIMM.2 Slot
  • 1 x Front Panel Audio Header
  • 1 x High AMP Fan Header
  • 1 x LN2 Mode jumper(s)
  • 1 x M.2 Intel Wireless-AC 7265 + BT4.0 (Soldered)
  • 1 x MemOK!-II switch
  • 1 x NODE connector
  • 8 x ProbeIt Measurement Points
  • 1 x ReTry Button
  • 1 x RSVD Switch
  • 1 x Safe Boot Button
  • 8 x SATA III - 6Gb/s
  • 1 x START (Power On) button
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 2 x USB 3.2 Gen2 Header
  • 1 x USB BIOS Flashback button
  • 1 x W_FLOW header
  • 1 x W_IN header
  • 1 x W_OUT header
  • 2 x Water Pump Header
  • 1 x WB_Sensor Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x AQUANTIA AQC-107 (10GbE LAN)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10GbE RJ45
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out (LED-Illuminated)
  • 1 x Clear CMOS Button
  • 1 x Line In (LED-Illuminated)
  • 1 x Line Out (LED-Illuminated)
  • 1 x Mic In (LED-Illuminated)
  • 1 x Rear Speaker Out (LED-Illuminated)
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-A (BIOS Flash)
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x USB BIOS Flashback Button
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 310 x 277 mm
Note
Additional Information
Scan Code LN105314
Model Number ROG ZENITH II EXTREME ALPHA
GTIN 4718017619684
