ASUS ROG STRIX Z790-H GAMING WIFI DDR5 PCIe 5.0 ATX Motherboard

ASUS ROG STRIX Z790-H GAMING WIFI, Intel Z790, S 1700, DDR5, PCIe 5.0, 4x M.2, 2.5GbE, ax WiFi 6E/BT, USB 3.2 Gen2, ATX

Scan code: LN133367 Manufacturer code: 90MB1E10-M0EAY0
Was: £289.99£269.99
Order now and get it tomorrow, Wed 19th Feb
Get it Tomorrow, 19 FebIn stock

Email me when the availability or price changes

  • By DPD On 19th Feb Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.25 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £22.50
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £269.99
    Total inc. interest: £269.99
    Monthly Payment: £11.25
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £269.99
    Total inc. interest: £269.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Frequently Bought Together

ROG Strix Z790-H Gaming WiFi Intel 13th Generation ATX Motherboard

ASUS ROG STRIX Z790-H GAMING WIFI

GET READY FOR THE NEWEST GENERATIONStrike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2x2 fully flesh out connectivity.

Intel® Z790Chipset

LGA 1700CPU Socket

13th/12th Gen Intel® CoreCompatible Processors

ATXForm Factor

Teamed Power Architecture and Power Solution

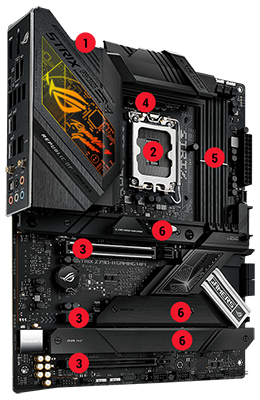

Breakdown

1. ProCool II Power Connectors
2. Intel® LGA 1700 Socket: Ready for 13th Gen Intel® Core™, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
3. 1 x PCIe 5.0 x16 SafeSlot (x16) [CPU], 1 x PCIe 4.0 x16 Slot (x4 or x4/x4) [CHIPSET], 1 x PCIe 3.0 x1 slot [CHIPSET]
4. 16 + 1 Power Stages
5. DDR5 7800+ (OC), 4 x DIMM, Dual Channel

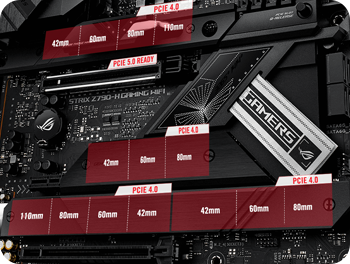

6. 2 x M.2 22110 (PCIe 4.0 x4), 1 x M.2 2280 (PCIe 4.0 x4), 1 x M.2 2280 (PCIe 4.0 x4, SATA)

All-Round Performance

Push frequency and timings to the maxEvery aspect of the Strix Z790-H is intelligently optimized so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.

features

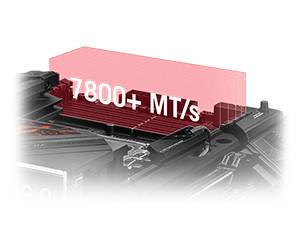

DDR5 DOMINATIONROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-H, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

features

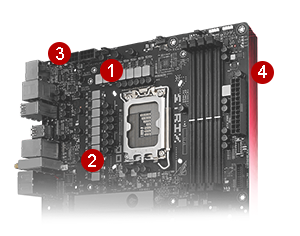

High-quality components 1. 16 + 1 Power Stages.
2. Alloy Chokes & Durable Capacitors.
3. ProCool II Power Connectors.
4. Six-Layer PCB.

Experience the Power of AI

Intelligent Motherboard A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.

features

AI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

features

TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

features

AI NETWORKINGGameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Top-Level PC Performance Demands Exceptional Cooling

cooling

Cooling Innovation The ROG STRIX Z790-H GAMING WIFI is armed with thick heatsinks that are bonded to the metal I/O shield to cool the VRMs. Multiple M.2 heatsinks help maintain onboard M.2 NVME SSDs at optimal temperatures for consistent performance and reliability.

1. VRM Heatsinks Array
2. M.2 Combo-Sink
3. 3 x M.2 Heatsinks
4. AIO Pump Header
5. Chipset Heatsink

Outshine the Competition

ID Design

UNDENIABLY ROG STRIXDiagonal slats, brushed aluminium, and bold RGB accents have become hallmarks of the ROG aesthetic, and the Strix Z790-H bears all of them with pride.

Create a Fully Customised Gaming Setup

features

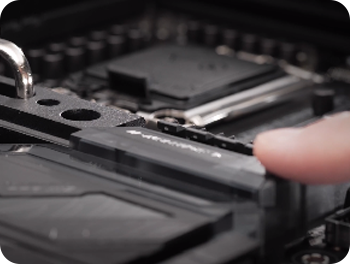

PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

features

PCIE 5.0The Strix Z790-H adds PCIe 5.0 support to its arsenal with an x16 expansion slot that’s protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards.

Supreme Networking Capability

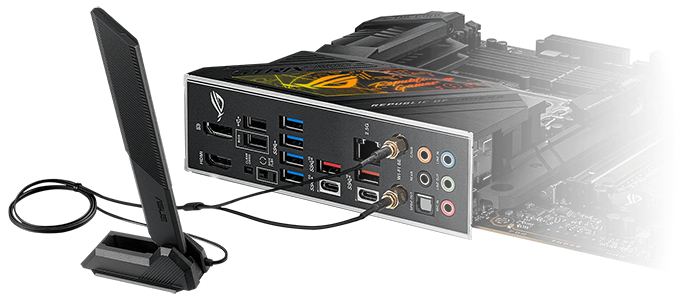

Networking

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

Fine-Quality Components for Exceptional Clarity

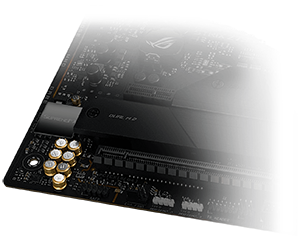

SupremeFX Audio

SUPREMEFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-H implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

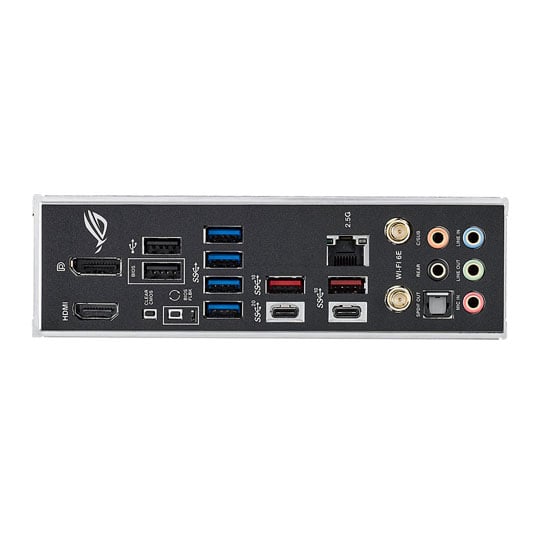

Connectivity Breakdown

Connectivity

Armed with all the essentials 1 x HDMI® Port   |   1 x DisplayPort   |   Clear CMOS   |   BIOS FlashBack™ Button   |   2 x USB 2.0 Ports
4 x USB 3.2 Gen 1 Ports   |   1 x USB 3.2 Gen 2x2 Type-C® Port   |   3 x USB 3.2 Gen 2 Ports (2x Type-A, 1x Type-C)
Intel® 2.5G Ethernet Port   |   Wi-Fi 6E   |   Optical S/PDIF Out   |   5 x Audio Jacks

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

Specifications
Core Specifications
Edition ROG STRIX Z790-H GAMING WIFI DDR5
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 1 x Power button
  • 4 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN133367
Model Number 90MB1E10-M0EAY0
GTIN 4711387038192
