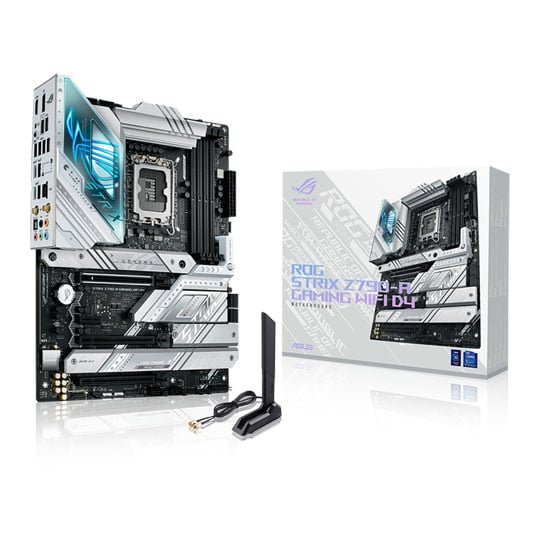

ASUS ROG STRIX Z790-A GAMING WIFI D4 DDR4 PCIe 5.0 ATX Motherboard
ASUS ROG STRIX Z790-A GAMING WIFI D4, Intel Z790, S 1700, DDR4, PCIe 5.0, 4x M.2, 2.5GbE, ax WiFi/BT, USB 3.2 Gen2, ATX
- 0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout. More info
- SCANPROTECT Protect against installation damage for 28 days. More info
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS ROG Strix Z790-A GAMING WIFI D4 Intel ATX Motherboard
GET READY FOR THE NEWEST GENERATION Well-versed in style, performance, cooling, and connectivity, the ROG Strix Z790-A exudes well-rounded balance inside and out. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel® 13th Gen Core processors. PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. Lastly, a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.
Please note: This motherboard is compatible with Intel® Socket LGA 1700 – ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors.
Intel Z790Chipset
LGA 1700CPU Socket
Supports 12th & 13th GenIntel® Core™ Processors
ATXForm Factor

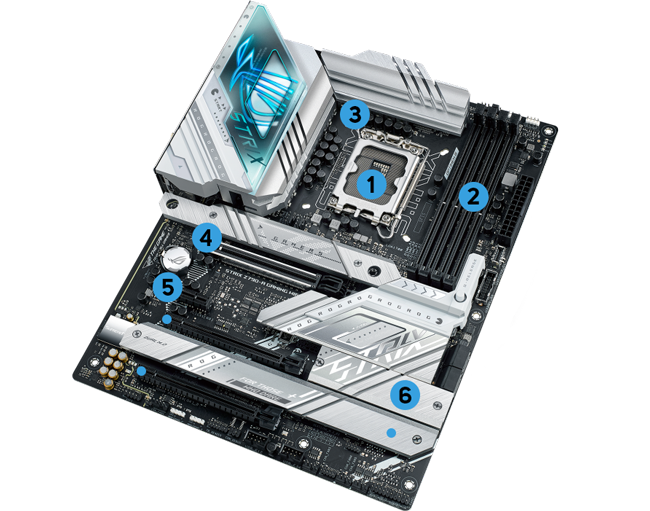

Teamed Power Architecture and Power Solution
1.Intel® Socket LGA 1700 for 13th & 12th Gen Intel® Core™ Processors,
and Pentium® Gold, and Celeron® Processors.
2. Dual Channel Memory, 4 x DIMM Max. 128GB, DDR4 5333 MT/s (OC) /
Supports Intel® Extreme Memory Profile (XMP) and OPTIMEM III
3. 16+1 Power Stages
4. Expansion Slots – • 1 x PCIe 5.0 (x16) SafeSlot CPU
5. • 2 x PCIe 4.0 (x16) Slot Chipset • 1 x PCIe 3.0 (x1) Slot Chipset
6. Four M.2 Slots – • 2 x PCIe 4.0 (x4) M.2 22110 • 1 x PCIe 4.0 (x4) M.2 2280
Experience All-Round Performance
Push frequency and timings to the max Robust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-A at its center. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

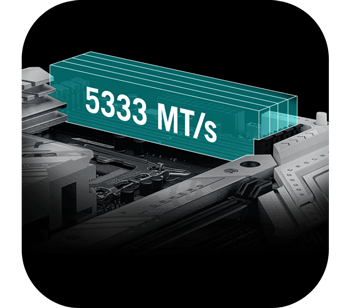

DDR4 Strength & OptiMem IIIWith proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies.

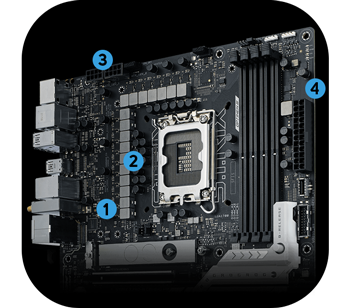

High-quality components
1. Power Architecture 16+1 power stages
2. Alloy chokes and durable capacitors
3. Dual PROCOOL II power connectors
4. Six-Layer PCB
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >Expert Thermal Management
Two thick heatsinks Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.
M.2 heatsinks and backplate An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted. Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

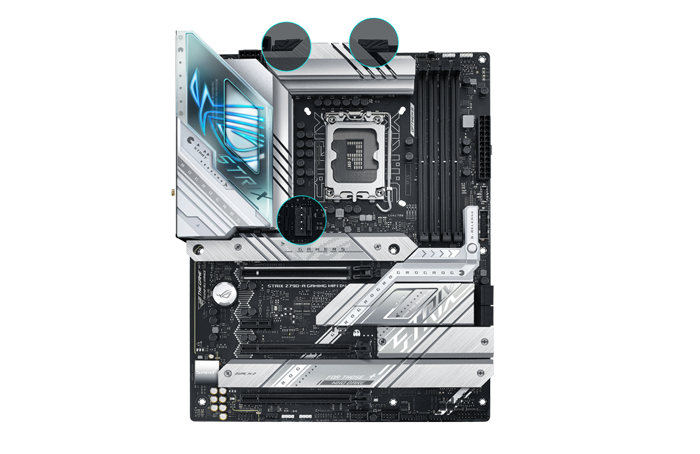

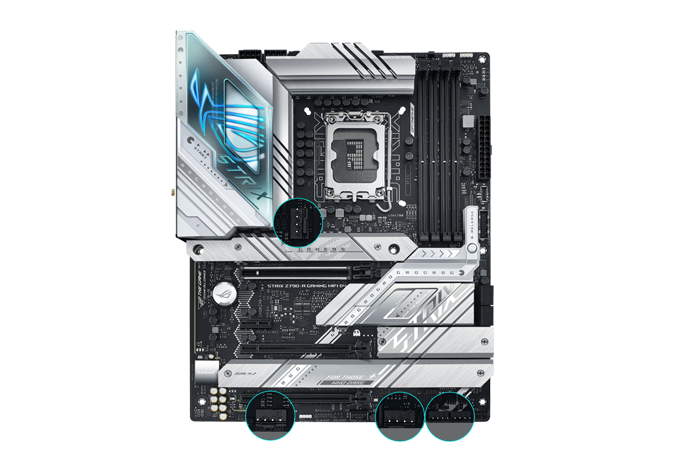

CPU fan headers & AIO A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.
4-pin PWM/DC fan headers Each header supports auto-detection of PWM or DC fans.
Outshine the Competition
Personalize your gaming rig
The ROG Strix Z790-A bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Undeniably ROG Strix
The ROG Strix Ecosystem Awaits
The ROG Strix Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board's high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below.
The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.
Create a Fully Customized Gaming Setup

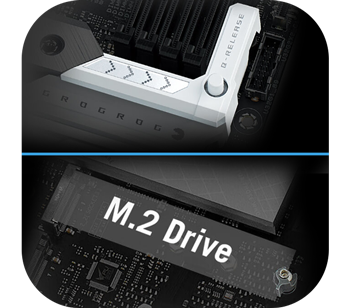

DIY FRIENDLY PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device. The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

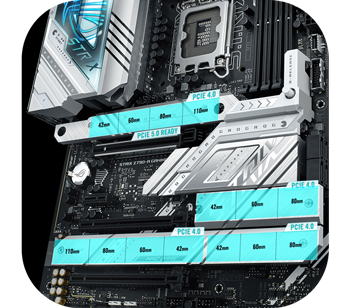

PCIe 5.0 PerformanceThe top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

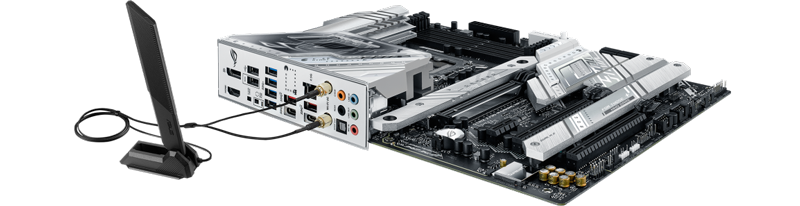

Supreme Networking Capability
WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
Fine-quality Components for Exceptional Clarity & Fidelity

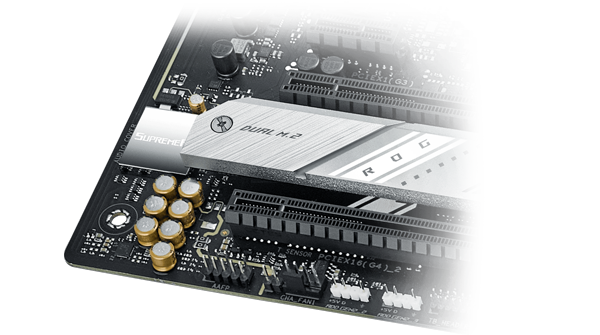

Unique Design Features for Powerful Audio ROG Strix Z790 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
Leading Connectivity
Armed with all the essentials
The ROG Strix Z790-A delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
The Strix Z790-A comes loaded with two USB 3.2 Gen 2x2 Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.

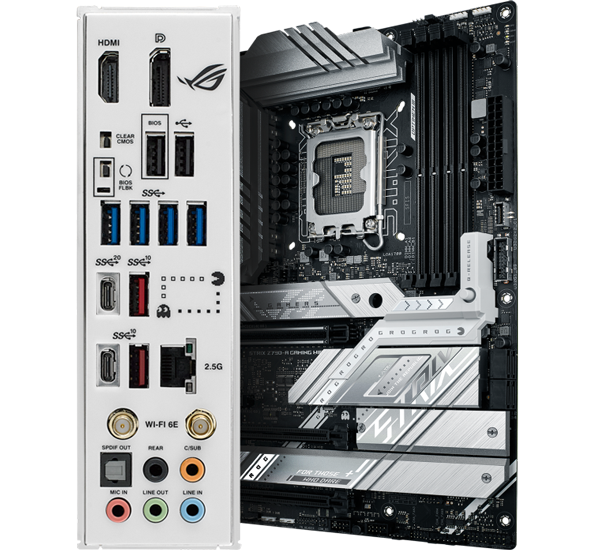

Full Connectivity Breakdown
I/O Ports
• HDMI Port
• DisplayPort
• Clear CMOS Button
• BIOS Flashback Button
• 2 x USB 2.0 Ports (2 x Type-A)
• 4 x USB 3.2 Gen 1 Ports (4 x Type-A)
• 3 x USB 3.2 Gen 2 Ports /
(2 x Type-A + 1 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 Port (1 x USB Type-C®)
• 1 x Intel® 2.5Gb Ethernet Port
• WiFi 6E
• 1 x Optical S/PDIF Out Port
• 5 x Audio Jacks
Connectors & Headers
• 1 x USB 3.2 Gen 2x2 Connector
(Supports USB Type-C®)
• 1 x USB 3.2 Gen 1 Header
(Supports 2 x USB 3.2 Gen 1 Ports)
• 4 x SATA 6Gb/s Ports
• 2 x USB 2.0 Headers
(Supports 4 x USB 2.0 Ports)
• 1 x Thunderbolt™ (USB4®) Header
Control your Rig with Armoury Crate
account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.
*Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
