Scan code: LN93111 Manufacturer code: ROG STRIX Z390-E GAMING

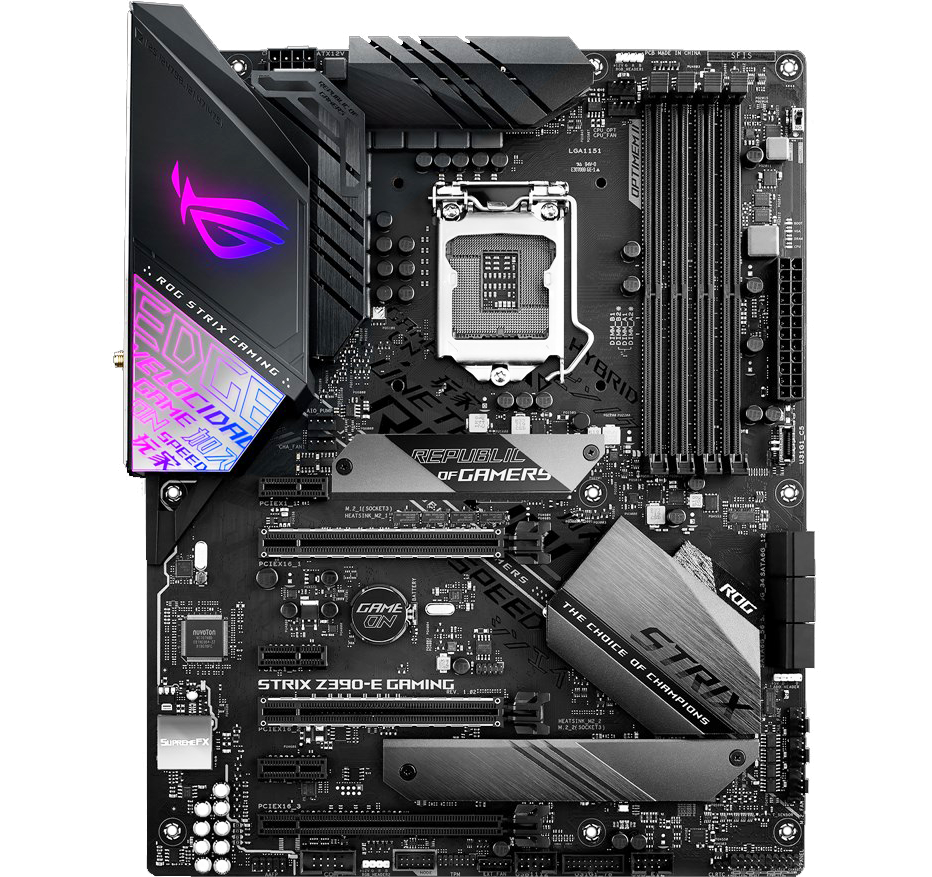

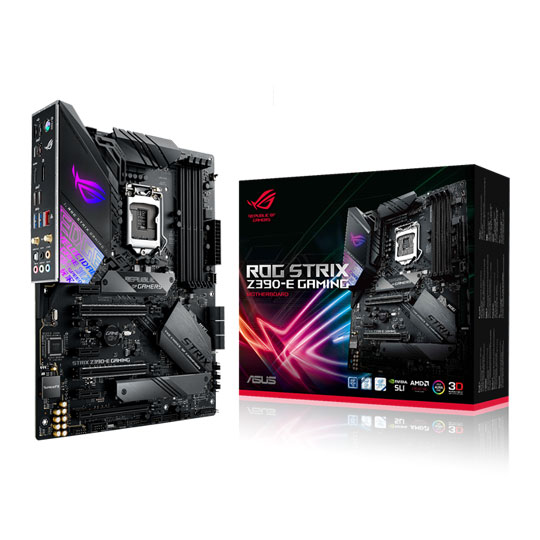

ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard

ASUS STRIX Z390-E GAMING, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, WiFi, USB3.1 A+C, ATX

Thumbnail 1 : ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard Thumbnail 2 : ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard Thumbnail 3 : ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard Thumbnail 4 : ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard : video thumbnail 1 ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard : video thumbnail 2 ASUS ROG STRIX Intel Z390-E GAMING 9th Gen ATX Motherboard : video thumbnail 3
Scan code: LN93111 Manufacturer code: ROG STRIX Z390-E GAMING
£222.49
From £10.68 / month (APR 14.9%)
Monthly Payment: £38.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £222.49
Total inc. interest: £231.64
Monthly Payment: £19.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £222.49
Total inc. interest: £239.68
Monthly Payment: £13.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £222.49
Total inc. interest: £247.88
Monthly Payment: £10.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £222.49
Total inc. interest: £256.30
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Dec 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

ROG STRIX Z390-E GAMING - Intel ATX Motherboard from ASUS

ASUS ROG STRIX Z390

SOLID HARDWARE SPECS FOR GAMING AND MOREROG Strix Z390-E Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization and wireless connectivity, ROG Strix Z390-E Gaming makes a formidable foundation for ATX gaming builds that go above and beyond. The ROG Strix Z390-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance. A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-E Gaming wonderfully easy.

Please note: This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

Accurate Power Delivery

Z390 ROG STRIX Performance

HIGH QUALITY COMPONENTSDigital power control together with an efficient thermal solution ensures ROG Strix Z390-E Gaming has the muscle to control Intel's latest CPUs. The Strix Z390-E Gaming uses high-quality thermal pads to help transfer heat from the inductor and phase array to a heatsink that has ample surface area to deal with the power demands of all Coffee Lake processors. Superior parts have been used when manufacturing the ROG STRIX boards to resist extreme temperatures and provide up to 110% better performance than the industry standard.

Tune it Your Way with AI Overclocking

AI Overclocking

Intelligent Control ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system. ASUS have created a proprietary algorithm that evaluates the capabilities of your CPU. The onboard intelligence also watches system vitals like temperatures, fan speeds, and power draw to gauge cooling performance.

5-Way Optimization

Overclocking Intelligence Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same on-board intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the beginning.

Fan Xpert 4

Flexible Cooling Controls With the ROG STRIX Z390 Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Cooler by Design

Z390 ROG STRIX Cooling

faster and undistorted current deliveryROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. A dedicated pair of PWM/DC fan headers for CPU coolers are easy to access on the top right of the CPU Socket whilst a dedicated AIO header can be found for self contained water-cooling setups. Every onboard header even supports auto-detection of PWM or DC fans. There is also a water pump header that can supply over 3A to high-performance PWM or DC water pumps. The M.2 heatsink perfectly chills an inserted M.2 SSD for consistent performance and reliability.

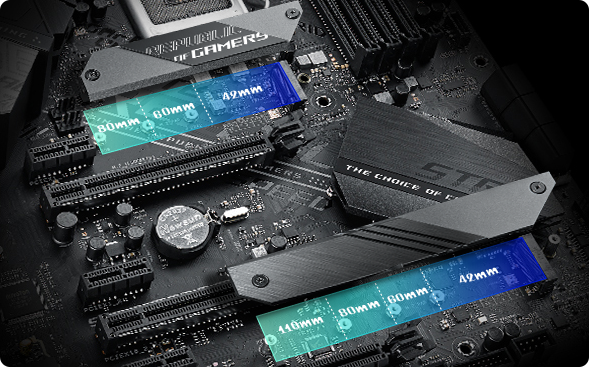

Excellent Storage and Memory Capabilities

ASUS z390 m2 connectivity

Integrated OptiMem II technology ROG Strix Z390-E Gaming features dual M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slot supports PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available. To provide Intel's latest CPUs unfettered access to memory bandwidth, motherboard trace routing has been reimagined with the ROG Strix Z390-E Gaming. Integrated OptiMem II technology carefully maps memory signal pathways across PCB layers to reduce vias, and it also adds shielding zones that significantly reduce crosstalk. To further enhance overclocking headroom for fully stacked memory configurations, a highly customized T-Topology layout delivers time-aligned signaling.

Intel Gigabit Ethernet with Integrated Ultra Wi-Fi support

z390 gigabit intel ethernet

ASUS LANGuard provides consistent performance ROG Strix Z390-E Gaming features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power. Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges. Integrated Wireless-AC 9560 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9560 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

Shielded Audio, Superior Sound

ROG Sonic Studio 3 Audio

Sonic Studio III provides crystal quality sounds Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset. Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

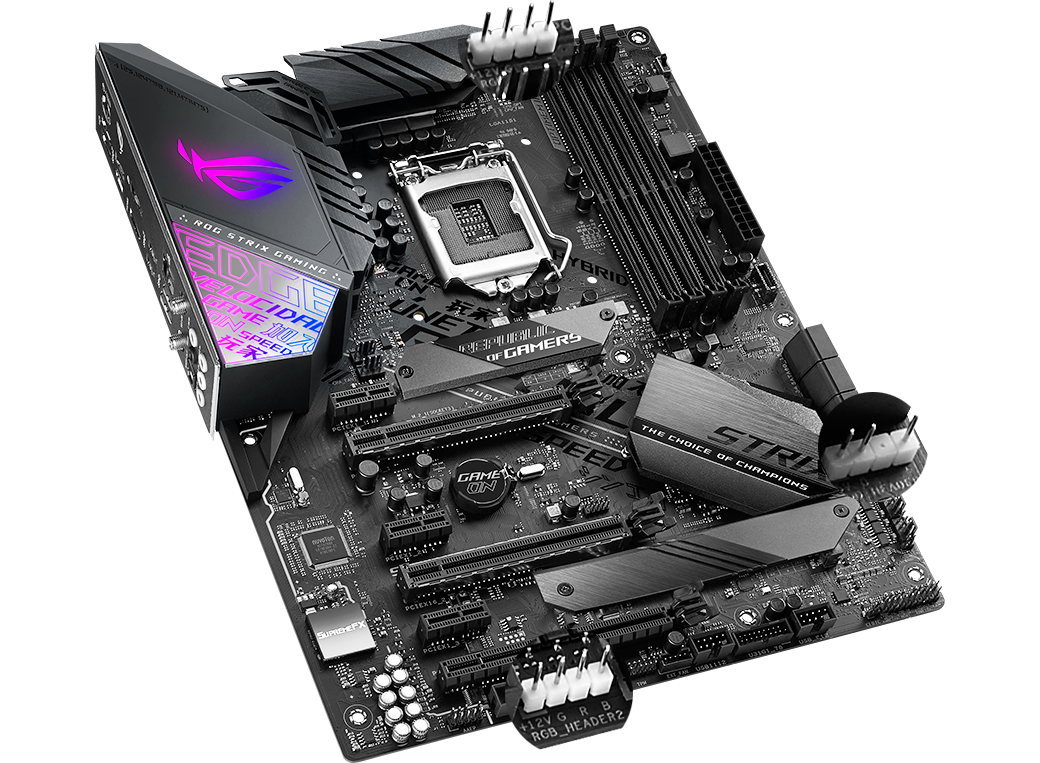

ASUS Aura Sync RGB Lighting

Z390 Aura RGB

Effortless Synchronization with all your Components The ASUS Aura ecosystem is in the ascendancy, with an extensive and growing list of ASUS products now offering Aura Sync compatibility — along with loads of compatible accessories and kits available through partners. ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Enhanced UEFI BIOS

EASILY FIND YOUR WAY WITH EZ AND ADVANCED MODESThe UEFI BIOS is an early waypoint on any PC-building journey, and ROG STRIX Gaming Series has one of the best in the business. The EZ mode presents all the vital settings and stats on a single page making it incredible easy to overclock a CPU to improve performance or even configure a RAID array for faster data retrieval and backups. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.

EZ

EZ MODEThe wizard in EZ mode makes short work of settings basics like the time and date, as well as more intricate settings like fan parameters and SATA port identification.

search

ADVANCED MODE WITH Search FunctionWhen you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.

Experience GameFirst V Features

OPTIMIZE YOUR NETWORK TRAFFIC GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.

Fan Xpert 4

SMART/AUTO MODES Optimize network traffic for active apps, or allocate more bandwidth to games.

TPU Insight

ONE-CLICK PRIORITIZATION Speed network packets for specific applications, helping to reduce latency.

Extreme mode on: 371.7Mbps
Extreme mode off: 16.03Mbps
* Tested with 4GB file download while also playing 4K online video.

EPU Guidance

ROG FIRST Interface directly with a ROG router and automatically configure QoS to prioritize network bandwidth to games.

Turbo App

NETWORK INSIGHT View real-time traffic by biggest hogs, app groups, and task types, or drill down for detailed connection information.

Boost your Game with Ramcache III

asus RAMCACHE 3

LAUNCH YOUR APPS AT NECK BREAKING SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allos you to efficiently check the health status of assigned memory.

ASUS Armoury Crate and More

asus armoury

Speed your game loads The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.


Overwolf Overwolf is a clever, unobtrusive overlay that lets you browse the internet, check email, instant message and stream or record gameplay while you're in the game. Color-matched ROG skins that display your status as a member of an elite pack are also available for download from the Overwolf App Store.

DIY Friendly Design

safeslot

SafeSlotA PCIe slot that provides stronger PCIe device retention and greater shearing resitance.

esd guard

ESD Guards2X greater electrostatic protection than the industry standard. ESD guards cover the USB, Audio and LAN ports.

pcislot

Q-SlotOne easy-release clip to swap or secure your graphics card. Press to pop out or push in the card to secure.

Q DIMM

Q-DIMMOne sided clips for super simple, secure handling of memory modules.

Q LED protection

Q-LEDOnboard LEDs indicate power status as well as problems with the CPU, memory, graphics card or boot device to enable quick diagnosis.

memory protection

MemOK IIMemOK II automatically fixes boot failures that arise due to memory overclocking and instability.

Visual Beauty, Virtual Worlds

VR

THE MOST IMMERSIVE ENTERTAINMENT ROG Strix Gaming is VR Ready — and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

Specifications
Core Specifications
Edition ROG STRIX Z390-E GAMING
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV
  • 1 x EXT_FAN
  • 1 x Front Panel Audio Header
  • 1 x M.2_FAN Connector
  • 1 x MemOK!-II switch
  • 1 x NODE connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 3 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
