Scan code: LN103612 Manufacturer code: 90MB1140-M0EAY0

ASUS ROG STRIX AMD Ryzen X570-I GAMING AM4 PCIe 4.0 Mini ITX Motherboard

ASUS ROG STRIX X570-I GAMING, AMD X570, AM4, DDR4, PCIe 4.0, SATA3, M.2, Intel GbE, ax WiFi, USB 3.2 Gen2 A+C, Mini-ITX

Thumbnail 1 : ASUS ROG STRIX AMD Ryzen X570-I GAMING AM4 PCIe 4.0 Mini ITX Motherboard Thumbnail 2 : ASUS ROG STRIX AMD Ryzen X570-I GAMING AM4 PCIe 4.0 Mini ITX Motherboard Thumbnail 3 : ASUS ROG STRIX AMD Ryzen X570-I GAMING AM4 PCIe 4.0 Mini ITX Motherboard Thumbnail 4 : ASUS ROG STRIX AMD Ryzen X570-I GAMING AM4 PCIe 4.0 Mini ITX Motherboard
Scan code: LN103612 Manufacturer code: 90MB1140-M0EAY0
There are 5 people viewing this product
£257.48
From £10.73 / month (APR 0%)
Monthly Payment: £42.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £257.48
Total inc. interest: £257.48
Monthly Payment: £21.46
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £257.48
Total inc. interest: £257.48
Monthly Payment: £14.31
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £257.48
Total inc. interest: £257.48
Monthly Payment: £10.73
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £257.48
Total inc. interest: £257.48
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.43 / month (APR 15.9%)
Delivery Options
  • By DPD On 12th Dec To 16th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

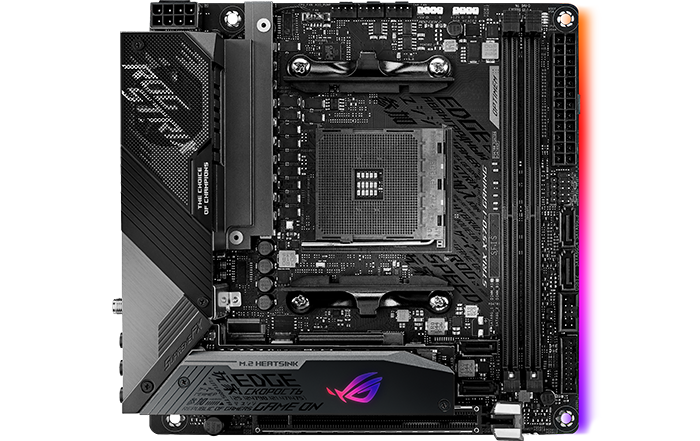

ASUS ROG Strix X570-I Gaming Ryzen 3rd Gen Mini ITX Motherboard

ASUS ROG Strix X570-I Gaming Motherboard

mini-ITX Gaming motherboard with PCIe 4.0G Strix X570-I Gaming excels the rest to deliver incredible power and undeniable style for your small form factor gaming system. With support for the latest AMD Ryzen processors, ROG Strix X570-I Gaming is primed to deliver maximum gaming performance, while its revolutionary miniature active cooling design efficiently works to keep temperatures down. Coupled with HDMI 2.0 and DisplayPort 1.4 for ultra-high-resolution video output, ultrafast next-generation wireless networking and PCIe 4.0 connectivity, ROG Strix X570-I Gaming is a compact gaming powerhouse.

Please Note: The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimised for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

Mini ITXForm Factor

ASUS X570-I Gaming Cooling Features

COOLING
down

Thermal PadHigh-quality thermal pads up to 6W/mK helps transfer heat to the heatsinks.

up

VRM HeatsinkVRM heatsink provides a large contact area for the MOSFETs and chokes, and an integrated fan enables more efficient cooling for better performance and wattage resistance.

up

Active Chipset HeatsinkA PCH heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

up

Backplate The strong backplate prevents the motherboard from bending and bowing, ensuring that the VRM's MOSFETs stay in direct contact for uninterrupted cooling.

up

8-Layer PCB The 8-layer PCB quickly dissipates heat around the VRM, improving overall system stability and giving the CPU more overclocking headroom.

up

M.2 Heatsink The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

Innovative Cooling with ROG STRIX Series

diy-friendly

COOLER BY DESIGNROG Strix X570-i Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. There is a dedicated PWM/DC fan header for CPU coolers and another for self-contained water-cooling setups. Every onboard header supports auto-detection of PWM or DC fans where as the M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

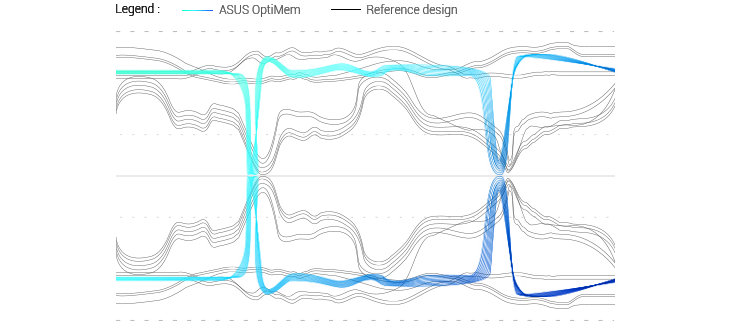

Go Further than Before with DDR4 4800MHZ+ (OC)

ethernet

26% Reduction in crosstalkASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies. With OptiMem you get improved memory stability and compatibility and it also allows lower memory latencies at equivalent voltages while improving the memory frequency margin.

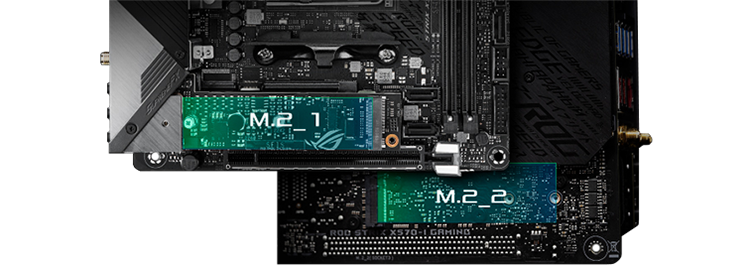

Dual PCIe 4.0 M.2 for Better Storage Performance

ethernet

harness the full potential of componentsDual PCIe 4.0 M.2 slots support up to type 2280 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform. The second M2 slot is on the rear of the motherboard.

Upgrade to Unrivalled Audio

rog strix supremefx

Shielded Audio and Superior Sound with SUPREMEFX Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset. Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

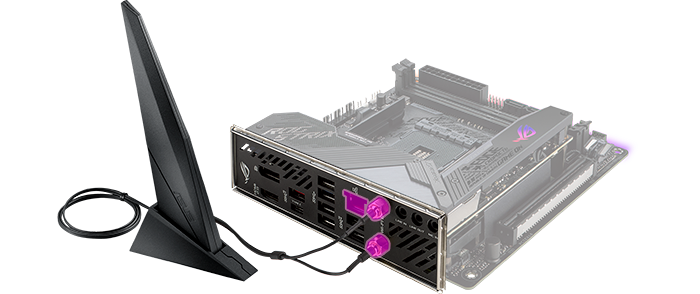

Latest Generation of Connectivity

ethernet and wifi 6

top-tier gaming performance with Intel Gigabit Ethernet ROG Strix X570-I Gaming amps up networking with Intel Gigabit Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that takes your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience. ROG Strix X570-I Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

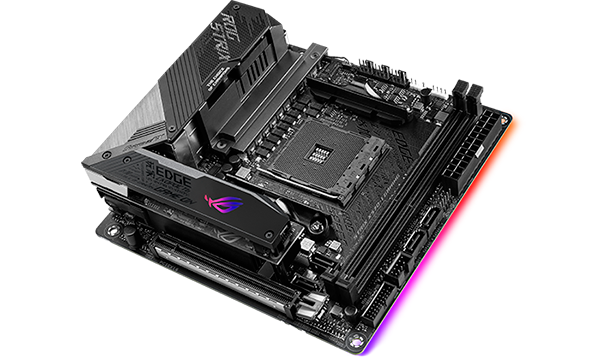

Showcase your System with RGB Accents and AURA SYNC

RGB

Get the ultimate control of all your RGB DevicesROG Strix X570-I Gaming boasts a striking new design with an intricate rainfall pattern that cuts diagonally across the IO and, along with the iconic ROG logo, is infused with Aura RGB lighting that glows in a brilliant array of vibrant colours. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header. ROG Strix X570-I Gaming's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Control your Rig with Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls Enjoy comprehensive control over fans, water pumps and all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.​

TPU Insight

CPU Performance Boost The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.

EPU Guidance

All-round Energy Efficiency With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Turbo App

Optimization for gamers and professionals AMD's processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritising computing power where it's needed most.​

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition ROG Strix X570-I Gaming
Form Factor Mini-ITX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 64GB
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Supported
AMD CrossFire Support Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 1 x Aura Addressable Strip Headers
  • 1 x Chassis Water Pump/Fan Connector
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x HS Fan Header
  • 2 x M.2 Connector
  • 1 x PCH Fan Header
  • 4 x SATA III - 6Gb/s
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x Temperature Sensor Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x ASUS Wi-Fi GO! module
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.0
  • 1 x Line In (LED-Illuminated)
  • 1 x Line Out (LED-Illuminated)
  • 1 x Mic In (LED-Illuminated)
  • 1 x RJ-45
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN103612
Model Number 90MB1140-M0EAY0
GTIN 4718017487597
