Scan code: LN99751 Manufacturer code: ROG Strix X570-F Gaming

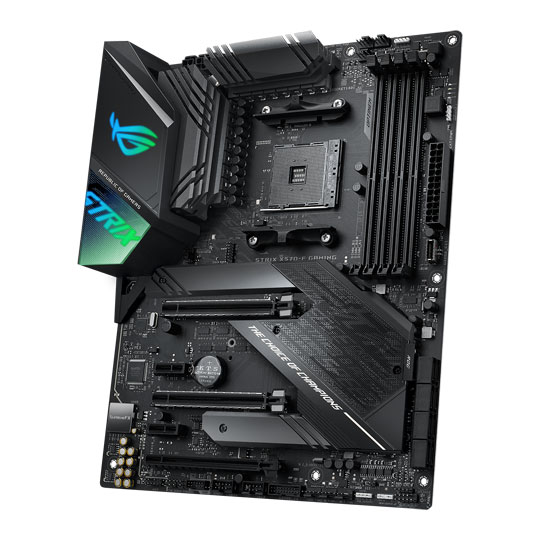

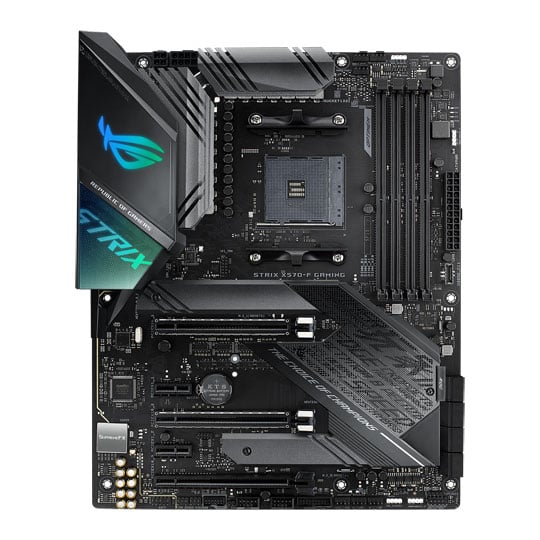

ASUS AMD Ryzen ROG STRIX X570 F AM4 PCIe 4.0 ATX Gaming Motherboard

ASUS ROG STRIX X570-F GAMING, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way SLi/3-Way CrossFire, Intel GbE, USB3.2, ATX

Thumbnail 1 : ASUS AMD Ryzen ROG STRIX X570 F AM4 PCIe 4.0 ATX Gaming Motherboard Thumbnail 2 : ASUS AMD Ryzen ROG STRIX X570 F AM4 PCIe 4.0 ATX Gaming Motherboard Thumbnail 3 : ASUS AMD Ryzen ROG STRIX X570 F AM4 PCIe 4.0 ATX Gaming Motherboard Thumbnail 4 : ASUS AMD Ryzen ROG STRIX X570 F AM4 PCIe 4.0 ATX Gaming Motherboard ASUS AMD Ryzen ROG STRIX X570 F AM4 PCIe 4.0 ATX Gaming Motherboard : video thumbnail 1 ASUS AMD Ryzen ROG STRIX X570 F AM4 PCIe 4.0 ATX Gaming Motherboard : video thumbnail 2
Scan code: LN99751 Manufacturer code: ROG Strix X570-F Gaming
RRP: £269.99
£259.99
From £12.48 / month (APR 14.9%)
Monthly Payment: £45.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £270.69
Monthly Payment: £23.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £280.09
Monthly Payment: £16.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £289.67
Monthly Payment: £12.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £299.50
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 20th Aug 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS ROG Strix X570-F Gaming Ryzen 3rd Gen Motherboard

ASUS ROG Strix X570-F Gaming Motherboard

Built For the New 3rd gen RYZEN LineupThe ROG Strix X570-F Gaming motherboard delivers a fully fledged ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable PC to rise above the rest.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

Showcase Your System with RGB Accents and AURA SYNC

RGB

Get the ultimate control of all your RGB DevicesROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

ASUS Power Design Motherboard

heatsink

ProCool II Power Connector ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

heatsink

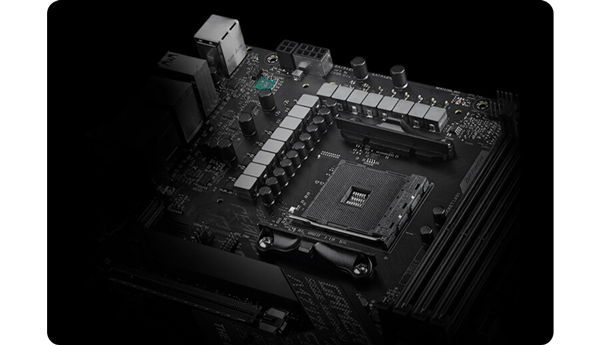

Digi+ Power Control The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

heatsink

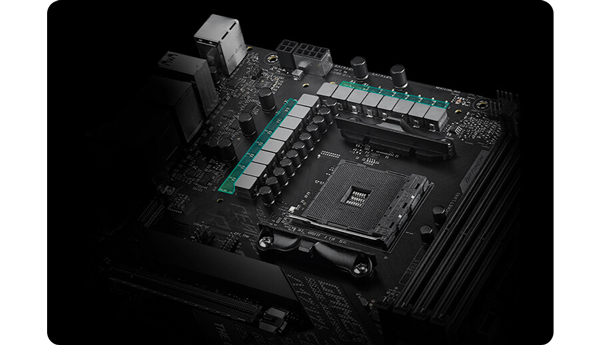

Power Stage ROG Strix X570-F Gaming has a CPU VRM with power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD processors demand.

heatsink

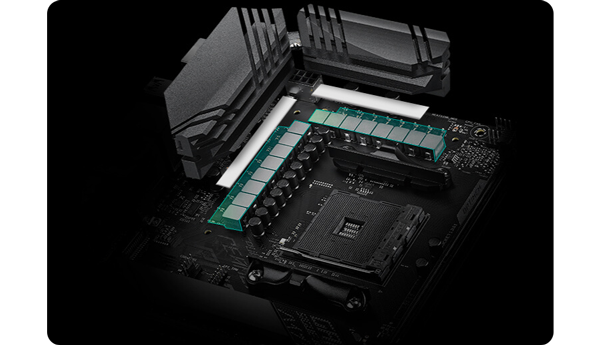

Thermal Solution ROG Strix X570-F Gaming uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the latest processors.

heatsink

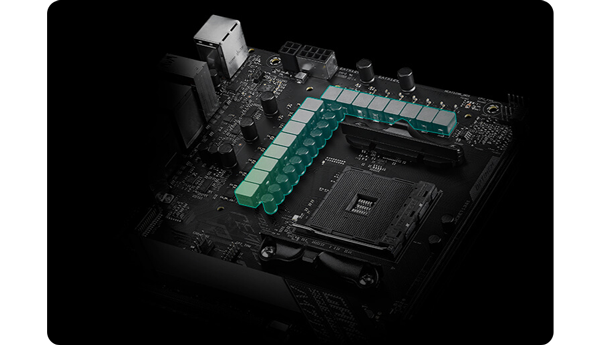

High Quality Chokes and Caps Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

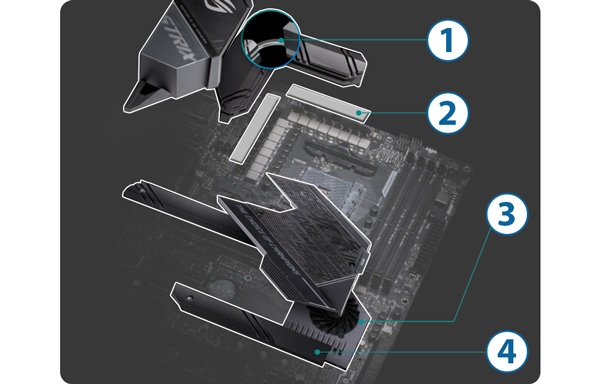

ASUS X570-F Gaming Cooling Features

heatsink
down

MOS heatsink with 8mm heatpipeA MOS heatsink provides a large contact area and a heatpipe enables more efficient cooling.

up

Thermal padA high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.

up

Active PCH heatsinkA PCH heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

up

Dual M.2 heatsinksThe M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

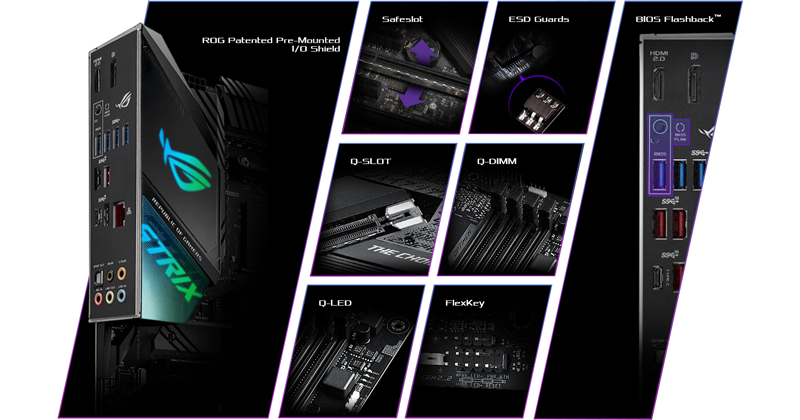

Building a Computer with ASUS X570-F Gaming

diy-friendly

Reassuring features to help protect your motherboardThe ROG Strix X570-F Gaming offers a DIY-Friendly approach to building you PC, this is all due to it's host of features ranging from its Pre-mounted I/0 Shield, Safeslot PCIe and ESD Guards. ROG's patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard. The Safeslot provides stronger PCIe device retention and greater shearing resistance. For ESD Guards they utilise industry standard electrostatic protection to help cover the USB, audio and LAN ports to protect against any sudden electrostatic effects.

Intel Gigabit Ethernet Paired with ASUS Motherboards

ethernet

With lower cpu workloads and high TCP throughputROG Strix X570-F Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.

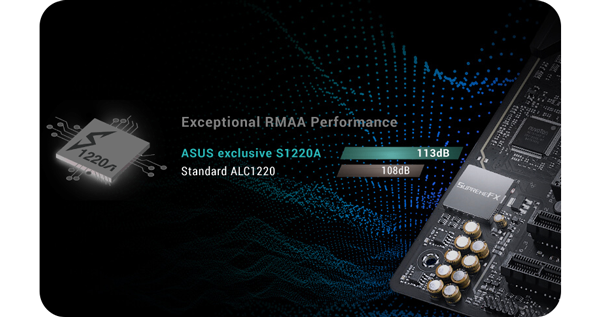

ASUS Exclusive S1220A SupremeFX Audio

RGB

Shielded Audio with superior soundImmerse yourself in sound with SupremeFX audio technology. Utilising the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition ROG STRIX X570-F GAMING
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
Specifications
Cooling PCH Fan & Passive Heatsinks
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin M.2_FAN connector
  • 1 x 4-pin PCH_FAN Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x NODE connector
  • 8 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x BIOS Flashback LED
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-A (BIOS Flash)
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99751
Model Number ROG Strix X570-F Gaming
GTIN 4718017378956
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
Asus
Telephone:
01442 265548
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

ASUS ROG STRIX X570-F m.2 Heatsink

Can one of the m.2 heatsink be removed or is it one complete heatsink where you have to remove both heatsinks? Reason for asking as if you buy a m.2 ssd with a heatsink then that wouldn't fit unless you remove the heatsink from the board or the memory? many thanks
Asked by: Rich190
Good Afternoon, This is one complete heatsink. Kind Regards,
Answered by: LukeW
Date published: 2019-07-16
