Scan code: LN82158 Manufacturer code: ROG STRIX X299-E GAMING

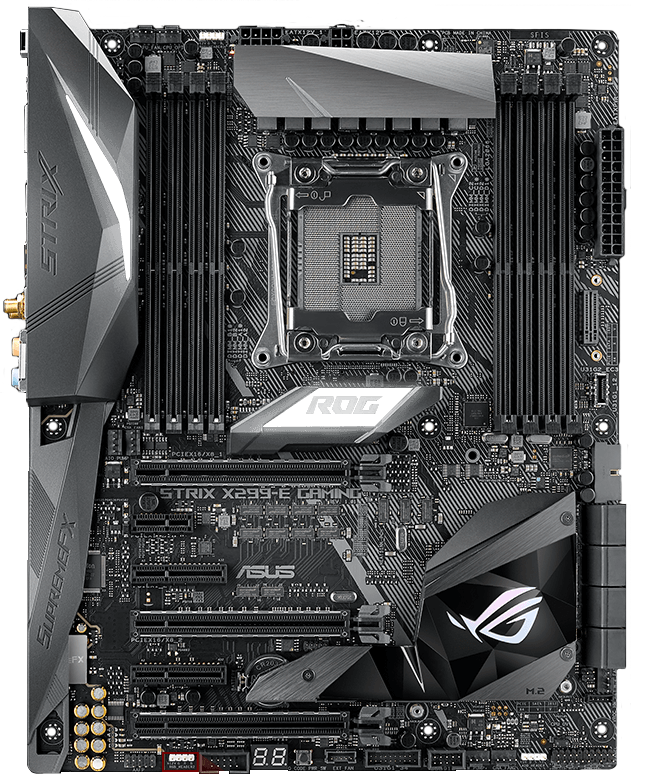

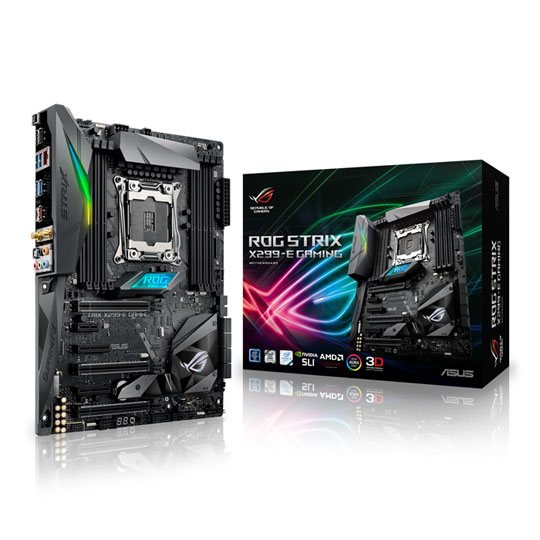

ASUS Intel Core-X STRIX X299-E GAMING ATX Motherboard

ASUS ROG STRIX X299-E GAMING, Intel X299, S 2066, DDR4, SATA3, Dual M.2, 3-Way SLi/CrossFire, GbE, WiFi, USB3.1 A+C, ATX

Thumbnail 1 : ASUS Intel Core-X STRIX X299-E GAMING ATX Motherboard ASUS Intel Core-X STRIX X299-E GAMING ATX Motherboard : video thumbnail 1 ASUS Intel Core-X STRIX X299-E GAMING ATX Motherboard : video thumbnail 2
Scan code: LN82158 Manufacturer code: ROG STRIX X299-E GAMING
RRP: £328.49
£292.49
From £14.04 / month (APR 14.9%)
Monthly Payment: £50.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £292.49
Total inc. interest: £304.52
Monthly Payment: £26.26
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £292.49
Total inc. interest: £315.10
Monthly Payment: £18.11
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £292.49
Total inc. interest: £325.90
Monthly Payment: £14.04
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £292.49
Total inc. interest: £336.93
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.30 / month (APR 15.9%)
Delivery Options
  • By DPD On 22nd Oct 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

X299 ATX Gaming motherboard. ASUS ROG Strix E-Gaming

ROG STRIX X299-E Gaming Motherboard from ASUS
Get both Gaming Performance and style with this Core-X motherboard

The E-Gaming motherboard from ASUS is loaded with impressive features for areas such as overclocking, customising, performance tuning and cooling. This X299 ATX Strix motherboard is equipped with SupremeFX audio for a more immersive gaming sound, Aura Sync lighting tech for personalising your X299 E-Gaming – it even features special mounts on which you can place your own 3D printed designs. Get everything a gaming PC could need from a motherboard with the ROG Strix E-Gaming.

RGB Board Lighting

Static

Always on

Breathing

Fades in and out

Strobing

Flashes on and off

Colour Cycle

Fades between the colors of the rain-bow

Music Effect

Pulses to the beat of your music

CPU Temperature

Changes color with CPU load

Rainbow

A rolling multi-color glow

Comet

A stream of light with a tail

BreaFlash & Dancing

Single/multi-color stepped flashes

Outshine the Competition

ASUS Aura Sync takes RGB lighting beyond the checkbox, combining and controlling the LEDs across all of your Aura-enabled products from a single application to achieve perfect, synchronised harmony. From motherboards and RGB strips to graphics cards and beyond, Aura Sync enables a veritable symphony of light for ultimate personalisation.

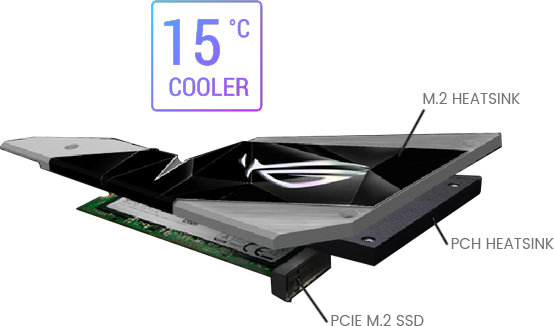

M.2 Heatsink

Strix motherboard m.2 bay heatsink
Keep Your SSD Cool

Strix X299-E Gaming motherboards are equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD — for consistent performance and reliability. Featuring a stylish angular design, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.

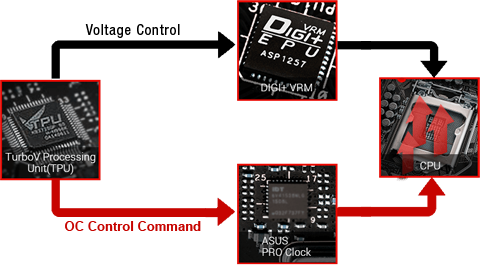

ASUS Pro Clock II Technology

X299 E-Gaming Pro Clock II
overclocked base-clock frequencies

A dedicated base-clock (BCLK) generator designed for Intel Core X series processors allows overclocked base-clock frequencies up to or beyond 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU) to enhance voltage and base-clock overclocking control, providing an exciting new way to boost performance to extreme heights.

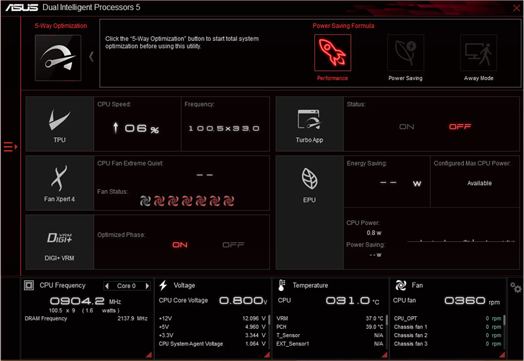

5-Way Optimisation

ASUS 5 Way Optimisation
Strix E-Gaming is TAILORED FOR YOU — AND THE WAY YOU PLAY!

You don't need to be an expert to max out gaming performance on your Strix X299-E Gaming build — because 5-Way Optimisation sorts all the complex settings with a click, for instant, highly controllable performance boosts! Our exclusive technology dynamically optimises essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans, and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimisation ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!

  • CPU Performance Boost
  • Energy Processing Unit (EPU)
  • Advanced Fan Controls
  • Precise Digital Power Control
  • Turbo App

SupremeFX Audio

Strix E-gaming motherboard Audio
Shielded audio, superior sound

Immerse yourself in sound with ROG Strix's SupremeFX audio technology. Utilising the S1220A codec, ROG Strix's SupremeFX audio solution is engineered to provide a flat frequency response and offer a neutral, detailed sound signature. The addition of two op-amps on the front panel headphone output ensures adequate voltage and current to drive headphones to their full potential. And our Sonic Studio software grants you full control over every aspect of audio, including noise reduction algorithms for communications, plus EQ adjustments to get the most from your headset or speakers.

  • Audio Cover
  • Dual Op Amplifiers
  • Premium Nichicon Audio Capacitors
  • Audio Line Shielding

Gamer's Motherboard Guardian

ASUS X299 Gaming Protection
Pumped-up throughput, Best surge protection

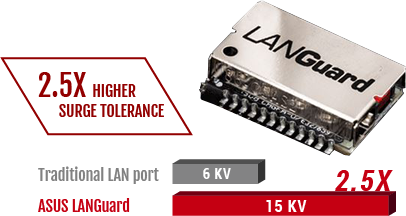

LANGuard - LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your connection and to deliver pumped-up throughput to your Strix X299-E Gaming. In addition, electrostatically guarded and surge-protected components (ESD Guards) provide 1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to 15KV) against surges!

PROCOOL POWER CONNECTOR - ASUS ProCool is the power connector reinvented! Compared with traditional power connectors, ProCool connectors ensure an exceptionally close and secure connection with the ROG Strix X299-E Gaming motherboard. This design is stronger, and also benefits power efficiency: the flush connection enables lower impedance and better heat dissipation, allowing cooler operating temperature.

Specifications
Core Specifications
Edition ROG STRIX X299-E GAMING
Form Factor ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4) [6+ Core] / Dual (2) [4 Core]
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 128GB (8x16GB) [6+ Core] / 64GB (4x16GB) [4 Core]
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 3-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 2 x PCIe 3.0 x4
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Start Technology
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Strip Headers
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x M.2_FAN Connector
  • 1 x Power button
  • 8 x SATA III - 6Gb/s
  • 1 x System panel(s) (Q-Connector)
  • 1 x Temperature Sensor Header
  • 1 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
  • 1 x VROC_HW_Key
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x ASUS Dual Band ac WiFi + BT 4.2
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 2 x Audio I/O
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
  • 1 x USB BIOS Flashback Button
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
