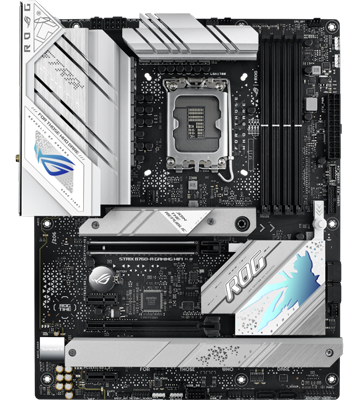

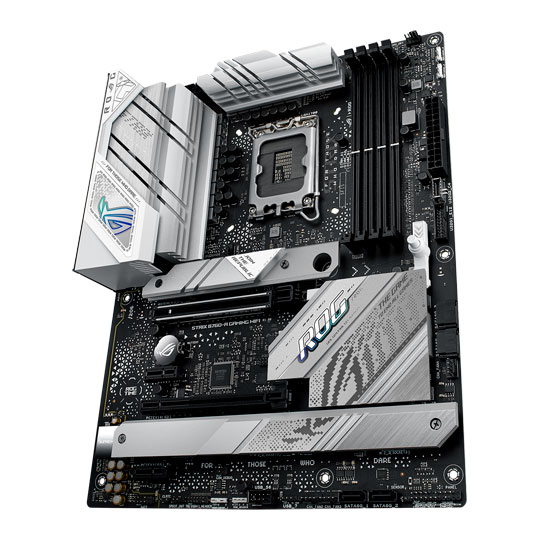

ASUS ROG Strix Intel B760A GAMING WIFI ATX Motherboard
ASUS ROG Strix B760-A GAMING WIFI, Intel B760, S 1700, DDR5, PCIe 5.0, 3x M.2, 2.5GbE, WiFi 6E/BT 5.3, ATX
ROG Strix B760-A Gaming WiFi Intel 13th Generation ATX Motherboard
Let Your Rig Run WildJust like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
Intel® B760Chipset
LGA 1700CPU Socket
13th Gen Intel®Compatible Processors
ATXForm Factor

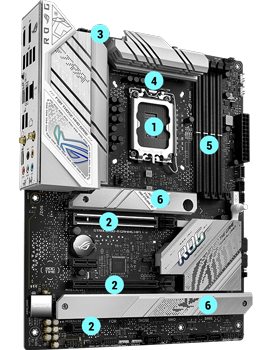

Outstanding Architecture and Power Solution
1Intel® Socket LGA 1700 for 13th/12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
21x PCIe 5.0 x16 SafeSlot (x16) [CPU]
1x PCIe 3.0 x16 Slot (x4) [CHIPSET]
2x PCIe 3.0 x1 Slots [CHIPSET]
3ProCool Power Connectors
412 + 1 Power Stages
5DDR5 7800+ (OC)
4 x DIMM
Dual Channel
62x M.2 2280 (PCIe 4.0 x4)
1x M.2 22110 (PCIe 4.0 x4)
All Round Performance
Incredible SpeedsThe neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.
POWER
ARCHITECTURE12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES
AND DURABLE CAPACITORSHigh-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER
PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

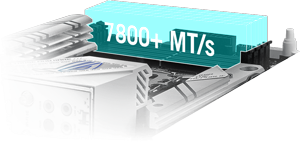

OPTIMEM IIOptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

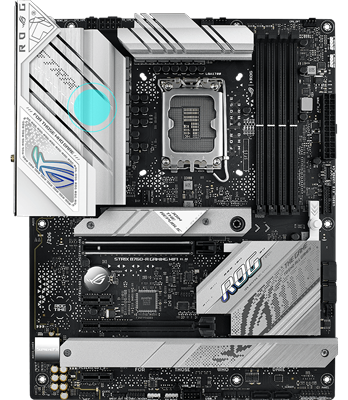

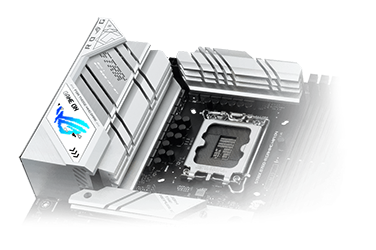

VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.

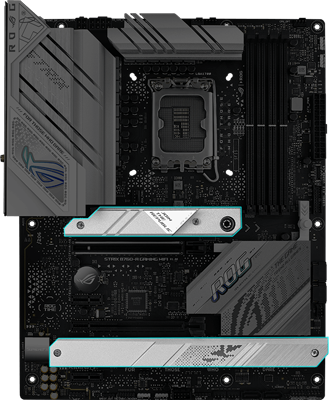

M.2 HEATSINKSHeatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

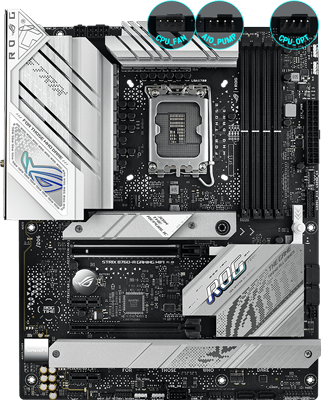

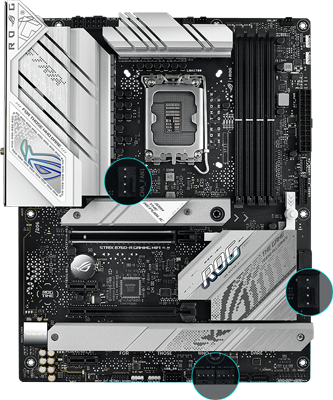

CPU FAN HEADERSPositioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.
AIO PUMP FAN HEADERA dedicated PWM/DC header connects self-contained water-cooling setups.
4-PIN FAN HEADEREach header supports auto-detection of PWM or DC fans.
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >Undeniably ROG Strix
ID DESIGNDiagonal slats, brushed aluminium, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.
Create Your Dream Gaming Setup

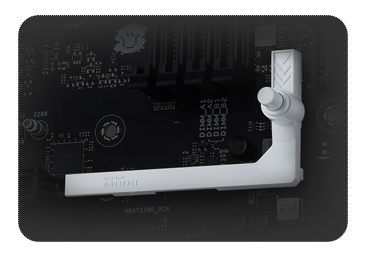

Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

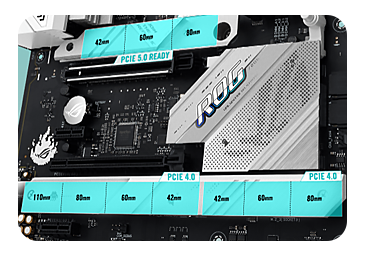

PCIE PERFORMANCEThe top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximise performance.
Supreme Networking Capability

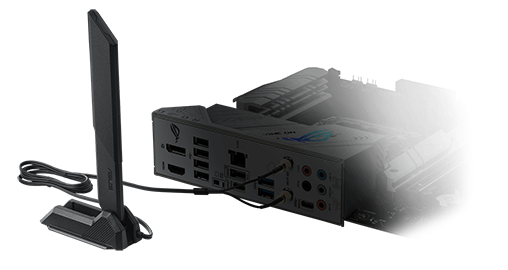

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
Fine Quality Components for Exceptional Clarity & Fidelity
Unique Design Features for Powerful AudioROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

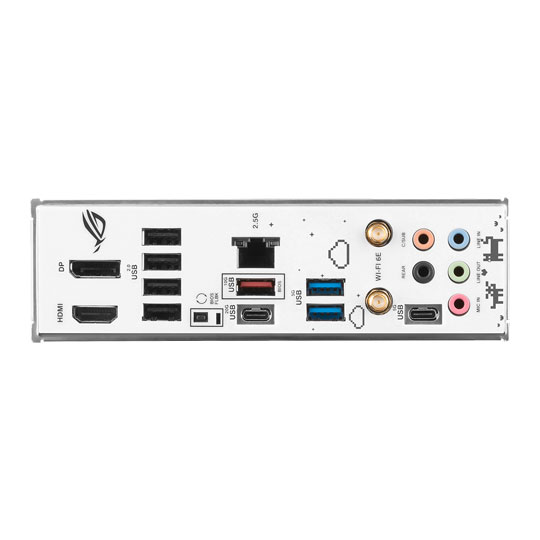

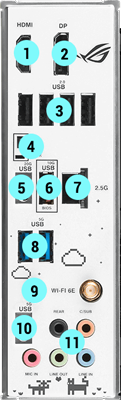

Full Connectivity
1 - 1x HDMI® Port
2 - 1x Display Port
3 - 4x USB 2.0 Ports (4 x Type-A)
4 - BIOS FlashBack™ Button
5 - 1x USB 3.2 Gen 2x2 Port (USB Type-C®)
6 - 1x USB 3.2 Gen 2 port (1 x Type-A)
7 - Intel® 2.5G Ethernet Port
8 - 2x USB 3.2 Gen 1 ports (Type-A)
9 - Wi-Fi 6E
10 - 1x USB 3.2 Gen 1 port
(USB Type-C®)
11 - 5 x Audio Jacks
Control Your Rig with Armoury Crate
account management software Armoury Crate is a software utility designed to provide centralised control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
