Scan code: LN122635 Manufacturer code: ROG STRIX B660-A GAMING WIFI D4

ASUS ROG STRIX B660-A GAMING WIFI D4 Intel B660 PCIe 5.0 ATX Motherboard

ASUS ROG STRIX B660-A GAMING WIFI D4, Intel B660, S 1700, DDR4, PCIe 5.0, SATA3, 3x M.2, 2.5GbE, ax WiFi, ATX

Thumbnail 1 : ASUS ROG STRIX B660-A GAMING WIFI D4 Intel B660 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS ROG STRIX B660-A GAMING WIFI D4 Intel B660 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS ROG STRIX B660-A GAMING WIFI D4 Intel B660 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS ROG STRIX B660-A GAMING WIFI D4 Intel B660 PCIe 5.0 ATX Motherboard
Scan code: LN122635 Manufacturer code: ROG STRIX B660-A GAMING WIFI D4
Order now and get it tomorrow, Fri 20th May
Was: £249.98
£204.98
Get it Tomorrow, 20 MayIn stock
From £9.07 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £17.62
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £204.98
Total inc. interest: £211.41
Monthly Payment: £9.07
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £204.98
Total inc. interest: £217.48
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

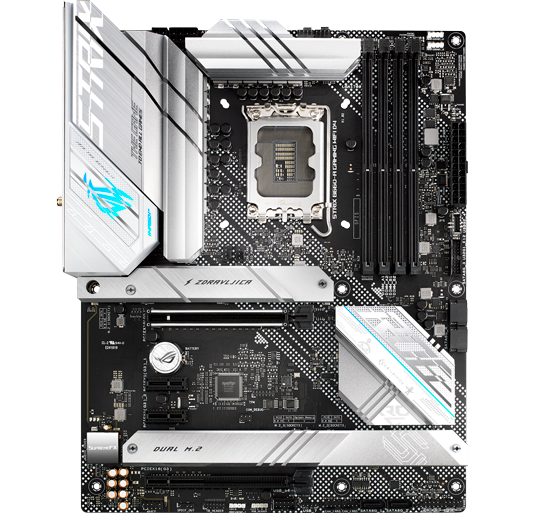

ROG Strix B660-A Gaming WiFi D4 Intel 12th Generation ATX Motherboard

ASUS ROG Strix B660-A Gaming WiFi Motherboard

GET READY FOR THE NEWEST GENERATION Introducing the newest series of B660 motherboards – ROG Strix B660-A Gaming WiFi D4 from ASUS. ROG Strix B660-A Gaming WiFi D4 puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

Please note: This motherboard is compatible with Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® B660Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ATXForm Factor

Teamed Power Architecture and Power Solution

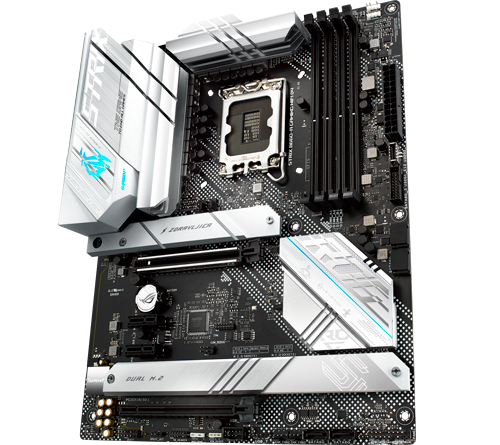

Breakdown

1. Supports the latest 12th Gen Intel® Processors
2. Dual Channel Memory, Max. 128GB, DDR4 / Supports OPTIMEM II
3. 12+1 Power Stages
4. Expansion Slots:
• 1 x PCIe 5.0 x16 SafeSlot (x16) CPU   |   • 1 x PCIe 3.0 x16 slot (supports x4 mode)***
• 2 x PCIe 3.0 x1 slots
5. Onboard Storage:
• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

AI Overclocking at a Glance

Intelligent Motherboard ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

features

Designed by ExpertsFor each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

features

Predictive EdgeThe algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

features

Real-time AdjustmentsOnce activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

Top-level PC Performance Demands Exceptional Cooling

cooling

Cooling innovation The ROG Strix B660-A Gaming WiFi D4 is armed with VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.
An M.2 heatsink with a direct-contact heat pipe delivers ample surface area, enabling optimal running temperatures for PCIe 5.0 M.2 NVMe drives, even when airflow is restricted. The M.2 heatsinks keep the M.2 SSDs at optimum operating temperature for consistent performance and reliability. The integrated M.2 backplate help ensure that high-performance drives deliver peak performance, even when airflow is restricted.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

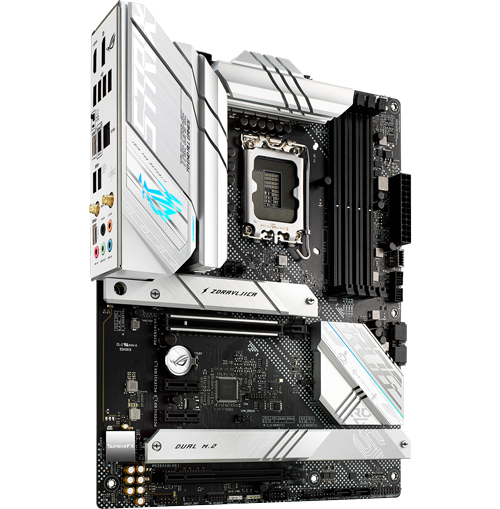

Outshine the Competition

RGB

Personalize and gear up with ROG components In addition to elite performance, ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs and third-party lighting strips that can connect to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Create a Fully Customized Gaming Setup

features

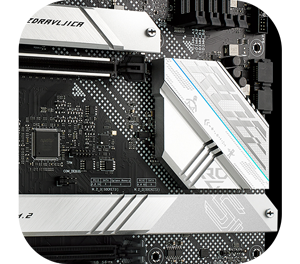

DIY FRIENDLY SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device. The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

features

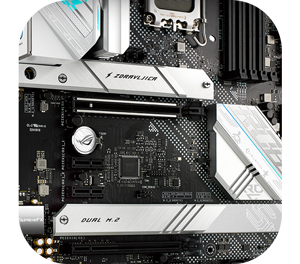

PCIe PerformanceWith one PCIe 5.0 M.2 slot delivering twice the speed of PCIe 4.0, two additional slots with PCIe 3.0, and one more 3.0 slot (supports x4 mode). ROG Strix leverages mighty CPU and chipset bandwidth to deliver the latest data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

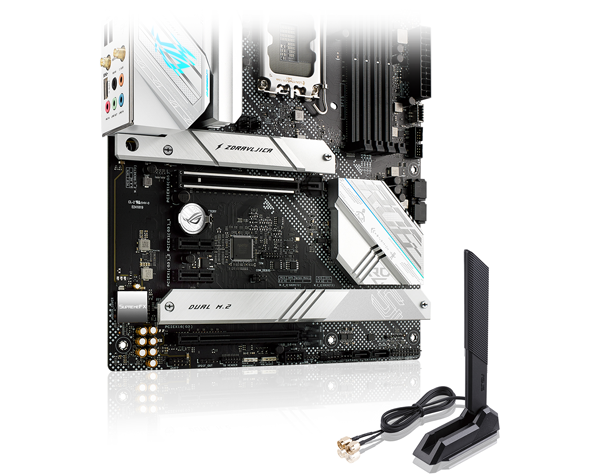

Supreme Networking Capability

Networking

WIFI 6 (802.11 AX)Onboard WiFi 6 technology takes advantage of the newly available radio spectrum in the 5 GHz band. It provides ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel® 2.5 GB EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, delivering up to 2.5X the speed of standard Ethernet connections for faster file transfers, low-lag gaming and high-resolution video streaming.

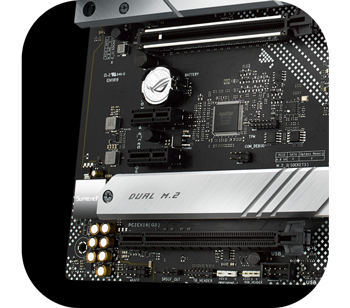

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

Unique Design Features for Powerful Audio ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix motherboards SupremeFX features the ALC4080 codec to increase playback to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

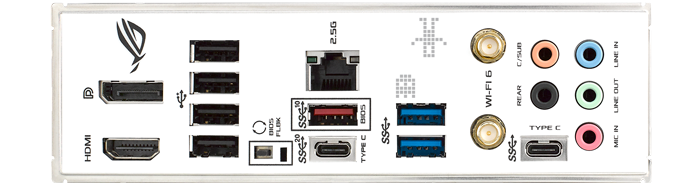

Full Connectivity

Connectivity

Armed with all the essentials 1. HDMI   |   2. DisplayPort   |   3. 4 x USB 2.0 Ports   |   4. BIOS Flashback Button   |   5. 1 x USB 3.2 Gen 2x2 Type-C®
6. 1 x USB 3.2 Gen 2 Port   |   7. Intel® 2.5Gb Ethernet   |   8. 2 x USB 3.2 Gen 1 Ports
9. Intel® Wi-Fi 6   |   10. 1 x USB 3.2 Gen 1 Type-C®   |   11. 5 x Audio Jacks
12. 1 x USB 3.2 Gen 2 Type-C®   |   13. 2 x USB 3.2 Gen 1 Headers   |   14. 4 x SATA 6Gb/s   |   15. Thunderbolt header

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG STRIX B660-A Gaming Wi-Fi
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x2
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x 8-pin PCIe (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 3 x M.2
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN122635
Model Number ROG STRIX B660-A GAMING WIFI D4
GTIN 4711081521501
