Scan code: LN129787 Manufacturer code: ROG STRIX B650E-I GAMING WIFI

ASUS ROG Strix AMD B650E-I Gaming WiFi PCIe 5.0 DDR5 mini-ITX Motherboard

ASUS ROG Strix B650E-I Gaming WiFi, AMD B650, S AM5, DDR5, SATA3, PCIe 5.0, 2x M.2, 2.5GbE, USB 3.2 Gen2x2, mITX

Thumbnail 1 : ASUS ROG Strix AMD B650E-I Gaming WiFi PCIe 5.0 DDR5 mini-ITX Motherboard Thumbnail 2 : ASUS ROG Strix AMD B650E-I Gaming WiFi PCIe 5.0 DDR5 mini-ITX Motherboard Thumbnail 3 : ASUS ROG Strix AMD B650E-I Gaming WiFi PCIe 5.0 DDR5 mini-ITX Motherboard Thumbnail 4 : ASUS ROG Strix AMD B650E-I Gaming WiFi PCIe 5.0 DDR5 mini-ITX Motherboard
Scan code: LN129787 Manufacturer code: ROG STRIX B650E-I GAMING WIFI
Order now and get it tomorrow, Tue 23rd Jul
£239.99
Get it Tomorrow, 23 JulIn stock
FREE DELIVERY ON THIS ITEM
From £11.72 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £21.75
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £260.89
Monthly Payment: £11.72
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £281.22
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ROG STRIX B650E-I GAMING WIFI Ryzen 7000 Series Mini-ITX Motherboard from ASUS

ROG STRIX B650 Motherboard

GET READY FOR THE NEWEST GENERATIONDon’t be fooled by its flyweight frame; the Strix B650E-I packs walloping performance! With a jacked VRM and pumped with DDR5, PCIe 5.0, and the latest WiFi 6E networking, it's a perfect partner for Ryzen 7000, particularly in stealthy SFF builds.

AMD B650Chipset

AMD AM5CPU Socket

AMD Ryzen 7000 SeriesDesktop Processors

Mini-ITXForm Factor

High Quality Power Design

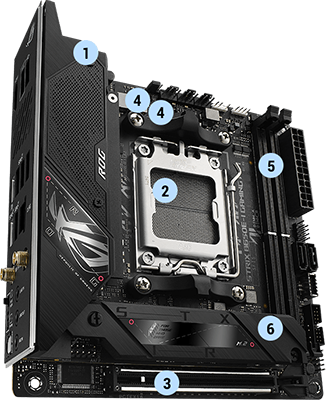

Breakdown

1 - 8-Pin ProCool Power Connector
2 - AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
3 - 1 x PCIe 5.0 x16 SafeSlot (x16)
4 - 10 + 2 Power Stages
5 - DDR5 6400+ (OC)
6 - 1 x M.2 2280 (PCIe 5.0 x4), 1 x M.2 2280 (PCIe 4.0 x4))

Experience All-Round Performance

Push frequency and timings to the max From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the ROG STRIX B650E-I GAMING WIFI fully flexes AM5 and infuses AMD Ryzen™ 7000 Series processors with additional agility to plough through every task.

features

DDR5 Strength & AEMP FirmwareFor those who want to fly past stock DDR5 speeds, the ROG Strix B650E-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimised profiles with higher frequency and tighter timings that you can effortlessly apply to unleash performance.

features

POWER ARCHITECTURE 10 + 2 power stages rated to 70A each deliver ample current in order to drive Ryzen 7000 through any workload with ease. ALLOY CHOKES AND DURABLE CAPACITORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards TEN-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Expert Thermal Management

VRM

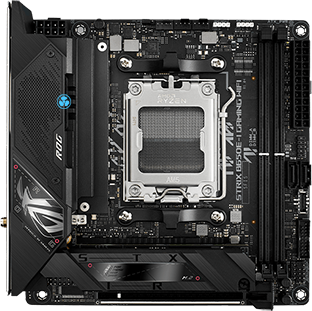

HIGH-CONDUCTIVITY THERMAL PADS High-quality thermal pads are utilised between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures. Substantial heatsinks cover the power solution, bolstered by a quiet thermal system that intakes from the core and outputs heat upwards through a ventilated top, so the VRM stays cool even in air-restricted systems.

heatsinks

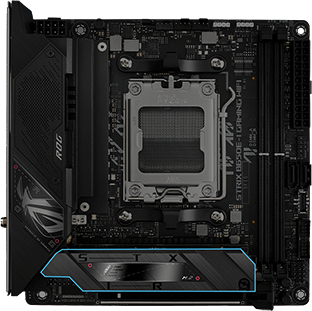

M.2 HEATSINKS A large heatsink covers the NVME SSD slot to help keep your drive optimal temperatures for consistent performance and reliability.

cpu

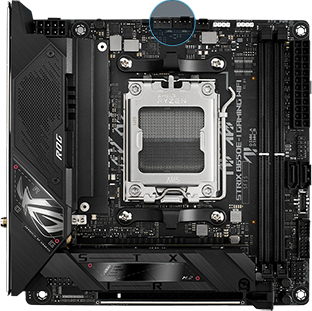

CPU fan headers A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.

chassis

4-PIN FAN HEADERS The chassis fan header supports auto-detection of PWM or DC fans.

Undeniably ROG Strix

ID Design

The ROG Strix Ecosystem Awaits The mesh-like texture on the VRM cooling array and the unidirectional brush lines may seem minimalist by Strix standards, but the B650E-I is far from modest, proudly displaying a metallic ROG eye on the I/O shroud and subtle pink accents for a simple, unique flavor.

Create a Fully Customised Gaming Setup

features

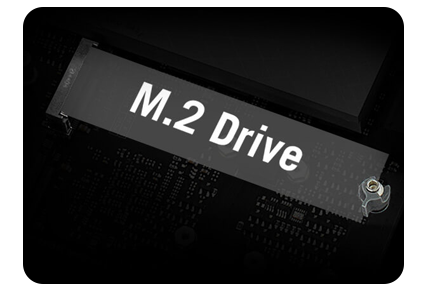

M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

features

PCIe 5.0 PerformanceFully embracing the new standard, the Strix B650E-I offers end-to-end PCIe 5.0 support to give unfettered bandwidth for the fastest SSDs and graphics cards available. The x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket. The onboard M.2 slot is also geared for PCIe 5.0, allowing for blistering 16 GB/s read and write speeds, while the other slot delivers still-impressive 8 GB/s transfers over its PCIe 4.0 interface.

Supreme Networking Capability

Networking

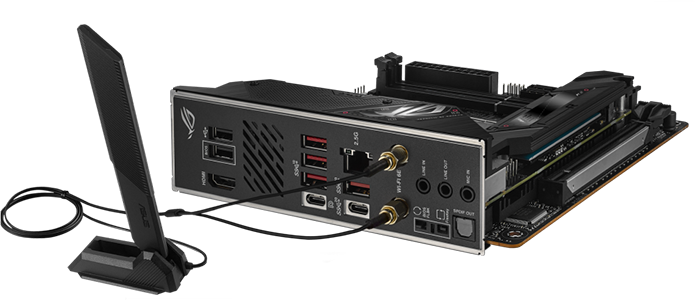

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

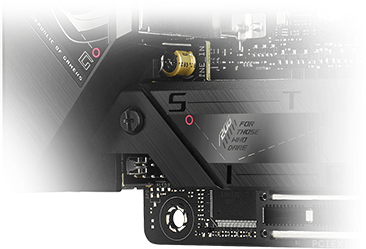

SUPREME FX ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650E-I implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

Leading Connectivity

Armed with all the essentials The ROG STRIX B650E-I GAMING WIFI delivers a plethora of internal and external connectivity for low-latency networking and ultra-fast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Connectivity

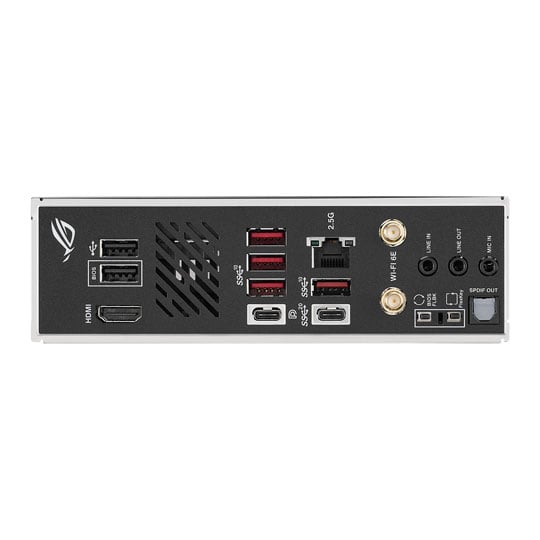

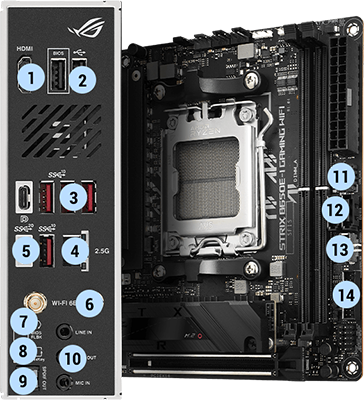

I/O Ports 1 - 1 x HDMI® Port
2 - 2 x USB 2.0
3 - 5 x USB 3.2 Gen 2 Ports (4 x Type-A + 1 x USB Type-C® with DisplayPort Alt Mode)
4 - Intel® 2.5G Ethernet Port
5 - 1 x USB 3.2 Gen 2x2 Port (USB Type-C®)
6 - Wi-Fi 6E
7 - BIOS FlashBack™ Button
8 - FlexKey button
9 - Optical S/PDIF OUT
10 - 3 x LED-Illuminated Audio Jacks

Connectors & Headers 11 - 1x USB 2.0 Header Supports Additional 2x USB 2.0 Ports
12 - 2 x SATA 6GB/S
13 - 1 x USB 3.2 Gen2 USB Type-C® Front Panel Connector
14 - 1 x USB 3.2 Gen 1 Header

Control your Rig with Armoury Crate

Armoury Crate

Account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Specifications
Core Specifications
Edition ROG STRIX B650E-I GAMING WIFI
Form Factor Mini-ITX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x PCIe 5.0 x16
  • 2 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 2 x SATA III - 6Gb/s
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Intel® Wi-Fi 6E AX210 + BT5.2
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN129787
Model Number ROG STRIX B650E-I GAMING WIFI
GTIN 471108195781
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
