ASUS AMD Ryzen ROG STRIX B650E-E GAMING WIFI 6E AM5 PCIe 5.0 ATX Motherboard

ASUS ROG STRIX B650E-E GAMING WIFI, AMD B650, AM5, DDR5, PCIe 5.0, 4x M.2, 2.5G/WiFi 6E, AMD EXPO™, ATX

Thumbnail 1 : ASUS AMD Ryzen ROG STRIX B650E-E GAMING WIFI 6E AM5 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen ROG STRIX B650E-E GAMING WIFI 6E AM5 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen ROG STRIX B650E-E GAMING WIFI 6E AM5 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen ROG STRIX B650E-E GAMING WIFI 6E AM5 PCIe 5.0 ATX Motherboard
Scan code: LN129784 Manufacturer code: ROG STRIX B650E-E GAMING
There are 8 people viewing this product
Order now and get it tomorrow, Thu 18th Jul
Was: £299.99
£249.98
Get it Tomorrow, 18 JulIn stock
From £12.21 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £22.65
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £271.76
Monthly Payment: £12.21
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £292.94
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ROG STRIX B650E-E GAMING WIFI Ryzen 7000 Series ATX Motherboard from ASUS

ROG STRIX B650 Motherboard

GET READY FOR THE NEWEST GENERATION ROG STRIX B650E-E GAMING WIFI is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen™ 7000 Series processors. PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory.

AMD B650Chipset

AMD AM5CPU Socket

AMD Ryzen 7000 SeriesDesktop Processors

ATXForm Factor

Outstanding Power Architecture

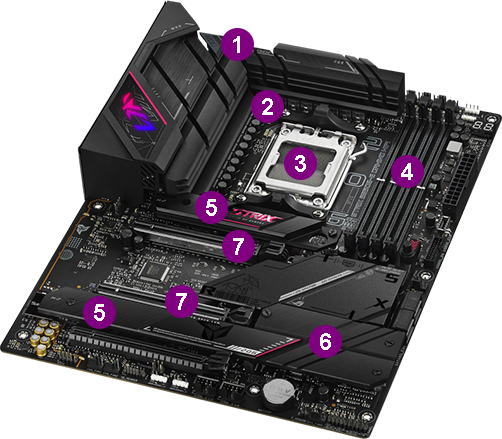

Breakdown

1 - Dual ProCool Power Connectors
2 - 16 + 2 Power Stages
3 - AMD AM5 Socket for AMD Ryzen™ 7000 Series Desktop Processors
4 - DDR5 6400+ (OC)
5 - 1x M.2 2280 (PCIe 5.0 x4) / 1x M.2 22110 (PCIe 5.0 x4)
6 - 2 x M.2 2280 (PCIe 4.0 x4)
7 - 2 x PCIe 5.0 x16 Safeslots (x16, x8/x4)

Experience All-Round Performance

Push frequency and timings to the max From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the ROG STRIX B650E-E GAMING WIFI fully flexes AM5 and infuses AMD Ryzen™ 7000 Series processors with additional agility to plough through every task. ASUS Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Featured overclocking tools include Dynamic OC Switcher, Core Flex and PBO Enhancement.

features

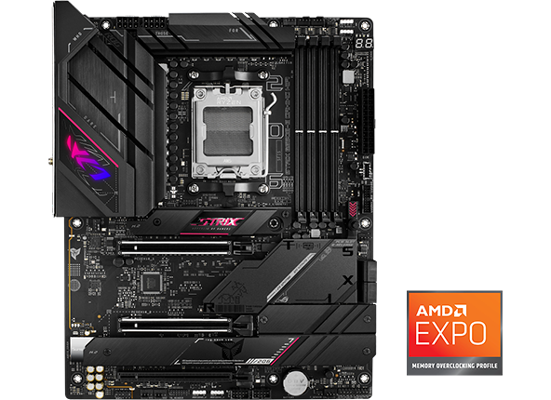

DDR5 Strength & AEMP FirmwareFor those who want to fly past stock DDR5 speeds, the Strix B650E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI. AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

features

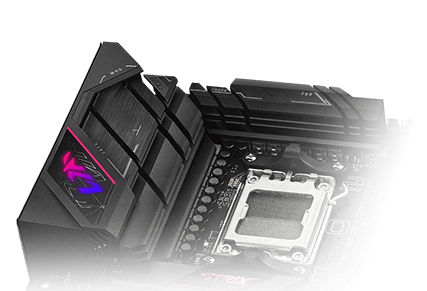

POWER ARCHITECTURE 16 + 2 power stages rated to 70A each deliver ample current in order to drive Ryzen 7000 through any workload with ease. ALLOY CHOKES AND DURABLE CAPACITORS Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, exceeding industry standards.. EIGHT-LAYER PCB A multi-layered printed circuit board design dissipates heat around the voltage regulators, improving overall system stability, providing more CPU overclocking headroom.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Expert Thermal Management

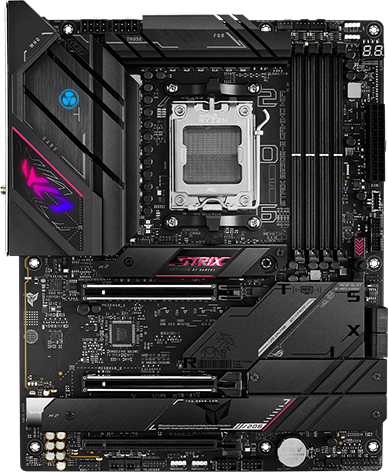

VRM

HIGH-CONDUCTIVITY THERMAL PADS Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Ryzen 7000 Series processors. High-quality thermal pads are utilised between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.

heatsinks

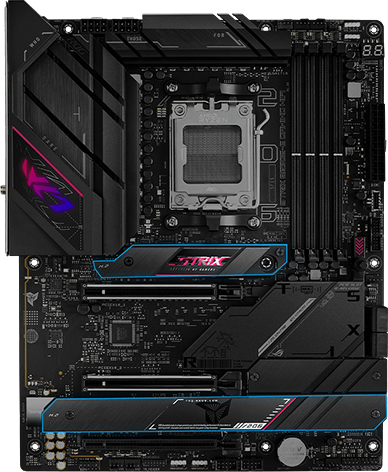

M.2 HEATSINKS Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

cpu

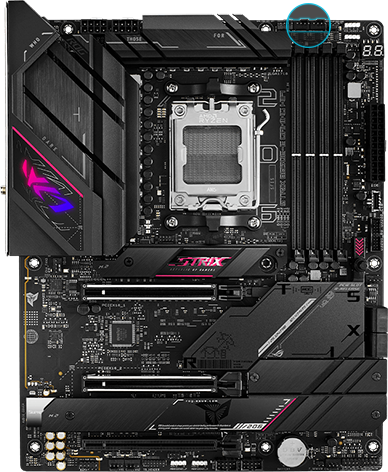

CPU fan headers A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.

chassis

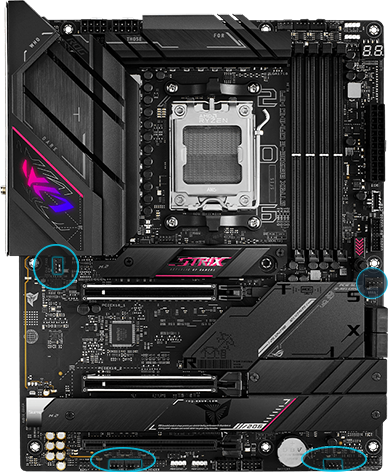

4-PIN FAN HEADERS The Strix B650E-E features five fan headers, each supporting auto-detection of PWM or DC fans.

Outshine the Competition

RGB

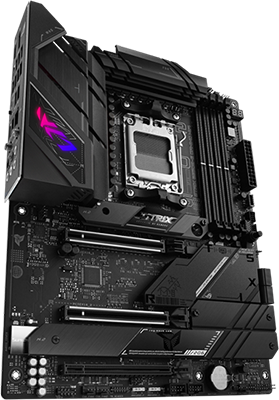

Personalise your gaming rig ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.

Undeniably ROG Strix

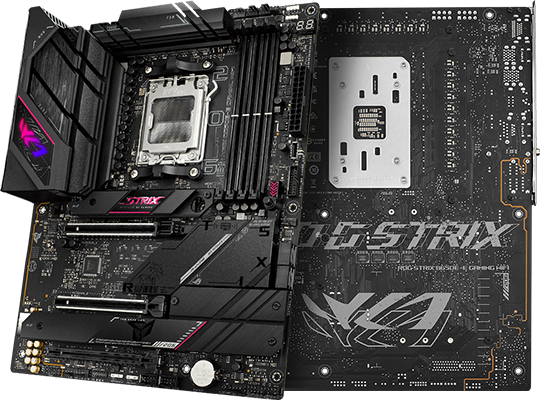

ID Design

The ROG Strix Ecosystem Awaits Bold and elegant, the ROG Strix B650E-E bears a premium aesthetic similar to the Electro Punk peripheral series. Black shrouds cover the SSDs and chipset with contrasting powder-coated and brushed metal textures, and playful pink accents draw the gaze around the board. The I/O shroud is emblazoned with a split image of the ROG eye, the center of which can shine with a splash of customisable RGB.

Create a Fully Customised Gaming Setup

features

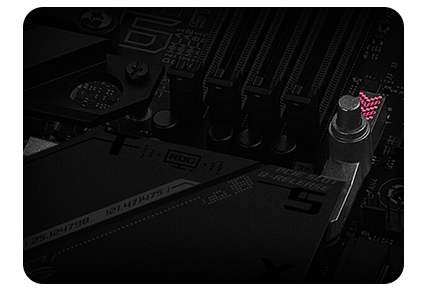

DIY FRIENDLY PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot's security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

features

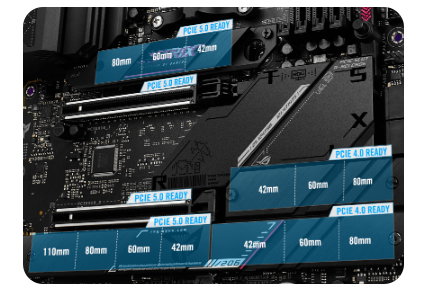

PCIe 5.0 PerformanceFully embracing the new standard, the Strix B650E-E offers abundant PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available. Both of the x16 expansion slots are Gen 5-ready, and are protected with SafeSlot retention brackets. Two of the onboard M.2 slots are geared for blistering 16 GB/s read and write speeds courtesy of their PCIe 5.0 interfaces, while the accompanying 4.0 pair deliver still-impressive 8 GB/s transfers. And all of the M.2 slots are covered with substantial heatsinks to dispatch the heat of next-gen drives.

Supreme Networking Capability

Networking

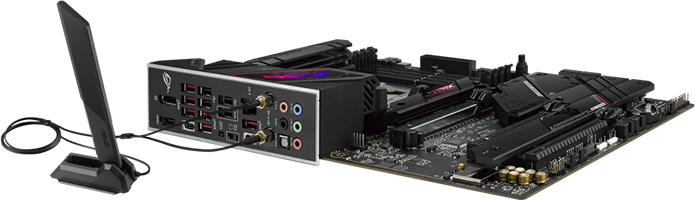

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

SUPREME FX ROG Supreme FX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650E-E implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

Leading Connectivity

Armed with all the essentials The ROG STRIX B650E-E GAMING WIFI delivers a plethora of internal and external connectivity for low-latency networking and ultra-fast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Connectivity

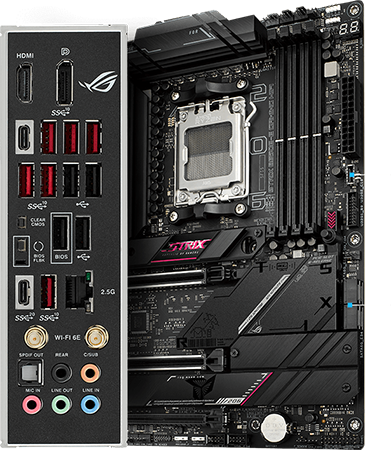

Full Connectivity Breakdown

I/O Ports • 1 x HDMI® Port
• 1 x DisplayPort
• 7 x USB 3.2 Gen 2 (6 x Type-A + 1 x USB Type-C®)
• 4 x USB 2.0 Ports
• Clear CMOS Button
• BIOS FlashBack™ Button
• 1 x USB 3.2 Gen 2x2 Port (USB Type-C®)
• Intel® 2.5G Ethernet Port
• WiFi 6E
• Optical S/PDIF Out Port
• 5 x Audio Jacks

Connectors & Headers • 1 X USB 3.2 Gen 2 USB Type-C® Front Panel Connector
• 4 x SATA 6Gb/s
• 3 x 3-Pin Addressable Gen 2 RGB Headers
• 1 x 4-Pin Aura RGB Header
• AIO Pump Header
• 5 x 4-pin PWM Chassis Fan Headers

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Specifications
Core Specifications
Edition ROG STRIX B650E-E GAMING WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 2 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Intel® Wi-Fi 6E AX210 + BT5.2
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 50 x 305 mm
Note
Additional Information
Scan Code LN129784
Model Number ROG STRIX B650E-E GAMING
GTIN 4711081906209
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
