Offer
Scan code: LN125436 Manufacturer code: B550-F GAMING WIFI II

ASUS AMD B550 ROG STRIX B550-F GAMING WI-FI II ATX Motherboard

ASUS ROG STRIX B550-F GAMING WI-FI II, AMD B550, AM4, DDR4, PCIe 4.0, SATA3, Dual M.2, 2.5GbE, 2x2 Wi-Fi 6E/BT5.2, ATX

Thumbnail 1 : ASUS AMD B550 ROG STRIX B550-F GAMING WI-FI II ATX Motherboard Thumbnail 2 : ASUS AMD B550 ROG STRIX B550-F GAMING WI-FI II ATX Motherboard Thumbnail 3 : ASUS AMD B550 ROG STRIX B550-F GAMING WI-FI II ATX Motherboard Thumbnail 4 : ASUS AMD B550 ROG STRIX B550-F GAMING WI-FI II ATX Motherboard
Scan code: LN125436 Manufacturer code: B550-F GAMING WIFI II
Order in the next 59 mins and get it tomorrow
Was: £209.99
£164.99
Get it Tomorrow, 26 MayIn stock
From £14.18 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £14.18
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £164.99
Total inc. interest: £170.17
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG STRIX B550-F Gaming WiFi II AM4 Gaming ATX Motherboard from ASUS

TUF Gaming M4

Beauty and Performance Combined The ASUS B550-F Gaming with Wi-Fi is ready to power the 3rd Generation of AMD Ryzen Processors and well equipped with great features which you can find in the high end Strix X570 motherboards. This will surely let you to take your gaming to an ultimate level of greatness. The ROG Strix B550-F Gaming boasts PCIe 4.0 support including dual PCIe 4.0 M.2 Slots, an optimal power solution with 12+2 power stages, ProCool II connectors, alloy chokes and durable capacitors to support multi-core processors, Intel 2.5GB Ethernet, Wifi 6E and a wealth of powerful connectivity options. Whilst the ASUS comprehensive cooling solution includes an active chipset heatsink, MOS heatsink and dual M.2 heatsinks to effectively manage and dissipate heat to product sensitive components.

AMD B550Chipset

AM4CPU Socket

3RD Generation RyzenCompatible CPUs

ATXForm Factor

Premium Power Delivery

4K Recording

12+2 Teamed Power StagesThe ROG STRIX B550-F GAMING Wi-Fi II uses digital power control and a collection of power stages to ensure that you can utilise the power of the latest AMD Ryzen processors. The ROG STRIX motherboards use Pro Cool power connectors and superior chokes and durable capacitors which made to dissipate heat quickly and efficiently. The VRM and DRAM are controlled with ASUS DIGI+ power control which offers precise memory and voltage tuning for optimal performance and stability.

PCIe 4.0 Ready

4K Recording

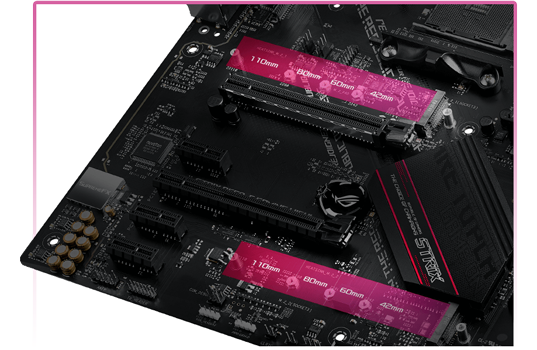

Are you ready for gen 4?ROG Strix B550-F Gaming WiFi II features two M.2 slots, one of which supports the PCIe 4.0 standard to provide maximum storage flexibility and the lightning-fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

The Latest Wi-Fi Standard

4K Recording

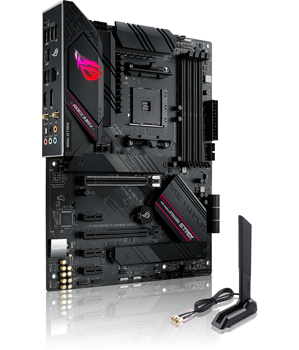

WiFi 6EOnboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel 2.5 Gb EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.

ROG STRIX B550-F GAMING Features

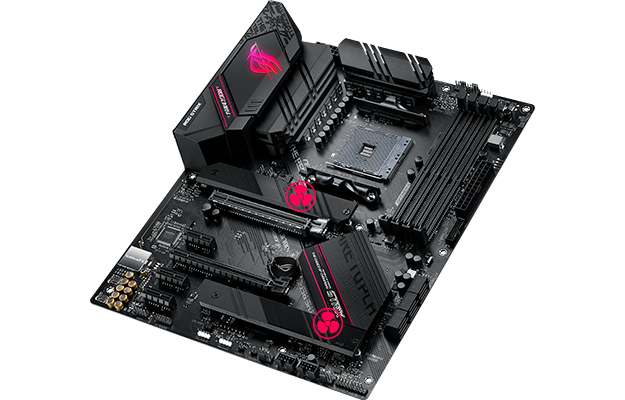

OUTSHINE THE COMPETITION WITH AURA ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

b550 Aura RGB Features

RGB Connectors1 x 3-pin Addressable Gen 2 RGB Header
2 x 4-pin Aura RGB Headers

RGB LightingI/O Zone AURA Lighting
Chipset Zone AURA Lighting

Multi-GPU SLI®/ CFX Support1 x PCIe 4.0 x16 SafeSlot (x16) [CPU]
1 x PCIe 3.0 x16 slot (x4) [CHIPSET]
3 x PCIe 3.0 x1 slots [CHIPSET]

Fan Connectors1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers

M.2 Socket1 x M.2 supports PCIe 4.0 x4 & SATA modes
1 x M.2 supports PCIe 3.0 x4 & SATA modes

DDR4, 4 x DIMMDual Channel
ASUS OptiMem II

ASUS Armoury Crate and More

asus armoury

Speed your game loads Armoury Crate is a new software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download the user manual, drivers and software. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.

AI Networking Gives you Many More Features

AI Networking

THE MOST IMMERSIVE ENTERTAINMENT ROG Strix Gaming is VR Ready and beyond! The ASUS Beyond VR Ready marque means that ROG Strix Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming, and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready provides a new way to configure and build your dream system with total confidence.

Identification

IdentificationGameFirst VI analyzes your usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps. The database is regularly updated to ensure that apps are recognised.

Boost

BoostGameFirst VI intelligently switches application priority and adjusts bandwidth as you need. When gaming, it accelerates and prioritises game packets giving you supersmooth online gameplay — even when you're streaming high-quality video or transferring large files.

Visualisation

VisualisationAn intuitive graph gives you an overview of the network in real time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.

Specifications
Core Specifications
Edition ROG STRIX B500-F GAMING WI-FI II
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4866+(OC)
  • DDR4 - 5100(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support NVLink
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 2 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 6 x SATA III - 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 10 x 10 BaseT (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN125436
Model Number B550-F GAMING WIFI II
GTIN 4711081453314
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
ASUS AMD B550 ROG STRIX B550-F GAMING WI-FI II ATX Motherboard
ASUS AMD B550 ROG STRIX B550-F GAMING WI-FI II ATX Motherboard
