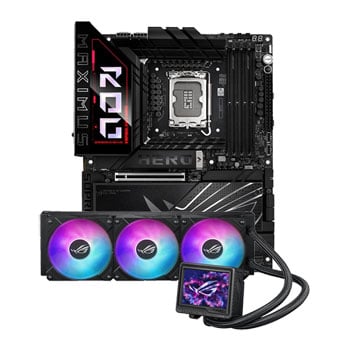

ASUS ROG MAXIMUS Z890 HERO with ASUS ROG Ryujin III 360 ARGB Extreme CPU AIO Bundle

ASUS ROG MAXIMUS Z890 HERO DDR5 PCIE 5.0 ATX Motherboard

The ROG Maximus Z890 Hero unleashes the performance of Intel® CoreTM Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimised thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.

ASUS AI Intelligence

AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI Networking II

Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.
Fast Check
Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength?
Direction Finder
Armoury Crate's Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.
Gamefirst
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user's experience, GameFirst is now integrated into Armoury Crate.

ASUS AI Advisor

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

DDR5 Domination

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the ROG Maximus Z890 Hero, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

DIMM Fit

DIMM Fit offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritising rock-solid stability, DIMM Fit provides optimisations tailored to your needs and your hardware configuration.

NitroPath DRAM Technology

NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

ROG Ultimate Power Solution

8 + 8-pin ProCool II power connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
22+1+2+2 Power Stages
The VRM features 22+1+2+2 power stages, each rated to handle up to 110 amps.
10K Black Metallic Capacitors
Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Cutting-Edge Thermal Management

VRM and aluminium I/O heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
High-conductivity thermal pads
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
M.2 heatsinks and backplates
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four of six onboard M.2 slots have dedicated backplates for additional heat dissipation.
Chipset heatsink
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

Six Onboard M.2 Slots

The ROG Maximus Z890 Hero features six onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. It also features a SlimSAS connector, which supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.

ROG M.2 PowerBoost

ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all six onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.

PCIe 5.0 Expansion Slot

The primary x16 expansion slot offers PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, it is also protected with a SafeSlot retention bracket which can be released easily, thanks to PCIe Slot Q-Release Slim.

Boost Your Connectivity

WiFi 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.
2.5Gb Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5Gbps Ethernet.

PCIE® SLOT Q-RELEASE SLIM

Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot.?

M.2 Q-RELEASE

The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws.

NEW M.2 Q-LATCH

Tool-free installation or removal of M.2 SSDs with just one press.

M.2 Q-SLIDE

The new sliding M.2 latch design supports sizes 2242, 2260, and 2280 for easy device installation.

Q-ANTENNA

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

ASUS ROG Ryujin III 360 ARGB Extreme AIO CPU Water Cooler Intel/AMD

Experience exceptional performance with the ROG Ryujin III 360 ARGB Extreme, featuring Asetek’s Emma Gen8 V2 pump and enhanced magnetic ROG ARGB fans to maximize the power of AMD AM5 9000 Series and Intel® Core™ Ultra Processors. This advanced cooling solution includes an embedded VRM fan for stable performance during intense tasks. With an upgraded LCD offering 480p resolution and 60Hz refresh rate, enjoy a smoother visual experience—unlock limitless possibilities with the ROG Ryujin III 360 ARGB Extreme!

Optimization for Intel Processors

The ROG Ryujin III 360 ARGB Extreme is specially optimized for the heat zones of Intel® Core™ Ultra processors (Series 2). The combination of its adjustable bracket, a new pump and upgraded ROG fans can reduce CPU temperatures by up to 7.5%, compared to the standard ROG Ryujin III 360 ARGB.

Enhanced Fan Performance

The significantly upgraded ROG ARGB Fans provide high airflow and static pressure with noise optimization, offering users the best balance between performance and acoustics.

Thickened ROG ARGB Fans

These fans have been thickened to 30 mm for high airflow and static pressure with noise optimization, maximizing cooling performance while maintaining maximum case compatibility.

Magnetic Daisy-Chainable Design

These customizable ARGB fans snap together with a magnetic connector that links the fans and transmits control signals and power. Only one cable is required for all three fans, making installation and cable management

Efficient Motor

The fan motor has been upgraded to a three-phase six-pole design. This enhances the motor's efficiency and stability and leads to smoother, quieter operation.

Durable Bearing System

These fans have been updated with fluid dynamic bearings (FDBs). These reduce friction, reduce noise and enhance durability.

Enhanced Fan Blade Design

These fan blades feature a three-section design, the outer ring is more compact than before, and the number of blades has been increased from seven to nine, significantly boosting airflow and cooling efficiency.

Embedded VRM Fan

A larger embedded axial-tech fan improves airflow, reducing motherboard VRM temperatures by up to 36 Celsius.

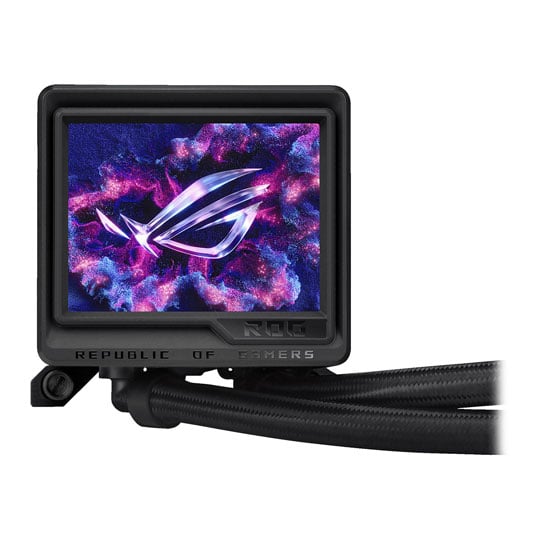

Full-Colour 3.5” LCD

The vivid and smooth 3.5-inch display offers a stunning visual feast.

System Monitoring

The 3.5-inch LCD delivers live monitoring of clock frequencies, voltages, temperatures, fan speeds and water flow, or your custom GIFs.

Personalized Animation

Choose a pre-designed animation from the ROG gallery, or easily add one of your own.

Custom Wallpaper

Do you prefer banners or clan logos? Choose one designed by ROG, or put your own text or JPEG file on proud display at the heart of your rig.

Giphy Integration

ROG Ryujin III 360 ARGB Extreme pairs with Giphy to unlock the vast potential for customizing a unique and personalized machine.

Fan Control

This generation of ROG all-in-one coolers now includes software that lets you control the speeds of your pump and embedded fan, in a way that should be instantly recognizable to FanXpert veterans.

Extensive Compatibility

The ROG Ryujin III series features 400 mm of tubing and is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.

ASUS ROG MAXIMUS Z890 HERO DDR5 PCIE 5.0 ATX Motherboard

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• Exclusive AI Technologies: ASUS AI Advisor, AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
• Advanced Overclocking & Memory Technologies: NPU Boost, NitroPath DRAM Technology, DIMM Fit, DIMM Flex and AEMP III
• Robust Power Solution: 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimised Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
• Latest M.2 Support: Three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, all with substantial cooling solutions

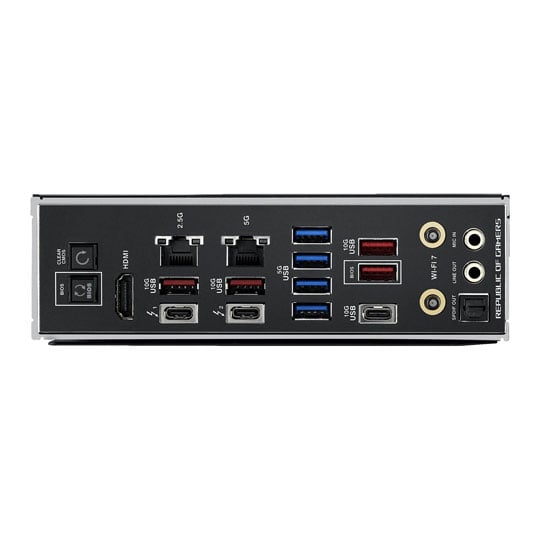

• Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics cards, HDMI™ 2.1
• High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
• DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9219 Quad DAC for up to 32-Bit/384 kHz playback
• Unmatched Personalisation: I/O cover with Polymo Lighting II, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
• Renowned Software: ASUS DriverHub, Dolby Atmos®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and bundled 1-year AIDA64 Extreme subscription

ASUS ROG Ryujin III 360 ARGB Extreme AIO CPU Water Cooler Intel/AMD

• The latest Asetek Emma Gen8 V2 pump with a 3-phase motor delivers ultimate cooling performance, higher flow and lower impedance
• Thickened ARGB fans for high airflow and static pressure with noise optimization, quickly snapping together with special magnets to streamline installation
• 3.5" LCD screen increased to 640x480 for custom animated GIFs or live monitoring of clock frequency, voltage, temperature, fan speed or coolant flow
• Enhanced embedded fan in the pump housing to cool motherboard VRMs
• New software features: Control of pump and embedded fan speeds, AIDA64 with special ROG themes that creates a unique visual style
