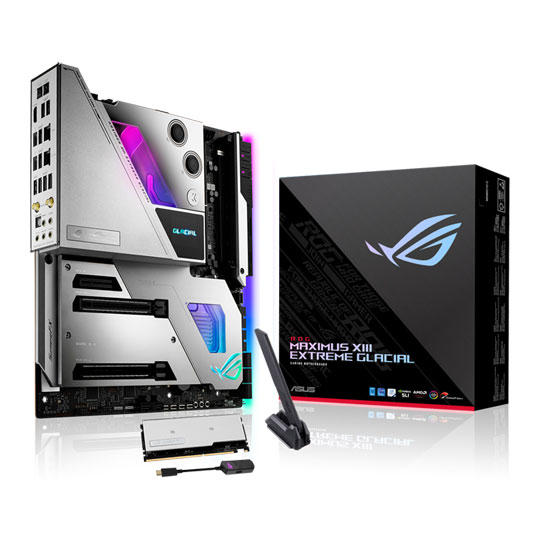

Thumbnail 1 : ASUS ROG Maximus XIII Extreme Glacial Intel Z590 PCIe 4.0 E-ATX Motherboard Thumbnail 2 : ASUS ROG Maximus XIII Extreme Glacial Intel Z590 PCIe 4.0 E-ATX Motherboard Thumbnail 3 : ASUS ROG Maximus XIII Extreme Glacial Intel Z590 PCIe 4.0 E-ATX Motherboard Thumbnail 4 : ASUS ROG Maximus XIII Extreme Glacial Intel Z590 PCIe 4.0 E-ATX Motherboard
Scan code: LN114058 Manufacturer code: ROG MAXIMUS XIII EXTREME GLACIAL
£1,399.99
Order now and receive it by Tuesday, 15th June
From £38.24 / month (APR 14.9%)
Monthly Payment: £125.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,399.99
Total inc. interest: £1,508.17
Monthly Payment: £67.20
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,399.99
Total inc. interest: £1,612.75
Monthly Payment: £47.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,399.99
Total inc. interest: £1,721.77
Monthly Payment: £38.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,399.99
Total inc. interest: £1,835.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £34.97 / month (APR 15.9%)
Delivery Options
  • By DPD On 15th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG Z590 Maximus XIII Glacial 11th Generation Intel E-ATX Motherboard from ASUS

ROG Maximus XIII glacial Motherboard

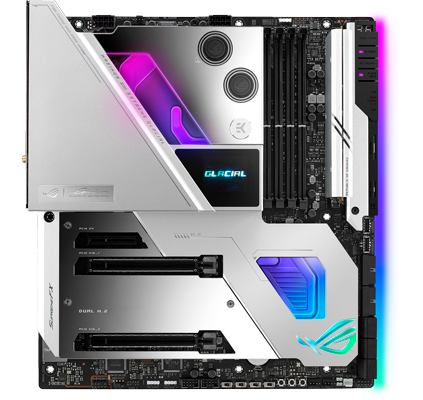

Teamwork Makes the Dream Work The Z590 ROG Maximus XIII Extreme Glacial is a masterpiece of collaborative engineering. Everything the Intel® Z590 platform has to offer and the latest ROG trimmings reside in absolute harmony under the water-cooled guidance of the EK® UltraBlock. The finest ride for 11th Gen Intel® processors has arrived.​​ It features the latest hardware and software that work in unison to optimise your overclocking experience, as well as AI-enhancements and comprehensive cooling controls to give you total command over your build. This top tier performance is achieved by packing this E-ATX motherboard with a robust 18+2 power solution with ProCool II power connectors, an integrated EK ultra block for high end liquid cooling performance, 5x M.2 heat sinks, high-conductivity thermal pads and ROG Water-Cooling Zones. The Maximus Xiii Glacial also features Wifi 6E, onboard 2.5GbE LAN and dual ThunderBolt4 connectivity, full Pcie 4.0 design, 5x M.2 slots and industry leading audio, but thats not all with ASUS AURA Sync support you are free to customise the 1.77” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers. This beautiful piece of kit is ready to take you into a new realm of performance... are you ready?

55

Intel Z590Chipset

LGA 1200CPU Socket

E-ATXForm Factor

ROG X EK® Ultrablock

4K Recording

Hyper Intuitive Cooling SolutionThe EK® UltraBlock cold plate is made of pure electrolytic copper that’s plated in nickel to prevent oxidization. Coolant is steered through milled pathways passing over the CPU, mid-board M.2 slot, PCH, and VRM in sequence, prioritising chill where it’s needed most. Embedded sensors at the inlet and outlet stream flow rate and temperature stats directly to Fan Xpert 4 software, enabling custom cooling profiles for the best balance of performance and acoustics. The finishing touch is provided by addressable RGB lighting that blooms through plexiglass panes situated at opposite ends of the block.

Built to Take the Strain

Power Delivery Enhancements

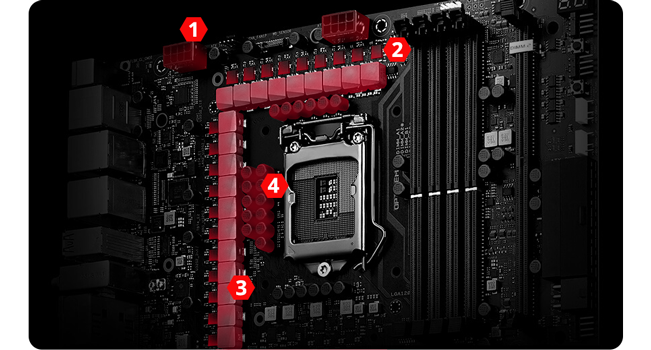

POWER DELIVERY ENHANCEMENTS Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

1. 8-pin ProCool II power connectors Two ProCool II Power Connectors ensure a snug and reliable connection to the EPS 12V Power Lines.

2. Infineon TDA21490 Power Stage The VRM features 18 power stages rated at 100 amps each for the Vcore and two 100-amp power stages for the secondary voltage rails.

3.MicroFine
Alloy Chokes
Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

4. 10K Black
Metallic Capacitors
Input and output filtering is provided by Japanese-made solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Cooler by Design

COMPREHENSIVE COOLING ZONEA high-end battle station needs robust cooling to deliver peak performance. ROG Maximus XIII Extreme Glacial has a large cooling array for the VRM and chipset, plus M.2 heatsinks accompanied with backplate blocks to draw heat away from critical components. That rugged foundation is backed by complimentary headers for fans, AIOs and liquid loops, paired with flexible control options that allow you to build the ultimate high-performance, silent, water-cooled rig.

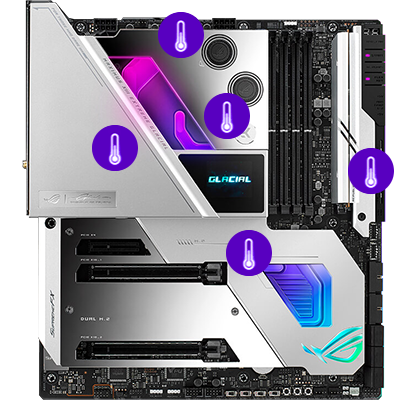

Thermometer sensors

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.

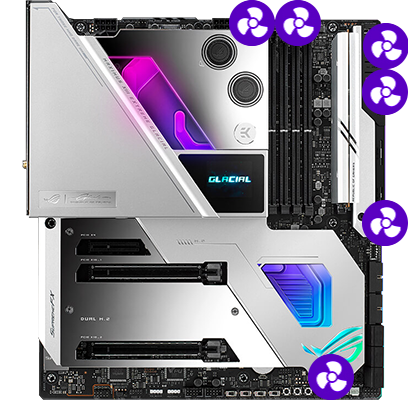

Fan detectors and headers

4-pin PWM/DC Fan Every onboard header auto-detects any PWM or DC fan, with three chassis fan headers offering ASUS HYDRANODE support.

 bundled extension card

Bundled ROG Fan Controller A dedicated PWM/DC header for self-contained water-cooling setups.

 bundled extension card

Water pump+ A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.

 bundled extension card

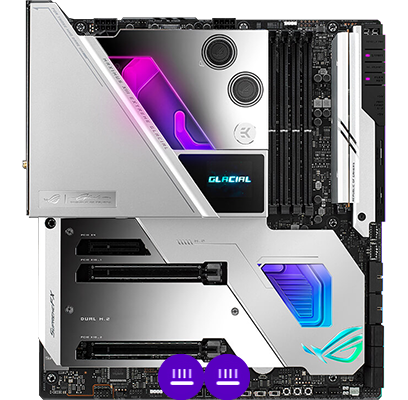

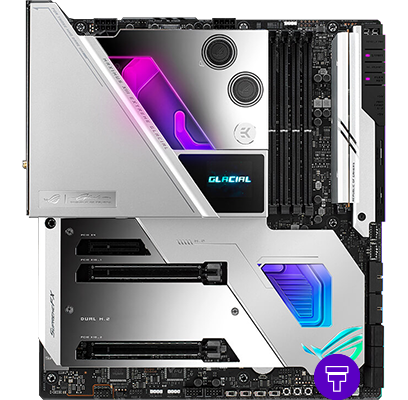

Water in/out A dedicated header enables monitoring of temperatures at the input/output points of any component.

 bundled extension card

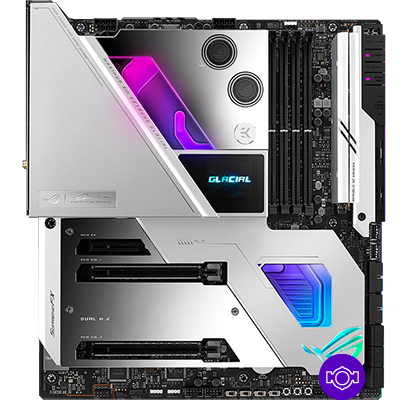

Water flow A dedicated header enables constant monitoring of flow rate throughout the entire loop.

Unprecedented Thermal Dominance

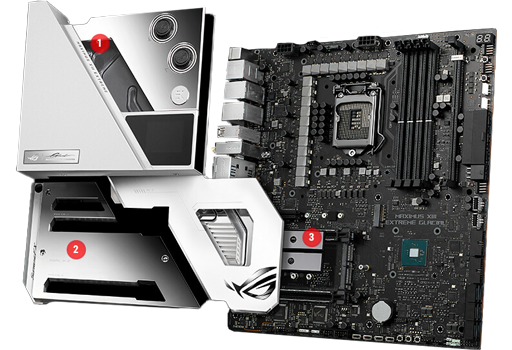

Heatsinks

1. EK
Ultrablock
The Ultrablock effectively cools the CPU, VRM, mid-board M.2 slot, and Z590 chipset, ensuring system stability even under sustained high load.​

2. M.2
Heatsinks
The M.2 heatsink keep the dual M.2 SSD at optimum operating temperature for consistent performance and reliability.​

3. M.2
Backplate
Integrated M.2 backplates help ensure that high-performance drives deliver peak performance, even when airflow is restricted.

Support for the Latest Storage Devices

M.2 Support

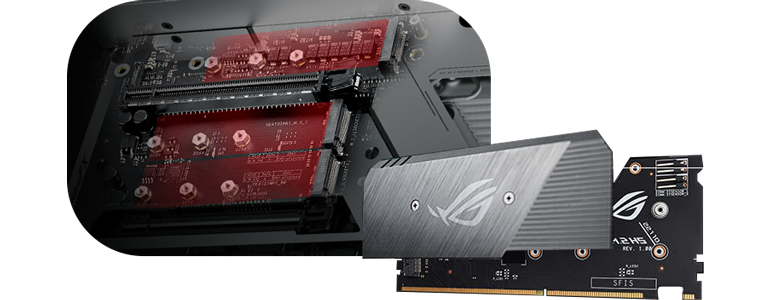

PCIe 4.0 ReadyROG Maximus XIII Extreme Glacial is equipped with five onboard M.2 slots, two of which offer PCIe 4.0 support for the latest GPUs and high-speed SSDs.

ROG DIMM.2The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating the aesthetics.

The Future of Home-Networking

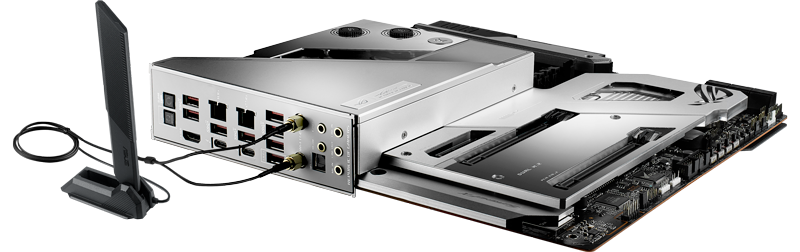

Networking

Intel® Wi-Fi 6E (Gig+) Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

Marvell® AQtion10 Gbps Ethernet Designed to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before.

Intel 2.5 Gb Ethernet Onboard Intel® 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, smooth lag-free gaming and high-res video streaming.

Outshine the Competition with ASUS Aura Sync

Your Motherboard, Your Way Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.

Breathe

Breathe

Colour cycle

Colour Cycle

CPU Temp

CPU Temperature

EQ Effect

Equaliser

Rainbow Effect

Rainbow

Stars Effect

Starry Night

Static Effect

Static

Strobing Effect

Strobing

Real-Time Infographics!

4K Recording

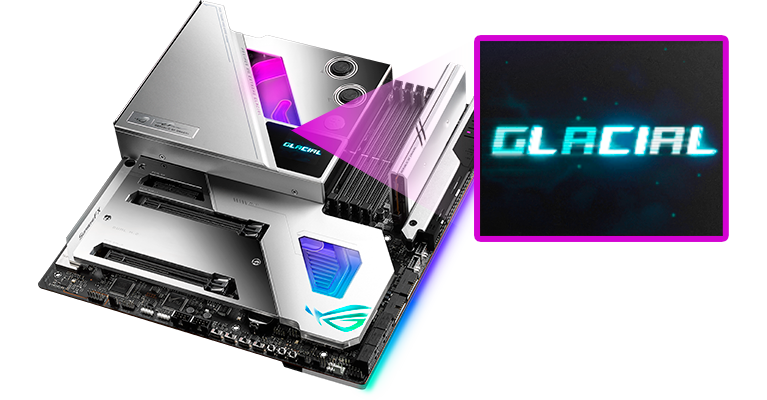

Livedash OLEDROG Maximus XIII Extreme Glacial motherboards are equipped with LiveDash, a built-in 1.77” OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, OLED shows key progress stats in simple language, using traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water-Cooling Zone. You're also able to customize the default OLED GIF, so it'll display your own image or animation..

5-Way Optimization

Overclocking Intelligence Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same on-board intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the beginning.

Fan Xpert 4

Flexible Cooling Controls With the ROG MAXIMUS Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

World Renowned UEFI BIOS

Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Easy Mode

EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Boost your Game with Ramcache III

asus RAMCACHE 3

LAUNCH YOUR APPS AT NECK BREAKING SPEEDS RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. Smart mode automatically caches all your storage devices to maximize your system's resources using an intuitive interface which displays real time drive information. RamCache III also allows you to efficiently check the health status of assigned memory.

Specifications
Core Specifications
Edition ROG MAXIMUS XIII EXTREME GLACIAL
Form Factor E-ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way NVLink
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 2.0
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x DIMM.2 for 2x M.2, 22-42/60/80/110, PCIe/SATA
  • 3 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x4
  • 2 x PCIe 4.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin Radiator Fan Headers
  • 2 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 3 x Aura Addressable Gen2 Header
  • 1 x Aura RGB Strip Headers
  • 1 x BIOS Switch button
  • 1 x DIMM.2 Slot
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x LN2 Mode jumper(s)
  • 8 x ProbeIt Measurement Points
  • 1 x ReTry Button
  • 2 x RSVD Switch
  • 1 x Safe Boot Button
  • 6 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x speaker header
  • 1 x START (Power On) button
  • 1 x T_Sensor Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • 1 x V-Latch Switch
  • 1 x WB_Sensor Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel® I225V (2.5GbE LAN)
  • 1 x Marvell AQtion AQC113CS 10GbE
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x Thunderbolt 4
  • 8 x USB 3.2 Gen2 Type-A
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled Yes
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 277 mm
