ROG Hyperion GR701 BTF Edition Full Tower Gaming Case from ASUS

ROG Hyperion GR701 Full Tower Gaming Case

X-TRA EVERYTHINGSystem builders around the world have been craving an X factor in both form and function. Introducing the ROG Hyperion GR701 BTF Edition. With support for dual 420mm radiators, towering video cards, a fully integrated 2-way aluminium graphics card holder, 60-watt device charging and dual front USB-C connectors for compatible ROG motherboards, it is truly a PC chassis in the coveted ROG style. And now with an Advanced BTF hidden-connector design, components have never looked so tidy.

Full TowerSize

Tempered Glass Left & Right Windows

EATX/ATX/mATX/mITXMotherboard Support

Advanced BTF Design


Hidden ConnectorsEnjoy a full hidden-connector experience by combining a BTF graphics card, motherboard and chassis. The Advanced BTF design approach achieves hidden connectivity via the new graphics card high-power slot found on BTF motherboards, delivering up to 600 watts to BTF graphics cards. With visible cables eliminated, PC enthusiasts can enjoy an extra-tidy build.

Premium Materials and Crafting

Premium Materials

Stylish AestheticThe GR701 is forged with high-end materials that are given extra treatments and distinctive polishing methods, to deliver the luxurious look and feel that elevates an ROG chassis above its many challengers.

Built for High Airflow


STRUCTURE AND STYLEThe Republic of Gamers is populated by builders who demand the best, and the Hyperion GR701 BTF Edition delivers top-tier cooling potential with support for 420 mm radiators on the top and in the front of the chassis, while four 140 mm PWM fans come pre-connected to an Aura Sync ARGB fan hub.
Radiator Support:
2 x 420mm
Pre-Installed Fans:
4 x 140mm

ample ventilation

Extra CoolingA front side air intake can provide ample ventilation to get just the right balance of temperatures for your system and graphics cards. This integrates tightly into a bold new look with features like the distinctive diamond-shaped badge on the front, stamped with the famous ROG logo and surrounded by diagonal slashes.

Multi-Function Device Installation

Extra SpaceIn between the motherboard tray and the front of the chassis sits an innovative vertical installation area that can support a variety of needs. Builders can mount multiple system fans and 2.5-inch SSDs, or a 360 mm radiator, liquid cooling distribution panel, or a ROG-themed lighting panel.





2.5inch SSDS

2.5" SSDS

Ample Cable Management and Routing

Cable Management

For a Tidier CaseUnderneath the motherboard tray area, builders will find a chamber 34 mm deep for their cable management needs, and a cable routing channel that’s 46 mm wide and secured by several ROG-branded Velcro straps to keep things looking tidy for the transparent side panel. This chassis also offers a translucent cable cover that can obscure unsightly wiring while letting your RGB style shine through.

Support for Large Graphics Cards

Large Graphics Card Support

460mm Horizontal Installation

130mm Vertical Installation

Versatile GPU PlacementThis highly adaptive case can fit graphics cards up to 460 mm long and 130 mm thick, both horizontally and vertically. So whether you desire a ROG Strix RTX 4090 or other similar sized card, you will have plenty of room to work with.

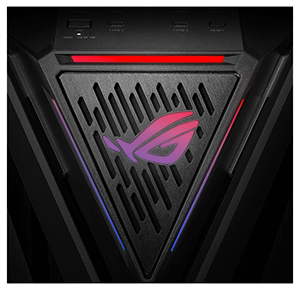

RGB Illuminated Front Panel

Light Panel

Aura SyncBuilders can optionally activate and customise RGB lighting built into an ROG-stamped front panel section, adding to the wealth of personalisation built into this chassis.

Dual Type-C Fast Charging

Dual Type-C

20 Gbps Data Transferring Speed

60 Watt Fast Charge

Extra PowerThe front of any ROG chassis has to offer a host of connectors, and the ROG Hyperion adds to the tradition with two USB Type-C® connectors that can offer up to 20 Gbps of data transfer and up 60 watts of fast charging with a compatible motherboard.

Convenient Features


TOOL-FREE HINGED SIDE PANELSTo maximise the ease of accessing the interior any time you want, this chassis features a hinged side panel made of tinted glass that simply swings open without requiring any tools, at which point the panel can be lifted up and out of the way if desired.


BUILT-IN GRAPHICS CARD HOLDERThe ROG Hyperion GR701 BTF Edition features a highly refined integrated graphics card holder, whose lightweight anodised aluminium components can be used vertically or horizontally to keep long graphics cards from sagging, and it offers additional compatibility with the ROG Herculx card holder.


HIDDEN DRAWERTo make system maintenance easier, this chassis features a small integrated storage compartment for things like PCIe slot brackets, screws and cable fasteners, so your frequently used widgets are always within easy reach.

Core Chassis Specifications
Case Edition ROG Hyperion GR701 BTF Edition
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX (Upto 12" x 10.9")
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x LED Control Button
  • 1 x Reset Button
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays
  • 5 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 9
Vertical Expansion Slots 3
Fans & Filters
Fan Bays 7 x 120/140mm
Fans Included 4 x 140mm
Fan Controller/Hub Built-in Fan Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360/420mm
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility
Max CPU Cooler Height 190 mm
Max GPU Card Length 460 mm
Cable Routing Space 34 mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Alternate Side
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Front Panel Addressable RGB LED Lighting
LED Lighting Colour RGB
LED Lighting Support & Control Compatible with ASUS AURA Sync
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 240 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials
Dimensions 268 x 639 x 659 (WxHxD mm)
Weight 20.8 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN148779
Model Number 90DC00F0-B39020
GTIN 4711387483749
