Scan code: LN99756 Manufacturer code: ROG Crosshair VIII Formula

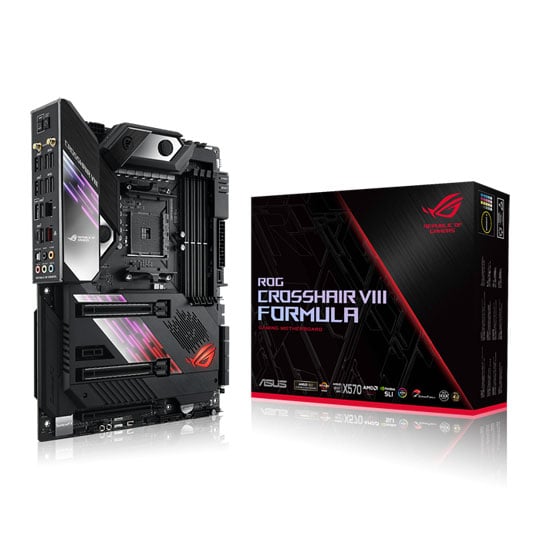

ASUS AMD Ryzen X570 ROG Crosshair VIII Formula AM4 PCIe 4.0 ATX Motherboard

ASUS ROG Crosshair VIII Formula, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way SLi/3-Way CrossFire, 5G/GbE/WiFi, ATX

Thumbnail 1 : ASUS AMD Ryzen X570 ROG Crosshair VIII Formula AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen X570 ROG Crosshair VIII Formula AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen X570 ROG Crosshair VIII Formula AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen X570 ROG Crosshair VIII Formula AM4 PCIe 4.0 ATX Motherboard ASUS AMD Ryzen X570 ROG Crosshair VIII Formula AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1 ASUS AMD Ryzen X570 ROG Crosshair VIII Formula AM4 PCIe 4.0 ATX Motherboard : video thumbnail 2
Scan code: LN99756 Manufacturer code: ROG Crosshair VIII Formula
Was: £549.98
£475.00
From £22.80 / month (APR 14.9%)
Monthly Payment: £82.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £475.00
Total inc. interest: £494.54
Monthly Payment: £42.65
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £475.00
Total inc. interest: £511.70
Monthly Payment: £29.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £475.00
Total inc. interest: £529.24
Monthly Payment: £22.80
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £475.00
Total inc. interest: £547.18
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.86 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

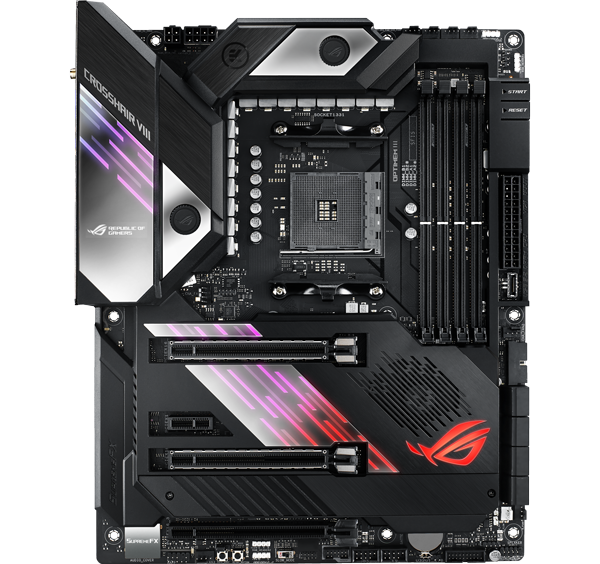

ASUS X570 ROG Crosshair VIII Formula Ryzen AM4 Motherboard

Air and Water Cooling combine to power AMD Ryzen CPUsASUS ROG has partnered with EK Water Blocks to create an integrated VRM water-cooling solution that keeps the massive power of the latest AMD Ryzen processors under control. Keeping with water-cooling, the ROG Crosshair VIII Formula features on-board lighting that casts a "rainfall" design which pops against the board's finish and the ROG logo. With incredible cooling performance and gamer-oriented features, ROG Crosshair VIII Formula is the perfect foundation for your next high-performance gaming rig​.​ Incorporating the new PCIe 4.0 format and including dual M.2 slots, get ultra-fast speeds with your storage solutions, keep them running optimally with the Hybrid heatsink cooling option that can offer both air and water cooling for your motherboard.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

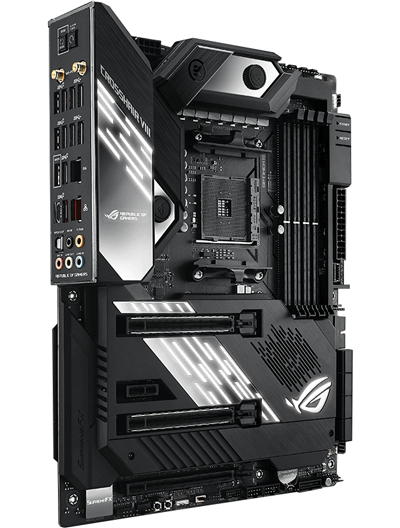

Light Up your Rig with ASUS AURA SYNC

heatsink

Control your Effects with one ASUS interfaceGear up with ROG components, from graphics and monitors, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for unified system lighting effects.

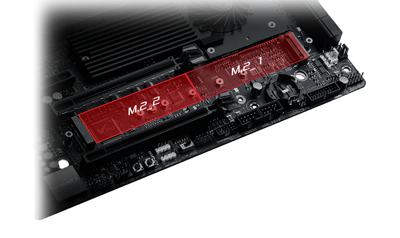

Superfast Dual PCIe 4.0 M.2 Storage Support

back

UNTHROTTLED TRANSFER SPEED Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd generation AMD Ryzen platform.

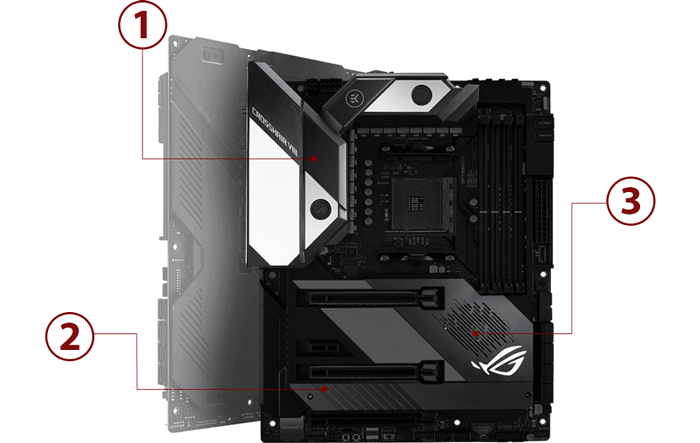

Incredible Cooling for Maximum Performance

heatsink
down

CrossChill EK IIIDesigned and engineered in cooperation with EKWB, the CrossChill EK III hybrid cooling offers air or liquid cooling for up to 29.3˚C temperature reduction to keep the motherboard MOSFETs cool for high overclocks.

up

M.2 HeatsinkROG Crosshair VIII Formula is equipped with a stylish M.2 heatsink that keeps your SSD cool. By efficiently dissipating heat away from the M.2 area, it minimises the possibility of the performance-sapping throttling that can happen when drives become too warm.

up

Active PCH HeatsinkWith double the bandwidth via PCIe 4.0, the X570 platform poses a greater thermal challenge than its X470 predecessor. The PCH heatsink has a dedicated fan to efficiently combat temperature-induced throttling that can slow performance during transfer.

SupremeFX Audio for Ultra Clear Quality

Key Sound features to heighten your experience Immerse yourself in sound with SupremeFX audio technology. Utilising the S1220 codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

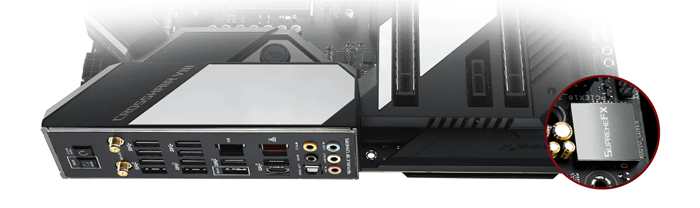

S1220 Codec

S1220 Codec 10 DAC channels, simultaneous 7.1 channel playback, independent 2.0-channel, multiple-stream stereo to front panel outputs

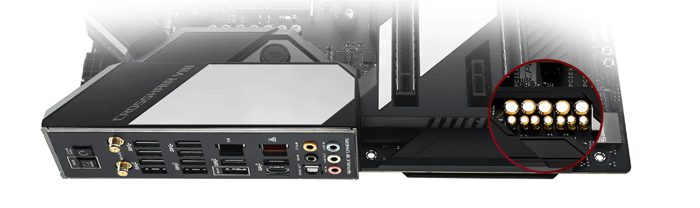

Nichicon caps

Nichicon caps Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

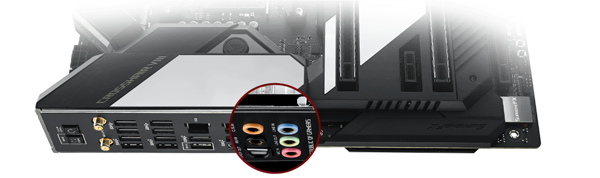

Gold-Plated Audio Jacks

Superior Quality Output Prevents oxidisation to ensure a reliable audio connection​.

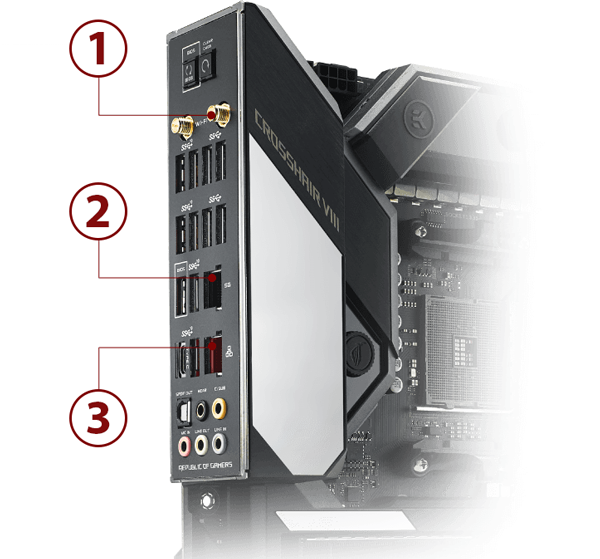

Obtain a Fast and Secure Connection with ASUS

networking
down

WIFI 6 (AX200) ROG Crosshair VIII Formula comes with on-board Wi-Fi 6 (802.11ax) support, offering ultrafast networking speeds, improved network capacity and better performance in dense Wi-Fi environments for exceptional online gaming experiences with the convenience of a wireless connection

up

5GBPS ONBOARD ETHERNETDesigned for the demanding requirements of power users and content creators who push the envelope, onboard 5Gbps Ethernet plugs you into a new era of home networking. With up to 5X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, backups and file transfers that are faster than ever before.

up

Intel EthernetOG Crosshair VIII Formula features the latest Intel Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.​

Ultimate Cooling Performance with ASUS ROG

up

Multiple Temperature Sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

up

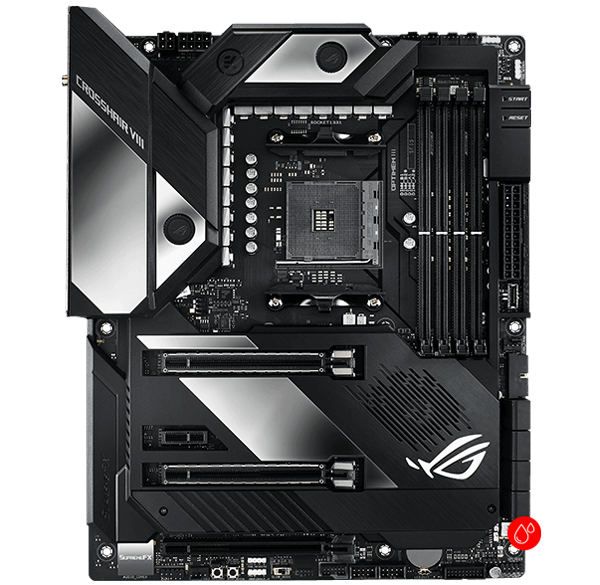

Water Pump+ A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

up

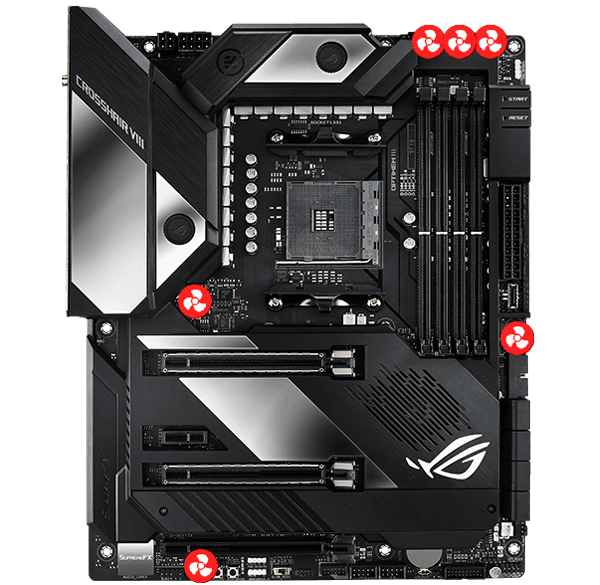

4-Pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.

up

Smart Protection A dedicated circuit protects each fan header from over-temperature and over-current.

up

Rog Water-Cooling Zone Water In/Out and water-flow headers feed status information straight into the AI Suite utility, so you can keep track of coolant temperatures and the flow rate of the entire loop to ensure the best cooling performance.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition ROG Crosshair VIII Formula
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin H_AMP_Fan Connector
  • 1 x 4-pin PCH_FAN Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 1 x NODE connector
  • 1 x Reset Button
  • 1 x ReTry Button
  • 1 x Safe Boot Button
  • 8 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x speaker header
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 5 Gigabit LAN (5000)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x AQUANTIA AQC-111C (5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-A (BIOS Flash)
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
