ASUS AMD Ryzen X570 ROG Crosshair VIII Dark Hero AM4 PCIe 4.0 ATX Motherboard

ASUS ROG Crosshair VIII Dark Hero, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, SLi/CrossFire, 2.5G/ax WiFi, USB 3.2, ATX

Free FREE ROG SHEATH XL PAD WORTH £34.99 - LN 72246
Thumbnail 1 : ASUS AMD Ryzen X570 ROG Crosshair VIII Dark Hero AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen X570 ROG Crosshair VIII Dark Hero AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen X570 ROG Crosshair VIII Dark Hero AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen X570 ROG Crosshair VIII Dark Hero AM4 PCIe 4.0 ATX Motherboard
Scan code: LN112863 Manufacturer code: 90MB1760-M0EAY0
£439.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £21.12 / month (APR 14.9%)
Monthly Payment: £39.50
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £439.99
Total inc. interest: £473.98
Monthly Payment: £21.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £439.99
Total inc. interest: £506.86
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 26th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS X570 ROG Crosshair VIII Dark Hero Motherboard

Crosshair VIII Dark Hero

Equipped to Handle the new AMD Ryzen 3rd Gen CPUSThe new ASUS X570 ROG Crosshair VIII Dark Hero Motherboard, a motherboard built and designed for the latest AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors. The board includes integrated RGB lighting effects and with ASUS AURA SYNC you can link all your ASUS devices together and get a unified effect across your whole rig. The Crosshair VIII Dark Hero provides M.2 storage solutions with it's Dual PCIe 4.0 M.2 Slot that supports up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzen platform. The inclusion of heatsinks helps keep speeds up by cooling the M.2 slots and letting them run at optimal temperature by dissipating heat away from key components. This version of the Hero motherboard offers ultra-fast networking speeds, improved network capacity and better performance.

AMD X570Chipset

AM4CPU Socket

AMD RyzenCompatible CPU

ATXForm Factor

Light Up your Rig with ASUS AURA SYNC

AURA

Control your Effects with one ASUS interfaceGear up with ROG components, from graphics and monitors, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands. The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

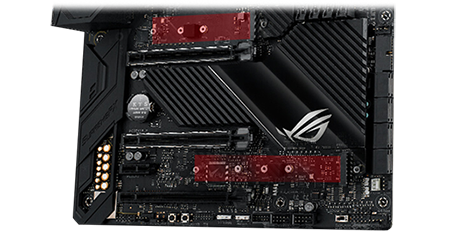

Superfast Dual PCIe 4.0 M.2 Storage Support

back

UNTHROTTLED TRANSFER SPEED Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzen™ 5000 and 3000 Series desktop processors. AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.​

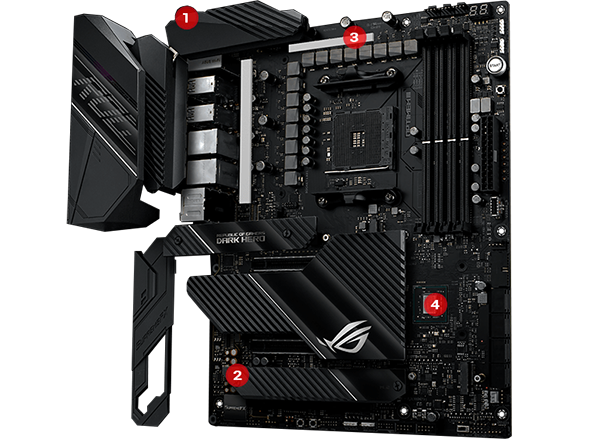

Incredible Cooling for Maximum Performance

heatsink

VRM HeatsinkThe two VRM heatsinks are placed above the MOSFETs and chokes, and are connected by a heat-pipe to further increase surface area for heat dissipation.

M.2 HeatsinkTwo dedicated heatsinks keep the dual M.2 SSDs at the optimum operating temperature for consistent performance and reliability.

Passive chipset heatsinkA dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

High-conductivity thermal padA high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

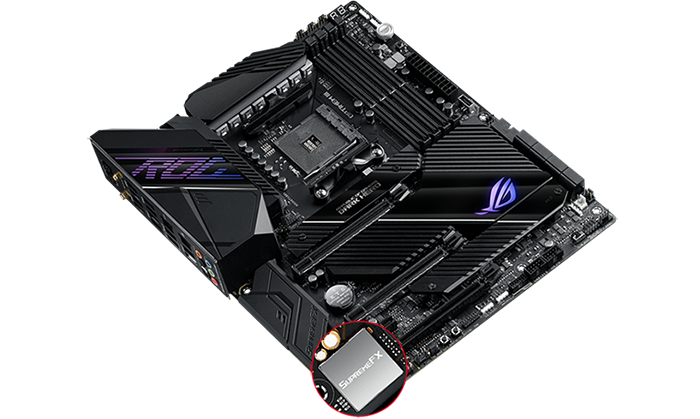

SupremeFX Audio for Ultra Clear Quality

Key Sound features to heighten your experience ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op amp for high gain with low distortion — all to produce unmatched audio quality.

S1220 Codec

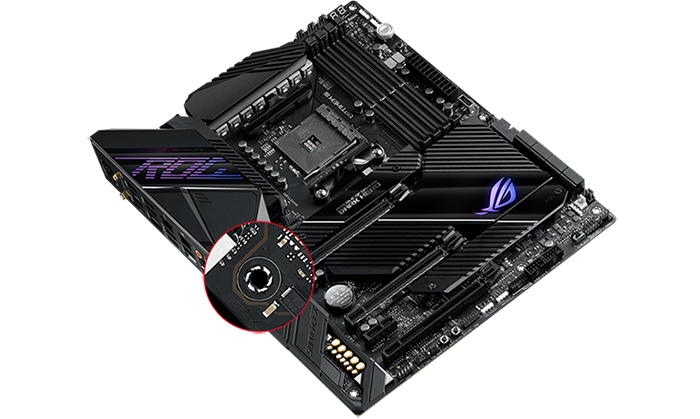

Audio Line Shielding Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

Nichicon caps

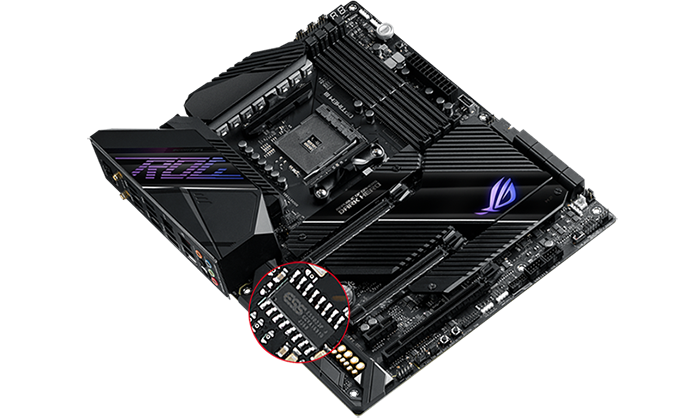

ESS® ES9023P The ESS® ES9023P digital-to-analog converter creates a perfect balance for top-tier audio clarity capable of 112db DNR /-94dB THD+N for superior front-panel output.

Gold-Plated Audio Jacks

S1220 Codec 10 DAC channels provide simultaneous 7.1-channel playback, independent 2.0-channel, multiple-stream stereo to front-panel outputs.

Gold-Plated Audio Jacks

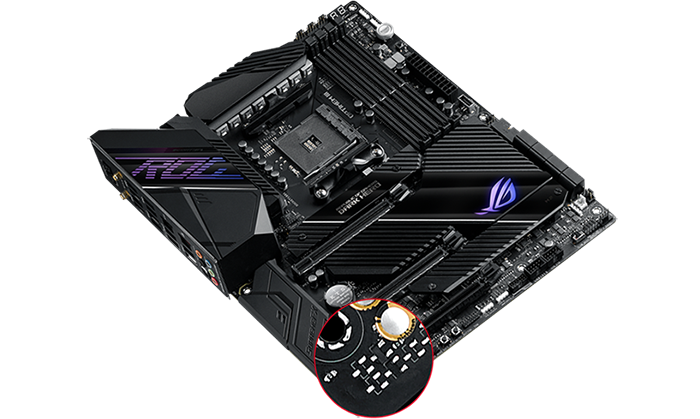

Switching MOSFETS Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.

Gold-Plated Audio Jacks

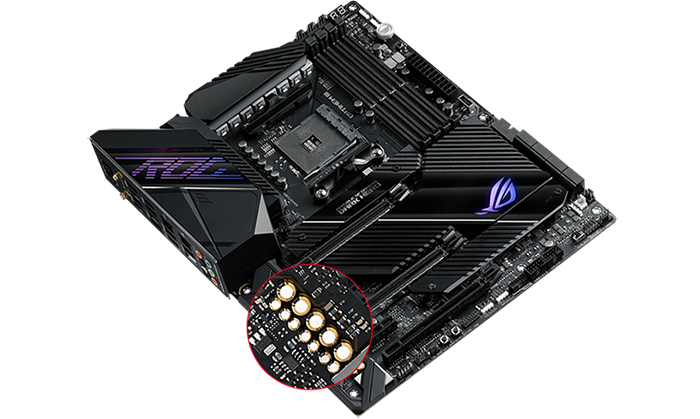

Nichicon® CAPS Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

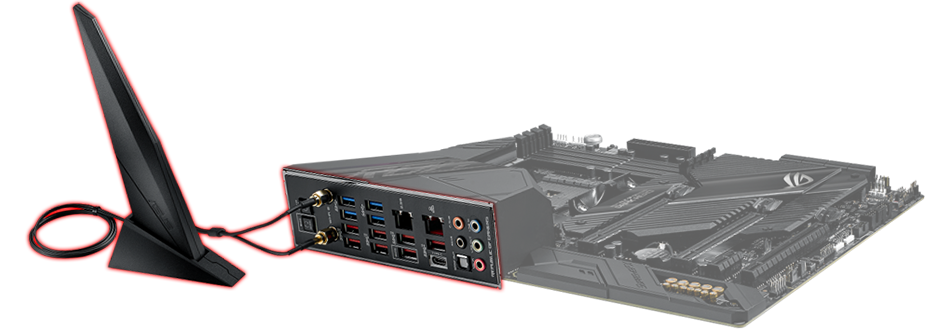

Obtain a Fast and Secure Connection with ASUS

networking

WiFi 6 (AX200)Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences.

REALTEK 2.5G LAN 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.​

Intel® 1Gbps EthernetROG Crosshair VIII Dark Hero features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.​​

Ultimate Cooling Performance with ASUS ROG

up

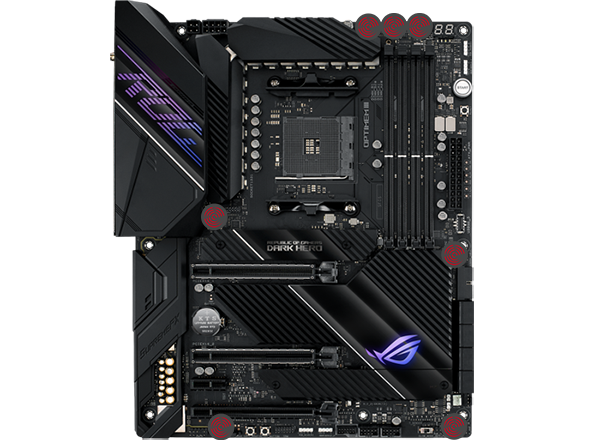

Multiple Temperature Sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI.

up

4-pin PWM/DC fan Every onboard header supports auto-detection of PWM or DC fans.

up

AIO PUMP A dedicated PWM/DC header for self-contained water-cooling setups.

up

Water pump+ A dedicated header can supply over 3 amps to high-performance PWM or DC water pumps.

up

Water in/out A dedicated header enables monitoring of temperatures at the input/output points of any component.

up

Water flow A dedicated header enables constant monitoring of flow rate throughout the entire loop.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition ROG Crosshair VIII Dark Hero
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4866(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5100(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way NVLink
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x PCIe 4.0 x1
  • 3 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AIO Pump Connector
  • 2 x Aura RGB Strip Headers
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x High AMP Fan Header
  • 1 x LN2 Mode jumper(s)
  • 1 x NODE connector
  • 1 x Reset Button
  • 1 x ReTry Button
  • 1 x Safe Boot Button
  • 8 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x speaker header
  • 1 x START (Power On) button
  • 3 x System Fan header
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x W_FLOW header
  • 1 x W_IN header
  • 1 x W_OUT header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Realtek RTL8125-CG (2.5G LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 4 x USB 3.2 Gen1 Type-A
  • 6 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-A (BIOS Flash)
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN112863
Model Number 90MB1760-M0EAY0
GTIN 4718017961615
