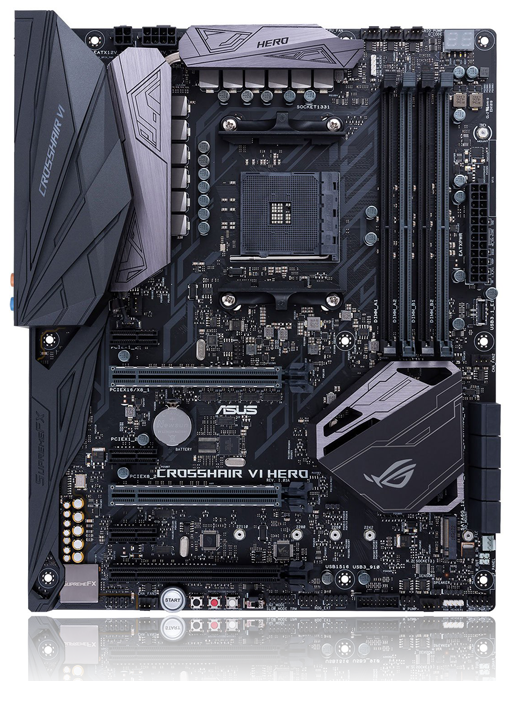

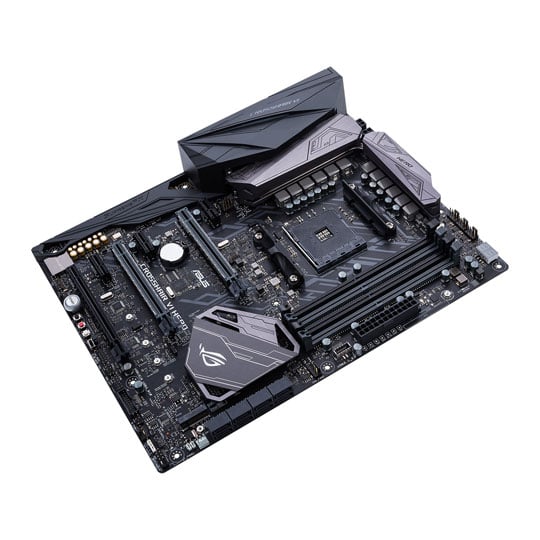

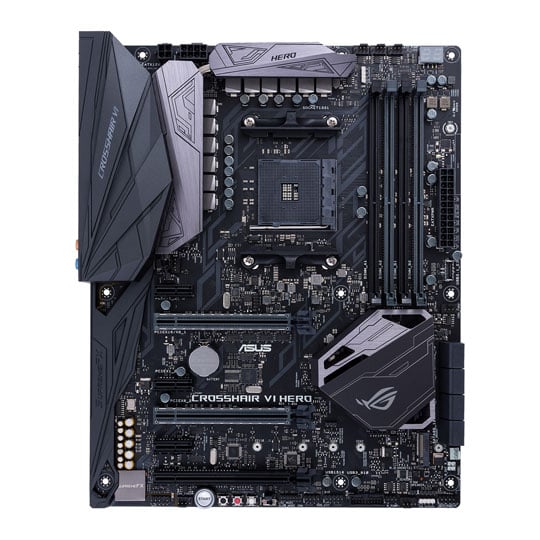

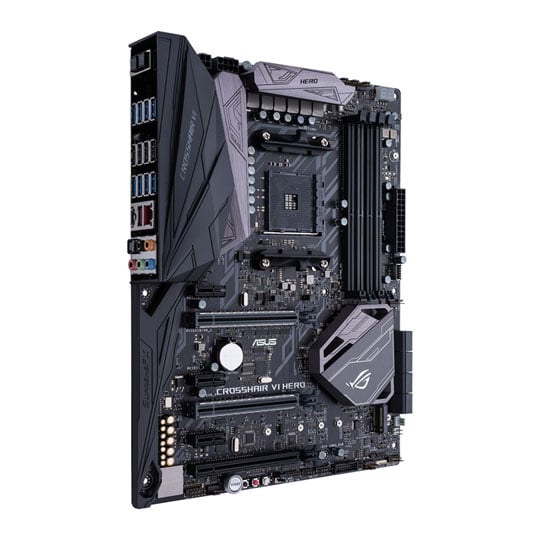

Asus AMD AM4 Ryzen CROSSHAIR VI HERO X370 ATX Motherboard

Asus ROG CROSSHAIR VI HERO, AMD X370, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way SLi/CrossFire, GbE, USB 3.1 A+C, ATX

Asus
Scan code: LN79039 Manufacturer code: 90MB0SC0-M0EAY0 Request call
£229.99
In stock
Pay on Scan Finance with a 10% deposit from just £5.74 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 24th May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

AMD Ryzen Powered Motherboard from ASUS. Crosshair VI HERO Series

CROSSHAIR VI HERO from ASUS built for gamers and enthusiasts

ROG motherboards are built and designed to thrill the best gamers and top PC enthusiasts. The ROG Crosshair VI HERO Series running on AMD Ryzen are the next stage along that road. The board is made to strike a balance between gaming and enthusiast needs, granting incredible performance, easy-to-use interfaces, Aura-Sync lighting and even customizing options through 3D-printed parts to add to the board. Crosshair VI is filled with the latest advancing technologies that help all aspects of your PC system from cooling to performance, audio to graphic output and even giving you a helping hand in competitive gaming.

AMD X370
Chipset

AM4
CPU Socket

ATX
Form Factor

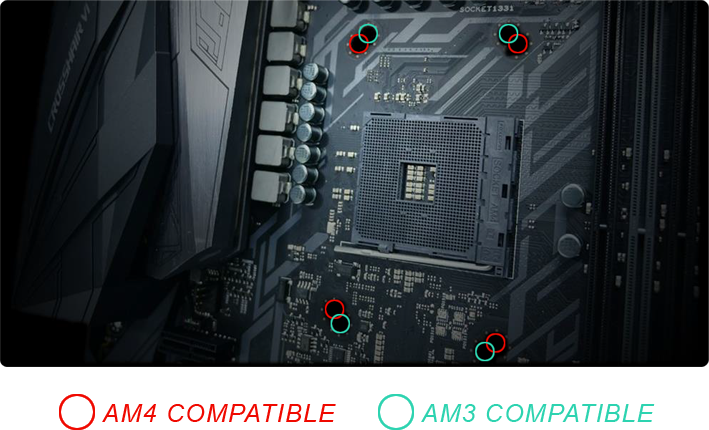

ASUS Extended Compatibility

X370 makes mounting easy work

The special mounting holes on the CROSSHAIR VI HERO makes it easy to fit with AM3/AM4 coolers as well as the existing LN2 pots. Just switch out the AM3 cooler for a AM4 one, you’ll get more life out of your previous cooler!

Overclocking Motherboard Strength

ROG CPU & DDR4 PERFORMANCE

The exclusive ASUS D.O.C.P. (DRAM OC Profiles) feature enables higher DDR4 memory frequencies, lower latencies and enhanced stability while overclocking, extending all the way to extreme overclocking conditions.

RGB LED Syncing Technology

Motherboard Lighting with AURA SYNC

Aura features two independently-controlled onboard headers ready to sync lighting effects with different Aura Sync compatible products. The latest version of the ROG AURA software brings the expression “Light up your build” to a whole new level. The device control panel allows for the simple syncing/desyncing of Aura capable devices, the updated LED visualization has a total of 9 different custom effects that fully utilize the more complex lighting control schema on the latest boards and the fine-tuning area allows for the most minute control of each individual lighting area!

Perfect Synchronization: ASUS Aura Sync technology makes ROG Crosshair VI Hero the control hub for your illumination ambitions — so it’s easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices.

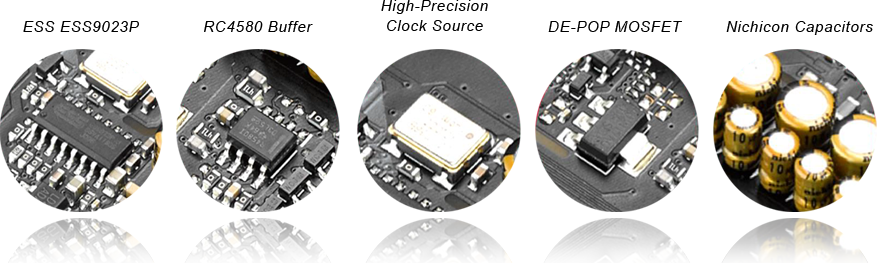

New SupremeFX Codec Sound

ROG's Exquisite Audio output

ROG's awesome SupremeFX audio technology has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection and 120dB on line-out — and that means our best-ever recording quality! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® Sabre Hi-Fi ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4850 op-amp for high gain with low distortion — which all adds up to audio that envelops you as never before.

Sonic Radar III For Gaming

Gaming Domination through Scan and detect

Sonic Radar III is all-new – with an evolved audio engine that processes sounds more accurately than ever, ensuring you're always aware of what's going on around you. A new on-screen arrow has also been added to help you pinpoint the enemy position instantly!

  • Improved Audio Algorithm - The new Sonic Radar III audio algorithm is now even more accurate to allow enemies to be pinpointed with even more accuracy.
  • 3D Engine - Sonic Radar III is built around it's all new HUD with an in-game 3 dimensional arrow for a more intuitive experience.
  • Audio Boost - The new audio boost feature now allows the boosted audio to be heard directly.
  • Audio Radar - Sonic Radar III is effective regardless of surrounding noise and chaos.

ASUS Pro Clock Tech

Improved overclocking for faster gaming performance

A dedicated base-clock generator designed for AM4 processors. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU) to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights. Reduce boot time, Lower jitter under extreme conditions for higher overclocks and increased stability under heavy overclocking all with Pro Clock.

Image for display purpose only

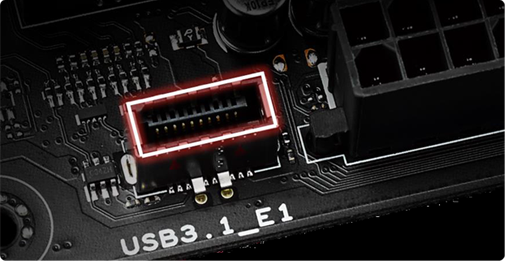

Front Panel USB 3.1

Super-Speed Connectivity with convenience

USB-C is the future-proof reversible connector — and ROG Crosshair VI Hero let you put the connection right where it’s needed! With an onboard USB 3.1 front panel connector you can position a USB-C port on your system’s front panel, so it’s always within reach.

Instant CPU Performance Boost

CPU control through asus ai suite 3

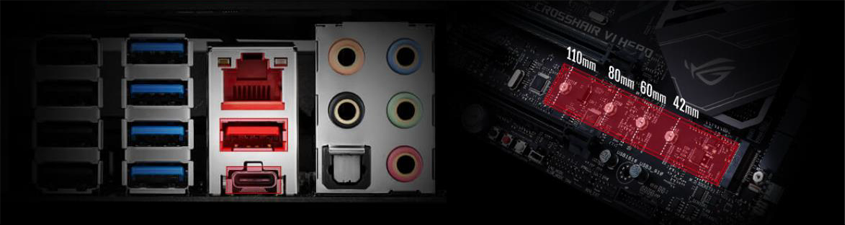

This impressive ASUS motherboard boasts the latest and fastest transfer speed techonologies in tyhe forms of both USB and M.2 devices. Experience rapid transfer speeds with the X370 CROSSHAIR VI HERO:

USB 3.1 Type A+C: Ultimate-Speed 10Gbps with On-board USB 3.1
PCIe GEN3 M.2: Let Your SSD Scream at Top Speed

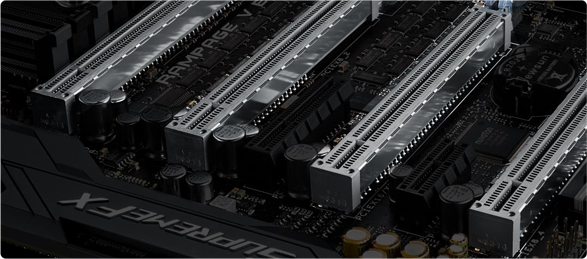

Gaming Protection with SafeSlot

PCIe Slots Reinvented Technology

With every part tightly secured in thermoplastic, an insert molded SafeSlot prevents part loosening, misalignment, improper terminations, and other structural issues. The thermoplastic resin also provides improved resistance to shock and vibration.

Image for display only

Advanced X370 Fan Control

Cooler Ryzen Board by design | Fan Xpert 4

GPU Source Mapping: With high-end GPUs being the largest source of heat in any build, the GPU more of an effect on nominal case temperatures than any other component. At long last, users can set GPU temperature as a fan tuning source via Fan Xpert 4 for a dynamic cooling response to system power output!

Watercooling Zone: With the new watercooling zone, temperatures and flow rates can be read directly into DIP5—allowing peace of mind to know that everything is functioning properly, while saving the hassle of installing third party hardware.

It is designed specifically for users that need finer control of their custom watercooling setups:

W_IN/OUT T-sensor - allows for monitoring of temperatures at the input/output of any block
W_FLOW Tachometer - allows for constant monitoring of flow rate of the entire loop

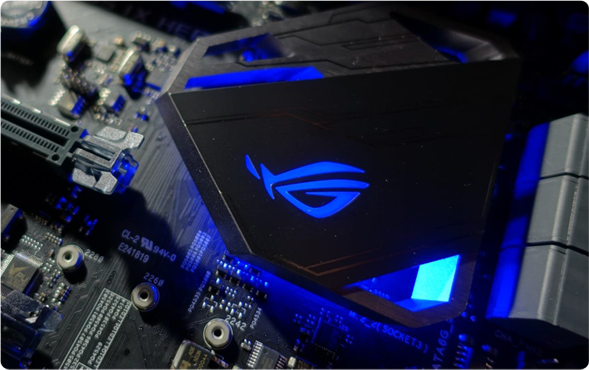

ASUS HERO Heatsink

Only Republic Of Gamers motherboards

The Hero utilizes an all new patented heatsink design, produced via a specialized extrusion process. The perforations created through this process work in tandem with the onboard LEDs to create unique aura around the PCH logo.

Image for display purpose only

Motherboard 3D Manipulation

Personalize and customize your X370

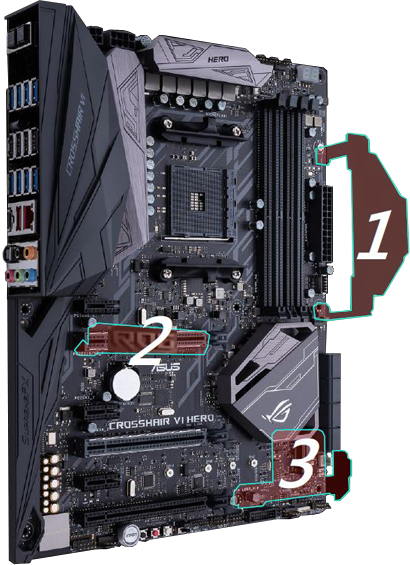

ASUS is the first motherboard manufacturer to support 3D printing, making it easy to customise your motherboard's appearance and improve system performance with a range of printable parts. Dedicated 3D Mounts on the motherboard makes fitting 3D-printed parts easy. Using the same screws as M.2 drives and standard motherboard mounting holes, you can easily add nameplates, cable covers, or an M.2 fan holder.

*Products with the 3D Printing Friendly logo feature the specialised 3D Mount and are also bundled with an extra 3D Mount kit. 3D printing friendly. Make it your own.

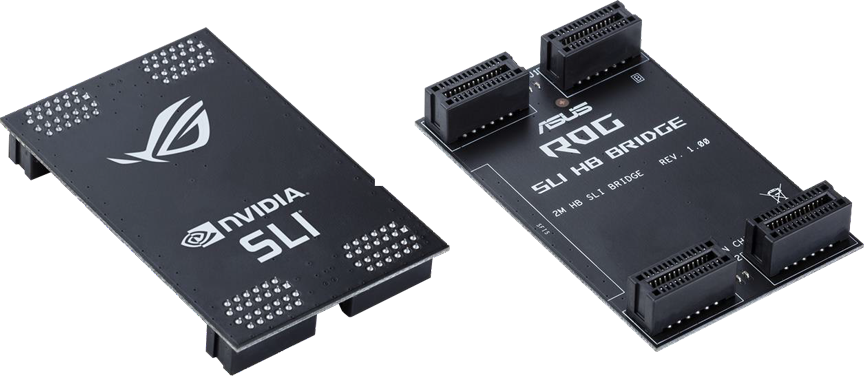

X370 GTX SLI Bridge

Dual geforce gtx gpu power

Buy a ROG Crosshair VI Hero motherboard, get a ROG SLI HB Bridge for free! get optimum performance from dual GeForce GTX GPUs, simply clip the cover onto the PCB SLI HB bridge to add style to your build. Multiple form factors — eATX, ATX and mATX — are available.

RAMCache II Enhanced Times

ASUS Get you gaming Faster than ever

ROG's uniquely intelligent technology effectively caches an entire storage device so that favourite games and apps launch at breakneck speeds: going to work the moment it's activated. RAMCache II turns milliseconds into microseconds to boost game-load times to stratospheric levels!
Automatically caches all your storage devices at the same time for optimal use of your system‘s caching resources.

Intel Gigabit Ethernet

More throughput and less CPU usage for great gaming experiences

ROG Crosshair VI Hero features the very latest Intel Ethernet Controller I211-AT for faster, smoother gaming. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for your game and your gameplay.

Image for display purpose only

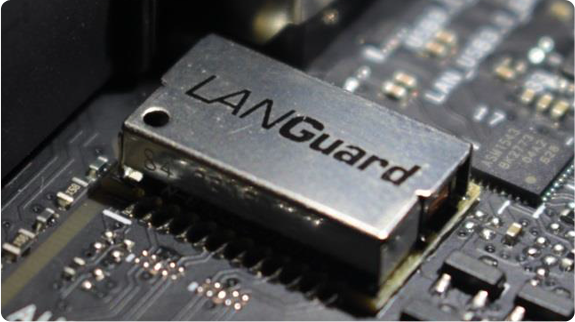

ASUS Motherboard LANGuard

Pumped-Up Throughput, Best Surge Protection

LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your ROG Crosshair VI Hero's connection, plus electrostatically guarded and surge-protected components (ESD Guards) for 1.9x greater tolerance to static electricity and 2.5x greater protection (up to 15kV) against surges!

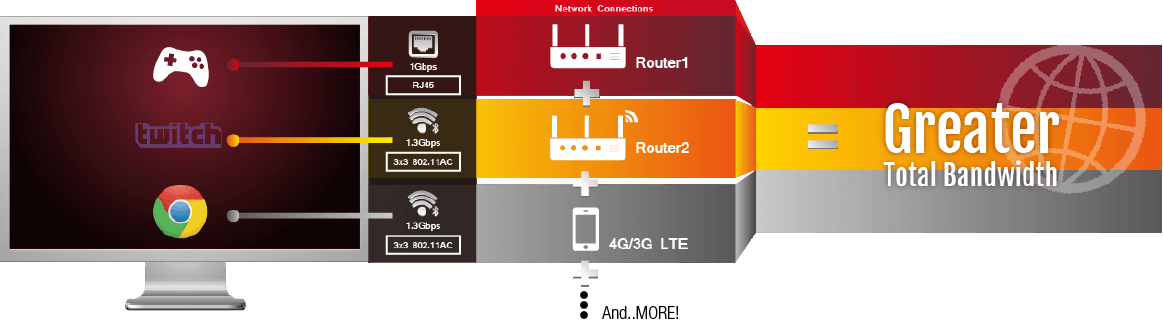

CROSSHAIR GAMEFIRST IV

Click to see larger image

TEAM UP TO BANISH GAMING LAG

GameFirst IV optimises network traffic for faster, lag-free online gaming — and now we've added Multi-Gate Teaming to team up to 4 networks for maximum bandwidth and smooth gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimised for the best performance.

Specifications
Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD X370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 WiFi Card Slot (Hidden Under I/O Cover)
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 2-Digit debug code LED
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Aura RGB Strip Headers
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 1 x Reset Button
  • 1 x ReTry Button
  • 1 x ROG Extension header (ROG_EXT)
  • 1 x Safe Boot Button
  • 8 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x speaker header
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x Thermal sensor connector
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
  • 1 x USB 3.1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)

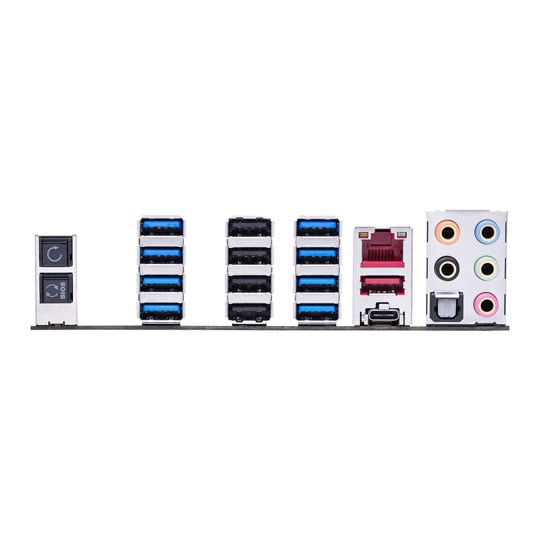

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN) with Anti-Surge
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 4 x USB 2.0
  • 8 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
  • 2 x Wi-Fi antenna connector holes
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
