Scan code: LN120069 Manufacturer code: ProArt X570-CREATOR WIFI

ASUS AMD ProArt X570-Creator WiFi AMD X570 ATX Motherboard

ASUS ProArt X570-Creator WiFi, AMD X570, AM4, DDR4, PCIe 4.0, 3x M.2, 2-Way SLi/3-Way CrossFire, 2.5G/10GbE/WiFi, ATX

Thumbnail 1 : ASUS AMD ProArt X570-Creator WiFi AMD X570 ATX Motherboard Thumbnail 2 : ASUS AMD ProArt X570-Creator WiFi AMD X570 ATX Motherboard Thumbnail 3 : ASUS AMD ProArt X570-Creator WiFi AMD X570 ATX Motherboard Thumbnail 4 : ASUS AMD ProArt X570-Creator WiFi AMD X570 ATX Motherboard
Scan code: LN120069 Manufacturer code: ProArt X570-CREATOR WIFI
£418.99Item due on 08 June 2022
Due 8th Jun
From £18.53 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £36.02
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £418.99
Total inc. interest: £432.14
Monthly Payment: £18.53
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £418.99
Total inc. interest: £444.53
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.47 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS X570-Creator WIFI AMD X570 Ryzen AM4 ATX Content Creation Motherboard

ASUS ProART Creator

Performance to CreateThe ProArt X570-Creator WiFi perfects the art of performance, empowering creativity and maximising the computing power of the latest AMD Ryzen™ processors with powerful hardware and software, efficient cooling and lightning-fast connectivity. The X570-Creator boasts support for the latest PCIe 4.0 technology, passive chipset cooling design combined with massive VRM heatsinks, Dual Thunderbolt 4 Type-C ports, Wifi 6e connectivity, three M.2 slots with aluminium heatsinks and advanced security management via ASUS Control Center Express Software. Unleash your creativity with the X570-Creator WiFi.

AMD B550Chipset

AM4CPU Socket

ATXForm Factor

Robust Power Delivery

ASUS ProART Creator

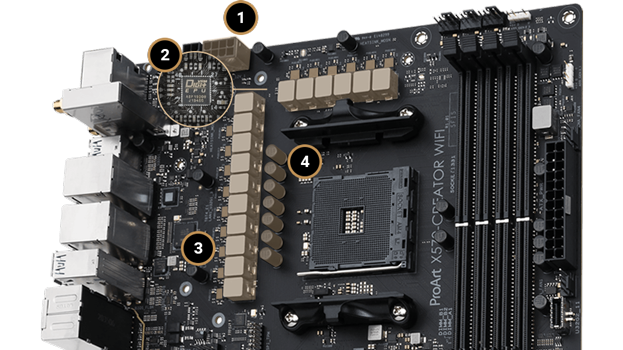

Unthrottled Performance ProArt X570-Creator WiFi boasts an optimised power design layout and the memory performance needed to handle the prodigious power of the latest AMD Ryzen processors, enabling the most demanding multithreaded tasks such as 3D or video rendering and software compiling.

1. ProCool II Power ConnectorThe ProCool socket is built to exact specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

2. Digi+ Power ControlThe ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

3. Teamed Power Stages 14+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.

4. Chokes & Capacitors Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Multi-GPU Support

4K Recording

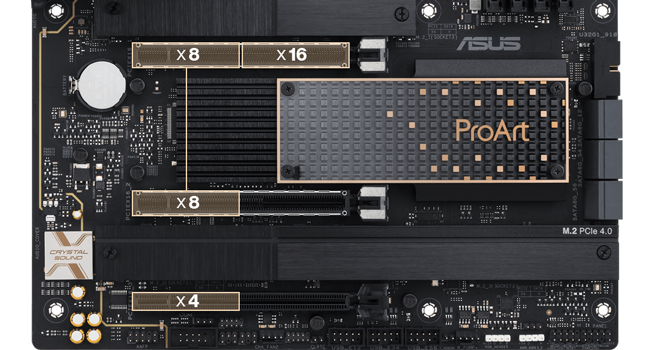

Breathtaking PerformanceProArt X570-Creator WiFi features three PCIe 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance in professional design, modeling, simulation and rendering applications.

Comprehensive Cooling Design

ASUS ProART Creator

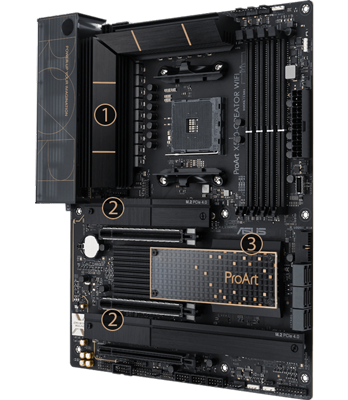

Keeping Your Components Cooling Maintaining system stability under heavy loads is of paramount importance, so ProArt X570-Creator WiFi employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.

1. VRM HeatsinksTwo VRM heatsinks are placed above the MOSFETs and chokes to further increase surface area for heat dissipation.

2. M.2 HeatsinksTwo dedicated heatsinks keep the three M.2 SSDs at the optimal operating temperature for consistent performance and reliability.

3. Passive Chipset Heatsink A dedicated chipset heatsink draws heat away to help ensure that temperatures stay within an optimal range.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.


Perfect for Content Creation

Industry-Leading Security Advanced security management functions from ASUS Control Center Express protects the system and confidential data.


USB Port ManagementEnable or disable the USB port or set it to Read Only to prevent data leaks.


Software BlacklistFor added security, a software blacklist is available to help prevent the use of high-risk applications.


Registry Editor On/OffRemotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.

Designed and Optimised for Content Creation

Creation First ProArt-exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that smooth your workflow.

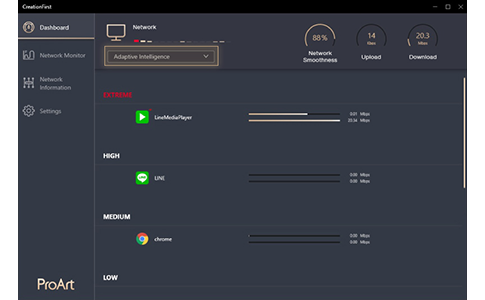

Adaptive mode

Adaptive Intelligence ModeCreationFirst intelligently prioritises bandwidth of heavy-use applications by identifying in-use applications and using foreground acceleration. This allows for smoother multi-tasking, so you can work on projects while efficiently transferring files and downloading project materials.

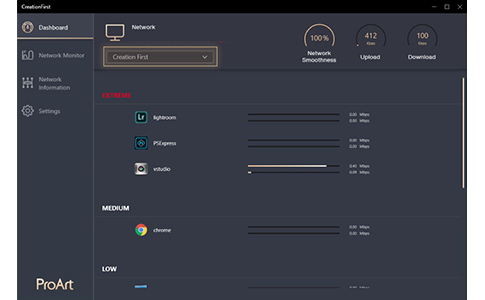

Creation First Mode

Creation First ModeCreation First mode allocates more bandwidth to active content creation applications to optimise network traffic, making your content creation workflow more efficient.

Reach Peak Efficiency with the ProArt Creator Hub

Creator Hub

ProArt Creator Hub A user-friendly interface provides applications designed to enhance workflow through central control of all connected ProArt series products, including motherboards and displays.

1. Dashboard The dashboard monitors the overall status of the system and selects different modes to optimise performance for current tasks.

2. Fan Mode Fan mode quickly configures your system cooling by selecting preferred fan settings.

3. Task GroupApplications that are frequently used together can be arranged into groups and launched with a single click. These task groups can be set up on the WorkSmart page.

Impressive Connectivity Options

4K Recording
Core Specifications
Edition ProArt X570-CREATOR WIFI
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3000(OC)
  • DDR4 - 3200
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4866(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5100(OC)
Max. Memory Capacity 128GB
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 4 x Addressable Digital RGB Header
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 4 x System Fan header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 3 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
  • 2 x USB Type-C
External Connectivity
Network Interface Type
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel® I225V (2.5GbE LAN)
  • 1 x Marvell AQtion AQC113CS 10GbE
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort In
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Additional Information
Scan Code LN120069
Model Number ProArt X570-CREATOR WIFI
GTIN 4711081412649
