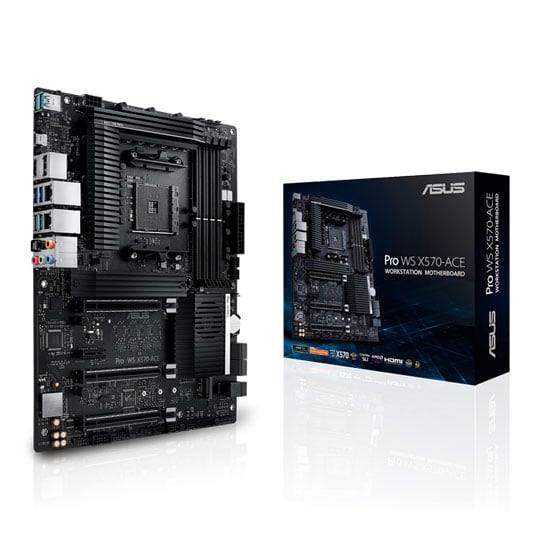

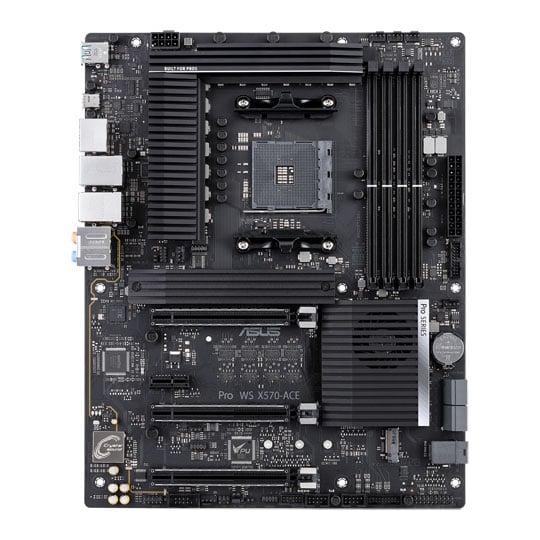

ASUS AMD Ryzen X570 Pro WS X570-ACE AM4 PCIe 4.0 ATX Motherboard

ASUS Pro WS X570-ACE, AMD X570, AM4, DDR4, PCIe 4.0, U.2, M.2, 2-Way SLI/3-Way CrossFire, GbE, USB 3.2 Gen2 A+C, ATX

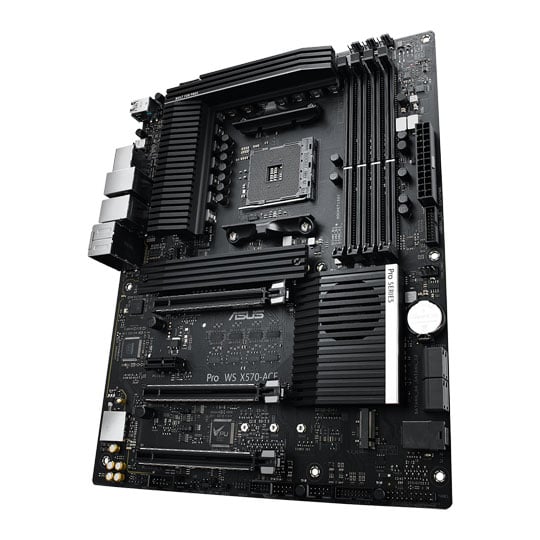

Thumbnail 1 : ASUS AMD Ryzen X570 Pro WS X570-ACE AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen X570 Pro WS X570-ACE AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen X570 Pro WS X570-ACE AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen X570 Pro WS X570-ACE AM4 PCIe 4.0 ATX Motherboard ASUS AMD Ryzen X570 Pro WS X570-ACE AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1
Scan code: LN99890 Manufacturer code: 90MB11M0-M0EAY0
£309.98
From £14.88 / month (APR 14.9%)
Monthly Payment: £53.79
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £322.73
Monthly Payment: £27.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £333.94
Monthly Payment: £19.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £345.39
Monthly Payment: £14.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £357.11
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.74 / month (APR 15.9%)
Delivery Options
  • By DPD On 24th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS Pro WS X570-ACE AMD Ryzen Workstation Motherboard

ASUS Gaming Motherboard

Get incredible power with the new Ryzen CPUsProviding the core fundamentals needed for a new 3rd Generation Ryzen workstation build, the ASUS Pro WS X570-ACE motherboard caters to users with serious pursuits of demanding tasks such as video editing, photo manipulation and other various content creation, something to put the Ryzen processors to more productive use. The ASUS Pro WS X570-ACE includes a wide range of tuning options for accessible performance. Hosting the latest Ryzen processor with increased number of cores and bandwidth,ready for action with stable power and intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity especially when paired with the brand new Ryzen CPUs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

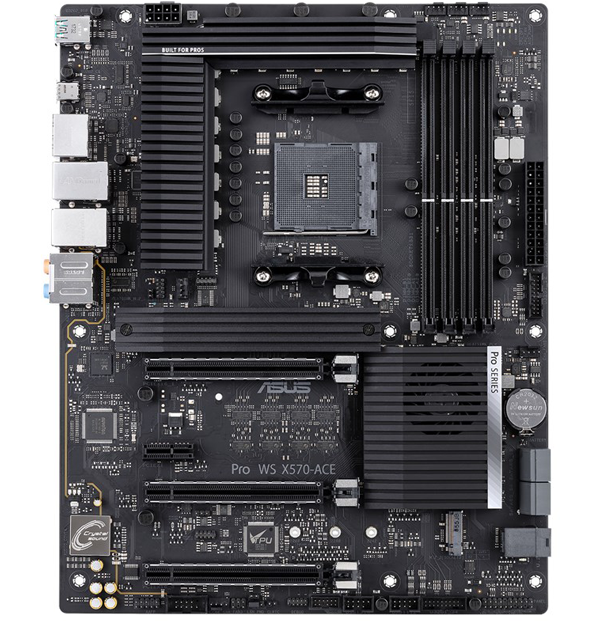

Build the Workstation to Take on any Task

ASUS workstation Motherboard

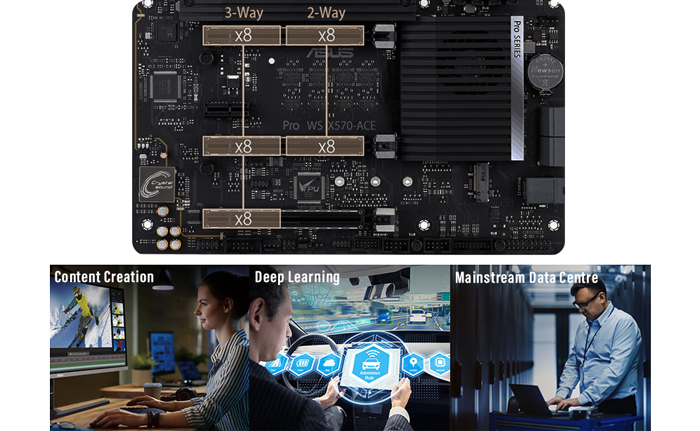

Multi-GPU SupportFully loaded takes on new meaning when you have up to 24 PCI Express lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.

Asus Power Delivery Enhancements

ASUS workstation Motherboard

ProCool II power connector The latest ProCool II is an enhanced EATX 8-pin power connector that offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation, as well as a warning LED display with a BIOS POST message to indicate an improper connection.

ASUS workstation Motherboard

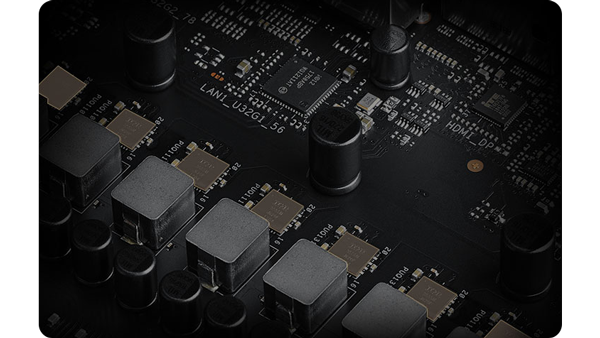

Power stages with IR3555 design The CPU VRM on Pro WS X570-ACE employs a 12+2 power stage design with IR3555, combining high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that high core count processors demand.

ASUS workstation Motherboard

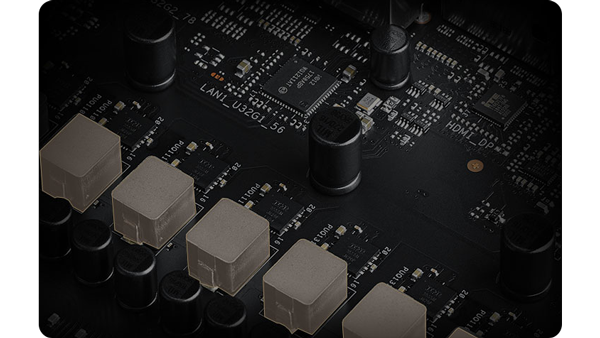

Alloy chokes The Pro WS X570-ACE series uses efficient alloy chokes and high-quality thermal pads to help transfer heat from the VRM array to a sink with ample surface area for the processors.

ASUS workstation Motherboard

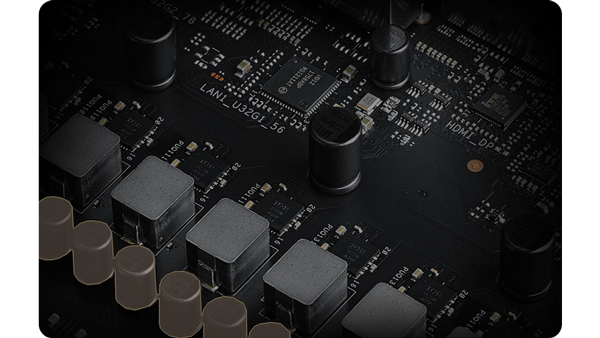

Durable capacitors Durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

ASUS workstation Motherboard

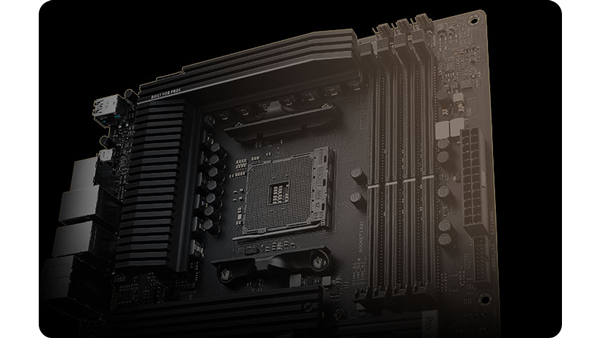

8-layer PCB design Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.

Trusted ASUS Quality, Durability and Stability

ASUS workstation Motherboard

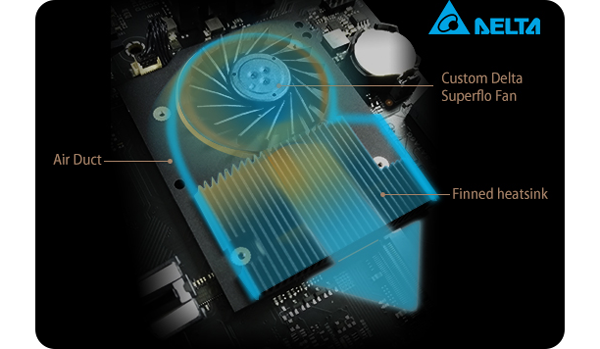

Active PCH Heatsink PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Pro WS X570-ACE features an actively cooled heatsink to prevent throttling during sustained transfers.

ASUS workstation Motherboard

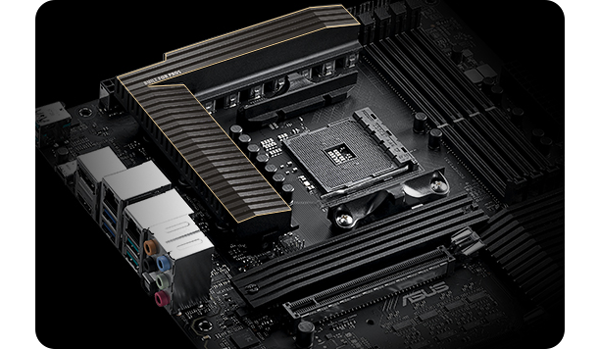

Ultra-efficient VRM Heatsink Pro WS X570-ACE ensures optimal cooling and system stability for the latest AMD Ryzen processors. Higher power requirements are balanced by carefully designed heatsinks that carefully balance mass and surface area to maximise thermal dissipation.

ASUS workstation Motherboard

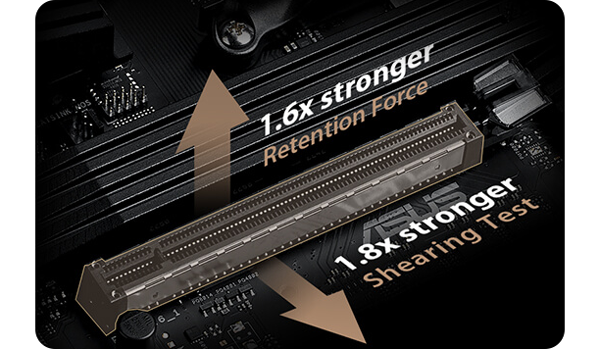

Protect your graphics card investment SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

2-Way VGA Holder From ASUS

ASUS workstation Motherboard

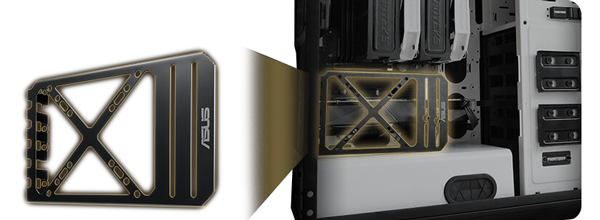

User Friendly DesignThe Pro WS X570-ACE is packed with an exclusive two-way VGA holder to provide extra rigid support for up to two high-end graphics cards, to prevent potentially damaging bowing or bending. This VGA holder is easy to install and can be mounted with an additional system fan (up to 120mm), making sure your workstation has ample cooling to complete any task.

Built in Cooling Monitoring

ASUS workstation Motherboard

Multiple Temperature SourcesEach header can be set to monitor and react to three thermal sensors, and Fan Xpert 4 allows you to assign a sensor to monitor the temperature of supported ASUS graphics cards, all to provide optimal cooling during GPU or CPU intensive workloads.

ASUS workstation Motherboard

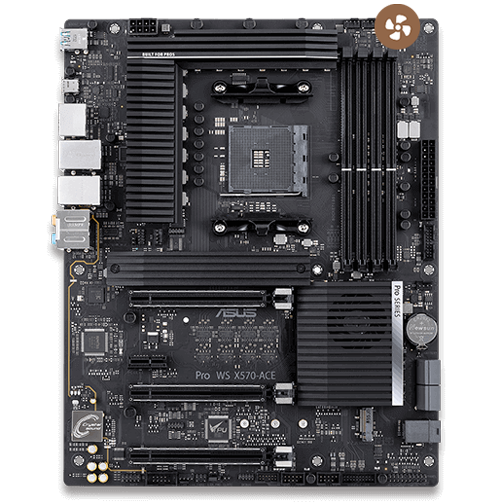

AIO Water Pump Dedicated PWM/DC header for self-contained water-cooling setup, built right in.

ASUS workstation Motherboard

4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans.

ASUS workstation Motherboard

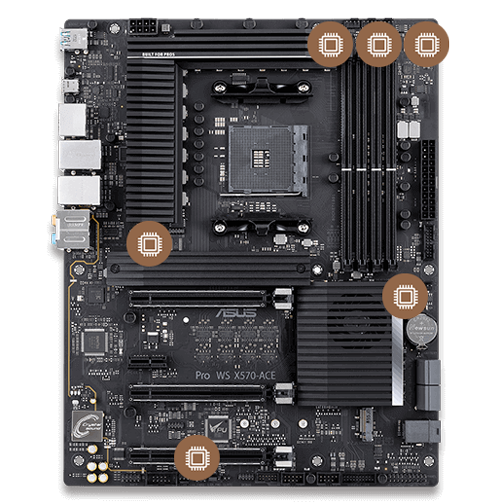

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and over-current.

Improved Storage for Optimal Performance

m.2 heatsink

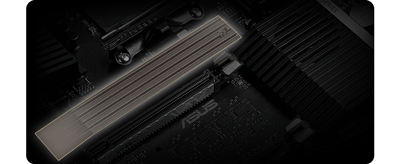

M.2 Ultra-Efficient Heatsink Pro WS X570-ACE features an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 22°C for optimal storage performance and improved SSD longevity.

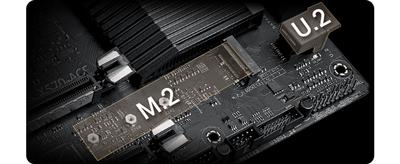

Superfast M.2 & U.2 Options

m.2 storage

Get Unbelievable Storage and Boot Speeds With x4 PCI Express 4.0 bandwidth, Pro WS X570-ACE features up to 64Gbps M.2 and U.2 for faster data-transfer speeds, ideal for an operating system or application drive.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With ASUS you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition Pro WS X570-ACE
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi/NVLink
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x2
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x PCIe 4.0 x1
  • 2 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x PCH Fan Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 1 x U.2 Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Realtek RTL8117
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99890
Model Number 90MB11M0-M0EAY0
GTIN 4718017322713
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
