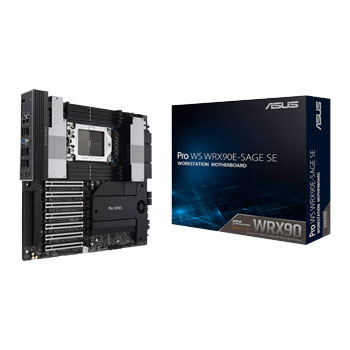

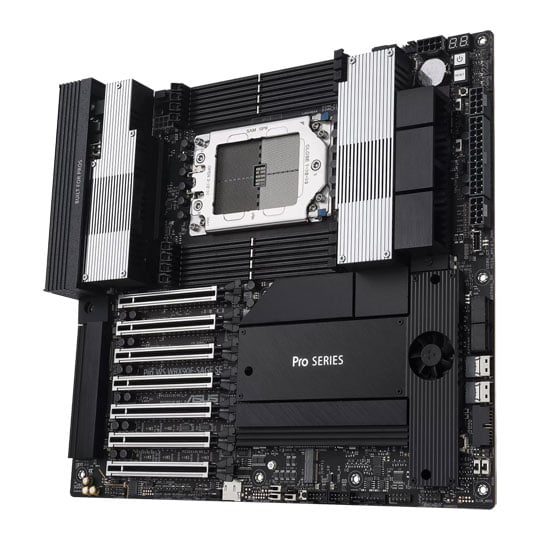

ASUS AMD Threadripper Pro WS WRX90E-SAGE SE PCIe 5.0 eATX Motherboard

ASUS PRO WS WRX90E-SAGE SE, AMD WRX90, sTR5, DDR5, 4x M.2, Dual 10GbE + 1GbE MGMT, USB 4.0, EEB

Thumbnail 1 : ASUS AMD Threadripper Pro WS WRX90E-SAGE SE PCIe 5.0 eATX Motherboard Thumbnail 2 : ASUS AMD Threadripper Pro WS WRX90E-SAGE SE PCIe 5.0 eATX Motherboard Thumbnail 3 : ASUS AMD Threadripper Pro WS WRX90E-SAGE SE PCIe 5.0 eATX Motherboard Thumbnail 4 : ASUS AMD Threadripper Pro WS WRX90E-SAGE SE PCIe 5.0 eATX Motherboard
Scan code: LN145457 Manufacturer code: 90MB1FW0-M0EAY0
Order now and get it tomorrow, Mon 24th Jun
£1,199.99
Get it Tomorrow, 24 JunIn stock
From £33.84 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £108.72
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,304.56
Monthly Payment: £58.60
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,406.22
Monthly Payment: £42.02
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,512.73
Monthly Payment: £33.84
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,623.96
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £31.89 / month (APR 19.9%)
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Features

AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Specifications
Core Specifications
Edition Pro WS WRX90E-SAGE SE
Form Factor EEB
CPU Socket TR5
Chipset WRX90
RAM Memory Support
Memory Type DDR5
Memory Channel Octa (8)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM (Registered)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 2 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 6 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x16 (x8 Bandwidth)
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 2 x 8-pin (Power)
  • 2 x 8-pin PCIe (Power)
  • 1 x Chassis Intrusion connector
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 4 x M.2 Connector
  • 1 x M.2 Fan Header
  • 7 x ProbeIt Measurement Points
  • 1 x ReTry Button
  • 1 x RSVD Switch
  • 1 x Safe Boot Button
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x SlimSAS Connector
  • 1 x Slow Mode Switch
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 1 x Thermal Sensor Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Connector
  • 1 x USB 3.2 Gen2x2 Connector
  • 2 x VRM Heatsink Fan Header
External Connectivity
Network Interface Type Dual Wired 10G LAN + Mgmt LAN
Network Chip/Modules
  • 2 x Intel (10GbE LAN)
  • 1 x Realtek (Gigabit LAN)

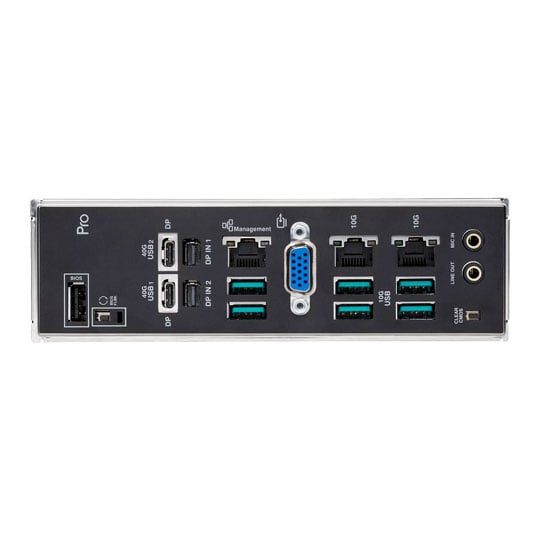

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x Mini DisplayPort
  • 3 x RJ-45
  • 1 x USB 2.0
  • 6 x USB 3.2 Gen2 Type-A
  • 2 x USB 4.0 Type-C
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 X 330 mm
Note
Additional Information
Scan Code LN145457
Model Number 90MB1FW0-M0EAY0
GTIN 4711387441145
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
