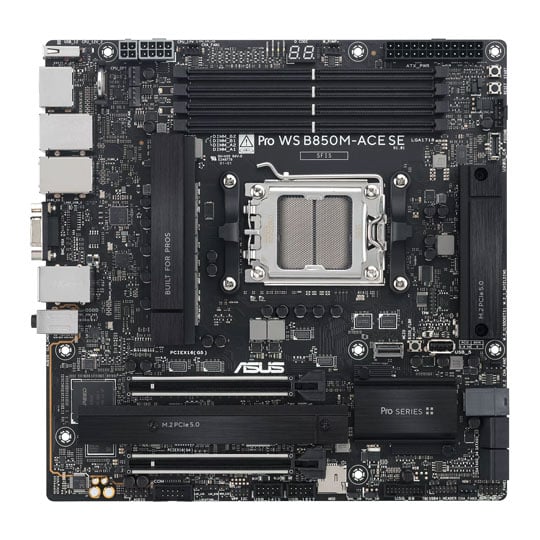

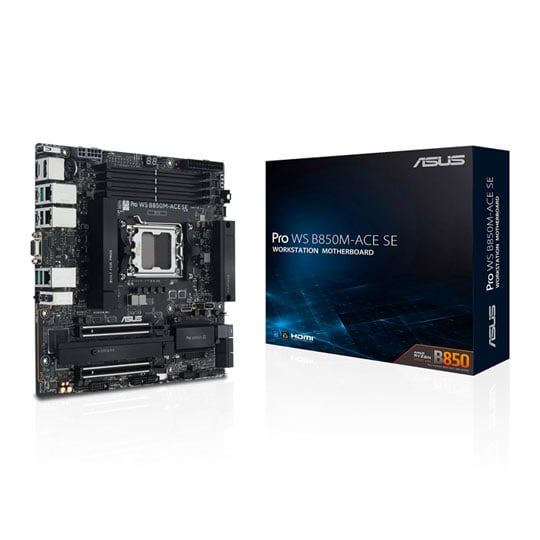

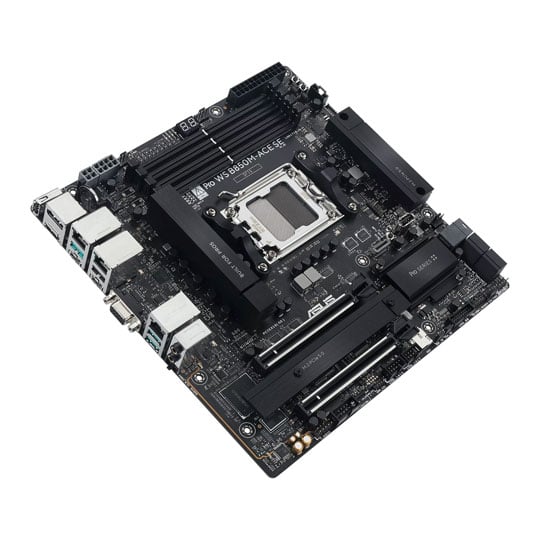

ASUS Pro WS B850M-ACE SE AM5 DDR5 PCIe 5.0 Micro-ATX Server Motherboard

ASUS Pro WS B850M-ACE SE Motherbaord

The Pro WS B850M-ACE SE empowers workstation users of all levels by maximizing the performance of the latest AMD Ryzen™ processors via 8+2+1 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including a front USB 20Gbps Type-C® connector, plus 10Gb and 2.5Gb Ethernet. This workstation motherboard is an ideal choice for content creation, AI and deep learning, and IT management.

Ultrafast Networking

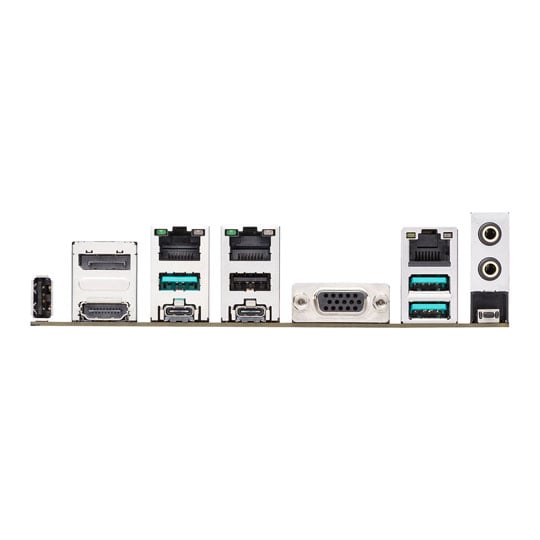

Featuring onboard dual Ethernet ports—one Realtek 10Gb LAN and one Intel® 2.5Gb LAN—the Pro WS B850M-ACE SE delivers high-speed network connectivity for demanding workflows. Additionally, it includes a dedicated Realtek 1Gb Ethernet port exclusively for BMC and IPMI management

PCIe 5.0 Support

The Pro WS B850M-ACE SE offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

PCIe 5.0 Expansion Slot

The Pro WS B850M-ACE SE is equipped with one PCIe 5.0 expansion slot, offering incredible speeds of up to 64GB/s for compatible devices. It is also protected with SafeSlot retention brackets to bear the brunt of massive graphics cards, if need be.

Onboard BMC

The Pro WS B850M-ACE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries.

ASUS Control Center Express

ASUS Control Center Express is remote IT management software designed for monitoring your hardware and software IT assets and inventory status, with enhanced security and remote control features that prevent data leaks and improve IT operational efficiency.

The Core of Your Powerful Workstation

Designed to meet the needs of high-core-count CPUs, the Pro WS B850M-ACE SE features 8(80A)+2(80A)+1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for AMD processors.

Eight-Layer PCB Design

This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.

ProCool II Connectors

These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Superior Chokes & Capacitors

These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+ VRM Control

The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

Memory

The Pro WS B850M-ACE SE motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. You can extract all the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

AI Cache Boost

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

ASUS DriverHub

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.

Comprehensive Storage Support

The Pro WS B850M-ACE SE features two PCIe 5.0 x4 M.2 slots, plus one MCIO connector (PCIe 5.0 x4), and one U.2 connector (PCIe 3.0 x4) for industrial-grade U.2 SSD support, delivering exceptional flexibility and high-speed storage options. All M.2 slots support NVMe® RAID configurations to take advantage of the latest available speeds.

24/7 Reliability

Optimized for 24/7 operation, the Pro WS B850M-ACE SE motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments.

• Ready for Advanced AI PCs: Built to power next-gen AI workloads with robust performance, ultrafast connectivity, and future-proof architecture.
• AMD AM5 Socket Support: Compatible with AMD Ryzen™ 9000/8000/7000 Series and AMD EPYC™ 4005 Series processors.
• Ultrafast Connectivity: Two PCIe® 5.0/4.0 x16 slot (one at x4), 10 Gb & 2.5 Gb LAN ports, two PCIe® 5.0 x4 M.2 slots, front USB 20Gbps Type-C® and MCIO NVMe support.
• Server-grade IPMI Remote Management: Supports onboard BMC AST2600, along with ASUS Control Center Express IT management software for real-time monitoring and management.
• Proven Reliability & Stability: Extensively validated with broad compatibility, a comprehensive QVL, and tested for 24/7 operation.
