Scan code: LN93110 Manufacturer code: PRIME Z390-P

ASUS PRIME Intel Z390-P 9th Gen ATX Motherboard

ASUS PRIME Z390-P, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen2 A, ATX

Thumbnail 1 : ASUS PRIME Intel Z390-P 9th Gen ATX Motherboard Thumbnail 2 : ASUS PRIME Intel Z390-P 9th Gen ATX Motherboard Thumbnail 3 : ASUS PRIME Intel Z390-P 9th Gen ATX Motherboard Thumbnail 4 : ASUS PRIME Intel Z390-P 9th Gen ATX Motherboard ASUS PRIME Intel Z390-P 9th Gen ATX Motherboard : video thumbnail 1
Scan code: LN93110 Manufacturer code: PRIME Z390-P
£139.99Item currently awaiting an ETA
Pre order
From £12.57 / month (APR 14.9%)
Monthly Payment: £24.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £145.76
Monthly Payment: £12.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £150.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

PRIME Z390-P - Intel ATX Motherboard from ASUS

Asus PRIME Z390-P Motherboard

Take Your Creations to the Next Level with ASUSPrime Z390 series motherboards delivers an extensive range of high-quality features that gives daily users and content creators all the essentials for an exceptional build. Merging the benefits of the latest processors with dynamic ASUS innovation and engineering, the Prime Z390-P provides an array of options for performance tuning through intuitive software and firmware. With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolour lighting displays with ASUS Lighting Control.

Please note: This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

EPU & Fan Xpert 4

Tune it Your Way Prime Z390 simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build.

Fan Xpert 4

Flexible Cooling Controls for Air or Liquid With Prime Z390-P you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Media-acclaimed UEFI BIOS

Including EZ Mode & Advanced Mode The UEFI BIOS is an early waypoint on any PC-building journey, and Prime Z390-P offers one of the best in the business. Featuring Easy and Advanced Modes for quick and easy access to find the setting you're looking for. Fine-tune individual fans simply by dragging a curve with the mouse using intuitive graphical fan control. Discover useful settings for your setup with ASUS Technology.

EZ Tuning Wizard

EZ Tuning WizardQuickly apply a CPU overclock to improve system performance, or configure a RAID array for faster data retrieval and backups.

My Favourites

My FavouritesQuickly discover tuning options and add preferred tools to the list.

ASUS OptiMem II Technology

ASUS OptiMem II Technology

Including MemOK! II Automated Recovery To provide Intel's latest processors' unfettered access to memory bandwidth, we've reimagined motherboard trace routing from the ground up. Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customized T-Topology layout that delivers time-aligned signaling.

MemOK! II automatically fixes boot failures that arise due to memory overclocking and instability. When a DRAM-related POST error occurs, the motherboard adjusts memory parameters until the system is able to start.

Ultra-fast Connectivity

On-board M.2

speed up with on-board M.2 up to 32gbps With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It’s the perfect choice for an operating system or application drive, providing fast access to data.

Intel Optane Memory

Supported by Prime z390-P Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime Z390-P. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

USB 3.1 Gen 2

Ulimate speed 10GBPS with on-board USB 3.1 Gen 2 With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

USB Connector

USB 3.1 Gen 1 Front Panel Connector USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.

ASUS Lighting Control

RGB rgb

Brighten up your build A well-tuned enthusiast system deserves a matching aesthetic. With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolour lighting displays with static, blinking, fading, and strobing effects. * The RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.

Outstanding Audio

Audio Capacitors

Intelligent design & premium hardware Discover sound quality unlike anything you've experienced before with special audio features on the Prime Z390 series motherboards. Audio shielding separates analog/digital signal domains, significantly reducing multi-lateral interference. A separate layer for left and right tracks ensures minimal crosstalk between audio paths. Designed with premium Japanese-made audio capacitors, which provides an immersive sound signature with exceptional fidelity.

Comprehensive Cooling Controls

Multiple Temperature Sources

Multiple Temperature Sources Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.

AIO Pump

Dedicated PWM/DC Header A dedicated PWM/DC header for self-contained water-cooling setups.

4-Pin PWM/DC fan connectors

4-Pin PWM/DC fan connectors Each on-board header supports auto-detection of PWM or DC fans.

Smart Protection

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and over-current.

Enhanced Power Delivery

Enhanced Power Delivery

Maximum Power & Efficiency Prime Z390-P adjusts power delivery based on the number of power phases, optimizing power and efficiency for the latest Intel processors.

ProCool Power Connector

ProCool Power Connector

Built to prevent connector failure Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

ASUS SafeSlot Protection

safe slot core

PREMIUM ASUS TECHNOLOGY SafeSlot Core is the ASUS-exclusive PCIe® slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots. ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

Ultra-durable ASUS Protection

Trustworthy Stability and Compatibility Prime Z390-P is designed for builders who want essential ASUS reliability and performance. More CPU cores create power-delivery challenges, so Prime Z390-P has extra power phases and comprehensive cooling features for optimal performance.

LANGuard

LANGuardASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.


OVervoltage Protection

Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DIGI+ VRM

DIGI+ VRMASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

DRAM Overcurrent Protection

DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

ESD Guards

ESD GuardsASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components

PRIME Z390 Tried and Tested

Superior Reliability with 8000+ validation hours ASUS motherboards offer superb endurance verified by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

tests

Temperature and humidity testsEnsures components withstand extreme conditions.

tests

Thermal measurement testsEnsures that the system remains cool and stable under the heaviest loads.

tests

Insertion testsEvery port and connector is put through repeated installation cycles.

tests

Aging testsUp to 48-hour aging test ensures reliability.

tests

Power-consumption testsDelivers world-class energy efficiency.

tests

Temperature and DC margin testsEnsures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

tests

Thermal-shock testsEnsures ability to survive temperature changes during transportation.

tests

Non-operation shock testsBuilt to withstand jolts that may occur during shipping.

tests

Burn-in testsEvery component is checked to ensure flawless operation.

tests

Installation testsConnector placement is double-checked to ensure hassle-free installation.

tests

Drop testsDrop tests from various heights ensure durability.

tests

Salt and spray testsTested for I/O reliability, prolonged lifespan and rust-resistance.

Built to Last ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.

protection

5X ProtectionHardware safeguards to ensure long-term durability.

ddr4

520+ DDR4 compatibilityIndustry-leading DDR4 memory compatibility for best flexibility and reassurance.

compatibility

1000+ compatible devicesCompatibility with a range of CPUs, memory modules, graphics cards and more.

valid

8000+ validation hoursExtensive testing with latest components for enhanced reliability, compatibility and safety.

Specifications
Core Specifications
Edition PRIME Z390-P
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230 (Supports WiFi/Bluetooth Cards)
  • 2 x M.2, 2242/2260/2280, PCIe/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~3 ONLY)
  • RAID 5 (SATA 0~3 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x MemOK!-II switch
  • 1 x RGB Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x USB 2.0 Header
  • 1 x USB 2.0 Header (1-Port Only)
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)

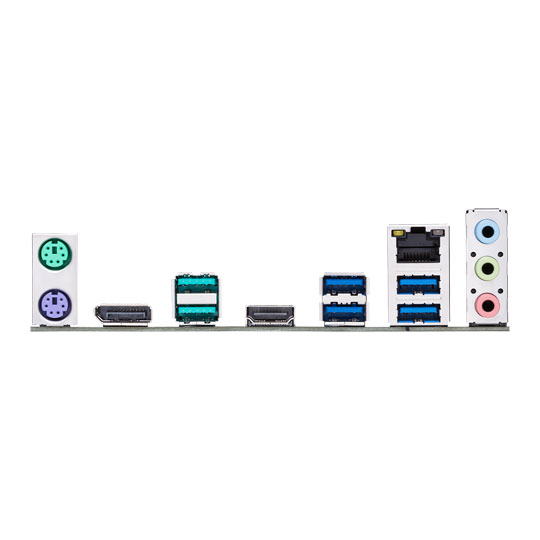

Rear I/O Connectors
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 234 mm
