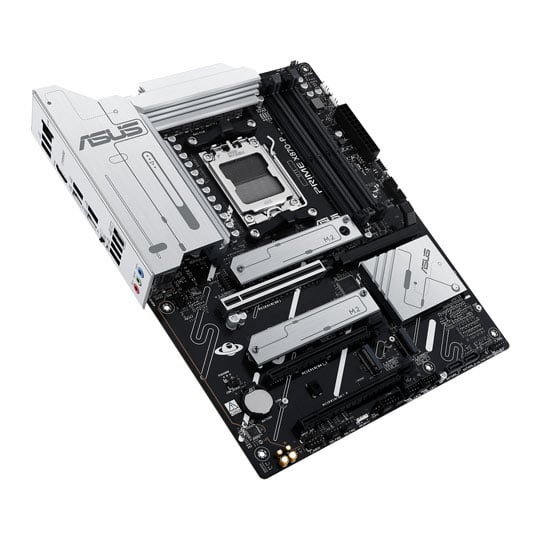

ASUS PRIME X870-P AM5 DDR5 PCIe 5.0 ATX Motherboard
ASUS PRIME X870-P, AMD X870, AM5, DDR5, PCIe 5.0, 4x M.2, 2.5G, USB 4.0, AMD EXPO, ATX
Email me when the availability or price changes
Finance this product
- From £12.69 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Frequently Bought Together
PRIME X870-P DDR5 AMD ATX Motherboard From ASUS
built to last The ASUS Prime X870-P motherboard is engineered to unleash the capabilities of AMD Ryzen™ 9000 series processors with a strong power setup, advanced cooling, and user-friendly tuning options. Packed with four M.2 slots, it offers ample room for high-speed storage, while PCIe® 5.0 x16 support gears it for next-gen graphics. Built for the future, it provides robust connectivity—like 40Gbps USB-C® and 10Gbps USB ports—ideal for advanced AI applications. With intuitive software and firmware, it’s crafted for PC builders aiming for high-performance, AI-ready systems.
X870AMD Chipset
AM5CPU Socket
DDR5 DIMMMax. 192GB
ATXForm Factor
Masterfully Layered VRM
Robust ArchitectureStable power is crucial for squeezing max performance from AMD processors. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
14VCORE Phases
2SOC Phases
1Misc. Power
MicroFine Alloy ChokesHighly permeable MicroFine alloy-core chokes per phase.
10K Metallic CapsLasts thousands of hours at high operating temperatures.
8-Layer 2oz PCBHigh speed, server-grade signal integrity.
Solid-Pin ConnectorsStable, reliable and long-lasting ATX & EPS connectors.
Memory & Storage Synergy
DDR5 DominationASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimised profiles for enhanced performance. For those looking to surpass stock DDR5 speeds, the PRIME X870-P offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
Loaded With M.2 SlotsPRIME X870-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.
DIY Friendly
GREAT FOR BEGINNER BUILDSThe PRIME X870-P motherboard introduces EZ PC DIY features that streamline the building process for convenience and speed. A physical lever unlocks the first PCIe slot’s security latch with a single tap, simplifying the removal of graphics cards or other devices during upgrades. The ASUS Q-Latch offers tool-free M.2 SSD installation, using a simple locking mechanism for easy drive attachment and removal. Additionally, the Q-LED Core display provides color-coded lights during the Power-On Self-Test (POST), assisting with quick troubleshooting of potential issues.

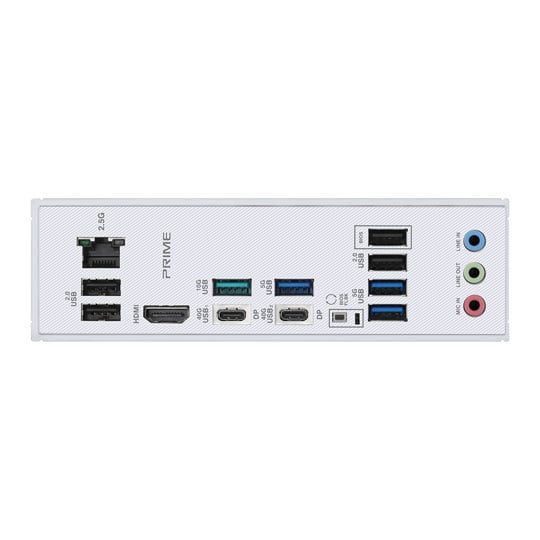

Pre-Mounted I/O ShieldThe pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
BIOS Flashback™BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the port, and press a button—no CPU or memory needed.
PCIe Safe SlotASUS have adapted SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
AI-Powered Adaptations
AI Cooling 2AI Cooling II balances the thermals and acoustics of any build with a single click. An exclusive ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds, ensuring efficiency.
AI OverclockingFrom the moment you turn on the system, dedicated onboard microcontrollers track temperature and frequency telemetry to gauge the unique capabilities of your CPU and system cooling. This data is then passed through an algorithm to provide overlcocking stats.
Frosted Flow
Laden With Heatsinks
• VRM & Thermal Pads from MOSFETs and chokes.
• 2x M.2 Heatsinks for throttling prevention.
• Passive Chipset Heatsink for performance and dust protection.
Radiator/Fan Support
• x1 AIO Pump Header
• x7 4-Pin PWM/DC
• x7 Smart Protection Circuits
Premium ConstructionThis motherboard features high-quality materials in its heatsinks, allowing for steady heat dissipation and lasting durability. Built to handle advanced cooling setups, it’s ready for both air and liquid cooling options, keeping everything cool and running smoothly even under heavy loads.
Sleek Access for Seamless Action

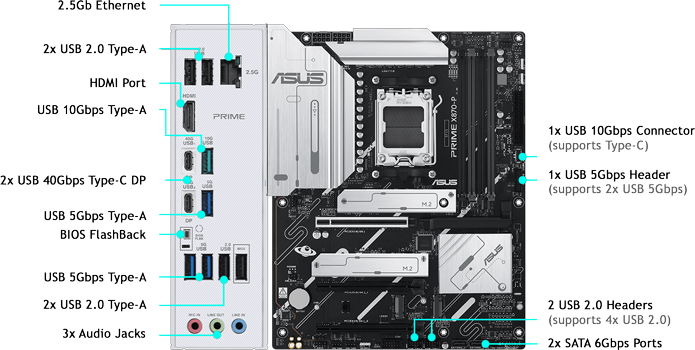

Link Up With EaseThis motherboard offers extensive connectivity, with a well-organised layout that makes linking all your components a breeze. The stylish backplate not only adds a sleek touch but also reinforces the build for added stability. With its intuitive design, it’s perfect for beginners looking to dive into PC building, offering a user-friendly experience without compromising on quality or capability.
