Scan code: LN129133 Manufacturer code: PRIME X670E-PRO WIFI

ASUS AMD Ryzen PRIME X670E-PRO WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard

ASUS PRIME X670E-PRO WIFI, AMD X670, AM5, DDR5, PCIe 5.0, 4x M.2, 2.5G/WiFi 6E, USB 3.2 Gen 2x2, AMD EXPO™, ATX

Thumbnail 1 : ASUS AMD Ryzen PRIME X670E-PRO WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen PRIME X670E-PRO WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen PRIME X670E-PRO WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen PRIME X670E-PRO WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN129133 Manufacturer code: PRIME X670E-PRO WIFI
Order by 8:30 PM today and get it tomorrow (upgrade to Saturday delivery at checkout)
Was: £369.98
£239.99
Get it Tomorrow, 22 JunIn stock
From £11.72 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £21.75
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £260.89
Monthly Payment: £11.72
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £281.22
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

PRIME X670E-PRO WiFi AMD Motherboard from ASUS

TUF GAMING X670E-Plus

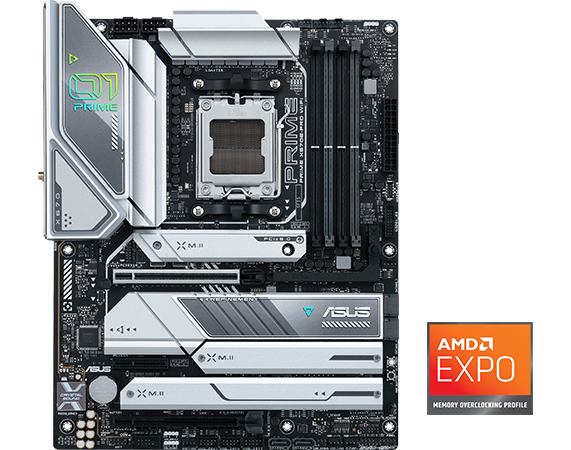

X670E-PRO WIFI ASUS Prime series motherboards are expertly engineered to unleash the full potential of the latest AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670E-PRO WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME X670E-PRO WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

AMD X670Chipset

AM5CPU Socket

DDR5Support

Fine-Tune Every Setting

4K Recording

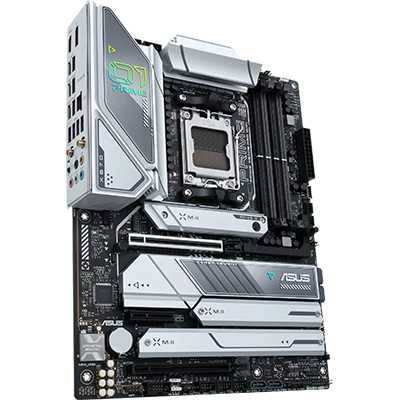

EXTENSIVE FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670E-PRO WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

5-Way Opitmization • TPU
• Power Saving
• Fan Xpert 4
• Digi+ VRM Control
• Turbo App

Overclocking Technologies • AI Overclocking
• Dynamic OC Switcher
• Ryzen Core Flex

AI Cooling IIAI Cooling II balances the thermals and acoustics of any build with a single click.

UEFI BIOS • Advanced Mode
• EZ Mode

Stay Cool Under Heavy Loads

4K Recording

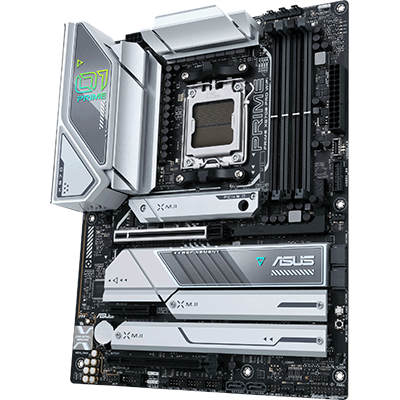

IMPRESSIVE COOLINGPRIME X670E-PRO WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Multiple Sources Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Dual-Pump Headers A dedicated header supplies over 3 amps* for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.

Smart ProtectionA dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Boost Daily Productivity

4K Recording

PERFORMANCEThe PRIME X670E-PRO WIFI motherboard is built to handle the high core counts and bandwidth demands of AMD processors. ASUS X670E motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design • ProCool Connectors
• 14+2 Power Stages

Memory • DDR5
• Optimem II

StorageFour M.2 slots support up to the 22110 device and also can provide NVMe SSD RAID for incredible performance potential.

Connectivity • PCIe® 5.0 Slot
• USB 3.2 Gen 2x2 Type-C®
• USB4® Support
• WiFi 6E
• Realtek 2.5 Gb Ethernet

Make it Your Own

4K Recording

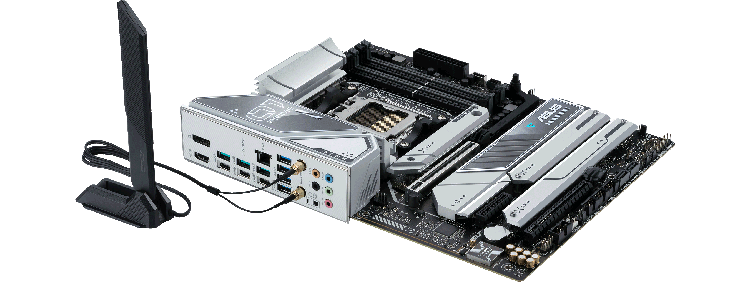

CUSTOMIZATION The PRIME X670E-PRO WIFI motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Audio • Two-Way AI Noise Cancellation
• Exclusive Codec
• Crystal Sound 3

personalization • Aura Sync
• Addressable Gen 2 RGB Header
• Armoury Crate

DIY-Friendly • PCIe® Slot Q-Release
• Q-Latch
• SafeSlot Core+ & SafeDIMM
• FlexKey

Specifications
Core Specifications
Edition PRIME X670E-PRO WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD X670
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 4 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 3 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Realtek (2.5GbE LAN)

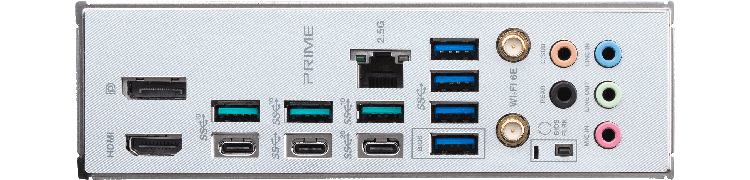

Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 50 x 305 mm
Note
Additional Information
Scan Code LN129133
Model Number PRIME X670E-PRO WIFI
GTIN 4711081905660
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
