ASUS AMD Ryzen PRIME X570 P AM4 PCIe 4.0 ATX Motherboard

ASUS PRIME X570-P, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, Realtek GbE, USB 3.2 Gen2 A, ATX

Thumbnail 1 : ASUS AMD Ryzen PRIME X570 P AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Ryzen PRIME X570 P AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Ryzen PRIME X570 P AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Ryzen PRIME X570 P AM4 PCIe 4.0 ATX Motherboard ASUS AMD Ryzen PRIME X570 P AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1
Scan code: LN99747 Manufacturer code: PRIME X570-P
£186.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS PRIME X570-P AMD Ryzen ATX Motherboard

ASUS Gaming Motherboard

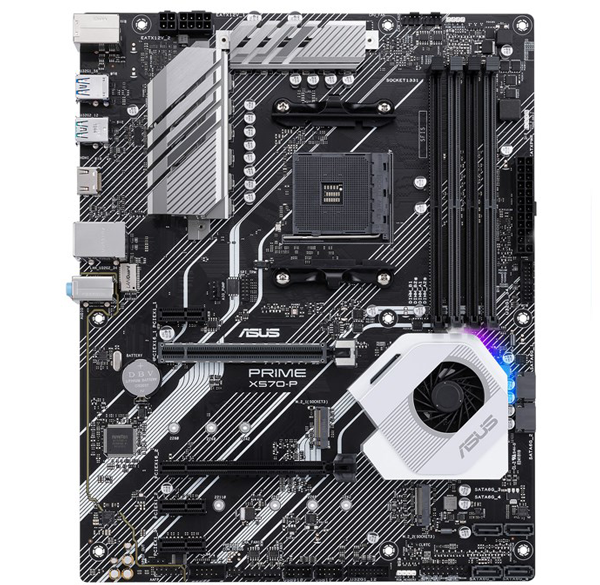

Get incredible power with the new Ryzen CPUsProviding the core fundamentals needed for a new 3rd Generation Ryzen build, the Prime X570 series caters to users with serious pursuits of demanding tasks such as video editing, photo manipulation and other various content creation, something to put the Ryzen processors to more productive use. Prime X570-P, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance. Hosting the latest Ryzen processor with increased number of cores and bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity especially when paired with the brand new Ryzen CPUs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

X570 Power Delivery with ProCool Connector

ASUS Gaming Motherboard

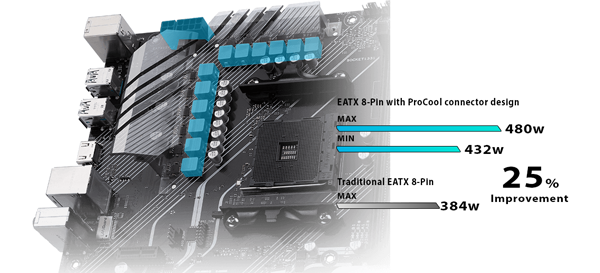

Offers stable Power to your components The latest AMD Ryzen 3rd Gen processors boosts more core and bandwidth, demanding more juice than typical desktop CPUs. Prime X570-P offers stable power. It augments the motherboard's link to the PSU with eight plus four-pin connectors that pass 12V power directly to the processors. Based on our ProCool design, these jacks use solid pins that can handle more current than hollow-pin connectors.

Fortified Protection with Safeslot

Safeslot

Superior retention and shearing resistance SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is firmly anchored to the PCB through additional solder points.

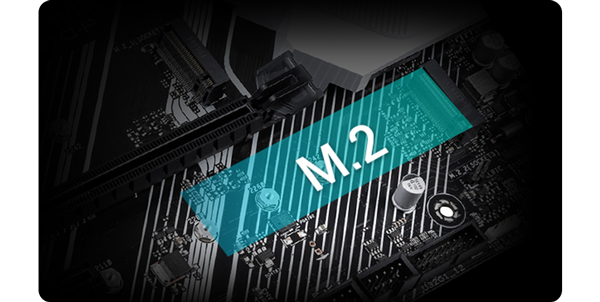

Prime X570-P Pro Dual PCIe M.2 Slots

m.2

Support For Incredibly Fast Storage Options Dual PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

ASUS Cooling Optimization and Monitoring

powerconnector

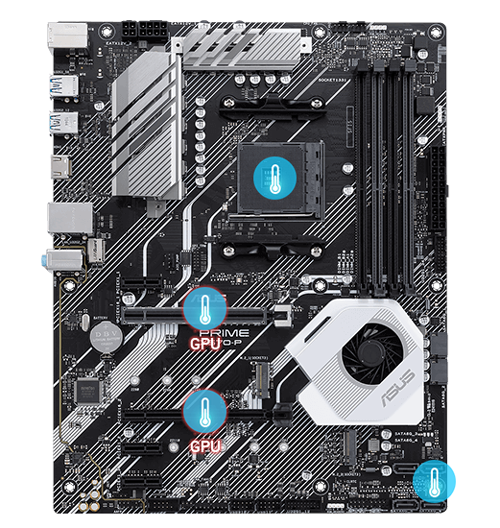

Multiple temperature sources Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.​

controller

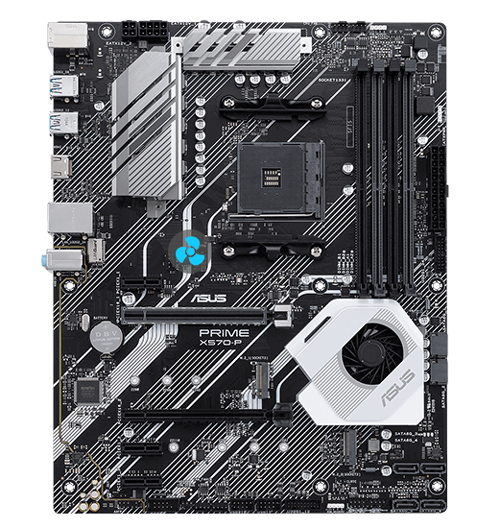

All in One Water Cooling Set Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.

4-PIN

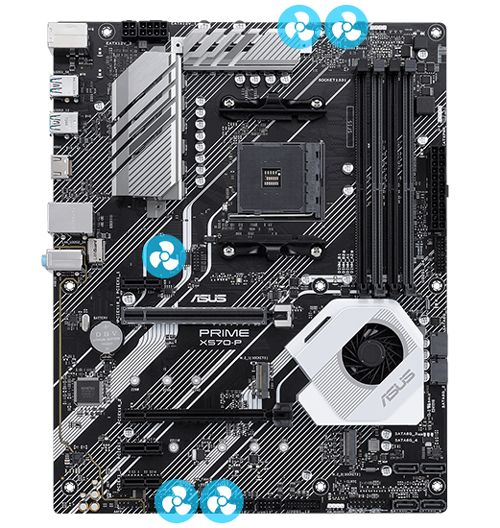

4-Pin PWM/DC fan Every onboard header supports auto-detection of PWM or DC fans.

Smart Protection

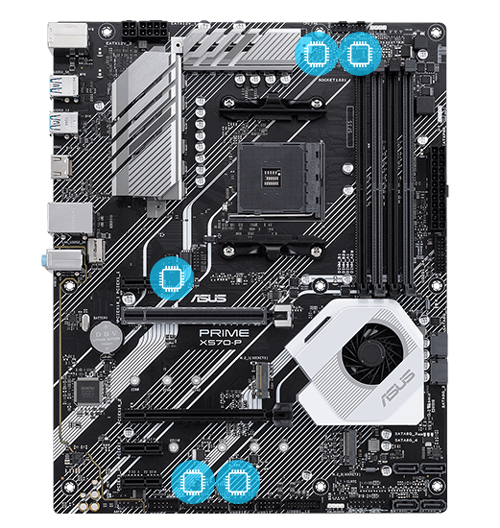

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

ASUS PRIME X570-P Featuring USB 3.2 Gen 2

ASUS Gaming Motherboard

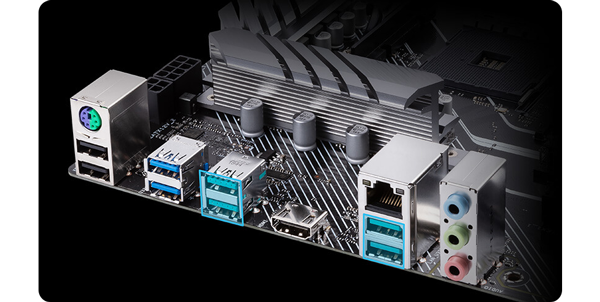

Ultimate-speed 10Gbps with USB 3.2 Gen 2 onboard With backward-compatible USB 3.2 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps. Utilise ASUS LANGuard which is a hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

AURA SYNC RGB Headers

ASUS Gaming Motherboard

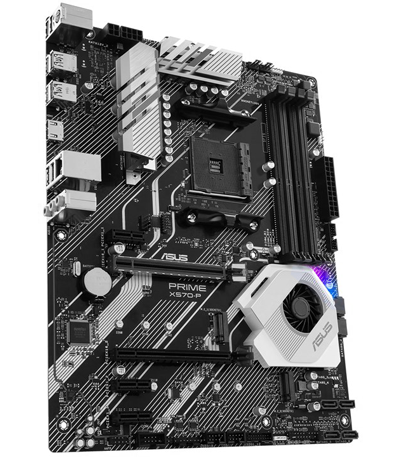

Light up your rig and connect to your devices A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Control Your Rig With Detailed Tuning Software

Fan Xpert 4

Flexible Cooling Controls With the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

TPU Insight

CPU Performance Boost Unleash your PC’s full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency The Energy Processing Unit (EPU) automatically amplifies power consumption and maximises savings with Away mode. The smart setting that produces an extreme energy-saving setup by shutting down unused I/O controllers, with the EPU you will appreciate system-wide power reserves.

Turbo App

Optimization for gamers and professionals Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App every day. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level, meaning your ROG system is perfectly optimized for what you're doing.

DIGI+POWER CONTROL

Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

Specifications
Core Specifications
Edition PRIME X570-P
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin PCH_FAN Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99747
Model Number PRIME X570-P
GTIN 4718017263818
