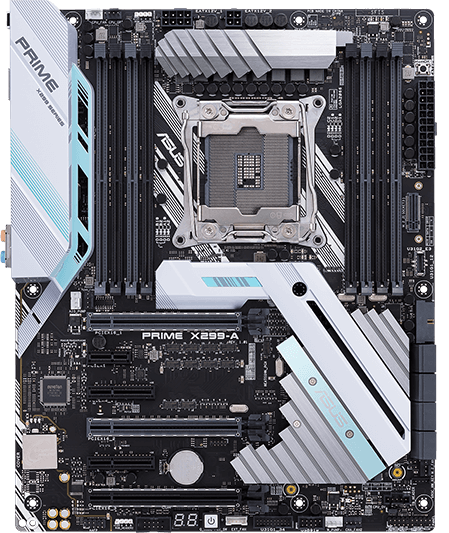

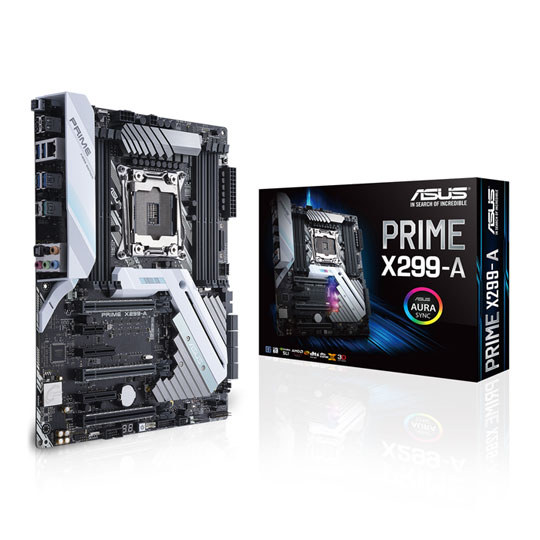

ASUS Intel Core-X PRIME X299-A Extreme ATX Motherboard

ASUS PRIME X299-A, Intel X299, S 2066, DDR4, SATA3, Dual M.2, 3-Way SLi/CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX

ASUS
Scan code: LN82156 Manufacturer code: PRIME X299-A Request call
£252.49
Pay on Scan Finance with a 10% deposit from just £6.31 / month (APR 15.9%)
review High End
Free Delivery Delivery options Free By DPD On 12th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

PC Prime X299-A Motherboard. Core-X with ATX Form Factor

PRIME X299-A X299 Motherboard from ASUS
Intel Powered Motheboard. The ASUS Prime X299-A

ASUS Prime X299-A is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-A.

RGB Board Lighting

Static

Always on

Breathing

Fades in and out

Strobing

Flashes on and off

Colour Cycle

Fades between the colors of the rain-bow

Music Effect

Pulses to the beat of your music

CPU Temperature

Changes color with CPU load

Rainbow

A rolling multi-color glow

Comet

A stream of light with a tail

Flash & Dash

Single/multi-color stepped flashes

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

M.2 Port and Heatsink

motherboard m.2 bay and heatsink
Speed up and Keep Your SSD Cool

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It is the perfect choice for an operating system or application drive, providing fast access to data.

Prime X299-A has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C — and that means optimal storage performance and improved SSD longevity.

OC Design: Pro Clock II

X299 Pro Clock II
overclocked base-clock frequencies

A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel Core X-series processors.

5-Way Optimization

ASUS 5 Way Optimisation
One-click overclock and cooling, done!

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.

Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.

All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.

  • TurboV Processing Unit (TPU)
  • Energy Processing Unit (EPU)
  • Fan Xpert 4
  • Digi+ Power Control
  • Turbo Core App

SupremeFX Audio

ASUS Prime motherboard Audio
Shielded audio, superior sound

Prime X299-A utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones.

DTS Headphone:X - Surround sound, to go: Immersive 3D surround-sound technology provides incredible audio experiences.

  • Crystal Sound 3
  • Power pre-regulator
  • Audio shielding
  • Separate layer for left and right tracks
  • Integrated amplifier
  • De-pop circuit
  • Premium Japanese-made audio capacitors

ASUS UEFI BIOS

Media-acclaimed BIOS
Media-acclaimed Design

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

Dual Intel Ethernet

Ethernet
More throughput, less CPU usage and great gaming experiences

Prime X299-A features the latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.

ASUS LANGuard

ASUS LANGuard Protection
Pumped-up throughput, 2.5X higher surge tolerance

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

Turbo LAN Technology

Turbo LAN Technology
Network-optimization software for customizable packet prioritization

Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, and reduces network lag.

SafeSlot Prime X299-A PCIe Lanes

SafeSlot Prime X299-A PCIe Lanes
Protect your Graphics Card Investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4) [6+ Core] / Dual (2) [4 Core]
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 3600(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 128GB (8x16GB) [6+ Core] / 64GB (4x16GB) [4 Core]
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 3-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 2 x PCIe 3.0 x4
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Start Technology
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 1 x MemOK! Button
  • 1 x Power button
  • 8 x SATA III - 6Gb/s
  • 1 x System panel(s) (Q-Connector)
  • 1 x Thermal sensor connector
  • 1 x Thunderbolt header
  • 1 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
  • 1 x USB BIOS Flashback Button
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
