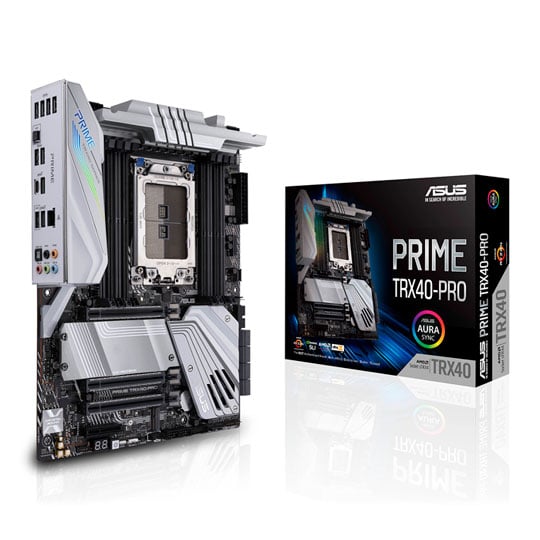

ASUS AMD Threadripper PRIME TRX40-PRO PCIe 4.0 ATX Motherboard

ASUS PRIME TRX40-PRO, AMD TRX40, sTRX4, DDR4, PCIe 4.0, 3x M.2, SLI/CrossFire, GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASUS AMD Threadripper PRIME TRX40-PRO PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS AMD Threadripper PRIME TRX40-PRO PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS AMD Threadripper PRIME TRX40-PRO PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS AMD Threadripper PRIME TRX40-PRO PCIe 4.0 ATX Motherboard
Scan code: LN103590 Manufacturer code: 90MB12F0-M0EAY0
£409.99
From £17.09 / month (APR 0%)
Monthly Payment: £68.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £409.99
Total inc. interest: £409.99
Monthly Payment: £34.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £409.99
Total inc. interest: £409.99
Monthly Payment: £22.78
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £409.99
Total inc. interest: £409.99
Monthly Payment: £17.09
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £409.99
Total inc. interest: £409.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.24 / month (APR 15.9%)
Delivery Options
  • By DPD On 12th Dec To 16th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

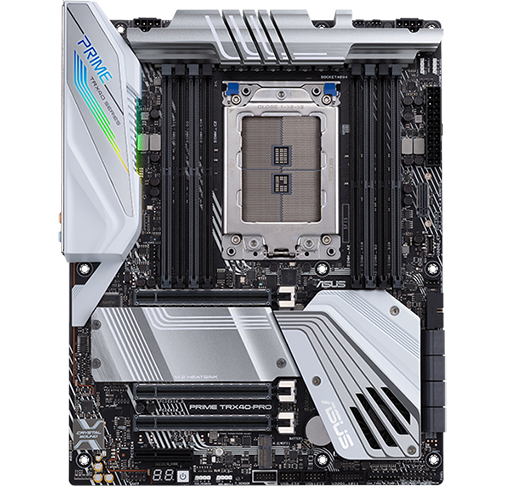

ASUS Prime TRX40 Pro Motherboard for the 3rd Gen Threadripper

ASUS Prime TRX40-Pro MOTHERBOARD

The ultimate platform for PC enthusiasts, featuring exclusive PCIe 4.0 connectivity ASUS Prime TRX40-Pro is expertly engineered to unleash the full potential of AMD's latest high-core-count processors for content creators, designers and professional use. Combining a robust power design, comprehensive cooling solutions, ultrafast PCIe 4.0 connectivity and intelligent tuning options, the high-end desktop motherboard delivers the performance and stability needed to turn every creative vision into reality. AMD's HEDT platform raises the stakes with the latest AMD 3rd Gen Ryzen™ Threadripper™ processors that boast more cores and higher bandwidth than ever before. Prime TRX40-Pro is ready for the additional processing power that plows through intensive tasks such as 3D rendering and video editing, and the extra bandwidth allows you to add multiple graphics cards and NVMe SSDs to accelerate your productivity.

ASUS Prime TRX40-Pro motherboard supports the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors that boast up to 32 cores. It features quad-channel DDR4 memory, 64 lanes of PCI Express® 4.0, 16 GT/s transfer speed for Gen 4 M.2 SSDs, and built-in native USB 3.2 Gen 2 (10 Gbps) for superior performance.

AMD TRX40Chipset

TRX4CPU Socket

AMD 3rd Gen Ryzen ThreadripperCompatible CPUs

ATXForm Factor

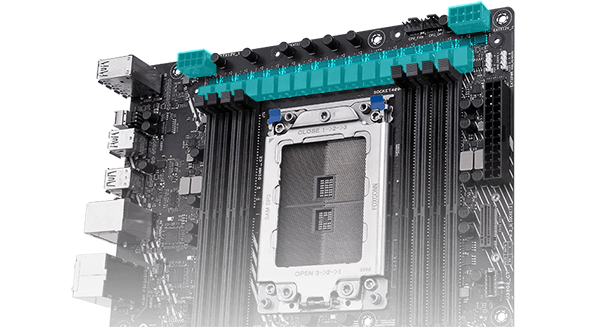

Robust Power Design

Prime TRX40-Pro Networking

Get the Most out of All Your CoresThe new AMD Socket sTRX4 is compatible with 3rd Gen AMD Ryzen Threadripper CPUs with up to 32 cores, up to 64 PCIe 4.0 lanes, and 280-watt thermal design power (TDP). Such specifications require serious power, so Prime TRX40-Pro is equipped with an enhanced power solution that includes 16 power stages to ensure your processor keeps up with your creativity. Superior chokes and durable caps are engineered to resist extreme temperatures and provide better performance.

Plenty of Comprehensive Cooling Options

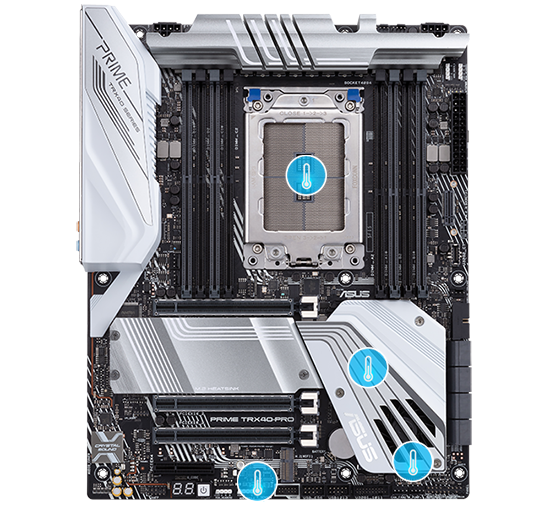

Multiple Temperature Sources

Multiple Temperature Sources Each header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

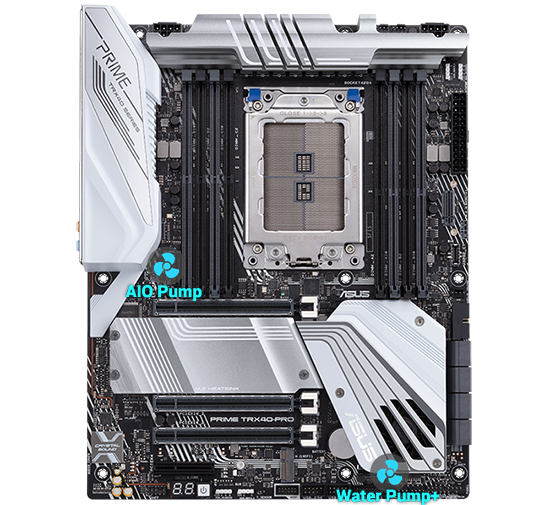

Dual Pump Headers

Dual Pump Headers A dedicated header that supplies over 3A for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.

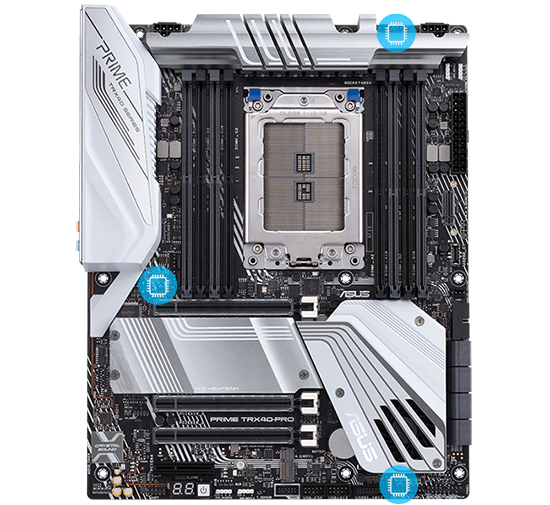

Smart Protection

Smart Protection A dedicated integrated circuit that protects each fan header from overheating and overcurrent.

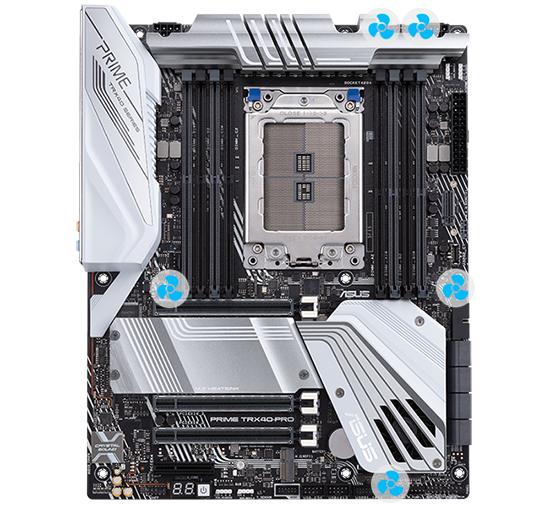

4-Pin PWM/DC Fan

4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans.

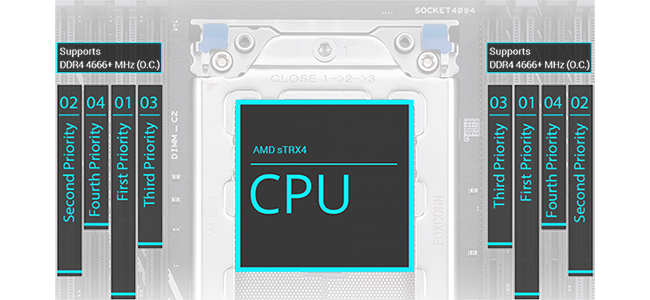

Make your Memory Go Faster

Prime TRX40-Pro Networking

allows support for multiple GPU'sThe TRX40 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. Fully loaded takes on a new meaning when you have up to 64 PCIe 4.0 lanes stemming from the CPU. These lanes can be split in an x16/x16/x16 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to supercharge your work efficiency.

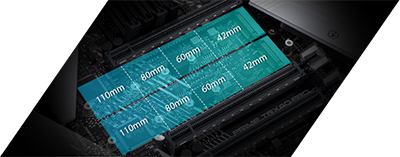

Triple M.2 Drives Utilising PCIe 4.0

Prime TRX40-Pro memory

Serious Speed with Onboard M.2 Professional content creation applications require fast solid-state storage, which is why Prime TRX40-Pro is equipped with three PCIe 4.0 M.2 slots that are compatible with the latest NVMe SSDs. All slots support up to 110 mm drives, and they can be configured into bootable RAID arrays for ultrafast data-transfer speeds. There are 2 slots under the heatsink and another vertical slot located next to the USB front panel Type-C connector.

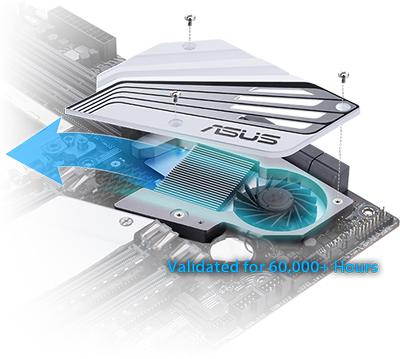

Active Chipset Heatsink Solution

Prime TRX40-Pro m.2

Dedicated Cooling for Unthrottled Transfers Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

Finned Heatsink: The heatsink fin density is optimised to maximise surface area while maintaining a low-resistance exhaust path, and provides better cooling.

Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan, while its speed is easily adjusted via Fan Xpert 4 or the UEFI.

Upgrade to Unrivalled Audio

Crystal Sound 3

Surround Sound with DTS:X ULTRA Prime TRX40-Pro utilizses a unique audio codec designed in close collaboration with Realtek — the Realtek S1220. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts the gain to ensure optimal volume range for your headphones. DTS:X® Ultra adds a spatial audio feature to boost headphones and speakers for enhanced gaming, VR, and extended-reality experiences and supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content.

Control Your Rig With Detailed Tuning Software

level up your performanceOne click takes care of all that complex tuning. ASUS 5-Way Optimisation makes your PC smart. It dynamically optimises essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

Fan Xpert 4

Flexible Cooling Controls for Air or Liquid With Prime TRX40-Pro, you have comprehensive control over fans via Fan Xpert 4 or UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum – keeping your system quiet as a whisper when performing light tasks.

TPU Insight

CPU Performance Boost The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

EPU Guidance

All-round Energy Efficiency With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with the Away mode.

Turbo App

Optimization for gamers and professionals Turbo App allows you to define CPU overclocking, apply fan profiles, prioritise network data and optimise audio setting at app level, meaning your system is perfectly optimised for what you're doing.

DIGI+POWER CONTROL

Precise Digital Power Controls The Digi+ voltage-regulator module (VRM) delivers a real-time control over voltages, switching frequency and power-efficiency settings, allowing you to fine-tune your CPU for ultimate stability and performance.

Grow your Gaming World with AURA Sync

asus armoury

Outshine the Competition Prime TRX40-Pro has two Addressable Gen 2 RGB Headers, which are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers – and they can all be synced with an ever-growing portfolio of Aura-capable hardware.

Specifications
Core Specifications
Edition PRIME PRO
Form Factor ATX
CPU Socket TRX4
Chipset AMD TRX40
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 256GB (8x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi/NVLink
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 3 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x AIO Pump Connector (4-Pin)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x NODE connector
  • 1 x Power button
  • 1 x Q_Code
  • 8 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x T_Sensor Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN103590
Model Number 90MB12F0-M0EAY0
GTIN 4718017535120
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
