ASUS PRIME Intel H810M-K DDR5 MicroATX Motherboard

ASUS PRIME H810M-K mATX Motherboard, Intel H810, S 1851, DDR5, SATA3, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen2, HDMI / VGA
MORE INFO
MORE INFO

Scan code: LN167802 Manufacturer code: 90MB1N10-M0EAY0
£102.98
£5.48 Next day delivery
Order now and receive it by Tuesday, 30th June
Add To Basket
Get it Tuesday, 30 JunIn stock
Pay in 3 interest-free payments of £34.33

Email me when the availability or price changes

  • By DPD On 30th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £9.33 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

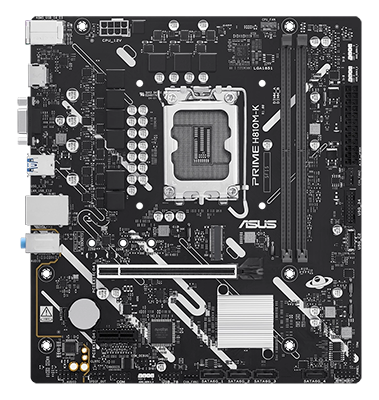

PRIME H810M-K Intel® Core™ Ultra Micro-ATX Motherboard from ASUS

PRIME H810M-K Intel® Core™ Ultra Micro-ATX Motherboard from ASUS

Engineered for Prime Performance ASUS PRIME series motherboards are expertly crafted to unlock the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Featuring a robust power design, comprehensive cooling, and intelligent tuning options, the PRIME H810M-K delivers a range of performance enhancements through intuitive software and firmware. Built for the next generation, it's Advanced AI PC-ready with the power and connectivity required for demanding AI workloads.

H810Chipset

LGA1851Socket

Intel® Core™ Ultra (Series 2)CPU Support

mATXForm Factor

Digital Power Design

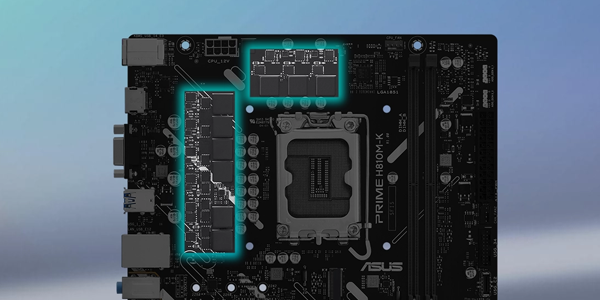

Digital power design highlighted on the PRIME H810M-K motherboard.

Steady & Reliable Performance Stable power is crucial for maximising the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME H810M-K features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

6 VCCCORE Power

1 VCCGT Power

1 VCCSA Power

1 VNNAON Power

Digi+ VRM Control icon.

Digi+ VRM Control Real-time voltage control.

Enhanced Memory & Storage Performance

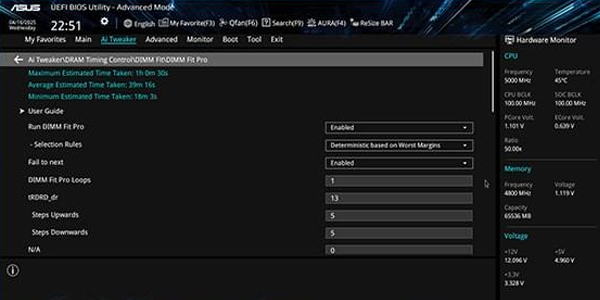

ASUS UEFI BIOS Utility with DIMM Fit Pro feature.

DIMM Fit / DIMM Fit Pro DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimise performance and identify potential issues. DIMM Fit Pro extends this with advanced customisation, giving experienced builders control over up to twenty overclocking parameters, adjustable testing ranges, and the ability to prioritise stability or performance for more refined memory tuning.

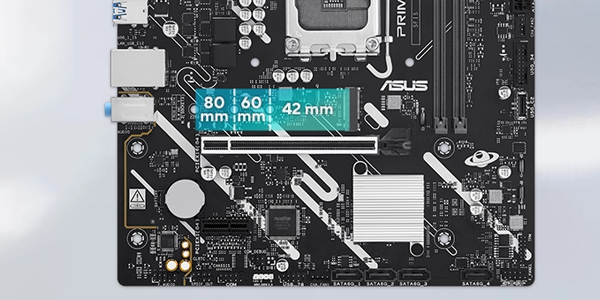

M.2 slot (up to 64Gbps) highlighted on the PRIME H810M-K motherboard.

Dual M.2 slots (up to 64Gbps) PRIME H810M-K features an M.2 slot supporting data transfer speeds of up to 64Gbps via PCIe 4.0, enabling faster boot times and quicker application loading.

Cooler by Design

PRIME H810M-K is engineered with an onboard chipset heatsink and a range of hybrid fan headers to keep your system cool and stable under demanding workloads.

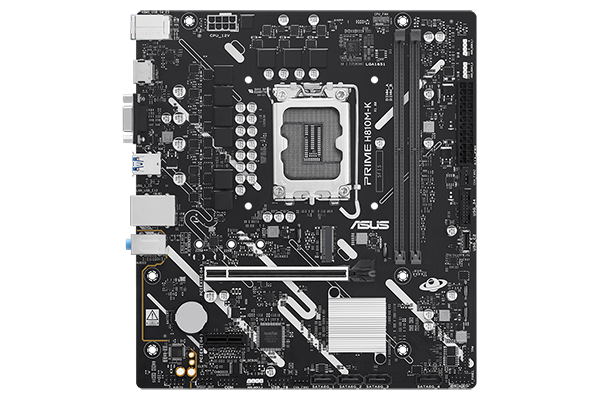

Top down angle of the PRIME H810M-K motherboard.

Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 2+ lets you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC fan Each onboard header supports auto-detection of PWM or DC fans.

Passive Chipset Heatsink An aluminium passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the buildup of dust and debris.

Smart Protection A dedicated integrated circuit protects each fan header from overheating and excess current.

Smart Cooling Precision

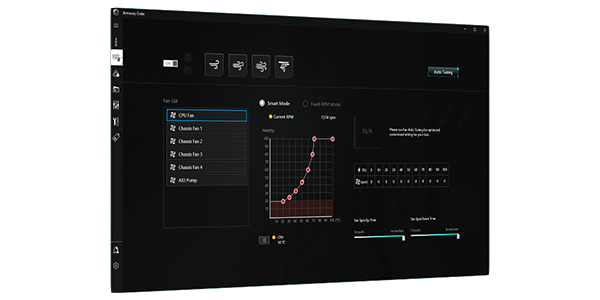

ASUS Fan Xpert 2+ interface.

ASUS Fan Xpert 2+ ASUS Fan Xpert 2+ offers full fan control with smart customisation. Its Auto-Tuning mode intelligently optimises all settings, while Extreme Quiet mode lowers fan speeds below the default minimum for near-silent operation during light workloads. Fans can also be adjusted directly through the UEFI BIOS.

Empowering Connections

This motherboard delivers flexible connectivity with PCIe 4.0 M.2 support, a PCIe 4.0 expansion slot, and a wide array of USB ports, including Type-C®.

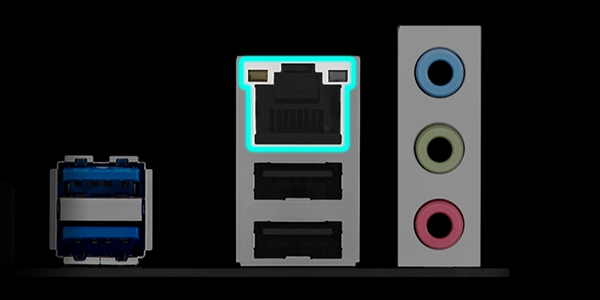

Realtek 1Gb ethernet, highlighted on the back of the PRIME H810M-K motherboard.

Realtek® 1Gb Ethernet Realtek Ethernet lowers CPU load while delivering outstanding TCP and UDP performance for quicker, more seamless data transfer.

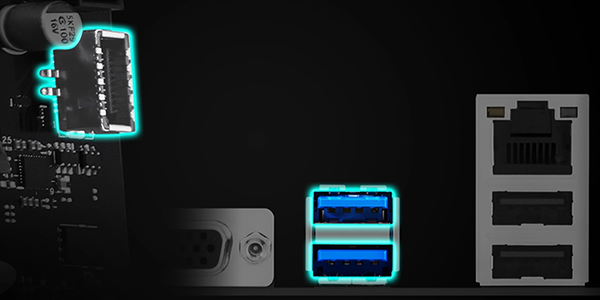

USB 5Gbps, highlighted on the rear of the PRIME H810M-K motherboard.

High Speed Transferring Ample USB supports peripheral-heavy rigs, with dual rear Type-A (5Gbps) and front Type-C delivering ultrafast 5Gbps transfers.

Specifications
Core Specifications
Edition PRIME H810M-K
Form Factor MicroATX
CPU Socket 1851
Chipset Intel H810
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 6400
Max. Memory Capacity 128GB (2x64GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x2
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x M.2
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB Type-C
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 234 x 211 mm
Note
Additional Information
Scan Code LN167802
Model Number 90MB1N10-M0EAY0
GTIN 4711636292290
