Scan code: LN123262 Manufacturer code: PRO H610M-C D4-CSM

ASUS Intel H610 PRIME H610M-A D4-CSM Micro-ATX Motherboard

ASUS PRIME H610M-A D4-CSM, Intel H610, S 1700, DDR4, SATA3, PCIe 4.0, 2x M.2, GbE, USB 3.2 Gen2 A, Micro-ATX

Thumbnail 1 : ASUS Intel H610 PRIME H610M-A D4-CSM Micro-ATX Motherboard Thumbnail 2 : ASUS Intel H610 PRIME H610M-A D4-CSM Micro-ATX Motherboard Thumbnail 3 : ASUS Intel H610 PRIME H610M-A D4-CSM Micro-ATX Motherboard Thumbnail 4 : ASUS Intel H610 PRIME H610M-A D4-CSM Micro-ATX Motherboard
Scan code: LN123262 Manufacturer code: PRO H610M-C D4-CSM
£109.99Item currently awaiting an ETA
Pre order
From £9.46 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £9.46
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £113.43
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS PRIME H610M-A D4-CSM Micro-ATX Motherboard

H610

PRIME POWER AND PERFORMANCE ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Intel H610Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

Micro-ATXForm Factor

Utilise Intelligent Control

down

EPUThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

down

Fan Xpert 4ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AiO coolers can also be controlled via the UEFI BIOS.

down

Digi+ VRM ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Exceptional Performance with Superior Cooling

4K Recording

A NEW INNOVATION FOR COOLINGPrime H610 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. Removable captive screws reduce risk of drops or loss during heatsink removal.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Versatile Connectivity and Storage

4K Recording

M.2 Slots (Up to 32 Gbps)Prime H610M-A D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.


back

PCIe® 4.0 SlotPrime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.


back

USB 3.2 Gen 2 portsNumerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.


back

Intel® 1 Gb EthernetIntel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Gain Full Control with Armoury Crate

4K Recording 4K Recording

INTUITIVE MANAGEMENT SOFTWAREArmoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

Specifications
Core Specifications
Edition PRIME H610M-A D4 CSM
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H610
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x2/SATA
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 2 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)

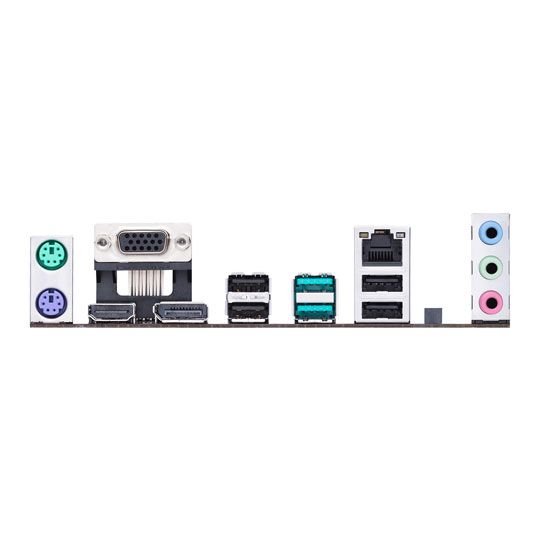

Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 211 mm
Note
Additional Information
Scan Code LN123262
Model Number PRO H610M-C D4-CSM
GTIN 4711081655152
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 01204 474747.
