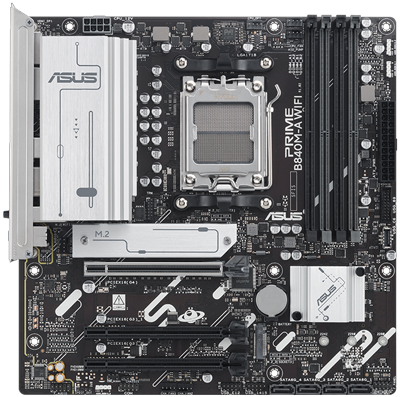

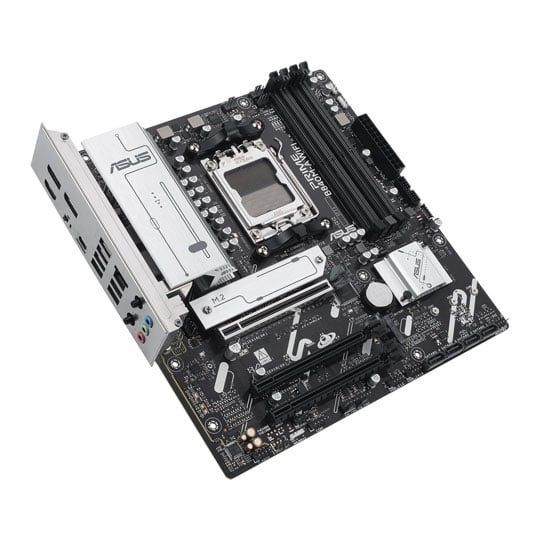

ASUS PRIME B840M-A WIFI AMD Micro-ATX Motherboard
ASUS PRIME B840M-A WIFI AMD Micro-ATX Motherboard
Scan code: LN154672 Manufacturer code: 90MB1J20-M0EAY0
£189.98
Get it Tomorrow, 15 FebIn stock
  • Thumbnail 1 : ASUS PRIME B840M-A WIFI AMD Micro-ATX Motherboard
  • Thumbnail 2 : ASUS PRIME B840M-A WIFI AMD Micro-ATX Motherboard
  • Thumbnail 3 : ASUS PRIME B840M-A WIFI AMD Micro-ATX Motherboard
  • Thumbnail 4 : ASUS PRIME B840M-A WIFI AMD Micro-ATX Motherboard

ASUS PRIME B840M-A WIFI AMD Micro-ATX Motherboard

ASUS PRIME B840M-A WIFI, AMD B840, AM5, DDR5, PCIe 4.0, 3x M.2, 2.5GbE, ax WiFi 6E/BT, USB 10Gbps, mATX

Scan code: LN154672 Manufacturer code: 90MB1J20-M0EAY0
£189.98
£5.48 NEXT DAY DELIVERY
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Get it Tomorrow, 15 FebIn stock

Email me when the availability or price changes

  • By DPD On 17th Feb Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £15.84 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £15.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £189.98
    Total inc. interest: £189.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

B840M-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimisations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.


AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

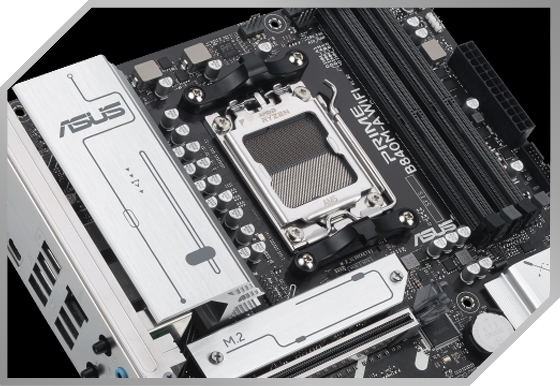

Digital Power Design

PRIME B840M-A WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.


Multi-Layered Printed Circuit Board

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.


Power Saving Function

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.


Digi+ Voltage-Regulator

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.


Enhanced DDR5 Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840M-A WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.

For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimised profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME B840M-A WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

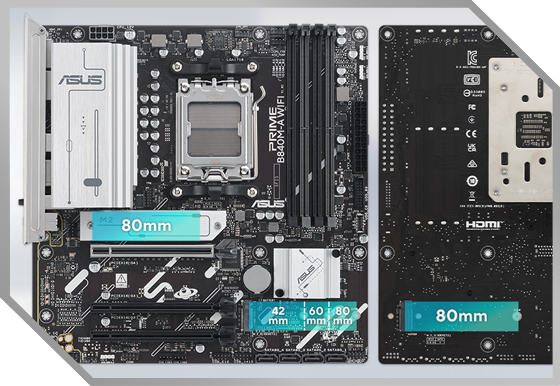

Three M.2 Slots (up to 64 Gbps)

PRIME B840M-A WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

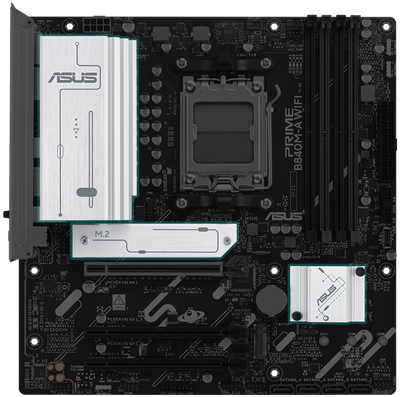

VRM Heatsink and Thermal Pads

Massive VRM heatsink and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.


Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.


M.2 Heatsink

One M.2 heatsink takes care of the M.2 slot, preventing throttling that can occur with M.2 storage during extended transfers.


Passive Chipset Heatsink

An aluminium passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the buildup of dust and debris.


Smart Protection

A dedicated integrated circuit protects each fan header from overheating and excess current.


ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.


Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.


Empowering Connections

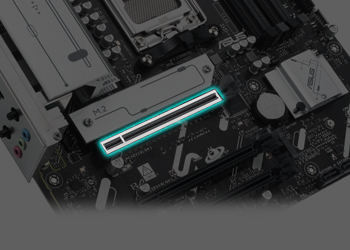

This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C connections.


Built-in WiFi 6E

Built-in WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.


Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.


Front USB 5Gbps Type-C

This motherboard features a USB 5Gbps Type-C front panel connector for speedy data transfers of up to 5Gbps.


Personalisation

The PRIME B840M-A WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customisable RGB lighting controls for a uniquely personal system aesthetic.


Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronisation with compatible hardware.

Features

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors.
• AMD B840 Chipset.
• 4x DIMM slots, max. 192GB, DDR5.
• 1x PCIe 4.0 x16 slot (supports x16 mode).
• Wi-Fi 6E.
• Realtek 7.1 Surround Sound High Definition Audio.
• Micro-ATX Form Factor.

Specifications
Core Specifications
Edition PRIME B840M-A WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B840
RAM Memory Support
Memory Type DDR5
Memory Channel
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 7600(OC)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 2 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek (2.5GbE LAN)

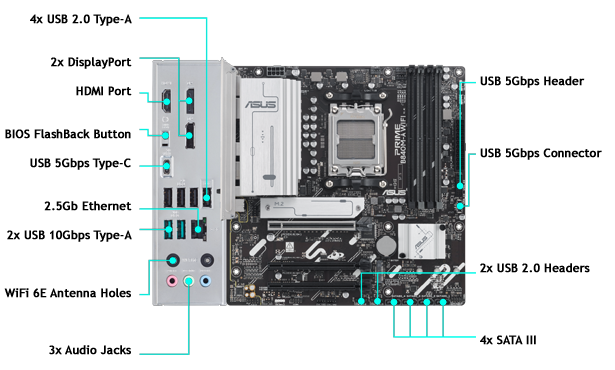

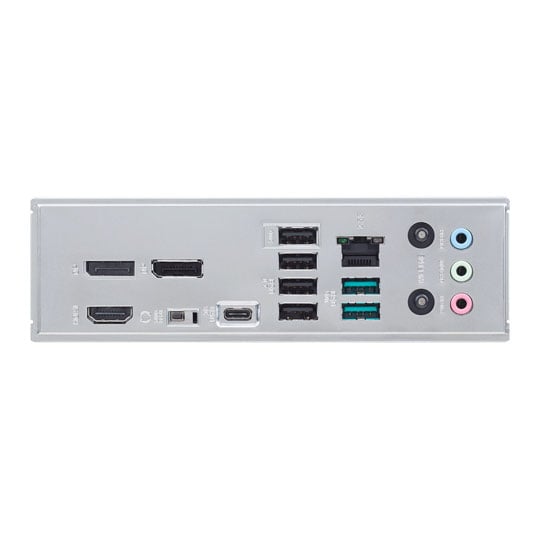

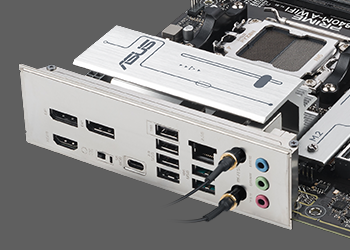

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)

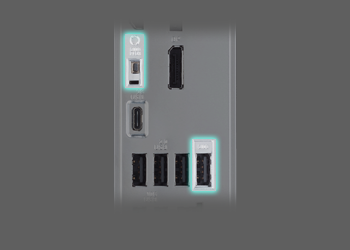

  • 1 x BIOS Flashback Button
  • 2 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244x244x50mm (L x W x H) mm
