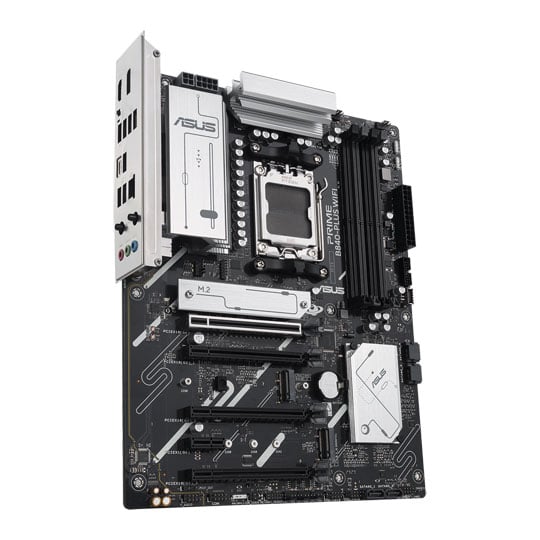

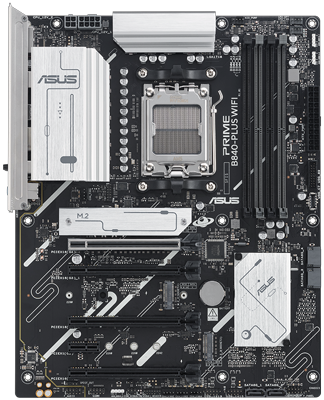

ASUS PRIME B840-PLUS WIFI AMD ATX Motherboard

B840-PLUS WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimisations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Digital Power Design

PRIME B840-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Power Saving

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Digi+ Voltage-Regulator

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage drop, automatically switching frequency and power-efficiency settings.

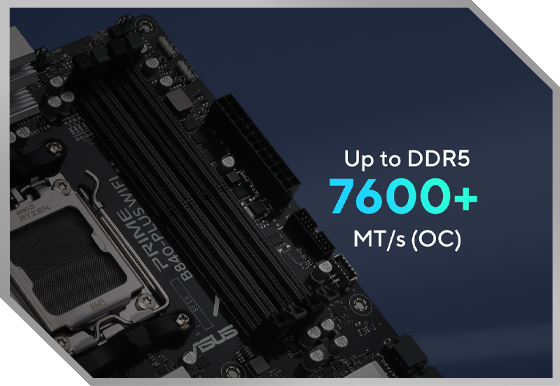

Enhanced DDR5 Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximises the potential of your DDR5 modules, from entry-level to extreme-speed kits.

For entry-level modules without EXPO support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME B840-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO) support and a wide array of UEFI settings for further performance tweaks

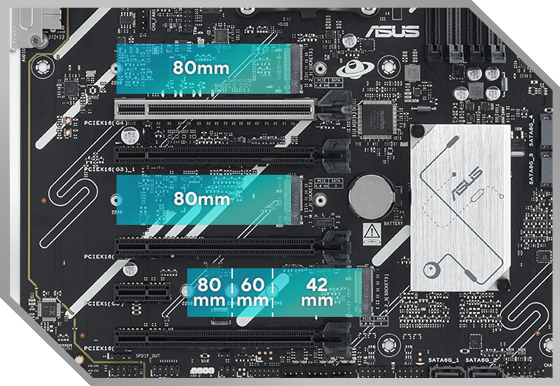

Three M.2 slots (up to 64 Gbps)

PRIME B840-PLUS WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

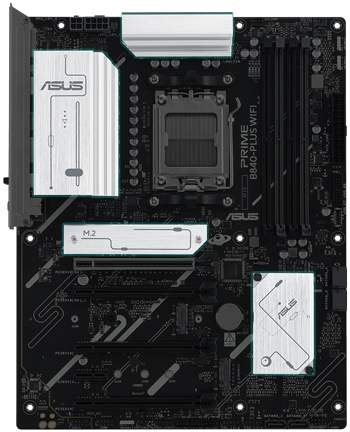

Cooler by Design

The PRIME B840-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pads

Two massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Passive Chipset Heatsink

An aluminium passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the buildup of dust and debris.

ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Empowering Connections

This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C connections.

Built-in WiFi 6E

Technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

USB 10Gbps Type-C

A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C connector with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps.

Personalisation

The PRIME B840-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customisable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Customise Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronisation with compatible hardware.

Addressable Gen 2 RGB Headers

Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

DIY Friendly

The PRIME B840-PLUS WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

Q-LED Core

The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

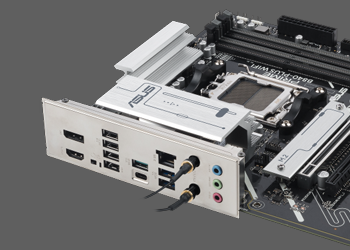

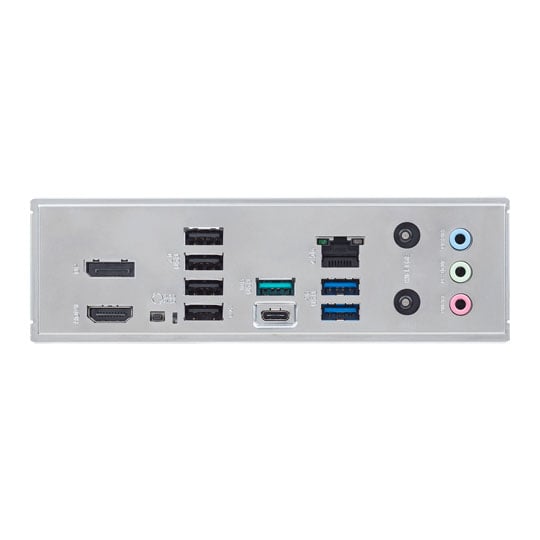

Pre-Mounted I/O Shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

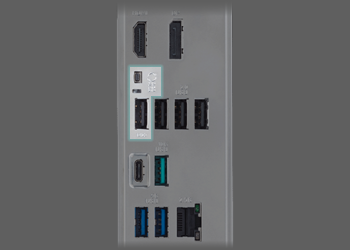

BIOS FlashBack

BIOS FlashBack simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button—no CPU or memory needed.

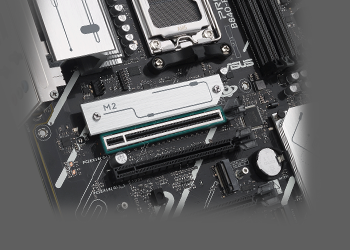

SafeSlot Core+

SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Build for the Most Advanced PC for Gaming and Creating

When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 4.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors.
• AMD B840 Chipset.
• 4x DIMM slots, max. 192GB, DDR5.
• 1x Realtek 2.5Gb Ethernet.
• Wi-Fi 6E.
