Scan code: LN114090 Manufacturer code: PRIME B560M-K

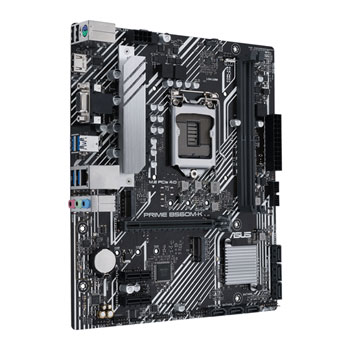

ASUS PRIME Intel B560M-K PCIe 4.0 mATX Motherboard

ASUS PRIME B560M-K, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, GbE, USB 3.2 Gen1, Micro-ATX

Thumbnail 1 : ASUS PRIME Intel B560M-K PCIe 4.0 mATX Motherboard Thumbnail 2 : ASUS PRIME Intel B560M-K PCIe 4.0 mATX Motherboard Thumbnail 3 : ASUS PRIME Intel B560M-K PCIe 4.0 mATX Motherboard Thumbnail 4 : ASUS PRIME Intel B560M-K PCIe 4.0 mATX Motherboard
Scan code: LN114090 Manufacturer code: PRIME B560M-K
£99.98Item due on 04 November 2021
Due 4th Nov
From £8.98 / month (APR 14.9%)
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Prime B560M-K 11th Generation Intel Micro ATX Motherboard from ASUS

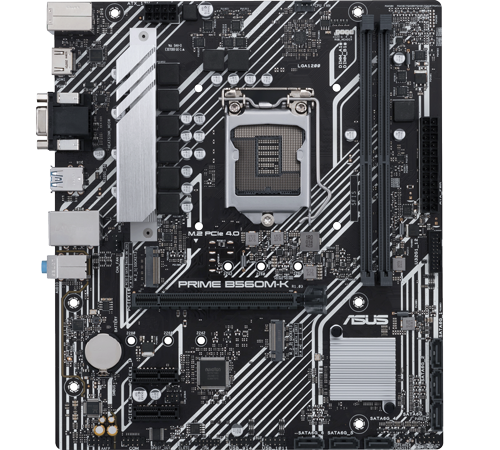

ASUS PRIME B560M-K Micro ATX Motherboard

Tune it Your Way Introducing the all-new ASUS Prime motherboards expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. The Prime B560M-K Micro ATX motherboard features a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime motherboards provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Intel B560Chipset

LGA 1200CPU Socket

10th & 11th GenerationIntel Compatible Processors

Micro ATXForm Factor

Super-Fast Dual M.2 Slots

M.2 Slots

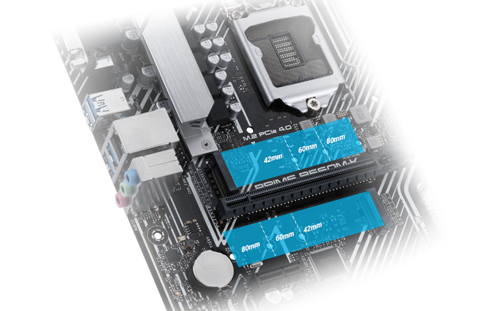

Dual M.2 slots (up to 64 Gbps) Prime B560M-K offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2 supports PCIe 4.0, and the M.2 support PCIe 3.0.

Intelligent ASUS Prime Control

Tune It Your WayComprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

epu

All-Around Energy EfficiencyWith the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

controls

Flexible cooling with Fan XpertPRIME 500 Series motherboards offer comprehensive control over system fans,via the included FAN Expert software.Auto-Tuning mode intelligently configures all parameters with a single chick.

controls

Digi+ VRM ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Cooler by Design

Fan Controls

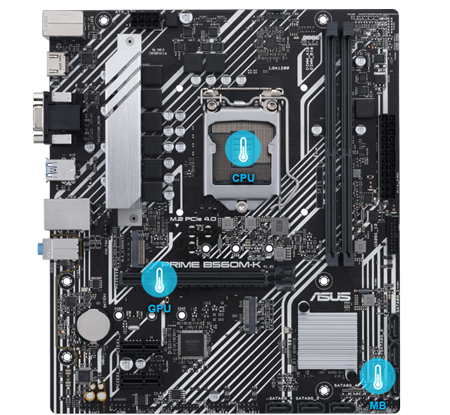

MULTIPLE TEMPERATURE SOURCES Each header can monitor and react to dedicated thermal sensors.

Fan Controls

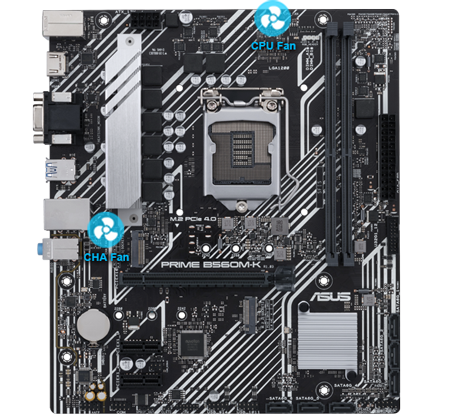

4-PIN PWM/DCEach onboard header supports auto-detection of PWM or DC fans.

Cool to the Core

M.2 Support

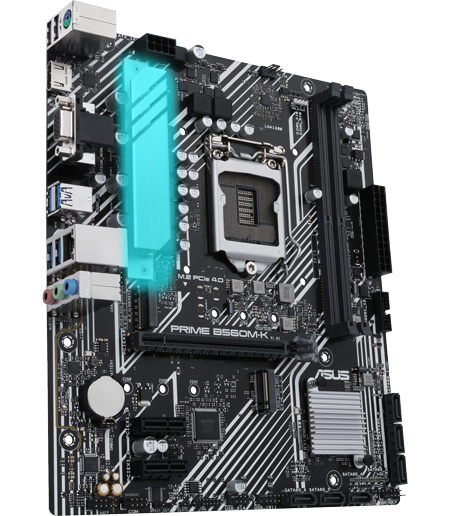

THERMAL PADS AND VRM HEATSINKPrime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. The VRM heatsink with underneath thermal pad improve heat transfer from the MOSFETs for better cooling performance. Prime B560 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

Robust Power Design

power design

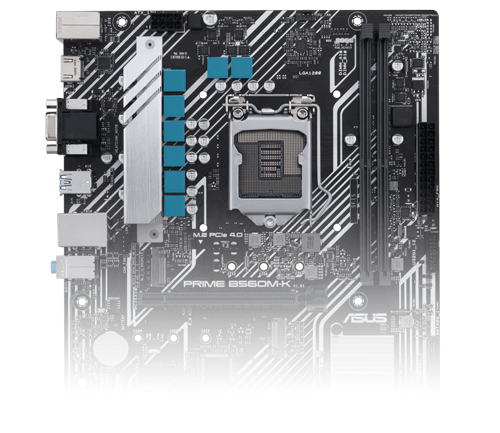

6+1+1 Power StagesStable power is essential to extract every last bit of performance out of 11th Generation Intel® Core™ processors. Prime B560M-K is geared to cater to the demands of these high-core count CPUs. A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand.

Outshine the Competition

Aura Sync

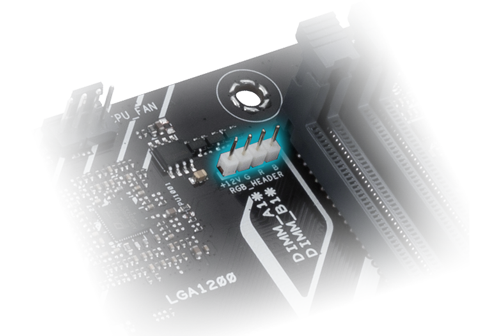

control settings for an ever-growing number of ASUS productsA well-tuned enthusiast system deserves a matching aesthetic. With 5050 RGB strips connected to the RGB header, you can create your own stunning multi-colour lighting displays with static, blinking, fading, and strobing effects. Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences.

* The RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V).
For maximum brightness, strip length should not exceed 3m.
** RGB LED Strips are sold separately.

Build on a Solid Foundation

Memory

Improved DDR4 PerformancePrime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. Improved DDR4 Performance technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Unbeatable and Flexible Connectivity Options

connectivity

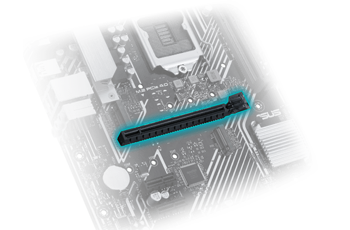

PCIe® 4.0 SlotASUS B560 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and super-fast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

connectivity

Intel® 1 Gb EthernetIntel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

connectivity

LANGuard 2.5X higher surge toleranceASUS LANGuard is a hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

Outstanding Audio

Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer For Left and Right Tracks it ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity.

Tweak and Tune Your System

ASUS UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

BIOS

Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

BIOS

Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings – all to help you get your rig up and running in no time. Fine-tune individual fan settings simply by dragging a curve with the mouse.

DIY Friendly Design Makes a Big Difference

Safeslot

SafeSlot Core SafeSlot Core is the ASUS-exclusive PCIe® slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.

Specifications
Core Specifications
Edition Prime B560M-K
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 1 x RGB Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x Thunderbolt header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 211 mm
Note
Additional Information
Scan Code LN114090
Model Number PRIME B560M-K
GTIN 4711081112082
