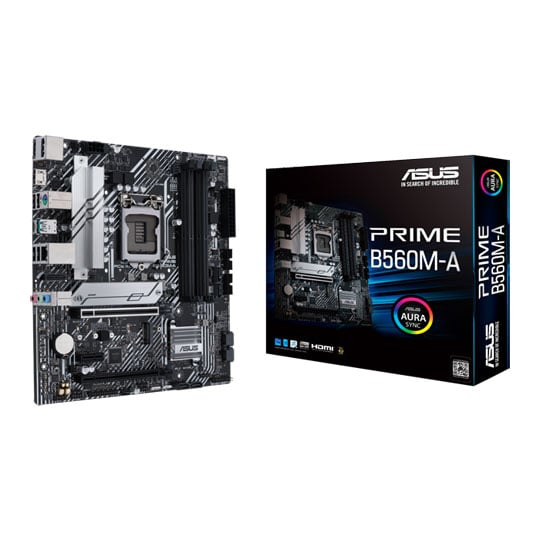

ASUS PRIME Intel B560M-A PCIe 4.0 mATX Motherboard

ASUS PRIME B560M-A, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, GbE, USB 3.2 Gen2, Micro-ATX

Thumbnail 1 : ASUS PRIME Intel B560M-A PCIe 4.0 mATX Motherboard Thumbnail 2 : ASUS PRIME Intel B560M-A PCIe 4.0 mATX Motherboard Thumbnail 3 : ASUS PRIME Intel B560M-A PCIe 4.0 mATX Motherboard Thumbnail 4 : ASUS PRIME Intel B560M-A PCIe 4.0 mATX Motherboard
Scan code: LN115743 Manufacturer code: Prime B560M-A
£104.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £9.43 / month (APR 14.9%)
Monthly Payment: £9.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £113.10
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

ASUS Prime B560M-A

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. ASUS Prime B560M-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover.


Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.


UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.


Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.


Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.


Cool to the Core

Prime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.


M.2 Heatsink

Flexible M.2 heatsink takes care of two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfer.


VRM Heatsink and Thermal Pads

Larger VRM heatsink and thermal pad improve heat transfer from MOSFETs and chokes for better cooling performance.


Build on a Solid Foundation

Prime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.


ASUS OptiMem II

Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.


Two M.2 slots (up to 64 Gbps)

Prime B560M-A offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.


PCIe® 4.0 Slot

ASUS B560 motherboards are designed specifically for 11th Gen Intel® Core™ CPUs, and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.


USB 3.2 Gen 2 Type-C®

Numerous USB ports support high-end rigs loaded with peripherals, including rear USB 3.2 Gen2 Type-C® port , transmission speeds up to 10 Gbps.


V-M.2 Slot Key E for Wi-Fi

PRIME B560M-A comes along with an vertical M.2 (Key E) slot and ASUS exclusive Wi-Fi card holder which provide you the flexibility to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.


Little Things Make a Big Difference

Prime B560 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customise your system to create a uniquely personal look.


Armoury Crate

Armoury Crate is a new software utility designed to give you centralised control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customise RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.


SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.


Q-LED

Q-LED helps you to confirm whether key parts (CPU, DRAM, Graphics Card, HDD/SSD) are functioning as normal during the startup

Features

Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors.
Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery.
Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Memory overclocking: Support memory overclocking up to 5000 MHz.
ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability.
Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C®) and V-M.2 Key E slot for Wi-Fi.

Specifications
Core Specifications
Edition PRIME B560M-A
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin Fan
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 1 x Clear CMOS Button
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 2.0 Header (1-Port Only)
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219LM (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 2 x HDMI
  • 1 x Headphone-Out
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 234 mm
Note
Additional Information
Scan Code LN115743
Model Number Prime B560M-A
GTIN 4711081130376
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
