Scan code: LN108177 Manufacturer code: PRIME B550M-K

ASUS AMD B550 PRIME B550M-K Micro-ATX Motherboard

ASUS PRIME B550M-K, AMD B550, AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, GbE, USB 3.2 Gen2 A, Micro-ATX

Thumbnail 1 : ASUS AMD B550 PRIME B550M-K Micro-ATX Motherboard Thumbnail 2 : ASUS AMD B550 PRIME B550M-K Micro-ATX Motherboard Thumbnail 3 : ASUS AMD B550 PRIME B550M-K Micro-ATX Motherboard Thumbnail 4 : ASUS AMD B550 PRIME B550M-K Micro-ATX Motherboard ASUS AMD B550 PRIME B550M-K Micro-ATX Motherboard : video thumbnail 1
Scan code: LN108177 Manufacturer code: PRIME B550M-K
£134.99
Order now and receive it by Thursday, 6th August
From £12.12 / month (APR 14.9%)
Monthly Payment: £12.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £134.99
Total inc. interest: £145.41
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 6th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

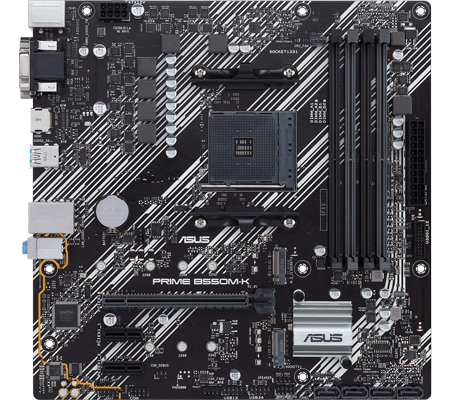

Prime B550M-K 3rd Generation Ryzen ATX Motherboard from ASUS

Prime B550M-K  Motherboard

Newest Addition to the Prime Series Introducing the ASUS Prime B550M-K, Perfect for everyday users who want the same stable performance in a smaller form factor. Expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen processors. Ram-packed with features like the ground-breaking PCI-E 4.0 technology to give you lightning speeds, a robust power design, USB 3.2 Gen2 Type-A Rear IO connectivity, ASUS AURA RGB Header, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

AMD B550Chipset

AM4CPU Socket

M-ATXForm Factor

Tweak and Tune Your Way

Wide Range of Performance and Tuning OptionsComprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximising your productivity.

Energy Efficiency

All-Around Energy efficiencyThe Energy Processing Unit (EPU) automatically optimises your power consumption and maximizes energy savings with a simple Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down any unused I/O controllers.

Fan Xpert 2+ Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Digi VRM

Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) gives real-time control over voltage drop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

World Renowned UEFI BIOS

Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Easy Mode

EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Cooler by Design

Cool to the corePrime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

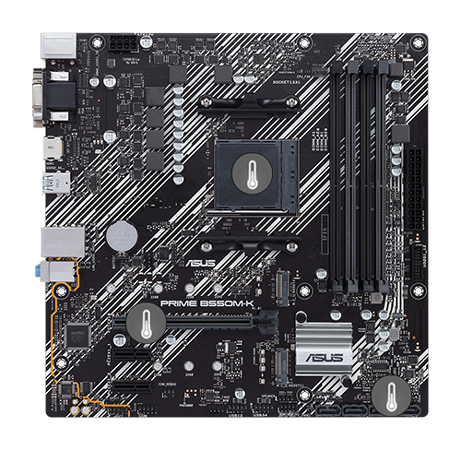

Thermometer sensors

Multiple temperature sources Each header can be set to monitor and react to several thermal sensors, and via Fan Xpert 2+ you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.

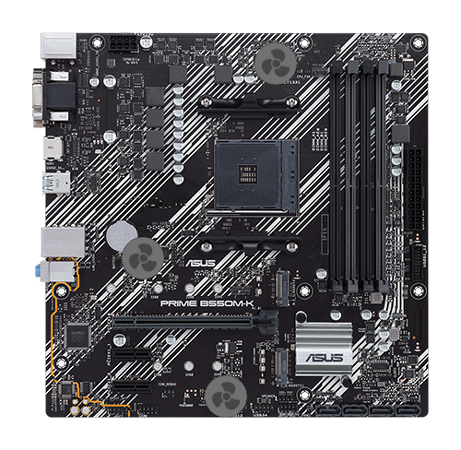

Fan detectors and headers

4-pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.

 bundled extension card

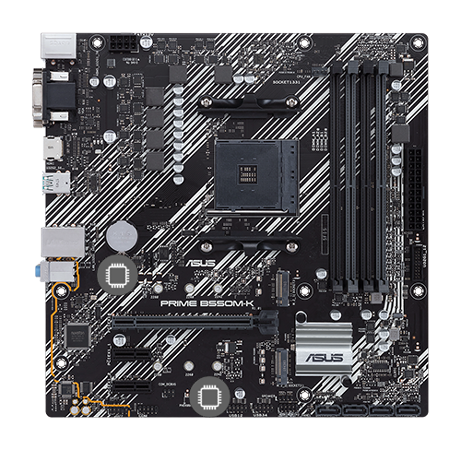

Smart Protection A dedicated integrated circuit protects each fan header from overheating and overcurrent.

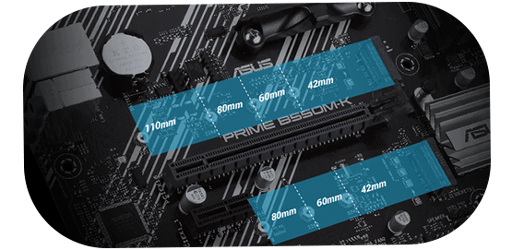

Lightning Fast Storage with Dual M.2

Dual m.2

Faster booting and app load times PCIe 4.0 M.2 Slot supports up to 22110 and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

ASUS SafeSlot Protection

safe slot core

PREMIUM ASUS TECHNOLOGY SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

Stronger Solder Points

Strengthened Solder PointsStrengthened solder points around the PCIe and DIMM pins.

Connections at your Fingertips

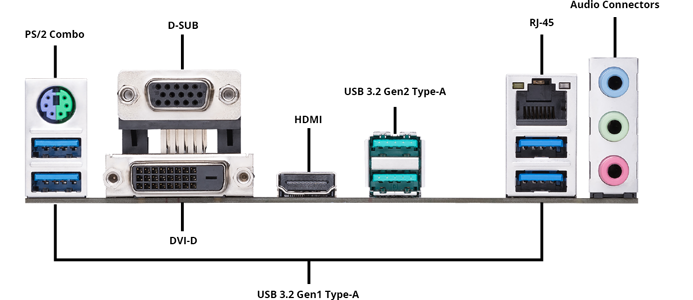

Comprehensive IO Panel

Little Things Make a Big Difference

Trustworthy Stability and Compatibility Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

OVervoltage Protection

Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Stainless-Steel Back I/O

LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

PRIME B550M-A Tried and Tested

Superior Reliability with 8000+ validation hours ASUS motherboards offer superb endurance verified by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

tests

Temperature and humidity testsEnsures components withstand extreme conditions.

tests

Thermal measurement testsEnsures that the system remains cool and stable under the heaviest loads.

tests

Insertion testsEvery port and connector is put through repeated installation cycles.

tests

Aging testsUp to 48-hour aging test ensures reliability.

tests

Power-consumption testsDelivers world-class energy efficiency.

tests

Temperature and DC margin testsEnsures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

tests

Thermal-shock testsEnsures ability to survive temperature changes during transportation.

tests

Non-operation shock testsBuilt to withstand jolts that may occur during shipping.

tests

Burn-in testsEvery component is checked to ensure flawless operation.

tests

Installation testsConnector placement is double-checked to ensure hassle-free installation.

tests

Drop testsDrop tests from various heights ensure durability.

tests

Salt and spray testsTested for I/O reliability, prolonged lifespan and rust-resistance.

Specifications
Core Specifications
Edition PRIME B550M-K
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN108177
Model Number PRIME B550M-K
GTIN 4718017758284
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
