ASUS AMD B550 PRIME PLUS PCIe 4.0 ATX Motherboard
ASUS PRIME B550-PLUS, AMD B550, AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, GbE, USB3.2 Gen2 A+C, ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£129.98|
|Total inc. interest:||£134.06|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 30th Jun
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

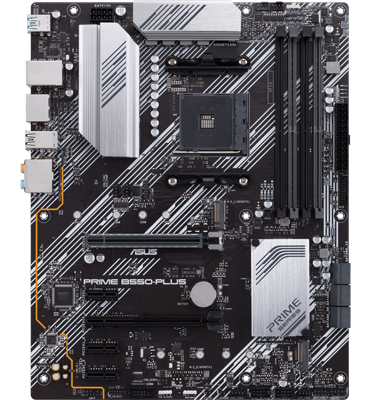

Prime B550-PLUS 3rd Generation Ryzen ATX Motherboard from ASUS
Newest Addition to the Prime Series Introducing the ASUS Prime B550-PLUS, expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen processors. Ram-packed with features like the ground-breaking PCI-E 4.0 technology to give you lightning speeds, a robust power design, Type-C Rear IO connectivity, ASUS AURA RGB Header, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tweak and Tune Your Way
Wide Range of Performance and Tuning OptionsComprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximising your productivity.
All-Around Energy efficiencyThe Energy Processing Unit (EPU) automatically optimises your power consumption and maximizes energy savings with a simple Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down any unused I/O controllers.
Fan Xpert 4 Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AiO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) gives real-time control over voltage drop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
World Renowned UEFI BIOS
Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Cooler by Design
Cool to the corePrime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

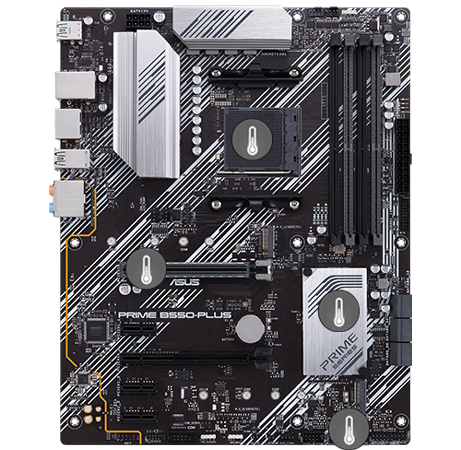

Multiple temperature sources Each header can be set to monitor and react to several thermal sensors, and via Fan Xpert 2+ you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.

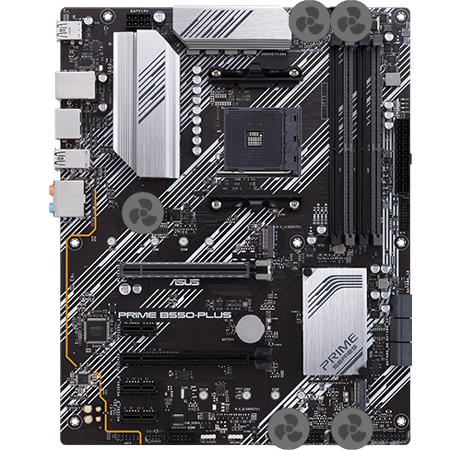

4-pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.
Smart Protection A dedicated integrated circuit protects each fan header from overheating and overcurrent.
Keep your Components Cool for Longer

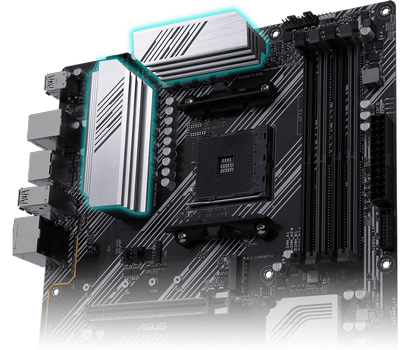

Extended VRM Heatsinks and Thermal PadsTwo massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

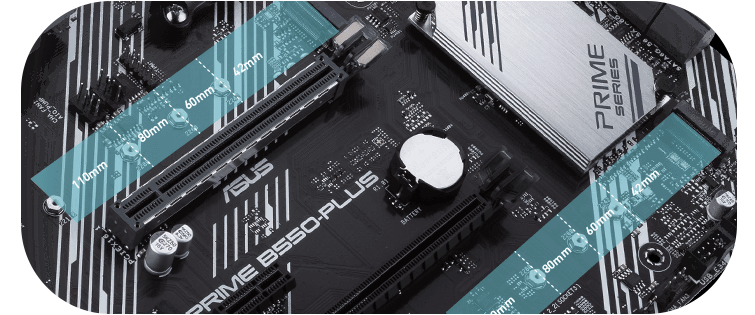

Lightning Fast Storage with Dual M.2
Faster booting and app load times PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
ASUS SafeSlot Protection
PREMIUM ASUS TECHNOLOGY SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Strengthened Solder PointsStrengthened solder points around the PCIe and DIMM pins.
Connections at your Fingertips
Little Things Make a Big Difference
Trustworthy Stability and Compatibility Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
PRIME B550-PLUS Tried and Tested
Superior Reliability with 8000+ validation hours ASUS motherboards offer superb endurance verified by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity testsEnsures components withstand extreme conditions.
Thermal measurement testsEnsures that the system remains cool and stable under the heaviest loads.
Insertion testsEvery port and connector is put through repeated installation cycles.
Aging testsUp to 48-hour aging test ensures reliability.
Power-consumption testsDelivers world-class energy efficiency.
Temperature and DC margin testsEnsures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.
Thermal-shock testsEnsures ability to survive temperature changes during transportation.
Non-operation shock testsBuilt to withstand jolts that may occur during shipping.
Burn-in testsEvery component is checked to ensure flawless operation.
Installation testsConnector placement is double-checked to ensure hassle-free installation.
Drop testsDrop tests from various heights ensure durability.
Salt and spray testsTested for I/O reliability, prolonged lifespan and rust-resistance.
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB|
|Audio||Realtek ALC887 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|RAID Support via|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Realtek RTL8111H (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
|Model Number||PRIME B550-PLUS|
