Scan code: LN79041 Manufacturer code: PRIME B350-PLUS

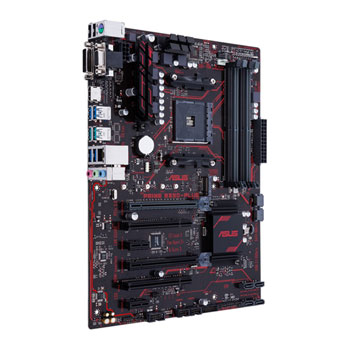

ASUS AMD AM4 Ryzen PRIME B350 PLUS ATX Motherboard

ASUS PRIME B350-PLUS, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way CrossFire, Realtek LAN, USB 3.1 A, ATX

Thumbnail 1 : ASUS AMD AM4 Ryzen PRIME B350 PLUS ATX Motherboard Thumbnail 2 : ASUS AMD AM4 Ryzen PRIME B350 PLUS ATX Motherboard Thumbnail 3 : ASUS AMD AM4 Ryzen PRIME B350 PLUS ATX Motherboard Thumbnail 4 : ASUS AMD AM4 Ryzen PRIME B350 PLUS ATX Motherboard
Scan code: LN79041 Manufacturer code: PRIME B350-PLUS
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Feb 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

AMD AM4 ATX Motherboard with LED Lighting. ASUS PRIME B350-PLUS

ASUS motherboard feature
ASUS B350-PLUS Motherboard Built to Last

ASUS Prime is a motherboard born of a pedigree that stretches back to 1989 and is the next evolution in ASUS motherboards. The PRIME is built for AMD AM4 socket and allows everybody to enjoy customising and tuning with ease, including advanced enthusiast controls. ASUS PRIME’s aim is to maximise performance stability and compatibility – forging the very best DIY PC experiences. With a huge array of technologies this fully protected motherboard brings outstanding components and performance to your home PC.

AMD B350

CPU Socket

Form Factor

PCB Protection III

ASUS motherboard feature
Solid motherboard construction and defensive technologies

PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

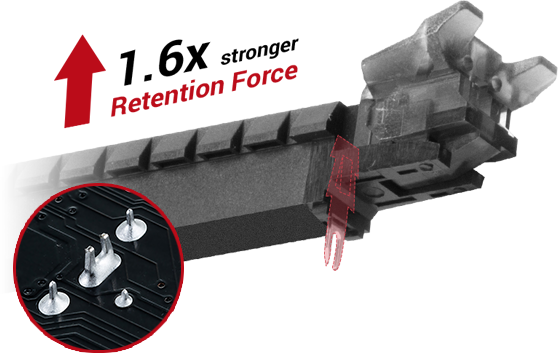

SafeSlot Core

ASUS motherboard feature
Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

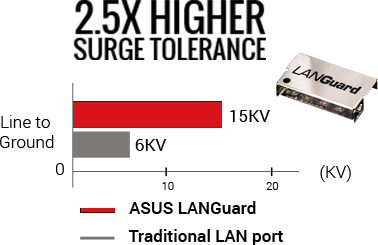

LANGuard Tecyhnology

ASUS motherboard feature
Pumped-up throughput. 2.5x higher surge tolerance

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

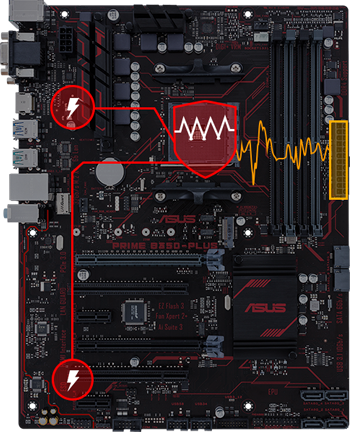

Overvoltage Protection

ASUS motherboard feature
World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

ASUS Defense Tech

ASUS motherboard feature
Stability, damage prevention and corrosion-resistance

DIGI+ VRM - ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

DRAM Overcurrent Protection - Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O - Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

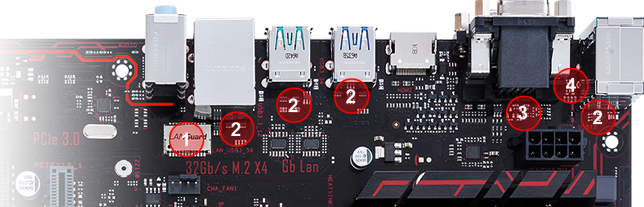

ASUS motherboard feature
Electrostatic discharge protection

ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

  • 1 LAN PORT - ESD TVS diode protection on the LAN circuit.
  • 2 USB CONNECTORS - TVS diodes for surface-mount and dual-inline packages.
  • 3 VGA CONNECTORS - Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
  • 4 KEYBOARD & MOUSE - Additional on-circuit ESD transient-voltage-suppression diodes.

Proven PCB Compatibility

ASUS motherboard feature
Future-proofed motherboard

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future - that's the ASUS way.

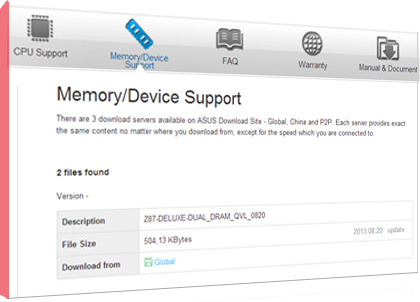

PRIME Supported Devices

ASUS motherboard feature
Supported devices and Qualified Vendor List

The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices - which includes thousands of compatible components - and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.

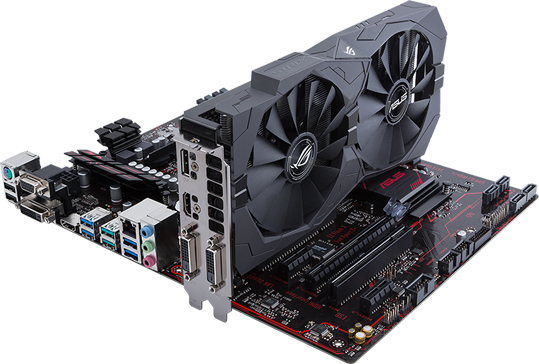

ASUS Product Link Up

ASUS motherboard feature
B350 has great compatibility with other ASUS components

ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence!

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

B350-PLUS Tried and Tested

Temperature and Humidity Test
Ensures components withstand extreme conditions.

Thermal Measurement Test
Ensures that the system remains cool and stable under the heaviest loads.

Insertion Test
Every port and connector is put through repeated installation cycles.

Aging Test
Up to 48-hour aging test ensures reliability.

Power Consumption Test
Checked for world-class energy efficiency.

Temperature and DC Margin Test
Ensures that the motherboard is capable of coping with Voltage fluctuations caused by varying temperatures.

Thermal Shock Test
Ensures ability to survive temperature changes during transportation.

Non-Operation Shock Test
Built to withstand jolts that may occur during shipping.

Burn-In Test
Every component is checked to ensure flawless operation in any environment.

Installation Test
Connector placement is double-checked to ensure hassle-free installation.

Drop Test
Drop tests from various heights ensure durability.

Salt and Spray Test
Tested for I/O reliability, prolonged lifespan and rust-resistance.

Top-to-bottom Reliability with 8000+ validation hours

ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

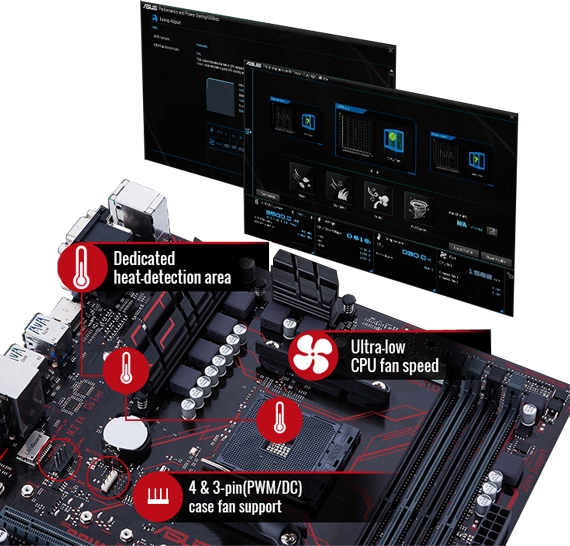

Enhanced Cooling Performance

ASUS motherboard feature
Advanced fan controls with Fan Xpert 2+

With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!

Auto-Tuning Mode: Scans fan parameters and all fans with a single click.
Extreme Quite Mode: Reduces the CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

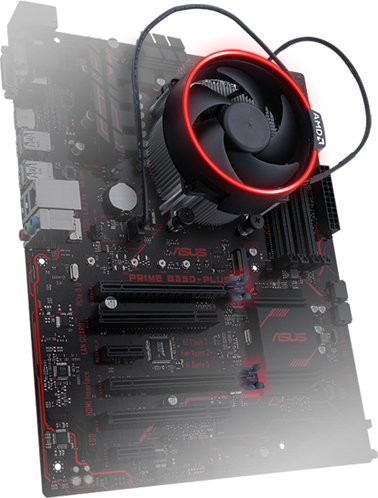

LED Motherboard Lighting

ASUS motherboard feature
LED-illuminated control for PCIe slot and trace paths

Built-in LED lighting options can illuminate your build in a variety of mesmerising styles. With specially-designed Fan RGB header control, you can even personalise your own fan lighting scheme with the exclusive AMD RGB Fan!

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

B350 Gaming Audio

ASUS motherboard feature
Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

  • 1 Noise isolation - Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
  • 2 Dedicated Audio PCB Layers - Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
  • 3 Audio Enjoyment - Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Optimised Power Consumption

ASUS motherboard feature
EPU Energy Efficient Design

With the Energy Processing Unit (EPU) you'll enjoy system power savings. EPU automatically optimises power consumption, and maximises savings with Away mode.

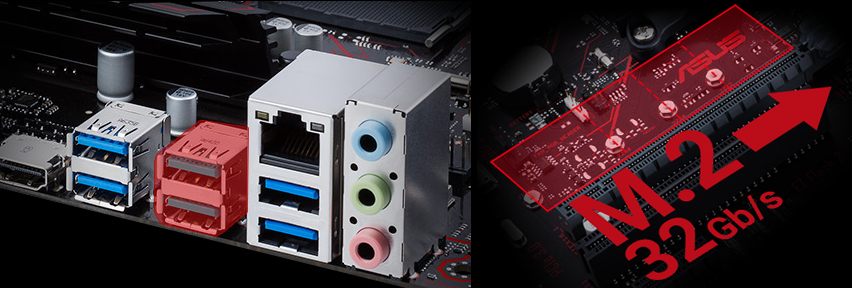

USB 3.1 & M.2 Onboard

ASUS motherboard feature
Experience Advanced speeds and transfer rates

With backward-compatible USB 3.1 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gb/s (twice as fast as standard USB 3.0).

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

M.2 Slot Onboard

ASUS motherboard feature
Speed Up with Onboard M.2 Up to 32Gb/s

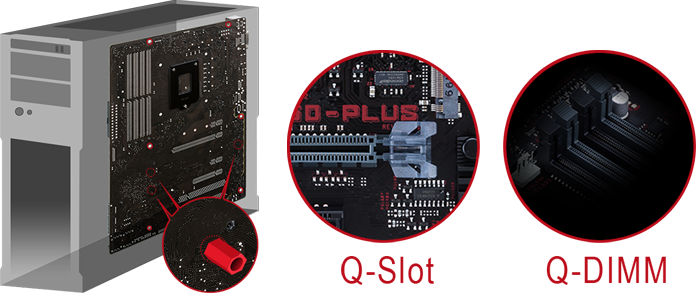

Safe Motherboard Mounting - Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free 'safe zones' around every case-mounting hole minimises the risk of damage and short circuits caused by contact - so you'll assemble your PC with total confidence!

Q-Slot - The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and the graphics card pops out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM - Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out - removing memory is that simple!

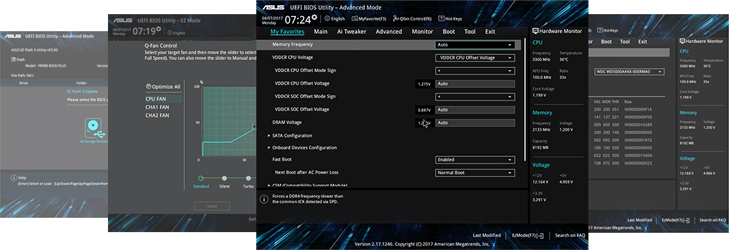

Easy & Clean BIOS Control

ASUS motherboard feature
Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes help you find your way, quickly and easily.

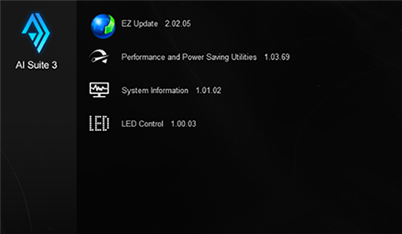

ASUS AI Suite 3

ASUS motherboard feature
One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy-to-use functionality, with no need to switch back and forth between different utilities.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD B350
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
Audio Realtek ALC887-VD2 8-Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 2 x PCI
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~3 ONLY)
  • RAID 1 (SATA 0~3 ONLY)
  • RAID 10 (SATA 0~3 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Fan RGB Header
  • 1 x Front Panel Audio Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.0
  • 2 x USB 3.1 Type-A
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
01442 265548
Loading Please Wait

Please wait . . .

TekSpek Guides
AMD Ryzen Chipset
AMD Ryzen Chipset
Date Issued: 20th Nov 2017

AMD made waves in the premium consumer CPU market during March 2017 when it debuted Ryzen processors based on the Zen architecture that had been in development for the previous four years

Read More

ASUS PRIME B350-PLUS, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), 2-Way CrossFire, Realtek LAN, USB 3.1 A, ATX is rated 4.8 out of 5 by 5.
Rated 5 out of 5 by from Motherboard for new build with Ryzen 5 CPU I have installed a few motherboards and this one was fairly easy. I fitted an AMD Ryzen 5 with wraith stealth cooler, and you have to remove the motherboard cooler retainers and screw the cooler directly to the board. I found that the bracket supporting the Asus mounts are just secured with bolts and will come away once undone. This makes it a bit tricky to install the wraith cooler on your own. Otherwise very pleased with this buy.
Date published: 2018-12-27
Rated 5 out of 5 by from great mainboard at a great price had this board a few months now, system is running well, easy to over clock cpu and memory. not had a problem what so ever and easy to setup
Date published: 2018-04-18
Rated 4 out of 5 by from Great features, excellent value ASUS have stripped back some of the fancy extras found on much more expensive boards in order to make this one really affordable. The cheapening has been achieved by providing a fairly flimsy silver back panel plate and by removing some of the plastic 'TUF' style bits and reducing the size of some of the heatsinks. What's left over is a board capable of some overclocking and able to run a high end components. You also get some red LEDs to add a little visual enhancement if you opted for a windowed case that had red LED fans. The addition of M.2 SATA, USB 3.1 and C at under £90 makes this a really good value board. I teamed this up with a 1500X processor and 16GB of dual channel RAM running at 2666MHz. All worked well once I set the RAM correctly in the BIOS and the machine is very stable.
Date published: 2017-09-11
Rated 5 out of 5 by from does the job Great audio, M2 availability, they even added led! what more could you want.
Date published: 2017-05-21
Rated 5 out of 5 by from Great value and performance. Can overclock. This motherboard is a good choice for those who wish to build a respectable AMD Ryzen based machine without spending too much money. I have managed to get my R7 1700 to 3.9GHz on 1.35V stable (mostly because I don't want to try push it any further). This result may slightly improve when using the X370 chipset motherboards, as they generally have better voltage regulator modules and better phase design. That's good for users who wish to maintain stable overclocks for long periods of time. The PCIe slots on this motherboard are sturder than previous motherboards I've owned, which prevents the sagging of my long Zotac GTX 1070 graphics card. This is nice for two reasons - it prevents potential damage to the card and slot, and it looks more visually appealing than a sagging card. The PCIe slots also have red LEDs on the small levers which close the slots. This is a nice touch for red and black themed builds. The other slots do not have LEDs. As for RAM compatibility, for all AMD Ryzen systems (as of the time of writing this review), I recommend using DDR4 RAM which is no faster than 2666MHz. Faster RAM may work, but a reasonable number of users including myself could not get the system to boot when the RAM frequency is set higher than 2666MHz, even on motherboards and RAM rated for those higher frequencies. This is perhaps a teething problem which might be solved by future BIOS updates. A few points to nitpick: - I do not like the placement of the motherboard's CMOS battery. It is below and slightly to the left of the CPU socket, which can be inconvenient to get to if you wanted to remove or replace it while a large CPU cooler is installed. Not that I've needed to, but it's something to keep in mind. I would prefer to see this nearer to the bottom-right corner of the motherboard. - The NVME slot, while a welcome sight, is also placed slightly awkwardly, being directly between the CPU socket and the first PCIe slot. This makes it a bit awkward to plug in/remove NVME SSDs while a large CPU cooler and/or an obtrusive graphics card are installed. I would prefer to have this slot nearer to the bottom of the motherboard or on the back of the motherboard as some other Gigabyte motherboards do. That being said, I do like seeing my NVME drive on the front of the board to show it off. - I would prefer to see larger heatsinks on the VRMs surrounding the CPU socket, just for aesthetic appeal. Other than the issues of personal preference, this is a great value motherboard.
Date published: 2017-03-26
  • y_2019, m_2, d_14, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_GB, sid_79041, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

What's the current version of the BIOS on this MB? It is BIOS updated, ready for supporting new apu Ryzen 3 2200g?

Or i need to do by my self? ( but i know i need to update bios another CPU ryzen on mb)
Asked by: Lukas23
I did an install using this board in December 2018 and updated from 3803 to V4023, dated 14/09/2018.
Answered by: andypc
Date published: 2018-12-28

Version of BIOS

What's the current version of the BIOS on this MB? I want to buy this MB but I don't know if Ryzen 5 is supported out of the box or I've to do a BIOS update.
Asked by: Mateusz
I don't have the machine in front of me to check the BIOS version right now but I can say the one I bought last week (6th Sept) worked straight out of the box with the Ryzen 5 1500X.
Answered by: SF1862
Date published: 2017-11-12
