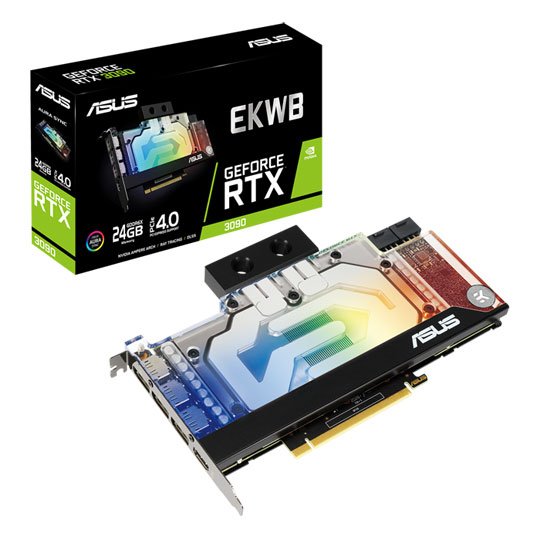

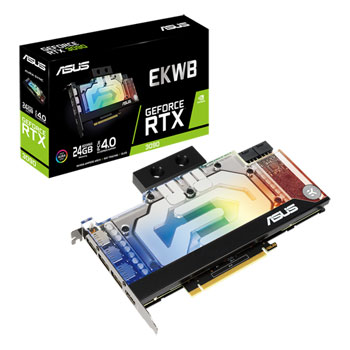

ASUS NVIDIA GeForce RTX 3090 24GB EKWB Ampere Graphics Card
ASUS NVIDIA GeForce RTX 3090 EKWB 24GB GDDR6X Ray-Tracing Graphics Card, 10496 Core, 1410MHz Core, 1725MHz Boost
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

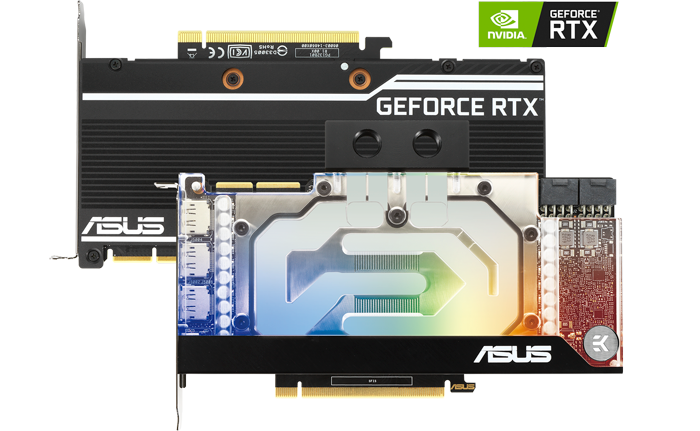

ASUS EKWB GeForce RTX 3090 Ampere 24GB Graphics Card
Let it Flow Prepare yourself for an unforgettable gaming experience with the ASUS EKWB GeForce RTX 3090 24GB Graphics card. These ASUS GeForce RTX 3090 cards are the result of collaborative engineering efforts between ASUS and EK®, and delivers the unprecedented performance that gamers crave for 4K resolution gaming, powered by the NVIDIA Ampere architecture. It's built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and super-fast 24GB of GDDR6X memory for an amazing gaming experience. ASUS Auto-Extreme Technology, along with a metal backplate and customised steel mounting bracket, create a durable foundation for EK®'s full-coverage water block. The entire package takes up just a single slot, bringing the tangible benefits of water cooling to small form factor builds, heavyweight workstations, and showcase rigs Combined with the next generation of design, cooling, and ASUS' GeForce RTX 3090 Series presents a new definition in ultimate performance.

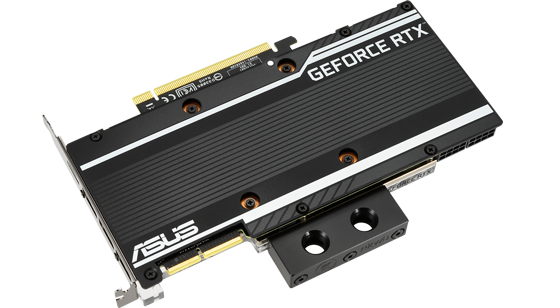

Designed with a Protective Backplate
that's so metal! The ASUS EKWB GeForce RTX 3090 graphics card is newly designed with PCB that is reinforced by an aluminium backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.

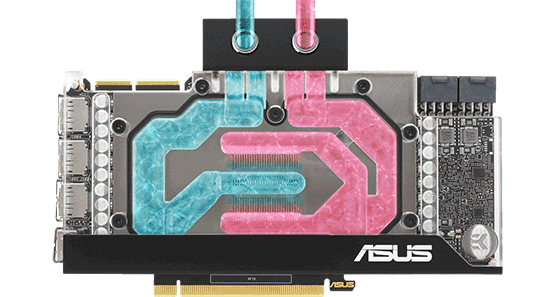

A High-Performance Water Block
Go with the flow
A central inlet split-flow cooling engine designed by EK® channels coolant over the GPU and other key components without restricting flow. The design efficiently dispatches large thermal loads and saves prized slot space.
* For reference only.
Outshine the Competition and Add Style to your Build

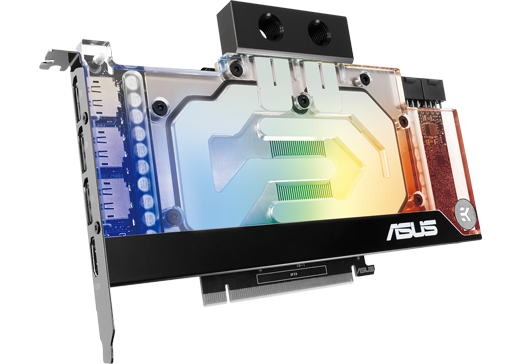

Aura Sync The ASUS EKWB graphics card features an addressable RGB strip that spans the length of the block. Armoury Crate software allows complete control and customisation of the lighting colours and effects. Build with other Aura Sync components to enable uniform lighting across your entire setup.

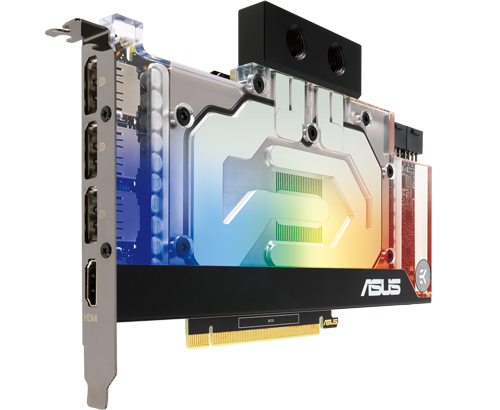

There's so much room! A compact single-slot design increases compatibility with other PCIe peripherals and even allows multiple ASUS EKWB cards to be stacked in a system.

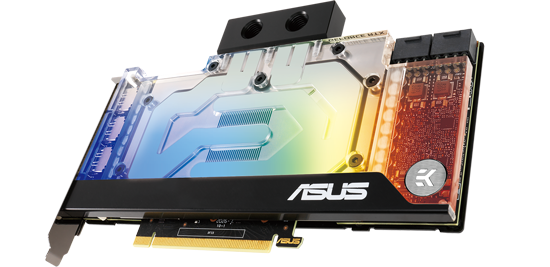

A feat of engineering A nickel-plated copper cold plate prevents oxidation and ensures efficient heat transfer. On top, the cast acrylic cover makes a spectacle of coolant as it courses over the GPU and other components. High-quality EPDM O-rings and brass standoffs are arranged throughout to ensure proper sealing and an easy installation.

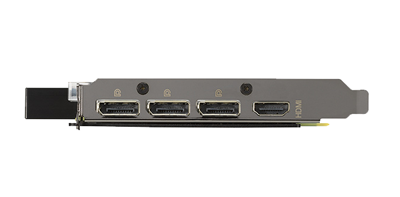

Stainless Steel Bracket
Steel yourself The mounting bracket of the ASUS EKWB has been beefed up with 304 Stainless Steel that's harder and more resistant to corrosion.
Precision Automated Manufacturing
Auto-Extreme TechnologyAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU Tweak II Software
Monitor, Tweak and Tune ASUS utility takes graphics card tuning to the next level, as it allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
WTFASTASUS have partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy fluid online gaming experience.
XSPLIT GAMECASTERXSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!
QUANTUMCLOUDA secure service that lets you earn extra money by putting your idle GPU to work. Earnings are automatically transferred to your WeChat or PayPal account, and your privacy remains intact as it doesn't collect your personal data.
NVIDIA Ampere Architecture
2nd Gen RT Cores2X THROUGHPUT
3rd Gen Tensor CoresUP TO 2X THROUGHPUT
NEW SM2X FP32 THROUGHPUT
DLSS AI Acceleration
Max FPS. Max Quality. Powered by AI. NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. It’s On.Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
Victory Measured in MillisecondsNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
Up Your Creative GameTake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
Stream Like a Boss Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DirectX 12 Ultimate offers features like ray tracing and variable rate shading
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GamingStep up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
GeForce ExperienceThe essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
Game Ready DriversGet the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
Virtual RealityTake your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
NVIDIA G-SyncGet smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
NVIDIA AnselTurn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
NVIDIA GeForce Graphics Card Specifications
|GeForce RTX 30-Series, 20-Series, GTX 16-Series & 10-Series Card Specifications|
|Model||RTX 3090||RTX 3080||RTX 3070||RTX 3060 Ti||TITAN RTX||RTX 2080 Ti||RTX 2080 Super||RTX 2080||RTX 2070 Super||RTX 2070||RTX 2060 Super||RTX 2060||GTX 1080 Ti||GTX 1080||GTX 1070 Ti||GTX 1070||GTX 1660 Ti||GTX 1660 Super||GTX 1660||GTX 1650 Super||GTX 1650||GTX 1060 6GB||GTX 1060 3GB||GTX 1050 Ti||GTX 1050|
|Reference Base Clock||1,400MHz||1,440MHz||1,500MHz||1,410MHz||1,350 MHz||1,350 MHz||1,650 MHz||1,515 MHz||1,605 MHz||1,410 MHz||1,470 MHz||1,365 MHz||1,480 MHz||1,607 MHz||1,607 MHz||1,506 MHz||1,500 MHz||1,530 MHz||1,530 MHz||1,530 MHz||1,485 MHz||1,506 MHz||1,506 MHz||1,290 MHz||1,354 MHz|
|Reference Boost Clock||1,700 MHz||1,710 MHz||1,730 MHz||1,665MHz||1,770 MHz||1,545 MHz||1,815 MHz||1,710 MHz||1,770 MHz||1,710 MHz||1,650 MHz||1,680 MHz||1,582 MHz||1,733 MHz||1,683 MHz||1,683 MHz||1,770 MHz||1,785 MHz||1,785 MHz||1,725 MHz||1,665 MHz||1,708 MHz||1,708 MHz||1,392 MHz||1,455 MHz|
|Memory||24GB GDDR6X||10GB GDDR6X||8GB GDDR6||8GB GDDR6||24GB GDDR6||11GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||6GB GDDR6||11GB GDDR5X||8GB GDDR5X||8GB GDDR5||8GB GDDR5||6GB GDDR6||6GB GDDR6||6GB GDDR5||4GB GDDR6||4GB GDDR5||6GB GDDR5||3GB GDDR5||4GB GDDR5||2GB GDDR5|
|Chipset||GeForce RTX 3090|
|Edition||ASUS EKWB GeForce RTX 3090 24GB|
|Manufacturing process||8 nm|
|Cores & Clocks|
|Core Clock||1695 MHz|
|Boost Clock||1725 MHz|
|Video Memory (VRAM)|
|Memory Bus||384 Bit|
|Cooling Solution||Custom Water Cooling Waterblock|
|I/O & Connectivity|
|GeForce VR Ready||Yes|
|Multi-Way Graphics Support|
|Microsoft DirectX Support|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Real-Time Ray Tracing||Yes|
|NVIDIA RT Cores|
|NVIDIA Tensor Cores|
|Power & Thermals|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||750 W|
|Maximum GPU Temperature|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Dimensions||216 x 136.2 x 19.8 cm mm|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 36 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 36 months
- 0871 472 4747
Date Issued: 24th Sep 2020
Gaming hardware is getting seriously interesting, wouldn't you say? NVIDIA has fired the first shots in the next-generation battle in the form of a new-and-improved Ampere architecture that raises the bar for PC gaming to hitherto undreamt heights.
