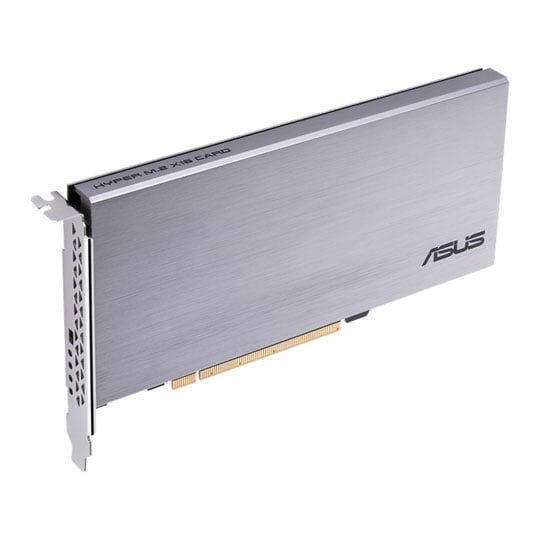

ASUS HYPER M.2 x16 PCIe VROC RAID Card for X299

ASUS HYPER M.2 Card, PCIe 3.0 x16, 4x M.2 PCIe 2242/60/80/110 Slots, Intel VROC Support, for ASUS X299 Motherboards

Thumbnail 1 : ASUS HYPER M.2 x16 PCIe VROC RAID Card for X299 Thumbnail 2 : ASUS HYPER M.2 x16 PCIe VROC RAID Card for X299 Thumbnail 3 : ASUS HYPER M.2 x16 PCIe VROC RAID Card for X299 Thumbnail 4 : ASUS HYPER M.2 x16 PCIe VROC RAID Card for X299
Scan code: LN85477 Manufacturer code: 90MC05G0-M0EAY0
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Oct 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview HYPER M.2 x16 Card: Upgrade your RAID
With Intel® Virtual RAID on CPU (VROC), unused CPU PCle® lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs. Unlike motherboard PCH-based RAID, VROC isn't confined by the 32 Gbps DMI bottleneck, so multiple drives can be teamed to provide incredible throughput.

One Card, 4x The Bandwidth
Hyper M.2 x16 Card is designed specifically for VROC and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.

Designed for Unthrottled Transfer Speed
The card is armed with a large heatsink and active fan to ensure drives are kept cool. An insane number of drives can run in parallel across multiple VROC cards to deliver staggering throughput and massive capacity for system drives, scratch disks, and anything else you want to access at warp speed. Features • Supports up to four PCIE® 3.0 M.2 drives, with transfer bandwidth up to 128Gbps.
• Supports Intel VROC technology, allowing you to use CPU PCIe® lanes to create BOOTable RAID arrays.
• Integrated blower-style fan to prevent throttling.
• Compatible with the following ASUS X299 Motherboards:
- PRIME X299-A
- TUF X299 MARK 1
- TUF X299 MARK 2

Technical Specifications
• PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots, support data transfer rates up to 128 Gbps.
• 4x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only).
• 1x M.2 FAN Power Switch.
• 4x M.2 access LEDs.
• 4x M.2 Screws packages.
• Dimensions: 96 x 13 x 202 mm (WxHxD).

Please note: Intel VROC Bootable with Intel M.2 PCIe NVMe SSDs in conjunction with Skylake-X CPU ONLY. Redundant RAID setups such as RAID 1, 5, 10, etc, or RAID 0 (20+ drives), require an Intel VROC Key, not included, available separately.
