Asus NVIDIA GeForce GTX 1070 8GB ROG STRIX GAMING OC
Asus GeForce GTX 1070 ROG STRIX OC GAMING 8GB GDDR5 VR Ready Graphics Card, 1920 Core, 1632 MHz GPU, 1835 MHz Boost
ASUS GeForce GTX 1070 STRIX OC
ASUS STRIX GTX 1070
This next-generation graphics card from ASUS is aimed at gamers and those with interest in Virtual Reality. As the current leader in graphical power this GPU will dominate recent top-end games at peaked settings. ASUS’ STRIX-GTX features their Tweak II technology and has two speeds (Gaming mode/OC mode) for both the base clock and boosted clock speeds. Plus, ASUS have added a third fan too the GPU to ensure as much cooling as possible. True immersion comes with the STRIX-GTX 1070 gaming card and its capabilities through cinematic quality and consistently fluent gameplay.
Take on today’s most challenging graphics intensive PC games without missing a beat. The GeForce GTX 1070 graphics card delivers the incredible speed and power of NVIDIA Pascal™ the most advanced GPU architecture ever created. This is the ultimate gaming platform. #GameReady.
ASUS STRIX 1070 BREAKDOWN
STRIX GPU COOLING SYSTEM
30% Cooler & 3x Quieter Performance
DirectCU III GPU Cooling Tech
Achieve up to 30% extra cooling performance when gaming with the exclusive DirectCU III cooling technology. This tech features direct-GPU contact heat-pipes that will transport more heat away from the GPU and out-perform the reference designs. *Image for illustration only. Actual design may vary
ENHANCED FAN DESIGN
Max Air Flow 105% More Air Pressure
Triple Wing-Blade GPU Cooling
DirectCU III features triple 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink, while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU III the coolest and quietest graphics card in the market.

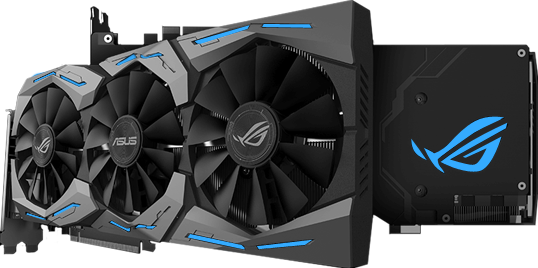

ASUS AURA RGB LED
ASUS 1070 Aura RGB Lighting
Featuring Aura RGB Lighting on both the shroud and backplate, ROG Strix graphics cards are capable of displaying millions of colors and six different effects for a personalized gaming system (as seen above).
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1070|
|Edition||ROG STRIX OC GAMING|
|Manufacturing process||16 nm|
|Core Clock||1632 (1657 in OC Mode) MHz|
|Boost Clock||1835 (1860 in OC Mode) MHz|
|Memory Clock||8008 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||DirectCU III with RGB LED|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU|
|Maximum GPU Temperature|
|Dimensions||134 x 40 x 298 mm|
