Scan code: LN81590 Manufacturer code: GT1030-SL-2G-BRK

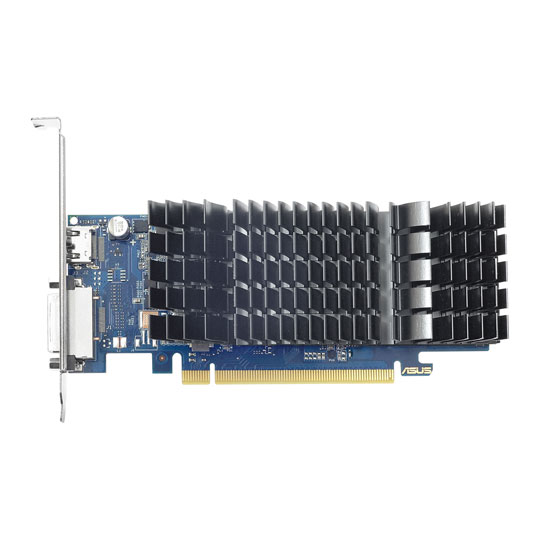

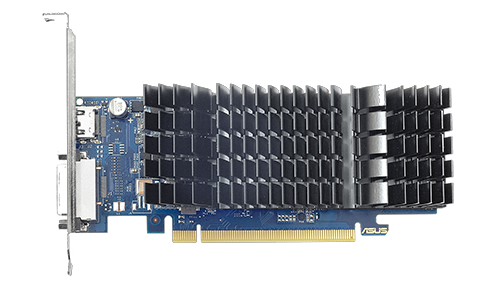

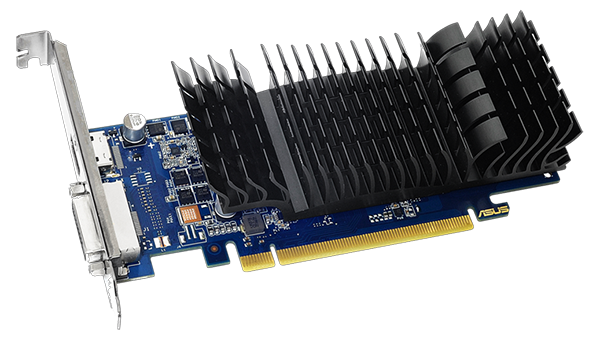

ASUS NVIDIA GeForce GT 1030 2GB Passive

ASUS GeForce GT 1030 Passive 2GB GDDR5 Graphics Card, 384 Core, 1228MHz GPU, 1468MHz Boost

Thumbnail 1 : ASUS NVIDIA GeForce GT 1030 2GB Passive Thumbnail 2 : ASUS NVIDIA GeForce GT 1030 2GB Passive Thumbnail 3 : ASUS NVIDIA GeForce GT 1030 2GB Passive
Scan code: LN81590 Manufacturer code: GT1030-SL-2G-BRK
£82.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

ASUS NVIDIA GeForce GT 1030 2GB Passive

Accelerate your entire PC experience with the fast, powerful ASUS GeForce GT 1030 Passive graphics card. Its award winning NVIDIA Pascal architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today's most demanding PC applications. Unleash your creativity with stunning HD video and picture editing and enjoy incredible gaming. Now, you can do it all 2X faster than with Intel Core i5 integrated graphics. You can even get easy driver updates and one-click game optimization with GeForce Experience.

0dB Cooling: Perfect for Building a Hushed HTPC

Exclusive ASUS-designed heatsink with large surface area effectively cools the graphics card passively so absolutely no sound is produced while running – perfect for high-definition and silent home theatre PCs and multimedia centers.

Low Profile Design: Perfect for Mini-ITX PCs

ASUS gets the graphics card design done right for HTPC and multimedia use with its narrow & compact form factor. The card is designed to easily run current game titles at 1920x1200 resolution and play smooth Blu-ray 3D content.


An industry-only, 100% automated production process that incorporates Super Alloy Power II components for premium quality and best reliability.

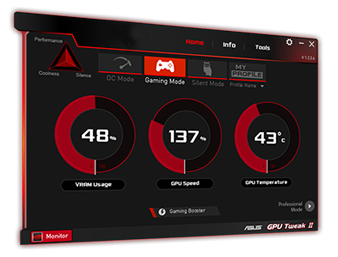

ASUS GPU Tweak II with XSplit Gamecaster

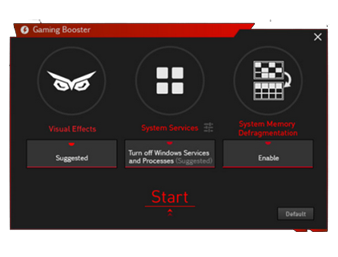

With an intuitive new UI, GPU Tweak II makes overclocking easier than ever, featuring gaming booster to maximise graphics performance, and Xsplit Gamecaster to stream or record your gameplay.


• Passive Cooler for Silent Running.
• NVIDIA GameStream Technology.
• OpenGL 4.5 Support.
• Simultaneous Multi-Projection.
• NVIDIA Ansel.
• NVIDIA GPU Boost 3.0.
• Microsoft DirectX 12.
• Vulkan API.
• PCI Express 3.0.

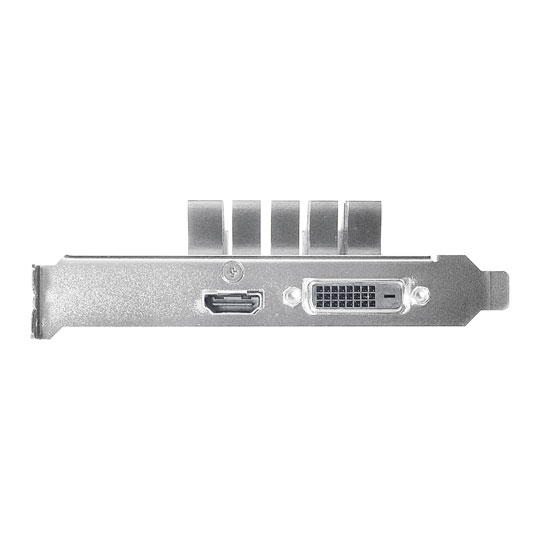

• HDMI 2.0b and DVI-D.
Key Specifications
Chipset GeForce GT 1030
Edition Passive
Manufacturing process 16 nm
Microarchitecture Pascal
Cores & Clocks
Cores 384
Core Clock 1228 (1266 in OC Mode) MHz
Boost Clock 1468 (1506 in OC Mode) MHz
Video Memory (VRAM)
Memory Size 2GB
Memory Type GDDR5
Memory Clock 6008 MHz
Memory Bus 64 Bit
Cooling Solution Passive
Cooler Design ASUS Passive Heatsink
Included/Fitted Backplate No
I/O & Connectivity
Interface PCIe 3.0 (x16)
  • 1 x DVI-D SL
  • 1 x HDMI 2.0b
GeForce VR Ready No
Multi-Way Graphics Support Not Supported
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Max. Concurrent Displays 2 Displays
Maximum Digital Resolution 4096x2304 (4K) @60Hz
Maximum Analog (VGA) Resolution N/A
Real-Time Ray Tracing No
NVIDIA Tensor Cores
Rays Cast
Power & Thermals
Graphics Card Power Connectors
Graphics Card TDP/Power 30W
Minimum Recommended PSU 300 W
Maximum GPU Temperature 97 °C
Width 1.5 Slot
Low Profile Compatible Yes
Low Profile Support N/A
Dimensions 69 x 40 x 173 mm
Package Type Retail
Additional Information
Scan Code LN81590
Model Number GT1030-SL-2G-BRK
GTIN 4712900743333

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Loading Please Wait

Please wait . . .

ASUS GeForce GT 1030 Passive 2GB GDDR5 Graphics Card, 384 Core, 1228MHz GPU, 1468MHz Boost is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Good for the money I wanted a fan free graphics card to run drone simulators, and this fitted the bill. Takes two slots - but the heatsink stops in time that another mounting panel for other extra ports off another card will still fit (not true of all 1030 cards). No extra power supply needed. Comes with normal and low profile panels. Only two connectors - DVI-D and HDMI, but OK for me. Replaced an R5 230, and the simulator frame rate jumped by 10x. Well pleased.
Date published: 2020-05-05
Rated 5 out of 5 by from Does the job quietly If you are not looking for blistering performance - just solid performance, giving a 4k output at 60hz via an HDMI cable - without a fan, i.e. silently, then this does the job. In addition, as compared with an onboard Intel HD graphics chip via a DisplayPort output and cable, the GT 1030 passive card is slightly better in picture quality.
Date published: 2018-07-11
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_81590, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Is this compatible with an ASUS P6X58D-E motherboard

I’m looking to replace a very old ASUS 6850 graphics card. The motherboard is an ASUS P6X58D-E but only has pci express 2.0. Will this graphics card be compatible with it?
Asked by: JonC
Hello, This will be compatible with PCIe 1.0 and 2.0 as well as 3.0 however it would only be able to achieve the maximum speeds from a PCIe 2.0 slot. Regards,
Answered by: JackB
Date published: 2019-08-06

Will this fit into a standard case?

Will this fit into a standard case - be quiet Black Pure Base 600 I assume it will be compatible with a GIGABYTE H370 HD3 motherboard. Thanks Martin
Asked by: Greshoff
