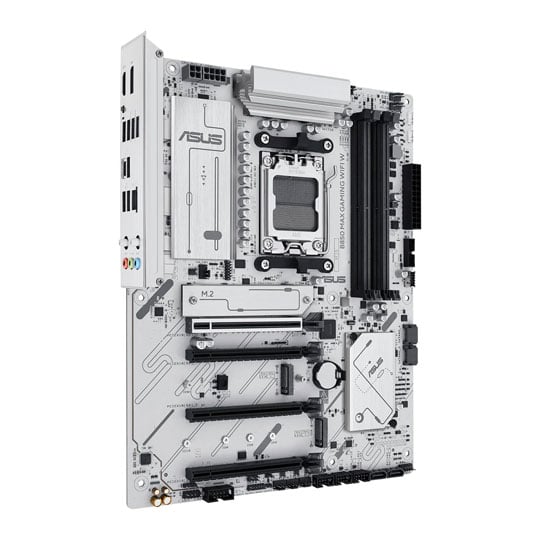

ASUS B850 MAX GAMING WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard
Offer
ASUS B850 MAX GAMING WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN158658 Manufacturer code: 90MB1M10-M0EAY0
Was: £178.99£149.99
Add To Basket
Get it Tomorrow, 19 JulIn stock
  • Thumbnail 1 : ASUS B850 MAX GAMING WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : ASUS B850 MAX GAMING WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : ASUS B850 MAX GAMING WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : ASUS B850 MAX GAMING WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard
Offer

ASUS B850 MAX GAMING WIFI W AM5 DDR5 PCIe 5.0 ATX Motherboard

ASUS B850 MAX GAMING WIFI W, AMD B850, AM5, DDR5, PCIe 5.0, 3 x M.2, 2.5G/WiFi 6E, USB 3.2 Gen 2, AMD EXPO, ATX
MORE INFO
MORE INFO

Scan code: LN158658 Manufacturer code: 90MB1M10-M0EAY0
Was: £178.99£149.99
£5.48 Next day delivery
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Add To Basket
Get it Tomorrow, 19 JulIn stock
Pay in 3 interest-free payments of £50.00

Email me when the availability or price changes

  • By DPD On 20th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £13.59 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

Frequently Bought Together

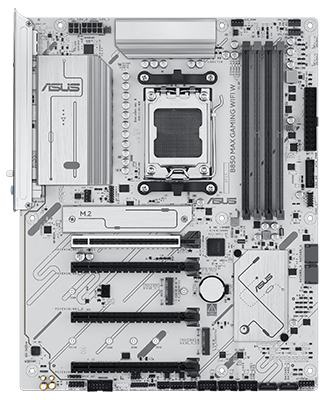

B850 MAX GAMING WIFI W Ryzen™ AM5 ATX Motherboard from ASUS

TUF GAMING B850-E WIFI Motherboard

GET TUF. GAME TOUGH. B850 MAX GAMING WIFI W motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimisations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

B850AMD Chipset

AM5CPU Socket

Ryzen™ 9000/8000/7000Series Processors

ATXForm Factor

Intelligent Control

Power Design

ASUS
AI Advisor

ASUS AI Advisor is a 24/7 technical expert for compatible ASUS motherboards. Users can ask questions in natural language to learn about their hardware. Beginners get simple guides on features like AI Overclocking and fan tuning, while experienced builders receive detailed instructions on the latest ASUS technologies.

Next-Level Performance

Power Design

Premium
Power Design
The B850 MAX GAMING WIFI W utilises an 8+2+1 phase power architecture with discrete MOSFETs, delivering reliable and efficient power to AMD processors for consistent, stable performance in everyday computing tasks.

Six Layered PCB design

Six-Layer PCB DesignEnhanced stability and overclocking.

Power Saving

Power SavingOptimise power with CPU, lighting, and fan settings.

Digi+VRM Control

Digi+VRM ControlReal-time voltage control.

Memory & Storage

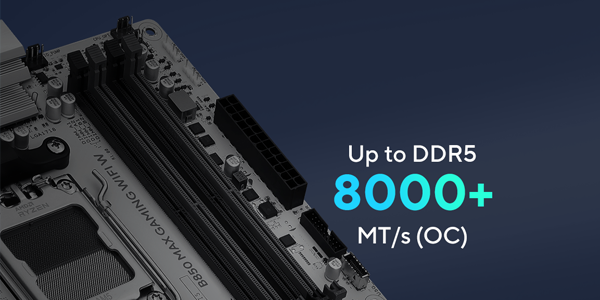

DDR5 Performance

Enhanced
DDR5 Performance
ASUS B850 motherboards are built around extensive memory tuning capabilities. The B850 MAX GAMING WIFI W unlocks the full performance of your DDR5 memory, whether you’re using standard modules or high-speed kits.

DDR5 DOMINANCEThis motherboard supports enthusiast-level DDR5 overclocking with extensive AMD EXPO™ profiles, and experienced users can fine-tune performance further using a wide range of UEFI settings.

ASUS AEMPASUS Enhanced Memory Profile (AEMP) automatically detects non-XMP DDR5 modules and provides optimised frequency, timing, and voltage profiles for easy memory overclocking through the BIOS.

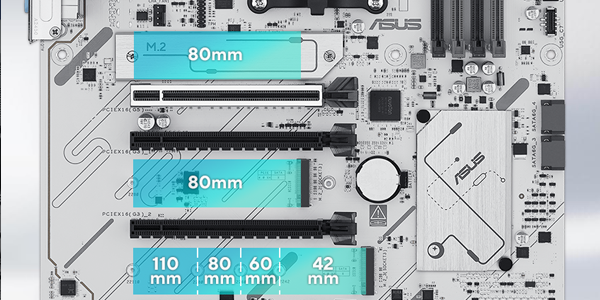

M.2

Three
M.2 Slots
The B850 MAX GAMING WIFI W features three M.2 slots: one supports blazing-fast data transfers up to 128 Gbps with PCIe 5.0, while the other two utilise PCIe 4.0. This setup allows for faster system boot times and quicker application loading when using high-speed SSDs for your operating system or software.

Cooler By Design

AIO Pump Header
VRM Heatsinks
Multiple Temperature Sources
4-Pin PWM/DC Fan
M.2 Heatsink
Passive Chipset Heatsink
Smart Protection

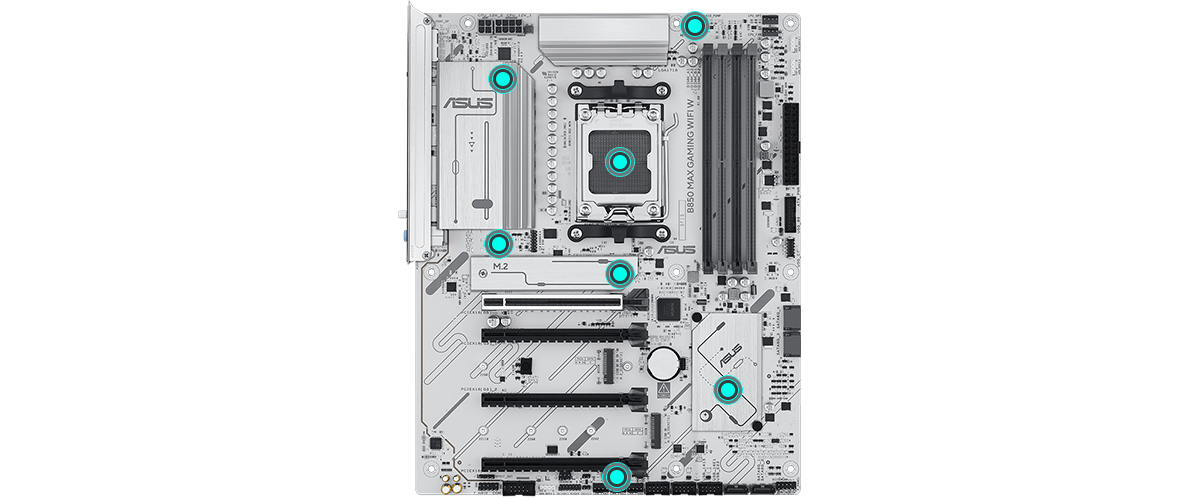

Cooling locations on the motherboard
AIO Pump Header
VRM Heatsinks
Multiple Temperature Sources
4-Pin PWM/DC Fan
M.2 Heatsink
Passive Chipset Heatsink
Smart Protection

Empowering Connectivity

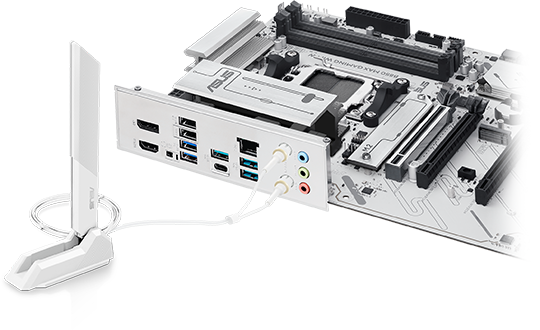

Networking

WiFi 6EIntegrated WiFi 6E technology utilises the new 6 GHz band, offering triple the bandwidth compared to the 2.4/5/6 GHz bands. This enables ultra-fast wireless speeds, increased network capacity, and enhanced performance in crowded wireless environments.

2.5Gb Ethernet On-board 2.5Gb Ethernet boosts LAN speeds up to 2.5 times using existing cables, reducing lag, enabling smoother high-res video streaming, and speeding up file transfers for an enhanced network experience.

USB 10Gbps Type-CA range of USB ports accommodates advanced setups loaded with devices, featuring a rear USB Type-C® connector that delivers blazing-fast data transfer speeds of up to 10Gbps.

Connectivity Options

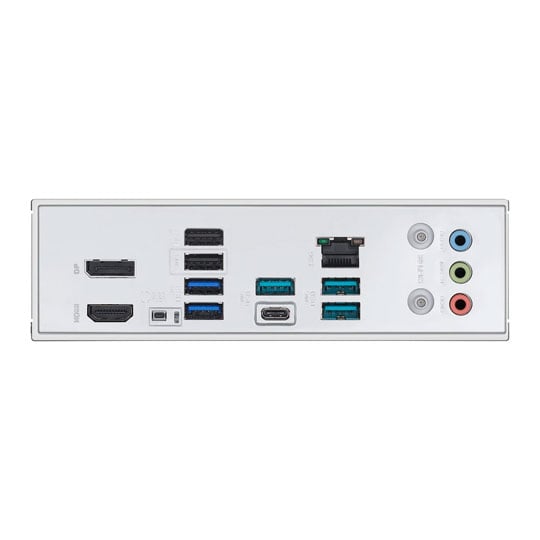

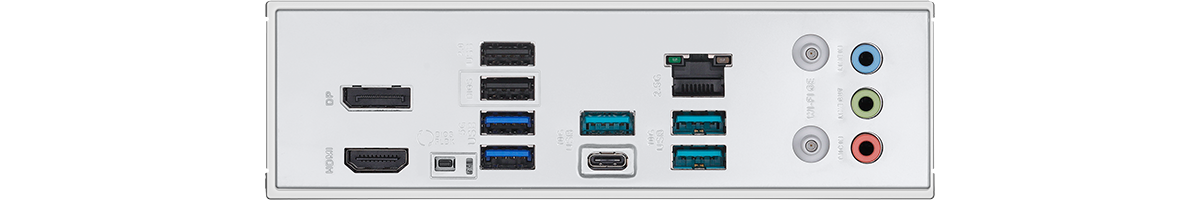

Rear I/O panel of the motherboard

1x DisplayPort

1x HDMI™ port

1x BIOS FlashBack™

2x USB 2.0 ports

2x USB 5Gbps ports

3x USB 10Gbps ports

1x USB-C 10Gbps port

2.5Gb Ethernet

Wi-Fi Module

3x Audio jacks

1x DisplayPort
1x HDMI™ port
1x BIOS FlashBack™
2x USB 2.0 ports
2x USB 5Gbps ports
3x USB 10Gbps ports
1x USB-C 10Gbps port
2.5Gb Ethernet
Wi-Fi Module
3x Audio jacks
Specifications
Core Specifications
Edition B850 MAX GAMING WIFI W
Form Factor ATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 256GB (4x64GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 2 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intruder
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 3 x USB 2.0 Header
  • 1 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB4 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.3
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN158658
Model Number 90MB1M10-M0EAY0
GTIN 4711387981016
