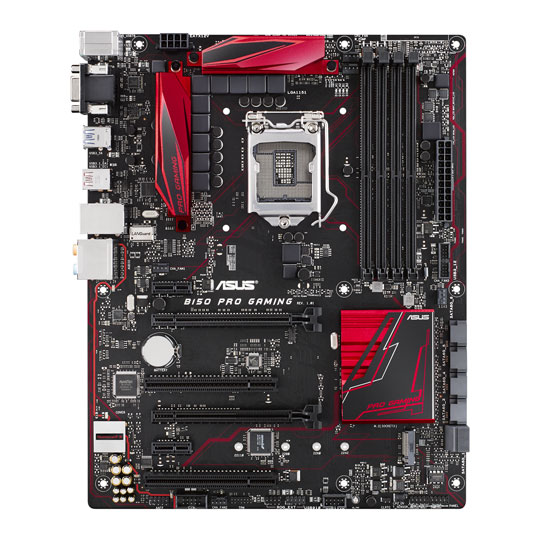

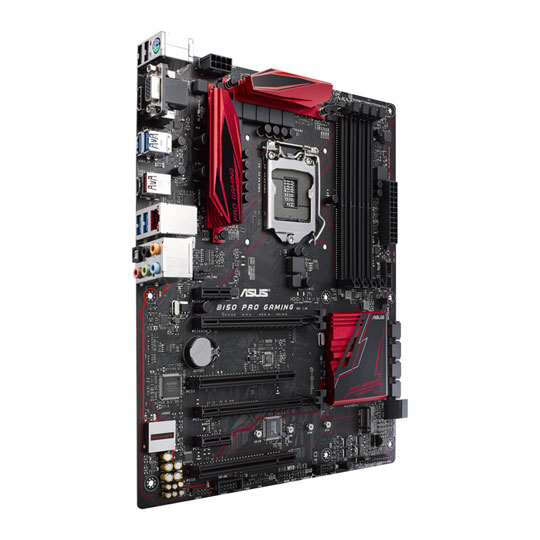

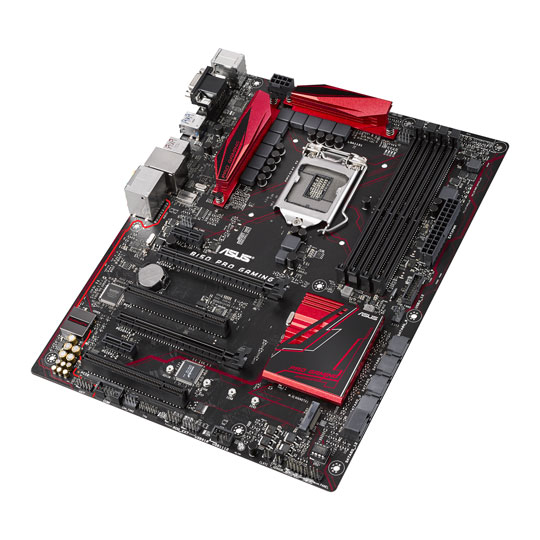

ASUS Intel B150 PRO GAMING DDR4 Skylake ATX Motherboard

Asus B150 PRO GAMING, Intel B150, S 1151, DDR4, SATA3 6Gbps, M.2 (PCIe/SATA), 2-Way CrossFire, Intel LAN, USB3.1A+C, ATX

Asus
Scan code: LN70042 Manufacturer code: B150 PRO GAMING Request call
Call for price
High End
Delivery options £5.48 By DPD On 27th Feb 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Features • LGA 1151 socket for 6th-generation Intel Core i7 / Core i5 / Core i3, Pentium and Celeron processors.
• Dual-channel DDR4 2133 support.
• SupremeFX: Flawless audio that makes you part of game.
• Sonic Radar II: Scan and detect your enemies to dominate.
• Intel Gigabit Ethernet, LANGuard and GameFirst technology: Top-speed protected networking.
• RAMcache: Speed up your game loads.
• Gamer's Guardian: Highly-durable components smart DIY features.
• USB 3.1 Type-A/C and M.2: Ultra-speedy transfers for faster gaming
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel B150
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2133
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio SupremeFX 8-Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 2 x PCI
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via Not Supported
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 1 x ROG Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x Thermal sensor connector
  • 1 x TPM Header (14-1 pin)
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
  • 1 x Water Pump Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

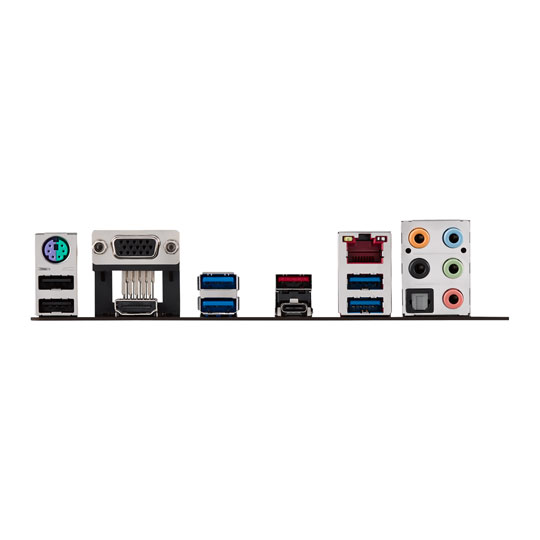

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x D-Sub (VGA) Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
Asus B150 PRO GAMING, Intel B150, S 1151, DDR4, SATA3 6Gbps, M.2 (PCIe/SATA), 2-Way CrossFire, Intel LAN, USB3.1A+C, ATX is rated 4.0 out of 5 by 2.
Rated 5 out of 5 by from Excellent Board. This motherboard is great, i recently used it in my latest skylake gaming rig and its been working great so far! It is definitely the best motherboard for its price, hands down.
Date published: 2017-01-09
Rated 3 out of 5 by from I highly recommend this motherboard BUT..... This motherboard is great but there was one very fundermental problem when I installed the drivers and the bios. The CD that comes with it gives you out dated drivers and bios. Which you will have to download online on a USB stick and start up when you are in the out dated bios screen. Basically when I first started up my PC it was perfect. Until I installed the drivers. This turned off ALL my USB ports even on the case. So make sure you download the drivers off their website before installing the ones on the disk.
Date published: 2016-09-12
