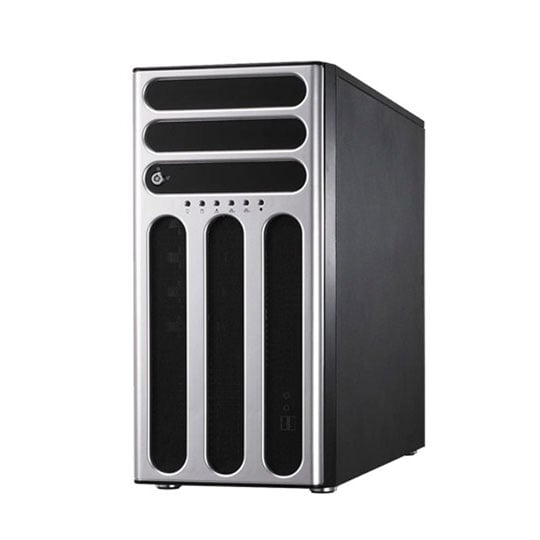

Asus TS500-E8-PS4 DDR4 Server Unbuffered 5U

Asus 90SV020A-M01CE0, Intel C612 PCH, S2011-3 DDR4 ECC Registered/Unbuffered, 5U

Asus
Scan code: LN61047 Manufacturer code: 90SV020A-M01CE0 Request call
Call for price
3xs Approved High End
Delivery options £11.50 By DPD On 2nd May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview TS500-E8-PS4 is the mainstream Tower server perfectly built for both workstation and server dual use. It features the latest Intel Xeon processor E5-2600 v3 product families, 8 DIMMs, six expansion slots, three 5.25 media bays and single 500W 80 PLUS Bronze power supply.

Additionally, as other E8 series server, TS500-E8-PS4 equips the premium components offering up to 94% VR efficiency as well as the complete remote management solution. With the extreme computing power and flexible expandability, TS500-E8-PS4 is perfect for growing business applications and individual workstation users. Features High Flexibility
TS500-E8-PS4 has 4 HDD bays and optional ASUS PIKE II upgrade kit performing high flexibility. There are four 3.5” hot-swap SATA/SAS HDD bays which is also upgradable to eight HDD bays for flexible storage requirement. Besides working as a pedestal server, the TS500-E8-PS4 is also rack-mountable with the optional rack-mount kit, saving space and consolidating with the many systems required by growing businesses.

Server & Workstation Dual Use
There are 6 expansion slots include 2 PCI-E Gen3 x16 slots supporting up to x16 link perfectly for graphic applications. Moreover, MIO-892 audio card support could offer great sound quality and 7.1 surround channel audio experience. TS500-E8-PS4 is perfectly for both server and workstation dual use.

Premium components for premium efficiency
TS500-E8-PS4 benefits from premium components hand-chosen and carefully arranged by ASUS engineers to provide premium efficiency. With ASUS Beat Thermal Chokes, Dr. MOS, it delivers great durability and up to 94% VR efficiency. TS500-E8-PS4 has durable 12k solid capacitors that are able to withstand up to 12,000 hours of high ambient temperatures. These 12K capacitors also boast lower equivalent series resistance (ESR) for increased efficiency and minimal heat generation.

Complete Remote Server Management
With the Intelligent Platform Management Interface (IPMI) 2.0-compliant ASMB8-iKVM module in TS500-E8-PS4 you’ll be able to monitor, control and manage the server remotely. ASUS Server Web-based Management (ASWM) Enterprise has a simple and intuitive web-based graphical user interface. Save time and effort by flashing the BIOS remotely, use the new screen-recording function for quick and easy trouble-shooting and exploit the many efficiency benefits of one-to-many centralized management afforded by ASWM Enterprise.
Specifications
Specifications
Edition
Form Factor 5U
CPU Included No
CPU Type Intel Xeon
Core 16 Core
No. of Threads N/A
CPU Model
Clock Speed - GHz
Burst Frequency N/A
CPU Cooler
CPU Socket 2011-3
Chipset Intel C612 PCH
Motherboard Form Factor
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / UDIMM
Memory Speed (Mhz)
  • DDR4 - 1333
  • DDR4 - 1600
  • DDR4 - 1866
  • DDR4 - 2133
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
GPU Chipset
GPU Cores
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive DVD±RW
Drive Bays
  • 4 x 3.5"
  • 3 x 5.25"
RAID Support SATA
Internal I/O 10 x SATA III - 6Gb/s
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable
PSU Wattage 500 W
Operating System Included No
Operating System N/A
Colour Black/ Silver
Dimensions 217.5 x 455 x 545 (mm WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
